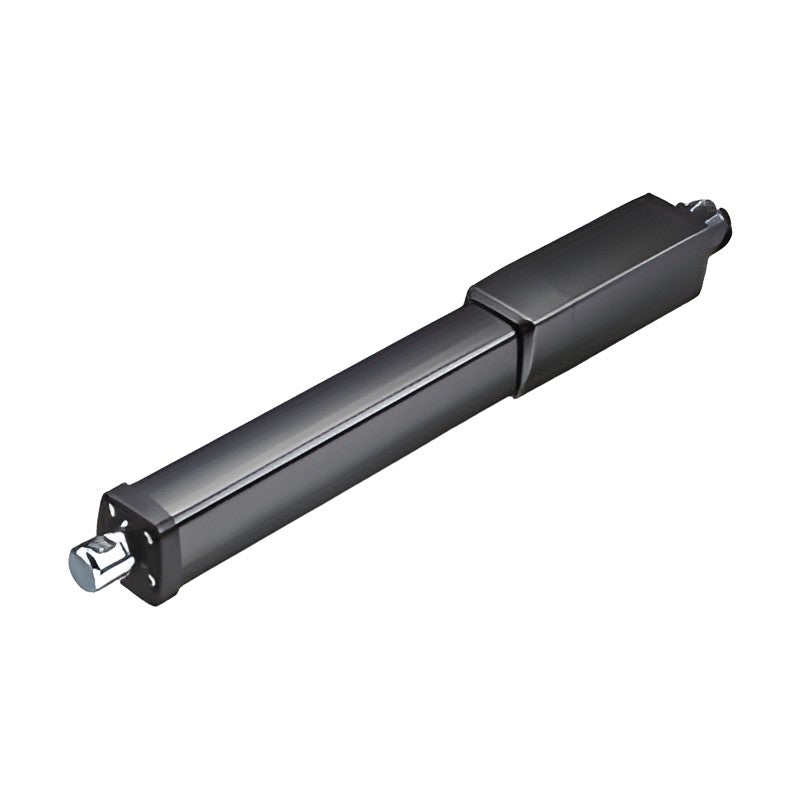

TiMOTION JP3 Series Linear Actuator (up to 2,000 N)

TiMOTION JP3 Series Linear Actuator (up to 2,000 N)

TiMOTION JP3 series inline linear actuator for low-load industrial applications needing up to IP69K dust and liquid ingress protection.

Key features

  • Inline design for compact installations
  • Up to 2,000 N push / pull
  • Up to IP69K protection
  • Optional Hall sensors for synchronisation and feedback
  • Operating range -5 to +65 C

Specifications

Voltage 12 / 24 V DC (PTC available)
Max. load 2,000 N push / pull
Max. speed at full load 19 mm/s (500 N)
Stroke 20-1000 mm
Min. installation Stroke + 217 mm
IP rating Up to IP69K
Certificate UL73
Color Black or grey
Storage temp. -40 to +70 C
Product segment Industrial Motion
Load codes 4 (full code per ordering key)
Source TiMOTION JP3 series datasheet
JP3-B Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 3.5 mm/s | Current at load: 3.0 A | Motor: 5600 RPM
JP3-C Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 6.5 mm/s | Current at load: 3.0 A | Motor: 5600 RPM
JP3-D Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 8.5 mm/s | Current at load: 3.0 A | Motor: 5600 RPM
JP3-E Push/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 19.0 mm/s | Current at load: 3.0 A | Motor: 5600 RPM
Linear ActuatorsTiMOTION
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION JP3 Series Linear Actuator (up to 2,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (4)

JP3-B, JP3-C, JP3-D, JP3-E

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JP3-BPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 3.5 mm/s | Current at load: 3.0 A | Motor: 5600 RPM
JP3-CPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 6.5 mm/s | Current at load: 3.0 A | Motor: 5600 RPM
JP3-DPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 8.5 mm/s | Current at load: 3.0 A | Motor: 5600 RPM
JP3-EPush/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 19.0 mm/s | Current at load: 3.0 A | Motor: 5600 RPM
