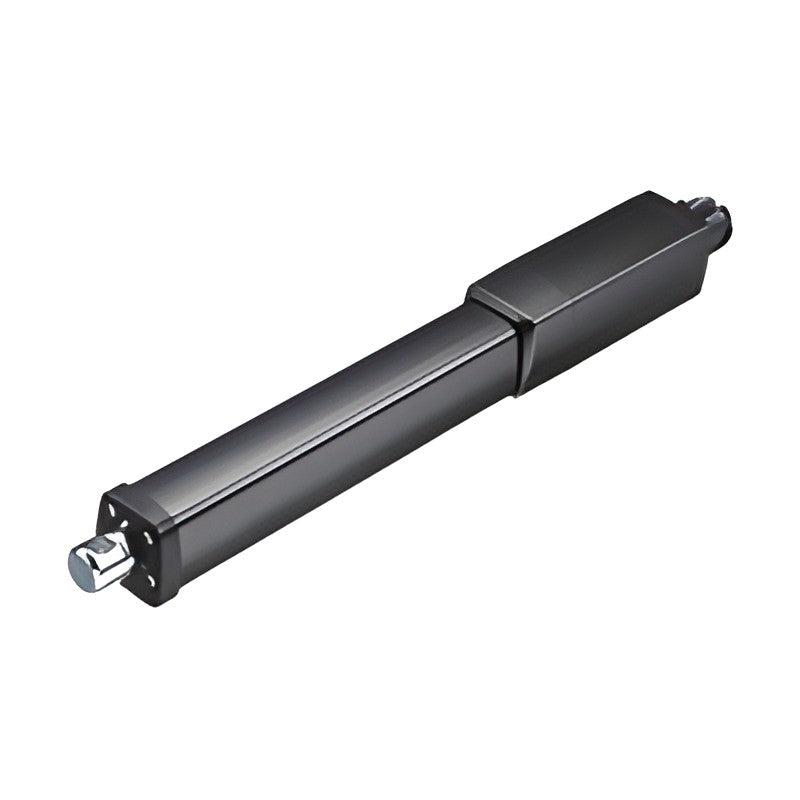

TiMOTION JP4 Series Linear Actuator (up to 4,500 N)

TiMOTION JP4 Series Linear Actuator (up to 4,500 N)

TiMOTION JP4 series IP69K inline linear actuator for industrial applications needing higher load and speed than the JP3.

Key features

  • Inline design, IP69K protection
  • Up to 4,500 N push / 3,000 N pull
  • Withstands high-pressure, high-temperature wash-down
  • Optional Hall sensors
  • Operating range -5 to +65 C

Specifications

Voltage 12 / 24 V DC (PTC available)
Max. load 4,500 N push / 3,000 N pull
Max. speed at full load 24 mm/s (500 N)
Stroke 20-1000 mm
Min. installation Stroke + 289 mm
IP rating Up to IP69K
Certificate UL73
Color Black or grey
Product segment Industrial Motion
Load codes 6 (full code per ordering key)
Source TiMOTION JP4 series datasheet
JP4-B Push/Pull: 4,500/3,000 N | Self-lock: 4,500 N | Speed at load: 2.5 mm/s | Current at load: 4.0 A | Motor: 3800 RPM
JP4-C Push/Pull: 3,500/3,000 N | Self-lock: 3,000 N | Speed at load: 4.0 mm/s | Current at load: 4.0 A | Motor: 3800 RPM
JP4-D Push/Pull: 2,500/2,500 N | Self-lock: 2,000 N | Speed at load: 5.6 mm/s | Current at load: 4.0 A | Motor: 3800 RPM
JP4-E Push/Pull: 1,500/1,500 N | Self-lock: 1,000 N | Speed at load: 9.5 mm/s | Current at load: 3.0 A | Motor: 3800 RPM
JP4-F Push/Pull: 1,000/1,000 N | Self-lock: 700 N | Speed at load: 14.0 mm/s | Current at load: 3.0 A | Motor: 3800 RPM
JP4-G Push/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 24.0 mm/s | Current at load: 3.0 A | Motor: 3800 RPM
Linear ActuatorsTiMOTION
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION JP4 Series Linear Actuator (up to 4,500 N)

Brand TiMOTION·Linear Actuators

Available part numbers (6)

JP4-B, JP4-C, JP4-D, JP4-E, JP4-F, JP4-G

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
JP4-BPush/Pull: 4,500/3,000 N | Self-lock: 4,500 N | Speed at load: 2.5 mm/s | Current at load: 4.0 A | Motor: 3800 RPM
JP4-CPush/Pull: 3,500/3,000 N | Self-lock: 3,000 N | Speed at load: 4.0 mm/s | Current at load: 4.0 A | Motor: 3800 RPM
JP4-DPush/Pull: 2,500/2,500 N | Self-lock: 2,000 N | Speed at load: 5.6 mm/s | Current at load: 4.0 A | Motor: 3800 RPM
JP4-EPush/Pull: 1,500/1,500 N | Self-lock: 1,000 N | Speed at load: 9.5 mm/s | Current at load: 3.0 A | Motor: 3800 RPM
JP4-FPush/Pull: 1,000/1,000 N | Self-lock: 700 N | Speed at load: 14.0 mm/s | Current at load: 3.0 A | Motor: 3800 RPM
JP4-GPush/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 24.0 mm/s | Current at load: 3.0 A | Motor: 3800 RPM
