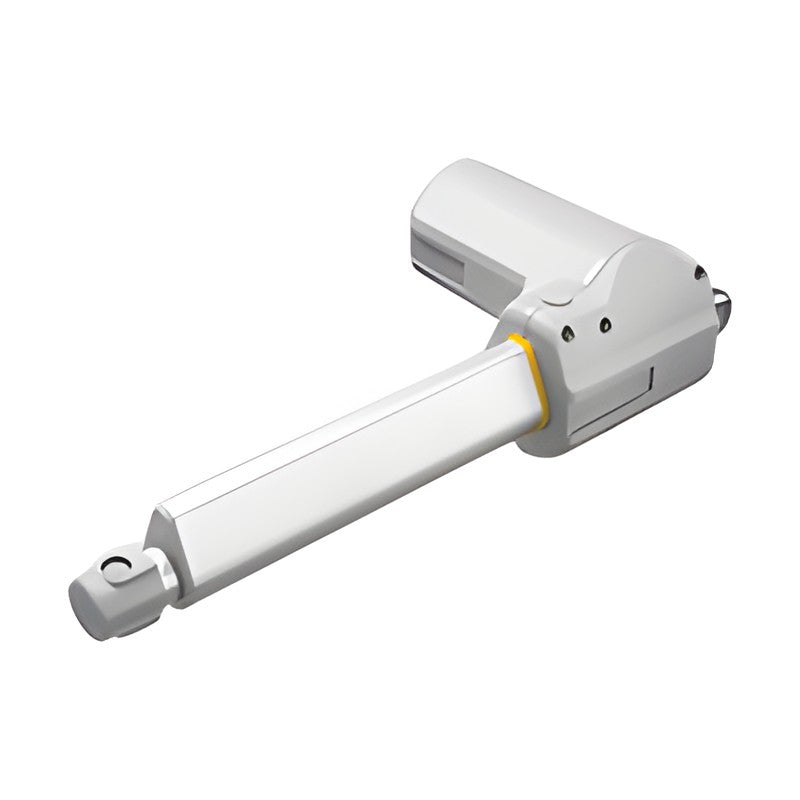

TiMOTION TA1 Series Linear Actuator (up to 10,000 N)

TiMOTION TA1 Series Linear Actuator (up to 10,000 N)

TiMOTION's flagship TA1 series linear actuator for healthcare beds and furniture, rated up to 10,000 N push with IEC60601-1 medical certification.

Key features

  • Up to 10,000 N push / 4,000 N pull
  • Three motor speeds with 19 load/speed codes
  • IP66W protection for wash-down care environments
  • Options: safety nut, quick release, Reed or Hall sensors
  • 12, 24, 36 V DC or 24 V DC (PTC) motors

Specifications

Voltage 12, 24, 36 V DC or 24 V DC (PTC)
Max. load 10,000 N push / 4,000 N pull
Max. speed (no load) 39.0 mm/s
Stroke 25-1000 mm
Retracted length Stroke + 163 mm min.
IP rating IP66W
Certificates IEC60601-1, ES60601-1, EN60601-1-2, EMC
Color Black or grey
Operating temp. +5 to +45 C
Product segment Care / Comfort / Ergo Motion
Load codes 19 (full code per ordering key)
Source TiMOTION TA1 series datasheet
TA1-C Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 4.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA1-D Push/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 3.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA1-F Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 8.3 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA1-G Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 12.1 mm/s | Current at load: 2.8 A | Motor: 2600 RPM
TA1-H Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 19.1 mm/s | Current at load: 2.1 A | Motor: 2600 RPM
TA1-J Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 6.0 mm/s | Current at load: 3.6 A | Motor: 2600 RPM
TA1-K Push/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 2.7 mm/s | Current at load: 4.0 A | Motor: 2600 RPM
TA1-L Push/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 4.1 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA1-N Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 11.1 mm/s | Current at load: 4.1 A | Motor: 3400 RPM
TA1-O Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 14.9 mm/s | Current at load: 4.0 A | Motor: 3400 RPM
TA1-P Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 23.4 mm/s | Current at load: 3.0 A | Motor: 3400 RPM
TA1-Q Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 7.9 mm/s | Current at load: 4.6 A | Motor: 3400 RPM
TA1-R Push/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 3.5 mm/s | Current at load: 5.0 A | Motor: 3400 RPM
TA1-T Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 5.4 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA1-Y Push/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 4.4 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
TA1-B Push/Pull: 10,000/4,000 N | Self-lock: 10,000 N | Speed at load: 3.2 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
TA1-U Push/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 6.6 mm/s | Current at load: 4.7 A | Motor: 3800 RPM
TA1-W Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 13.4 mm/s | Current at load: 4.6 A | Motor: 3800 RPM
TA1-Z Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 9.8 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
Linear ActuatorsTiMOTION
19 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA1 Series Linear Actuator (up to 10,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (19)

TA1-C, TA1-D, TA1-F, TA1-G, TA1-H, TA1-J, TA1-K, TA1-L, TA1-N, TA1-O + 9 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA1-CPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 4.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA1-DPush/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 3.1 mm/s | Current at load: 3.5 A | Motor: 2600 RPM
TA1-FPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 8.3 mm/s | Current at load: 3.2 A | Motor: 2600 RPM
TA1-GPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 12.1 mm/s | Current at load: 2.8 A | Motor: 2600 RPM
TA1-HPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 19.1 mm/s | Current at load: 2.1 A | Motor: 2600 RPM
TA1-JPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 6.0 mm/s | Current at load: 3.6 A | Motor: 2600 RPM
TA1-KPush/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 2.7 mm/s | Current at load: 4.0 A | Motor: 2600 RPM
TA1-LPush/Pull: 6,000/4,000 N | Self-lock: 6,000 N | Speed at load: 4.1 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA1-NPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 11.1 mm/s | Current at load: 4.1 A | Motor: 3400 RPM
TA1-OPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 14.9 mm/s | Current at load: 4.0 A | Motor: 3400 RPM
TA1-PPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 23.4 mm/s | Current at load: 3.0 A | Motor: 3400 RPM
TA1-QPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 7.9 mm/s | Current at load: 4.6 A | Motor: 3400 RPM
TA1-RPush/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 3.5 mm/s | Current at load: 5.0 A | Motor: 3400 RPM
TA1-TPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 5.4 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA1-YPush/Pull: 8,000/4,000 N | Self-lock: 8,000 N | Speed at load: 4.4 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
TA1-BPush/Pull: 10,000/4,000 N | Self-lock: 10,000 N | Speed at load: 3.2 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
TA1-UPush/Pull: 5,000/4,000 N | Self-lock: 5,000 N | Speed at load: 6.6 mm/s | Current at load: 4.7 A | Motor: 3800 RPM
TA1-WPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 13.4 mm/s | Current at load: 4.6 A | Motor: 3800 RPM
TA1-ZPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 9.8 mm/s | Current at load: 5.3 A | Motor: 3800 RPM
