TiMOTION TA10 Series Linear Actuator (up to 6,000 N)

TiMOTION TA10 Series Linear Actuator (up to 6,000 N)

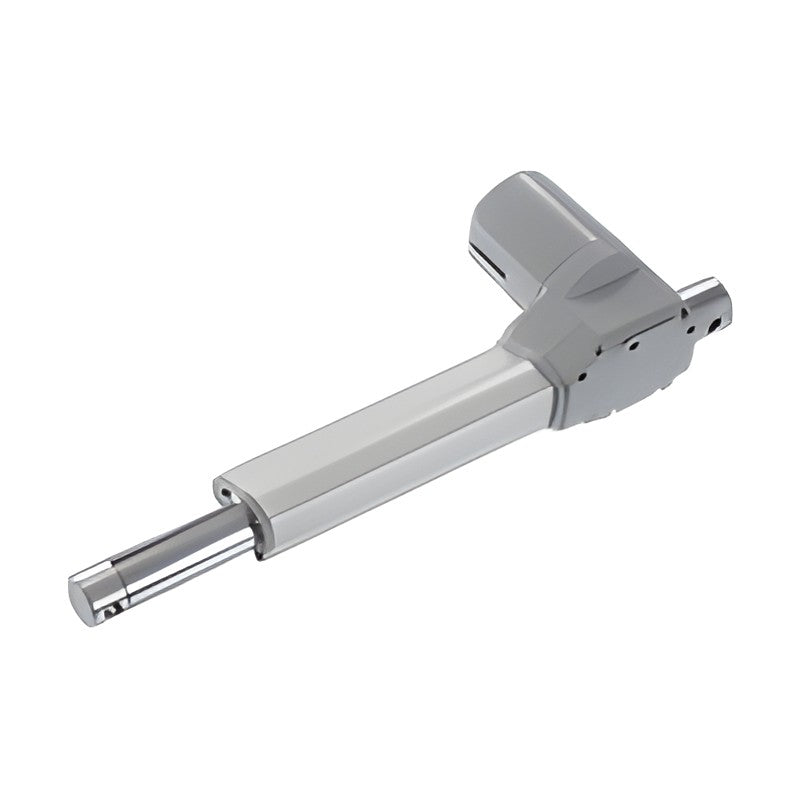

TiMOTION TA10 series medical linear actuator with a manual crank attachment for emergency bed adjustment, rated up to 6,000 N push.

Key features

  • Manual crank function for emergency operation
  • Up to 6,000 N push / 4,000 N pull
  • Optional IP54 or IP66 rating
  • Optional Hall sensor(s)
  • 12, 24, 36 V DC or 24 V DC (PTC)

Specifications

Voltage 12, 24, 36 V DC or 24 V DC (PTC)
Max. load 6,000 N push / 4,000 N pull
Max. speed (no load) 14.5 mm/s
Stroke 25-300 mm
Retracted length Stroke + 188 mm min.
IP rating IP66
Certificates IEC60601-1, ES60601-1
Color Black or grey
Product segment Care Motion
Load codes 4 (full code per ordering key)
Source TiMOTION TA10 series datasheet
TA10-D Push/Pull: 6,000/4,000 N | Self-lock: 2,500 N | Speed at load: 3.3 mm/s | Current at load: 3.6 A | Motor: 2600 RPM
TA10-J Push/Pull: 3,500/3,500 N | Self-lock: 1,500 N | Speed at load: 5.8 mm/s | Current at load: 3.7 A | Motor: 2600 RPM
TA10-L Push/Pull: 6,000/4,000 N | Self-lock: 2,500 N | Speed at load: 4.2 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA10-Q Push/Pull: 3,500/3,500 N | Self-lock: 1,500 N | Speed at load: 7.7 mm/s | Current at load: 4.8 A | Motor: 3400 RPM
Linear ActuatorsTiMOTION
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA10 Series Linear Actuator (up to 6,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (4)

TA10-D, TA10-J, TA10-L, TA10-Q

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA10-DPush/Pull: 6,000/4,000 N | Self-lock: 2,500 N | Speed at load: 3.3 mm/s | Current at load: 3.6 A | Motor: 2600 RPM
TA10-JPush/Pull: 3,500/3,500 N | Self-lock: 1,500 N | Speed at load: 5.8 mm/s | Current at load: 3.7 A | Motor: 2600 RPM
TA10-LPush/Pull: 6,000/4,000 N | Self-lock: 2,500 N | Speed at load: 4.2 mm/s | Current at load: 4.2 A | Motor: 3400 RPM
TA10-QPush/Pull: 3,500/3,500 N | Self-lock: 1,500 N | Speed at load: 7.7 mm/s | Current at load: 4.8 A | Motor: 3400 RPM
