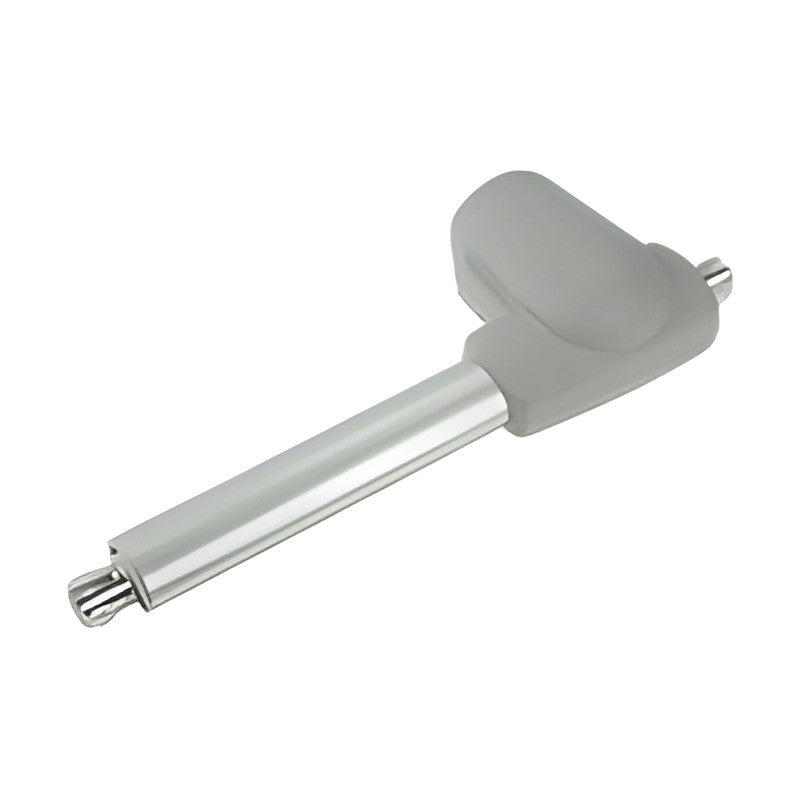

TiMOTION TA12 Series Linear Actuator (up to 12,000 N)

TiMOTION TA12 Series Linear Actuator (up to 12,000 N)

High-load TiMOTION TA12 series linear actuator for patient lifts and bariatric beds, rated up to 12,000 N push with manual release.

Key features

  • Up to 12,000 N push / 6,000 N pull
  • Manual release for emergency lowering
  • Options: safety nut, Hall sensors, POT, quick release
  • Up to IP66W protection
  • Suitable for patient hoists

Specifications

Voltage 12, 24 V DC (PTC); 24 V DC thermal protector
Max. load 12,000 N push / 6,000 N pull
Max. speed at full load 32.3 mm/s (1,500 N)
Stroke 25-1000 mm
Min. installation Stroke + 210 mm
IP rating Up to IP66W
Certificates IEC60601-1, ES60601-1, IEC60601-1-2, EMC
Color Black or grey
Product segment Care Motion
Load codes 11 (full code per ordering key)
Source TiMOTION TA12 series datasheet
TA12-B Push/Pull: 12,000/6,000 N | Self-lock: 12,000 N | Speed at load: 4.0 mm/s | Current at load: 10.0 A | Motor: 3800 RPM
TA12-C Push/Pull: 7,000/6,000 N | Self-lock: 7,000 N | Speed at load: 8.1 mm/s | Current at load: 9.0 A | Motor: 3800 RPM
TA12-D Push/Pull: 4,000/4,000 N | Self-lock: 4,000 N | Speed at load: 16.2 mm/s | Current at load: 9.5 A | Motor: 3800 RPM
TA12-E Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 24.3 mm/s | Current at load: 8.5 A | Motor: 3800 RPM
TA12-F Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 32.3 mm/s | Current at load: 7.5 A | Motor: 3800 RPM
TA12-G Push/Pull: 10,000/6,000 N | Self-lock: 10,000 N | Speed at load: 5.2 mm/s | Current at load: 10.0 A | Motor: 3000 RPM
TA12-H Push/Pull: 12,000/6,000 N | Self-lock: 12,000 N | Speed at load: 3.1 mm/s | Current at load: 7.5 A | Motor: 3000 RPM
TA12-J Push/Pull: 7,000/6,000 N | Self-lock: 7,000 N | Speed at load: 6.0 mm/s | Current at load: 7.5 A | Motor: 3000 RPM
TA12-K Push/Pull: 4,000/4,000 N | Self-lock: 4,000 N | Speed at load: 12.7 mm/s | Current at load: 7.0 A | Motor: 3000 RPM
TA12-L Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 19.1 mm/s | Current at load: 6.5 A | Motor: 3000 RPM
TA12-M Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 25.5 mm/s | Current at load: 6.0 A | Motor: 3000 RPM
Linear ActuatorsTiMOTION
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA12 Series Linear Actuator (up to 12,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (11)

TA12-B, TA12-C, TA12-D, TA12-E, TA12-F, TA12-G, TA12-H, TA12-J, TA12-K, TA12-L + 1 more — see full table ↓

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA12-BPush/Pull: 12,000/6,000 N | Self-lock: 12,000 N | Speed at load: 4.0 mm/s | Current at load: 10.0 A | Motor: 3800 RPM
TA12-CPush/Pull: 7,000/6,000 N | Self-lock: 7,000 N | Speed at load: 8.1 mm/s | Current at load: 9.0 A | Motor: 3800 RPM
TA12-DPush/Pull: 4,000/4,000 N | Self-lock: 4,000 N | Speed at load: 16.2 mm/s | Current at load: 9.5 A | Motor: 3800 RPM
TA12-EPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 24.3 mm/s | Current at load: 8.5 A | Motor: 3800 RPM
TA12-FPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 32.3 mm/s | Current at load: 7.5 A | Motor: 3800 RPM
TA12-GPush/Pull: 10,000/6,000 N | Self-lock: 10,000 N | Speed at load: 5.2 mm/s | Current at load: 10.0 A | Motor: 3000 RPM
TA12-HPush/Pull: 12,000/6,000 N | Self-lock: 12,000 N | Speed at load: 3.1 mm/s | Current at load: 7.5 A | Motor: 3000 RPM
TA12-JPush/Pull: 7,000/6,000 N | Self-lock: 7,000 N | Speed at load: 6.0 mm/s | Current at load: 7.5 A | Motor: 3000 RPM
TA12-KPush/Pull: 4,000/4,000 N | Self-lock: 4,000 N | Speed at load: 12.7 mm/s | Current at load: 7.0 A | Motor: 3000 RPM
TA12-LPush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 19.1 mm/s | Current at load: 6.5 A | Motor: 3000 RPM
TA12-MPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 25.5 mm/s | Current at load: 6.0 A | Motor: 3000 RPM
