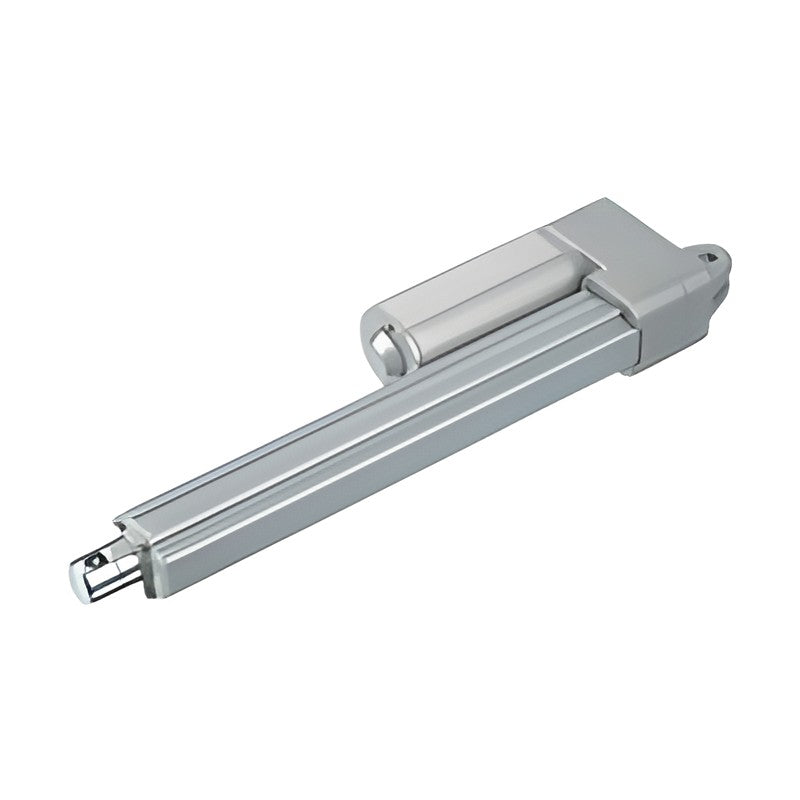

TiMOTION TA16 Series Linear Actuator (up to 3,500 N)

TiMOTION TA16 Series Linear Actuator (up to 3,500 N)

Low-noise TiMOTION TA16 series compact linear actuator for medical applications, rated up to 3,500 N push and pull.

Key features

  • Very low noise, small size
  • Up to 3,500 N push / pull
  • Optional IP66 and POT / Hall sensor feedback
  • 12, 24, 36 or 48 V DC motors
  • Suitable for patient hoists

Specifications

Voltage 12, 24, 36, 48 V DC
Max. load 3,500 N push / pull
Max. speed (no load) 23.5 mm/s
Stroke 20-600 mm
Retracted length Stroke + 112 mm min.
IP rating IP66
Certificates IEC60601-1, ES60601-1, UL962, EMC
Color Silver
Product segment Care / Comfort / Ergo / Industrial
Load codes 7 (full code per ordering key)
Source TiMOTION TA16 series datasheet
TA16-A Push/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 3.0 mm/s | Current at load: 2.6 A | Motor: 3800 RPM
TA16-B Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 4.7 mm/s | Current at load: 2.6 A | Motor: 3800 RPM
TA16-C Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 7.0 mm/s | Current at load: 2.6 A | Motor: 3800 RPM
TA16-D Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 10.3 mm/s | Current at load: 2.6 A | Motor: 3800 RPM
TA16-G Push/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 6.2 mm/s | Current at load: 4.7 A | Motor: 5200 RPM
TA16-J Push/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 10.5 mm/s | Current at load: 3.7 A | Motor: 5200 RPM
TA16-K Push/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 13.5 mm/s | Current at load: 3.5 A | Motor: 5200 RPM
Linear ActuatorsTiMOTION
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA16 Series Linear Actuator (up to 3,500 N)

Brand TiMOTION·Linear Actuators

Available part numbers (7)

TA16-A, TA16-B, TA16-C, TA16-D, TA16-G, TA16-J, TA16-K

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA16-APush/Pull: 2,500/2,500 N | Self-lock: 2,500 N | Speed at load: 3.0 mm/s | Current at load: 2.6 A | Motor: 3800 RPM
TA16-BPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 4.7 mm/s | Current at load: 2.6 A | Motor: 3800 RPM
TA16-CPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 7.0 mm/s | Current at load: 2.6 A | Motor: 3800 RPM
TA16-DPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 10.3 mm/s | Current at load: 2.6 A | Motor: 3800 RPM
TA16-GPush/Pull: 3,500/3,500 N | Self-lock: 3,500 N | Speed at load: 6.2 mm/s | Current at load: 4.7 A | Motor: 5200 RPM
TA16-JPush/Pull: 2,000/2,000 N | Self-lock: 2,000 N | Speed at load: 10.5 mm/s | Current at load: 3.7 A | Motor: 5200 RPM
TA16-KPush/Pull: 1,500/1,500 N | Self-lock: 1,500 N | Speed at load: 13.5 mm/s | Current at load: 3.5 A | Motor: 5200 RPM
