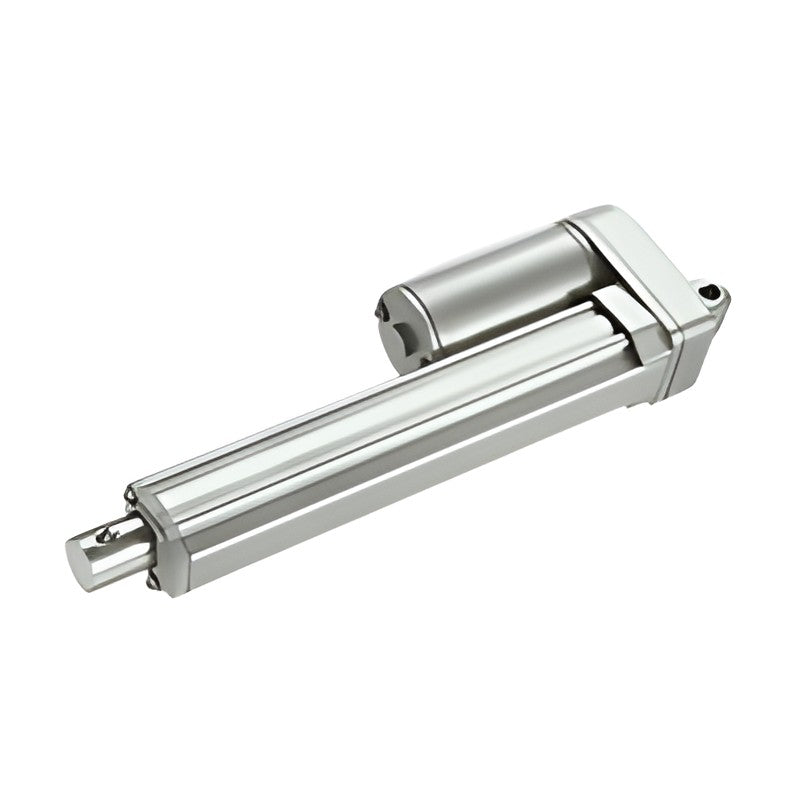

TiMOTION TA2 Series Linear Actuator (up to 1,000 N)

TiMOTION TA2 Series Linear Actuator (up to 1,000 N)

Compact, robust TiMOTION TA2 series linear actuator for small spaces and certain outdoor environments, with up to 1,000 N push and pull.

Key features

  • Up to 1,000 N in push and pull
  • Two motor speeds (4200 / 6000 RPM), 10 load codes
  • Up to IP66D protection
  • Options: POT, Reed or Hall sensors, 90-degree clevis
  • 12, 24, 36, 48 V DC (PTC versions available)

Specifications

Voltage 12, 24, 36, 48 V DC (PTC available)
Max. load 1,000 N push / pull
Max. speed at full load 51 mm/s (120 N)
Stroke 20-1000 mm
Min. installation Stroke + 105 mm
IP rating Up to IP66D
Certificates IEC60601-1, ES60601-1, EMC
Color Silver
Duty cycle 25%
Product segment Industrial Motion
Load codes 10 (full code per ordering key)
Source TiMOTION TA2 series datasheet
TA2-A Push/Pull: 120/120 N | Self-lock: 120 N | Speed at load: 33.0 mm/s | Current at load: 1.0 A | Motor: 4200 RPM
TA2-B Push/Pull: 240/240 N | Self-lock: 240 N | Speed at load: 16.5 mm/s | Current at load: 1.0 A | Motor: 4200 RPM
TA2-C Push/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 8.5 mm/s | Current at load: 0.9 A | Motor: 4200 RPM
TA2-D Push/Pull: 750/750 N | Self-lock: 750 N | Speed at load: 6.2 mm/s | Current at load: 0.9 A | Motor: 4200 RPM
TA2-E Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 4.6 mm/s | Current at load: 0.9 A | Motor: 4200 RPM
TA2-F Push/Pull: 120/120 N | Self-lock: 120 N | Speed at load: 51.0 mm/s | Current at load: 1.8 A | Motor: 6000 RPM
TA2-G Push/Pull: 240/240 N | Self-lock: 240 N | Speed at load: 26.5 mm/s | Current at load: 1.7 A | Motor: 6000 RPM
TA2-H Push/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 14.0 mm/s | Current at load: 1.5 A | Motor: 6000 RPM
TA2-K Push/Pull: 750/750 N | Self-lock: 750 N | Speed at load: 10.0 mm/s | Current at load: 1.5 A | Motor: 6000 RPM
TA2-L Push/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 7.6 mm/s | Current at load: 1.5 A | Motor: 6000 RPM
Linear ActuatorsTiMOTION
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA2 Series Linear Actuator (up to 1,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (10)

TA2-A, TA2-B, TA2-C, TA2-D, TA2-E, TA2-F, TA2-G, TA2-H, TA2-K, TA2-L

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA2-APush/Pull: 120/120 N | Self-lock: 120 N | Speed at load: 33.0 mm/s | Current at load: 1.0 A | Motor: 4200 RPM
TA2-BPush/Pull: 240/240 N | Self-lock: 240 N | Speed at load: 16.5 mm/s | Current at load: 1.0 A | Motor: 4200 RPM
TA2-CPush/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 8.5 mm/s | Current at load: 0.9 A | Motor: 4200 RPM
TA2-DPush/Pull: 750/750 N | Self-lock: 750 N | Speed at load: 6.2 mm/s | Current at load: 0.9 A | Motor: 4200 RPM
TA2-EPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 4.6 mm/s | Current at load: 0.9 A | Motor: 4200 RPM
TA2-FPush/Pull: 120/120 N | Self-lock: 120 N | Speed at load: 51.0 mm/s | Current at load: 1.8 A | Motor: 6000 RPM
TA2-GPush/Pull: 240/240 N | Self-lock: 240 N | Speed at load: 26.5 mm/s | Current at load: 1.7 A | Motor: 6000 RPM
TA2-HPush/Pull: 500/500 N | Self-lock: 500 N | Speed at load: 14.0 mm/s | Current at load: 1.5 A | Motor: 6000 RPM
TA2-KPush/Pull: 750/750 N | Self-lock: 750 N | Speed at load: 10.0 mm/s | Current at load: 1.5 A | Motor: 6000 RPM
TA2-LPush/Pull: 1,000/1,000 N | Self-lock: 1,000 N | Speed at load: 7.6 mm/s | Current at load: 1.5 A | Motor: 6000 RPM
