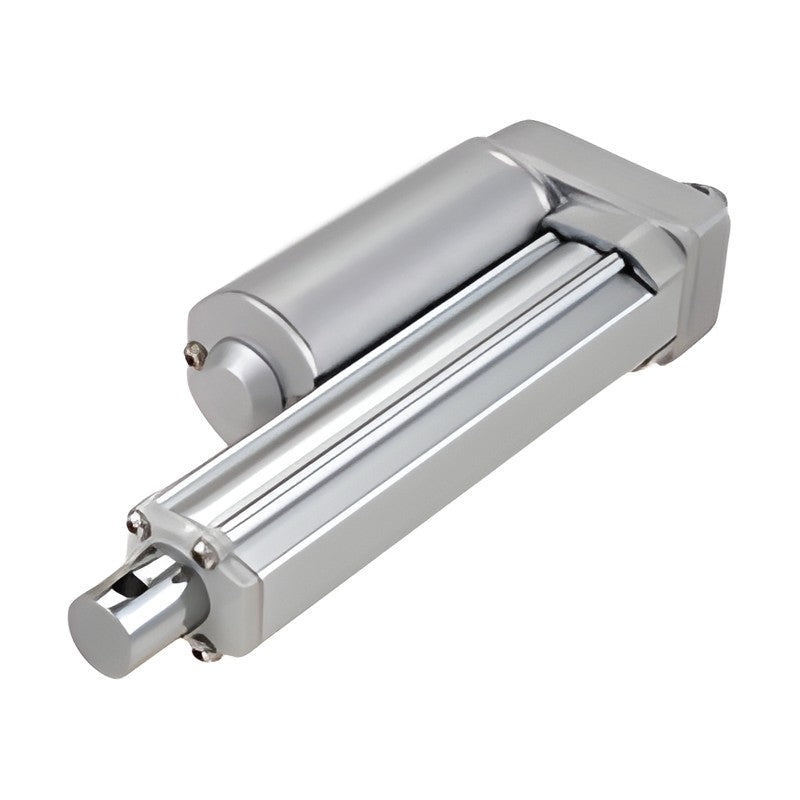

TiMOTION TA2P Series Linear Actuator (up to 2,000 N)

TiMOTION TA2P Series Linear Actuator (up to 2,000 N)

TiMOTION TA2P series linear actuator with a larger motor than the TA2, handling up to 2,000 N for mowers, wax machines and industrial equipment.

Key features

  • Up to 2,000 N in push and pull
  • Two motor speeds (5200 / 6600 RPM), 10 load codes
  • Speeds up to 55 mm/s
  • Options: potentiometer, optical, Hall or Reed sensor
  • 12, 24, 36 or 48 V DC motors

Specifications

Voltage 12, 24, 36 or 48 V DC
Max. load 2,000 N push / pull
Max. speed 55 mm/s
Min. installation Stroke + 108 mm
Certificate IEC60601-1 compliant
Color Silver
Product segment Auto Motion
Load codes 10 (full code per ordering key)
Source TiMOTION TA2P series datasheet
TA2P-A Push/Pull: 250/250 N | Speed at load: 36 mm/s | No-load speed: 43 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-B Push/Pull: 500/500 N | Speed at load: 24 mm/s | No-load speed: 28 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-C Push/Pull: 1,000/1,000 N | Speed at load: 12 mm/s | No-load speed: 14 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-D Push/Pull: 1,500/1,500 N | Speed at load: 8 mm/s | No-load speed: 9.3 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-E Push/Pull: 2,000/2,000 N | Speed at load: 6 mm/s | No-load speed: 7 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-F Push/Pull: 250/250 N | Speed at load: 46 mm/s | No-load speed: 55 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
TA2P-G Push/Pull: 500/500 N | Speed at load: 30 mm/s | No-load speed: 35 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
TA2P-H Push/Pull: 1,000/1,000 N | Speed at load: 15 mm/s | No-load speed: 18 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
TA2P-K Push/Pull: 1,500/1,500 N | Speed at load: 10.3 mm/s | No-load speed: 12 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
TA2P-L Push/Pull: 2,000/2,000 N | Speed at load: 7.5 mm/s | No-load speed: 9 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
Linear ActuatorsTiMOTION
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TiMOTION TA2P Series Linear Actuator (up to 2,000 N)

Brand TiMOTION·Linear Actuators

Available part numbers (10)

TA2P-A, TA2P-B, TA2P-C, TA2P-D, TA2P-E, TA2P-F, TA2P-G, TA2P-H, TA2P-K, TA2P-L

How to order

Send the TiMOTION part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA2P-APush/Pull: 250/250 N | Speed at load: 36 mm/s | No-load speed: 43 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-BPush/Pull: 500/500 N | Speed at load: 24 mm/s | No-load speed: 28 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-CPush/Pull: 1,000/1,000 N | Speed at load: 12 mm/s | No-load speed: 14 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-DPush/Pull: 1,500/1,500 N | Speed at load: 8 mm/s | No-load speed: 9.3 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-EPush/Pull: 2,000/2,000 N | Speed at load: 6 mm/s | No-load speed: 7 mm/s | Current at load: 2.2 A | Motor: 5200 RPM
TA2P-FPush/Pull: 250/250 N | Speed at load: 46 mm/s | No-load speed: 55 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
TA2P-GPush/Pull: 500/500 N | Speed at load: 30 mm/s | No-load speed: 35 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
TA2P-HPush/Pull: 1,000/1,000 N | Speed at load: 15 mm/s | No-load speed: 18 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
TA2P-KPush/Pull: 1,500/1,500 N | Speed at load: 10.3 mm/s | No-load speed: 12 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
TA2P-LPush/Pull: 2,000/2,000 N | Speed at load: 7.5 mm/s | No-load speed: 9 mm/s | Current at load: 2.8 A | Motor: 6600 RPM
