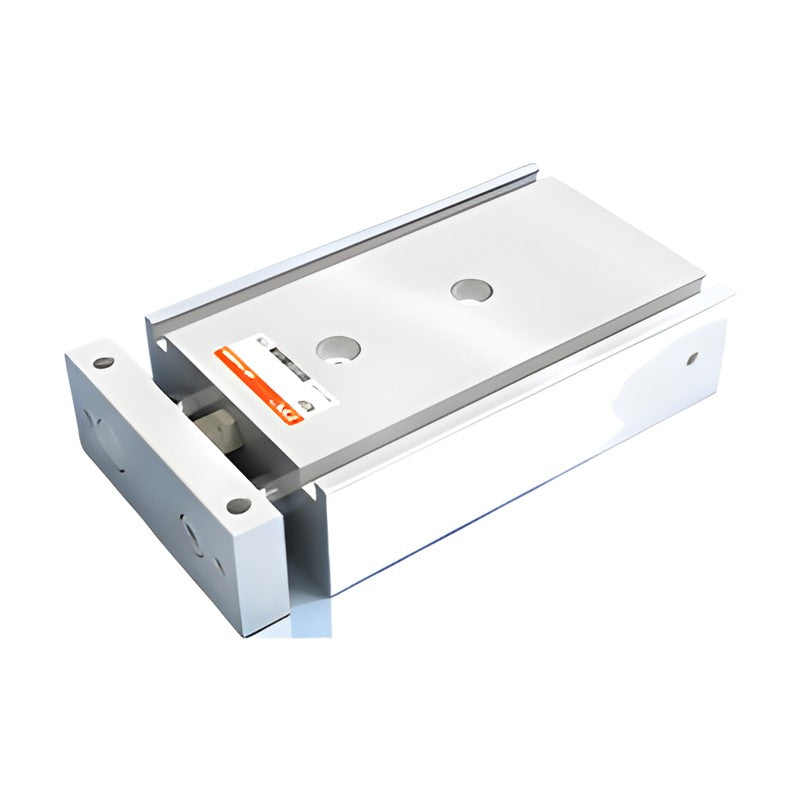

TPC 2B-ADR Dual Rod Cylinder for Battery Plants (Bore 10-32 mm)

TPC 2B-ADR Dual Rod Cylinder for Battery Plants (Bore 10-32 mm)

TPC 2B-ADR series double-acting dual rod cylinder with built-in magnet, slide or ball bearing rod guide, bore 10 to 32 mm.

Key features

  • Two parallel rods give non-rotation (+/-0.15 deg) and twice the output of a single rod
  • Bearing choice: slide bearing (M) or ball bearing (L)
  • Workpiece can be mounted on three faces; extend-end stroke adjustment 0 to -5 mm
  • Auto switches (W13, W1HN, W1HP; L = 3 m lead) mount inside the body - ordered as suffixes, not listed
  • Secondary-battery (2B) version: electroless nickel plated steel parts, stainless tie rods, Cu/Zn-limited materials; specs and dimensions as standard, some options not available

Specifications

Action Double acting, dual rod
Magnet Built in (standard)
Fluid Air
Proof pressure 1.0 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.1 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 30 to 300 mm/s
Cushion Rubber bumper (both ends)
Stroke adjustment 0 to -5 mm
Lubrication Not required
Source TPC Mechatronics catalog ADR_Series(240401).pdf, p. 1-11
2B-ADRM10-10 Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRM10-15 Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRM10-20 Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRM10-25 Bearing: Slide bearing | Bore: 10 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRM10-30 Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRM10-35 Bearing: Slide bearing | Bore: 10 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRM10-40 Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRM10-45 Bearing: Slide bearing | Bore: 10 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRM10-50 Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRM10-55 Bearing: Slide bearing | Bore: 10 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRM10-60 Bearing: Slide bearing | Bore: 10 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRM10-65 Bearing: Slide bearing | Bore: 10 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRM10-70 Bearing: Slide bearing | Bore: 10 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRM16-10 Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRM16-15 Bearing: Slide bearing | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRM16-20 Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRM16-25 Bearing: Slide bearing | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRM16-30 Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRM16-35 Bearing: Slide bearing | Bore: 16 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRM16-40 Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRM16-45 Bearing: Slide bearing | Bore: 16 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRM16-50 Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRM16-55 Bearing: Slide bearing | Bore: 16 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRM16-60 Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRM16-65 Bearing: Slide bearing | Bore: 16 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRM16-70 Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRM16-75 Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRM16-80 Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRM16-85 Bearing: Slide bearing | Bore: 16 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRM16-90 Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRM16-95 Bearing: Slide bearing | Bore: 16 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRM16-100 Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRM20-10 Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRM20-15 Bearing: Slide bearing | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRM20-20 Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRM20-25 Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRM20-30 Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRM20-35 Bearing: Slide bearing | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRM20-40 Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRM20-45 Bearing: Slide bearing | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRM20-50 Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRM20-55 Bearing: Slide bearing | Bore: 20 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRM20-60 Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRM20-65 Bearing: Slide bearing | Bore: 20 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRM20-70 Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRM20-75 Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRM20-80 Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRM20-85 Bearing: Slide bearing | Bore: 20 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRM20-90 Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRM20-95 Bearing: Slide bearing | Bore: 20 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRM20-100 Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRM25-10 Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRM25-15 Bearing: Slide bearing | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRM25-20 Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRM25-25 Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRM25-30 Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRM25-35 Bearing: Slide bearing | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRM25-40 Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRM25-45 Bearing: Slide bearing | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRM25-50 Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRM25-55 Bearing: Slide bearing | Bore: 25 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRM25-60 Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRM25-65 Bearing: Slide bearing | Bore: 25 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRM25-70 Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRM25-75 Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRM25-80 Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRM25-85 Bearing: Slide bearing | Bore: 25 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRM25-90 Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRM25-95 Bearing: Slide bearing | Bore: 25 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRM25-100 Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRM32-10 Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADRM32-15 Bearing: Slide bearing | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADRM32-20 Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADRM32-25 Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADRM32-30 Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADRM32-35 Bearing: Slide bearing | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADRM32-40 Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADRM32-45 Bearing: Slide bearing | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADRM32-50 Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADRM32-60 Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
2B-ADRM32-70 Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
2B-ADRM32-75 Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADRM32-80 Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
2B-ADRM32-90 Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
2B-ADRM32-100 Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADRL10-10 Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRL10-15 Bearing: Ball bearing | Bore: 10 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRL10-20 Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRL10-25 Bearing: Ball bearing | Bore: 10 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRL10-30 Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRL10-35 Bearing: Ball bearing | Bore: 10 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRL10-40 Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRL10-45 Bearing: Ball bearing | Bore: 10 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRL10-50 Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRL10-55 Bearing: Ball bearing | Bore: 10 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRL10-60 Bearing: Ball bearing | Bore: 10 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRL10-65 Bearing: Ball bearing | Bore: 10 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRL10-70 Bearing: Ball bearing | Bore: 10 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRL16-10 Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRL16-15 Bearing: Ball bearing | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRL16-20 Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRL16-25 Bearing: Ball bearing | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRL16-30 Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRL16-35 Bearing: Ball bearing | Bore: 16 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRL16-40 Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRL16-45 Bearing: Ball bearing | Bore: 16 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRL16-50 Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRL16-55 Bearing: Ball bearing | Bore: 16 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRL16-60 Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRL16-65 Bearing: Ball bearing | Bore: 16 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRL16-70 Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRL16-75 Bearing: Ball bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRL16-80 Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRL16-85 Bearing: Ball bearing | Bore: 16 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRL16-90 Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRL16-95 Bearing: Ball bearing | Bore: 16 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRL16-100 Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRL20-10 Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRL20-15 Bearing: Ball bearing | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRL20-20 Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRL20-25 Bearing: Ball bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRL20-30 Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRL20-35 Bearing: Ball bearing | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRL20-40 Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRL20-45 Bearing: Ball bearing | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRL20-50 Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRL20-55 Bearing: Ball bearing | Bore: 20 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRL20-60 Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRL20-65 Bearing: Ball bearing | Bore: 20 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRL20-70 Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRL20-75 Bearing: Ball bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRL20-80 Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRL20-85 Bearing: Ball bearing | Bore: 20 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRL20-90 Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRL20-95 Bearing: Ball bearing | Bore: 20 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRL20-100 Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRL25-10 Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRL25-15 Bearing: Ball bearing | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRL25-20 Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRL25-25 Bearing: Ball bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRL25-30 Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRL25-35 Bearing: Ball bearing | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRL25-40 Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRL25-45 Bearing: Ball bearing | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRL25-50 Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRL25-55 Bearing: Ball bearing | Bore: 25 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRL25-60 Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRL25-65 Bearing: Ball bearing | Bore: 25 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRL25-70 Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRL25-75 Bearing: Ball bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRL25-80 Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRL25-85 Bearing: Ball bearing | Bore: 25 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRL25-90 Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRL25-95 Bearing: Ball bearing | Bore: 25 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRL25-100 Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRL32-10 Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADRL32-15 Bearing: Ball bearing | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADRL32-20 Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADRL32-25 Bearing: Ball bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADRL32-30 Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADRL32-35 Bearing: Ball bearing | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADRL32-40 Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADRL32-45 Bearing: Ball bearing | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADRL32-50 Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADRL32-60 Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
2B-ADRL32-70 Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
2B-ADRL32-75 Bearing: Ball bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADRL32-80 Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
2B-ADRL32-90 Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
2B-ADRL32-100 Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
Pneumatic CylindersTPC Mechatronics
170 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-ADR Dual Rod Cylinder for Battery Plants (Bore 10-32 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (170)

2B-ADRM10-10, 2B-ADRM10-15, 2B-ADRM10-20, 2B-ADRM10-25, 2B-ADRM10-30, 2B-ADRM10-35, 2B-ADRM10-40, 2B-ADRM10-45, 2B-ADRM10-50, 2B-ADRM10-55 + 160 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-ADRM10-10Bearing: Slide bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRM10-15Bearing: Slide bearing | Bore: 10 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRM10-20Bearing: Slide bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRM10-25Bearing: Slide bearing | Bore: 10 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRM10-30Bearing: Slide bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRM10-35Bearing: Slide bearing | Bore: 10 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRM10-40Bearing: Slide bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRM10-45Bearing: Slide bearing | Bore: 10 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRM10-50Bearing: Slide bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRM10-55Bearing: Slide bearing | Bore: 10 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRM10-60Bearing: Slide bearing | Bore: 10 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRM10-65Bearing: Slide bearing | Bore: 10 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRM10-70Bearing: Slide bearing | Bore: 10 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRM16-10Bearing: Slide bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRM16-15Bearing: Slide bearing | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRM16-20Bearing: Slide bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRM16-25Bearing: Slide bearing | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRM16-30Bearing: Slide bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRM16-35Bearing: Slide bearing | Bore: 16 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRM16-40Bearing: Slide bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRM16-45Bearing: Slide bearing | Bore: 16 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRM16-50Bearing: Slide bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRM16-55Bearing: Slide bearing | Bore: 16 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRM16-60Bearing: Slide bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRM16-65Bearing: Slide bearing | Bore: 16 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRM16-70Bearing: Slide bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRM16-75Bearing: Slide bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRM16-80Bearing: Slide bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRM16-85Bearing: Slide bearing | Bore: 16 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRM16-90Bearing: Slide bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRM16-95Bearing: Slide bearing | Bore: 16 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRM16-100Bearing: Slide bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRM20-10Bearing: Slide bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRM20-15Bearing: Slide bearing | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRM20-20Bearing: Slide bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRM20-25Bearing: Slide bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRM20-30Bearing: Slide bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRM20-35Bearing: Slide bearing | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRM20-40Bearing: Slide bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRM20-45Bearing: Slide bearing | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRM20-50Bearing: Slide bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRM20-55Bearing: Slide bearing | Bore: 20 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRM20-60Bearing: Slide bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRM20-65Bearing: Slide bearing | Bore: 20 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRM20-70Bearing: Slide bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRM20-75Bearing: Slide bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRM20-80Bearing: Slide bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRM20-85Bearing: Slide bearing | Bore: 20 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRM20-90Bearing: Slide bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRM20-95Bearing: Slide bearing | Bore: 20 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRM20-100Bearing: Slide bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRM25-10Bearing: Slide bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRM25-15Bearing: Slide bearing | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRM25-20Bearing: Slide bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRM25-25Bearing: Slide bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRM25-30Bearing: Slide bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRM25-35Bearing: Slide bearing | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRM25-40Bearing: Slide bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRM25-45Bearing: Slide bearing | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRM25-50Bearing: Slide bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRM25-55Bearing: Slide bearing | Bore: 25 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRM25-60Bearing: Slide bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRM25-65Bearing: Slide bearing | Bore: 25 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRM25-70Bearing: Slide bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRM25-75Bearing: Slide bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRM25-80Bearing: Slide bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRM25-85Bearing: Slide bearing | Bore: 25 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRM25-90Bearing: Slide bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRM25-95Bearing: Slide bearing | Bore: 25 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRM25-100Bearing: Slide bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRM32-10Bearing: Slide bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADRM32-15Bearing: Slide bearing | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADRM32-20Bearing: Slide bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADRM32-25Bearing: Slide bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADRM32-30Bearing: Slide bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADRM32-35Bearing: Slide bearing | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADRM32-40Bearing: Slide bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADRM32-45Bearing: Slide bearing | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADRM32-50Bearing: Slide bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADRM32-60Bearing: Slide bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
2B-ADRM32-70Bearing: Slide bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
2B-ADRM32-75Bearing: Slide bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADRM32-80Bearing: Slide bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
2B-ADRM32-90Bearing: Slide bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
2B-ADRM32-100Bearing: Slide bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADRL10-10Bearing: Ball bearing | Bore: 10 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRL10-15Bearing: Ball bearing | Bore: 10 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRL10-20Bearing: Ball bearing | Bore: 10 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRL10-25Bearing: Ball bearing | Bore: 10 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRL10-30Bearing: Ball bearing | Bore: 10 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRL10-35Bearing: Ball bearing | Bore: 10 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRL10-40Bearing: Ball bearing | Bore: 10 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRL10-45Bearing: Ball bearing | Bore: 10 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRL10-50Bearing: Ball bearing | Bore: 10 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRL10-55Bearing: Ball bearing | Bore: 10 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRL10-60Bearing: Ball bearing | Bore: 10 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRL10-65Bearing: Ball bearing | Bore: 10 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRL10-70Bearing: Ball bearing | Bore: 10 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRL16-10Bearing: Ball bearing | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRL16-15Bearing: Ball bearing | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRL16-20Bearing: Ball bearing | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRL16-25Bearing: Ball bearing | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRL16-30Bearing: Ball bearing | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRL16-35Bearing: Ball bearing | Bore: 16 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRL16-40Bearing: Ball bearing | Bore: 16 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRL16-45Bearing: Ball bearing | Bore: 16 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRL16-50Bearing: Ball bearing | Bore: 16 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRL16-55Bearing: Ball bearing | Bore: 16 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRL16-60Bearing: Ball bearing | Bore: 16 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRL16-65Bearing: Ball bearing | Bore: 16 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRL16-70Bearing: Ball bearing | Bore: 16 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRL16-75Bearing: Ball bearing | Bore: 16 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRL16-80Bearing: Ball bearing | Bore: 16 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRL16-85Bearing: Ball bearing | Bore: 16 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRL16-90Bearing: Ball bearing | Bore: 16 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRL16-95Bearing: Ball bearing | Bore: 16 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRL16-100Bearing: Ball bearing | Bore: 16 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRL20-10Bearing: Ball bearing | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRL20-15Bearing: Ball bearing | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRL20-20Bearing: Ball bearing | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRL20-25Bearing: Ball bearing | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRL20-30Bearing: Ball bearing | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRL20-35Bearing: Ball bearing | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRL20-40Bearing: Ball bearing | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRL20-45Bearing: Ball bearing | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRL20-50Bearing: Ball bearing | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRL20-55Bearing: Ball bearing | Bore: 20 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRL20-60Bearing: Ball bearing | Bore: 20 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRL20-65Bearing: Ball bearing | Bore: 20 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRL20-70Bearing: Ball bearing | Bore: 20 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRL20-75Bearing: Ball bearing | Bore: 20 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRL20-80Bearing: Ball bearing | Bore: 20 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRL20-85Bearing: Ball bearing | Bore: 20 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRL20-90Bearing: Ball bearing | Bore: 20 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRL20-95Bearing: Ball bearing | Bore: 20 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRL20-100Bearing: Ball bearing | Bore: 20 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRL25-10Bearing: Ball bearing | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADRL25-15Bearing: Ball bearing | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADRL25-20Bearing: Ball bearing | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADRL25-25Bearing: Ball bearing | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADRL25-30Bearing: Ball bearing | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADRL25-35Bearing: Ball bearing | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADRL25-40Bearing: Ball bearing | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADRL25-45Bearing: Ball bearing | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADRL25-50Bearing: Ball bearing | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADRL25-55Bearing: Ball bearing | Bore: 25 mm | Stroke: 55 mm | Port: M5x0.8
2B-ADRL25-60Bearing: Ball bearing | Bore: 25 mm | Stroke: 60 mm | Port: M5x0.8
2B-ADRL25-65Bearing: Ball bearing | Bore: 25 mm | Stroke: 65 mm | Port: M5x0.8
2B-ADRL25-70Bearing: Ball bearing | Bore: 25 mm | Stroke: 70 mm | Port: M5x0.8
2B-ADRL25-75Bearing: Ball bearing | Bore: 25 mm | Stroke: 75 mm | Port: M5x0.8
2B-ADRL25-80Bearing: Ball bearing | Bore: 25 mm | Stroke: 80 mm | Port: M5x0.8
2B-ADRL25-85Bearing: Ball bearing | Bore: 25 mm | Stroke: 85 mm | Port: M5x0.8
2B-ADRL25-90Bearing: Ball bearing | Bore: 25 mm | Stroke: 90 mm | Port: M5x0.8
2B-ADRL25-95Bearing: Ball bearing | Bore: 25 mm | Stroke: 95 mm | Port: M5x0.8
2B-ADRL25-100Bearing: Ball bearing | Bore: 25 mm | Stroke: 100 mm | Port: M5x0.8
2B-ADRL32-10Bearing: Ball bearing | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADRL32-15Bearing: Ball bearing | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADRL32-20Bearing: Ball bearing | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADRL32-25Bearing: Ball bearing | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADRL32-30Bearing: Ball bearing | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADRL32-35Bearing: Ball bearing | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADRL32-40Bearing: Ball bearing | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADRL32-45Bearing: Ball bearing | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADRL32-50Bearing: Ball bearing | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADRL32-60Bearing: Ball bearing | Bore: 32 mm | Stroke: 60 mm | Port: Rc1/8
2B-ADRL32-70Bearing: Ball bearing | Bore: 32 mm | Stroke: 70 mm | Port: Rc1/8
2B-ADRL32-75Bearing: Ball bearing | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADRL32-80Bearing: Ball bearing | Bore: 32 mm | Stroke: 80 mm | Port: Rc1/8
2B-ADRL32-90Bearing: Ball bearing | Bore: 32 mm | Stroke: 90 mm | Port: Rc1/8
2B-ADRL32-100Bearing: Ball bearing | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
