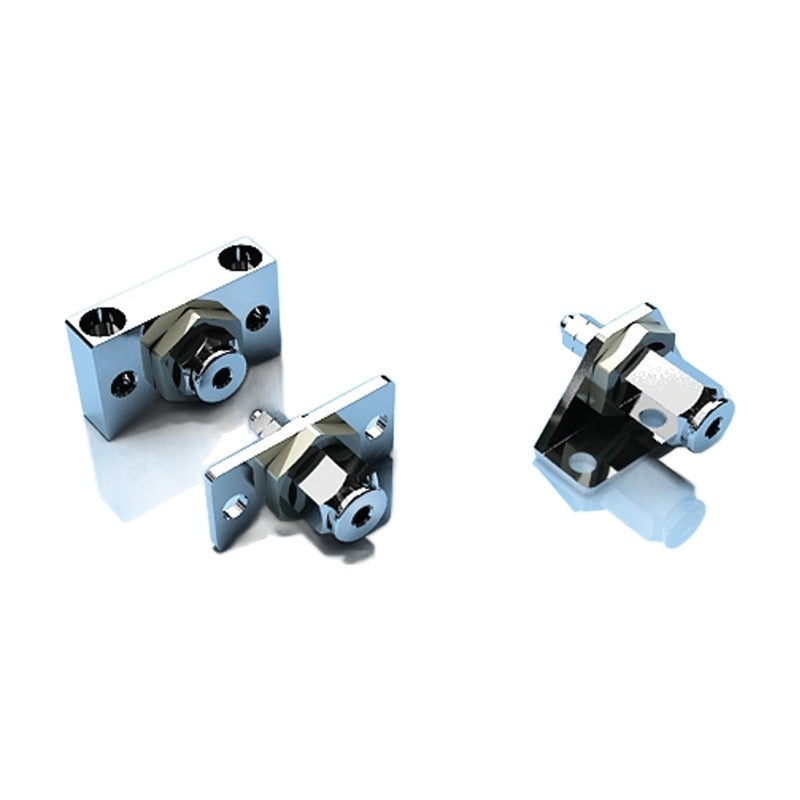

TPC 2B-APM Panel Mount Cylinder for Secondary Battery (Bore 6-15)

TPC 2B-APM Panel Mount Cylinder for Secondary Battery (Bore 6-15)

TPC 2B-APM panel-mount miniature single acting spring-return cylinder for secondary-battery lines, stainless rod cover and tube.

Key features

  • Single acting, spring return (push) miniature cylinder for panel mounting
  • Secondary-battery (2B) version: stainless steel rod cover and tube, electroless nickel plated nuts and plug
  • Mounting codes B basic, S block insert, L foot, F flange, P plate; standard strokes 5, 10, 15 mm
  • Hose nipple suffix H4/H5/H6 (cap type) or N4/N5/N6 (barb type), not with block insert type; B suffix = rod end without thread

Specifications

Action Single acting, spring return
Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Ambient and fluid temperature -10 to 70 C (no freezing)
Stroke tolerance +1.0/0 mm
Lubrication Not required
Cushion None
Source TPC Mechatronics catalog APM_Series(230410).pdf, p. 1, 4
2B-APMB6-5 Mounting: Basic | Bore: 6 mm | Stroke: 5 mm | Min. pressure: 0.2 MPa
2B-APMB6-10 Mounting: Basic | Bore: 6 mm | Stroke: 10 mm | Min. pressure: 0.2 MPa
2B-APMB6-15 Mounting: Basic | Bore: 6 mm | Stroke: 15 mm | Min. pressure: 0.2 MPa
2B-APMB10-5 Mounting: Basic | Bore: 10 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APMB10-10 Mounting: Basic | Bore: 10 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APMB10-15 Mounting: Basic | Bore: 10 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APMB15-5 Mounting: Basic | Bore: 15 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APMB15-10 Mounting: Basic | Bore: 15 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APMB15-15 Mounting: Basic | Bore: 15 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APMS6-5 Mounting: Block insert | Bore: 6 mm | Stroke: 5 mm | Min. pressure: 0.2 MPa
2B-APMS6-10 Mounting: Block insert | Bore: 6 mm | Stroke: 10 mm | Min. pressure: 0.2 MPa
2B-APMS6-15 Mounting: Block insert | Bore: 6 mm | Stroke: 15 mm | Min. pressure: 0.2 MPa
2B-APMS10-5 Mounting: Block insert | Bore: 10 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APMS10-10 Mounting: Block insert | Bore: 10 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APMS10-15 Mounting: Block insert | Bore: 10 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APMS15-5 Mounting: Block insert | Bore: 15 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APMS15-10 Mounting: Block insert | Bore: 15 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APMS15-15 Mounting: Block insert | Bore: 15 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APML6-5 Mounting: Foot | Bore: 6 mm | Stroke: 5 mm | Min. pressure: 0.2 MPa
2B-APML6-10 Mounting: Foot | Bore: 6 mm | Stroke: 10 mm | Min. pressure: 0.2 MPa
2B-APML6-15 Mounting: Foot | Bore: 6 mm | Stroke: 15 mm | Min. pressure: 0.2 MPa
2B-APML10-5 Mounting: Foot | Bore: 10 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APML10-10 Mounting: Foot | Bore: 10 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APML10-15 Mounting: Foot | Bore: 10 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APML15-5 Mounting: Foot | Bore: 15 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APML15-10 Mounting: Foot | Bore: 15 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APML15-15 Mounting: Foot | Bore: 15 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APMF6-5 Mounting: Flange | Bore: 6 mm | Stroke: 5 mm | Min. pressure: 0.2 MPa
2B-APMF6-10 Mounting: Flange | Bore: 6 mm | Stroke: 10 mm | Min. pressure: 0.2 MPa
2B-APMF6-15 Mounting: Flange | Bore: 6 mm | Stroke: 15 mm | Min. pressure: 0.2 MPa
2B-APMF10-5 Mounting: Flange | Bore: 10 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APMF10-10 Mounting: Flange | Bore: 10 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APMF10-15 Mounting: Flange | Bore: 10 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APMF15-5 Mounting: Flange | Bore: 15 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APMF15-10 Mounting: Flange | Bore: 15 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APMF15-15 Mounting: Flange | Bore: 15 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APMP6-5 Mounting: Plate | Bore: 6 mm | Stroke: 5 mm | Min. pressure: 0.2 MPa
2B-APMP6-10 Mounting: Plate | Bore: 6 mm | Stroke: 10 mm | Min. pressure: 0.2 MPa
2B-APMP6-15 Mounting: Plate | Bore: 6 mm | Stroke: 15 mm | Min. pressure: 0.2 MPa
2B-APMP10-5 Mounting: Plate | Bore: 10 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APMP10-10 Mounting: Plate | Bore: 10 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APMP10-15 Mounting: Plate | Bore: 10 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
2B-APMP15-5 Mounting: Plate | Bore: 15 mm | Stroke: 5 mm | Min. pressure: 0.15 MPa
2B-APMP15-10 Mounting: Plate | Bore: 15 mm | Stroke: 10 mm | Min. pressure: 0.15 MPa
2B-APMP15-15 Mounting: Plate | Bore: 15 mm | Stroke: 15 mm | Min. pressure: 0.15 MPa
