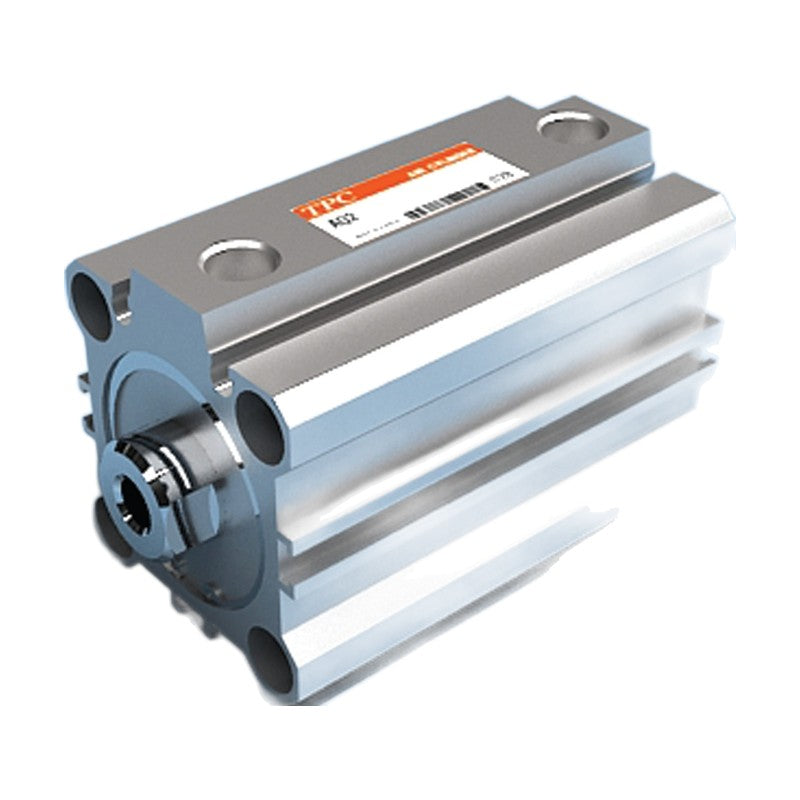

TPC 2B-AQ2 Compact Cylinder for Secondary Battery (Bore 12-100 mm)

TPC 2B-AQ2 Compact Cylinder for Secondary Battery (Bore 12-100 mm)

TPC 2B-AQ2/2B-ADQ2 double acting single-rod compact cylinder for secondary-battery production lines, bore 12-100 mm.

Key features

  • Space-saving short body allows compact machine design; small auto switches mount inside the square tube slots
  • Secondary-battery (2B) version: copper/zinc-restricted materials, electroless nickel plated steel parts; W2P switch and XC16 not available
  • Mounting codes: B through hole, A both-end tapped (12-25: tapped body shared with through hole), Z through hole + both-end tap (32-100), L foot, F rod flange, G head flange, D double clevis (brackets shipped unassembled)
  • Options ordered as suffixes: C rubber cushion, M male rod end, F head-side inlet, I/Y knuckle joint, XC16 non-freezing (std for 12-40)
  • Intermediate strokes from 3 mm in 1 mm steps by spacer in a standard-stroke cylinder; strokes over 100 mm in the long-stroke series

Specifications

Action Double acting, single rod
Min. operating pressure 0.07 MPa (12-16), 0.05 MPa (20-100)
Cushion None (rubber cushion C optional)
Fluid Air (non-lube)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature -5 to 70 C (no freezing)
Piston speed 50-500 mm/s
Rod end thread Female (std), KS class 2
Stroke tolerance +1.0/0 mm
Source TPC Mechatronics catalog A(D)Q2 Series (full file) 230421.pdf, p. 1, 2, 4
2B-AQ2B12-5D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B12-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B12-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2B12-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2B12-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2B12-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2B16-5D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B16-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B16-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2B16-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2B16-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2B16-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2B20-5D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B20-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B20-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2B20-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2B20-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2B20-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2B20-35D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2B20-40D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2B20-45D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2B20-50D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2B25-5D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B25-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B25-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2B25-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2B25-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2B25-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2B25-35D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2B25-40D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2B25-45D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2B25-50D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2B32-5D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B32-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2B32-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2B32-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2B32-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2B32-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2B32-35D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2B32-40D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2B32-45D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2B32-50D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2B32-75D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2B32-100D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2B40-5D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2B40-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2B40-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2B40-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2B40-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2B40-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2B40-35D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2B40-40D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2B40-45D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2B40-50D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2B40-75D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2B40-100D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2B50-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2B50-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2B50-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2B50-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2B50-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2B50-35D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2B50-40D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2B50-45D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2B50-50D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2B50-75D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2B50-100D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2B63-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2B63-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2B63-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2B63-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2B63-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2B63-35D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2B63-40D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2B63-45D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2B63-50D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2B63-75D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2B63-100D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2B80-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2B80-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2B80-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2B80-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2B80-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2B80-35D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2B80-40D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2B80-45D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2B80-50D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2B80-75D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2B80-100D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2B100-10D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2B100-15D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2B100-20D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2B100-25D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2B100-30D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2B100-35D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2B100-40D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2B100-45D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2B100-50D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2B100-75D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2B100-100D Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2A12-5D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A12-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A12-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2A12-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2A12-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2A12-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2A16-5D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A16-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A16-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2A16-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2A16-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2A16-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2A20-5D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A20-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A20-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2A20-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2A20-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2A20-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2A20-35D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2A20-40D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2A20-45D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2A20-50D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2A25-5D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A25-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A25-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2A25-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2A25-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2A25-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2A25-35D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2A25-40D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2A25-45D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2A25-50D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2A32-5D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A32-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2A32-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2A32-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2A32-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2A32-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2A32-35D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2A32-40D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2A32-45D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2A32-50D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2A32-75D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2A32-100D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2A40-5D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2A40-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2A40-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2A40-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2A40-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2A40-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2A40-35D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2A40-40D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2A40-45D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2A40-50D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2A40-75D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2A40-100D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2A50-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2A50-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2A50-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2A50-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2A50-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2A50-35D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2A50-40D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2A50-45D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2A50-50D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2A50-75D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2A50-100D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2A63-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2A63-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2A63-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2A63-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2A63-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2A63-35D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2A63-40D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2A63-45D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2A63-50D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2A63-75D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2A63-100D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2A80-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2A80-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2A80-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2A80-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2A80-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2A80-35D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2A80-40D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2A80-45D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2A80-50D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2A80-75D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2A80-100D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2A100-10D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2A100-15D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2A100-20D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2A100-25D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2A100-30D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2A100-35D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2A100-40D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2A100-45D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2A100-50D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2A100-75D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2A100-100D Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2D12-5D Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D12-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D12-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2D12-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2D12-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2D12-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2D16-5D Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D16-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D16-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2D16-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2D16-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2D16-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2D20-5D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D20-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D20-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2D20-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2D20-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2D20-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2D20-35D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2D20-40D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2D20-45D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2D20-50D Magnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2D25-5D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D25-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D25-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2D25-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2D25-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2D25-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2D25-35D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2D25-40D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2D25-45D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2D25-50D Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2D32-5D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D32-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2D32-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2D32-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2D32-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2D32-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2D32-35D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2D32-40D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2D32-45D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2D32-50D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2D32-75D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2D32-100D Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2D40-5D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2D40-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2D40-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2D40-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2D40-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2D40-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2D40-35D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2D40-40D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2D40-45D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2D40-50D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2D40-75D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2D40-100D Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2D50-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2D50-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2D50-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2D50-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2D50-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2D50-35D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2D50-40D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2D50-45D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2D50-50D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2D50-75D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2D50-100D Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2D63-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2D63-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2D63-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2D63-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2D63-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2D63-35D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2D63-40D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2D63-45D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2D63-50D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2D63-75D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2D63-100D Magnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2D80-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2D80-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2D80-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2D80-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2D80-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2D80-35D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2D80-40D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2D80-45D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2D80-50D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2D80-75D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2D80-100D Magnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2D100-10D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2D100-15D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2D100-20D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2D100-25D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2D100-30D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2D100-35D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2D100-40D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2D100-45D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2D100-50D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2D100-75D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2D100-100D Magnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2F12-5D Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F12-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F12-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2F12-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2F12-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2F12-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2F16-5D Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F16-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F16-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2F16-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2F16-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2F16-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2F20-5D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F20-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F20-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2F20-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2F20-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2F20-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2F20-35D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2F20-40D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2F20-45D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2F20-50D Magnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2F25-5D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F25-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F25-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2F25-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2F25-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2F25-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2F25-35D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2F25-40D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2F25-45D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2F25-50D Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2F32-5D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F32-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2F32-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2F32-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2F32-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2F32-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2F32-35D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2F32-40D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2F32-45D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2F32-50D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2F32-75D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2F32-100D Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2F40-5D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2F40-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2F40-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2F40-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2F40-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2F40-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2F40-35D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2F40-40D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2F40-45D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2F40-50D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2F40-75D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2F40-100D Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2F50-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2F50-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2F50-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2F50-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2F50-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2F50-35D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2F50-40D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2F50-45D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2F50-50D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2F50-75D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2F50-100D Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2F63-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2F63-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2F63-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2F63-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2F63-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2F63-35D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2F63-40D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2F63-45D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2F63-50D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2F63-75D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2F63-100D Magnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2F80-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2F80-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2F80-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2F80-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2F80-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2F80-35D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2F80-40D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2F80-45D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2F80-50D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2F80-75D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2F80-100D Magnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2F100-10D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2F100-15D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2F100-20D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2F100-25D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2F100-30D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2F100-35D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2F100-40D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2F100-45D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2F100-50D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2F100-75D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2F100-100D Magnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2G12-5D Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G12-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G12-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2G12-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2G12-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2G12-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2G16-5D Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G16-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G16-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2G16-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2G16-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2G16-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2G20-5D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G20-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G20-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2G20-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2G20-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2G20-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2G20-35D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2G20-40D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2G20-45D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2G20-50D Magnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2G25-5D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G25-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G25-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2G25-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2G25-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2G25-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2G25-35D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2G25-40D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2G25-45D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2G25-50D Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2G32-5D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G32-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2G32-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2G32-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2G32-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2G32-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2G32-35D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2G32-40D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2G32-45D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2G32-50D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2G32-75D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2G32-100D Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2G40-5D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2G40-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2G40-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2G40-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2G40-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2G40-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2G40-35D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2G40-40D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2G40-45D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2G40-50D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2G40-75D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2G40-100D Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2G50-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2G50-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2G50-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2G50-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2G50-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2G50-35D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2G50-40D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2G50-45D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2G50-50D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2G50-75D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2G50-100D Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2G63-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2G63-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2G63-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2G63-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2G63-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2G63-35D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2G63-40D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2G63-45D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2G63-50D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2G63-75D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2G63-100D Magnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2G80-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2G80-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2G80-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2G80-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2G80-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2G80-35D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2G80-40D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2G80-45D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2G80-50D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2G80-75D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2G80-100D Magnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2G100-10D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2G100-15D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2G100-20D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2G100-25D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2G100-30D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2G100-35D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2G100-40D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2G100-45D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2G100-50D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2G100-75D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2G100-100D Magnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2L12-5D Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L12-10D Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L12-15D Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2L12-20D Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2L12-25D Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2L12-30D Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2L16-5D Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L16-10D Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L16-15D Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2L16-20D Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2L16-25D Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2L16-30D Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2L20-5D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L20-10D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L20-15D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2L20-20D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2L20-25D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2L20-30D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2L20-35D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2L20-40D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2L20-45D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2L20-50D Magnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2L25-5D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L25-10D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L25-15D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2L25-20D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2L25-25D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2L25-30D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2L25-35D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2L25-40D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2L25-45D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2L25-50D Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2L32-5D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L32-10D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2L32-15D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2L32-20D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2L32-25D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2L32-30D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2L32-35D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2L32-40D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2L32-45D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2L32-50D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2L32-75D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2L32-100D Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2L40-5D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2L40-10D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2L40-15D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2L40-20D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2L40-25D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2L40-30D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2L40-35D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2L40-40D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2L40-45D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2L40-50D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2L40-75D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2L40-100D Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2L50-10D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2L50-15D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2L50-20D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2L50-25D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2L50-30D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2L50-35D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2L50-40D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2L50-45D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2L50-50D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2L50-75D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2L50-100D Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2L63-10D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2L63-15D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2L63-20D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2L63-25D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2L63-30D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2L63-35D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2L63-40D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2L63-45D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2L63-50D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2L63-75D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2L63-100D Magnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2L80-10D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2L80-15D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2L80-20D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2L80-25D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2L80-30D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2L80-35D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2L80-40D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2L80-45D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2L80-50D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2L80-75D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2L80-100D Magnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2L100-10D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2L100-15D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2L100-20D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2L100-25D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2L100-30D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2L100-35D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2L100-40D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2L100-45D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2L100-50D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2L100-75D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2L100-100D Magnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2Z32-5D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2Z32-10D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2Z32-15D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2Z32-20D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2Z32-25D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2Z32-30D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2Z32-35D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2Z32-40D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2Z32-45D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2Z32-50D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2Z32-75D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2Z32-100D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2Z40-5D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2Z40-10D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2Z40-15D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2Z40-20D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2Z40-25D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2Z40-30D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2Z40-35D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2Z40-40D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2Z40-45D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2Z40-50D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2Z40-75D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2Z40-100D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2Z50-10D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2Z50-15D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2Z50-20D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2Z50-25D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2Z50-30D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2Z50-35D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2Z50-40D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2Z50-45D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2Z50-50D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2Z50-75D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2Z50-100D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2Z63-10D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2Z63-15D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2Z63-20D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2Z63-25D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2Z63-30D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2Z63-35D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2Z63-40D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2Z63-45D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2Z63-50D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2Z63-75D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2Z63-100D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2Z80-10D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2Z80-15D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2Z80-20D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2Z80-25D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2Z80-30D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2Z80-35D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2Z80-40D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2Z80-45D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2Z80-50D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2Z80-75D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2Z80-100D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2Z100-10D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2Z100-15D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2Z100-20D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2Z100-25D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2Z100-30D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2Z100-35D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2Z100-40D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2Z100-45D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2Z100-50D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2Z100-75D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2Z100-100D Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2B12-5D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B12-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B12-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2B12-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2B12-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2B12-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2B16-5D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B16-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B16-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2B16-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2B16-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2B16-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2B20-5D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B20-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B20-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2B20-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2B20-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2B20-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2B20-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2B20-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2B20-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2B20-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2B25-5D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B25-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B25-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2B25-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2B25-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2B25-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2B25-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2B25-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2B25-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2B25-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2B32-5D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2B32-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2B32-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2B32-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2B32-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2B32-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2B32-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2B32-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2B32-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2B32-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2B32-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2B32-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2B40-5D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2B40-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2B40-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2B40-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2B40-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2B40-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2B40-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2B40-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2B40-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2B40-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2B40-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2B40-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2B50-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2B50-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2B50-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2B50-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2B50-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2B50-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2B50-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2B50-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2B50-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2B50-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2B50-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2B63-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2B63-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2B63-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2B63-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2B63-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2B63-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2B63-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2B63-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2B63-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2B63-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2B63-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2B80-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2B80-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2B80-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2B80-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2B80-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2B80-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2B80-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2B80-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2B80-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2B80-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2B80-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2B100-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2B100-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2B100-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2B100-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2B100-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2B100-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2B100-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2B100-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2B100-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2B100-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2B100-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2A12-5D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A12-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A12-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2A12-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2A12-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2A12-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2A16-5D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A16-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A16-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2A16-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2A16-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2A16-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2A20-5D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A20-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A20-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2A20-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2A20-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2A20-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2A20-35D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2A20-40D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2A20-45D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2A20-50D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2A25-5D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A25-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A25-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2A25-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2A25-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2A25-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2A25-35D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2A25-40D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2A25-45D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2A25-50D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2A32-5D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2A32-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2A32-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2A32-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2A32-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2A32-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2A32-35D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2A32-40D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2A32-45D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2A32-50D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2A32-75D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2A32-100D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2A40-5D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2A40-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2A40-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2A40-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2A40-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2A40-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2A40-35D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2A40-40D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2A40-45D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2A40-50D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2A40-75D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2A40-100D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2A50-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2A50-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2A50-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2A50-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2A50-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2A50-35D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2A50-40D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2A50-45D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2A50-50D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2A50-75D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2A50-100D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2A63-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2A63-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2A63-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2A63-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2A63-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2A63-35D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2A63-40D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2A63-45D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2A63-50D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2A63-75D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2A63-100D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2A80-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2A80-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2A80-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2A80-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2A80-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2A80-35D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2A80-40D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2A80-45D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2A80-50D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2A80-75D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2A80-100D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2A100-10D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2A100-15D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2A100-20D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2A100-25D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2A100-30D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2A100-35D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2A100-40D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2A100-45D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2A100-50D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2A100-75D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2A100-100D Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2D12-5D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D12-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D12-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2D12-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2D12-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2D12-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2D16-5D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D16-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D16-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2D16-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2D16-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2D16-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2D20-5D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D20-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D20-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2D20-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2D20-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2D20-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2D20-35D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2D20-40D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2D20-45D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2D20-50D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2D25-5D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D25-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D25-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2D25-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2D25-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2D25-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2D25-35D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2D25-40D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2D25-45D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2D25-50D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2D32-5D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2D32-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2D32-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2D32-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2D32-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2D32-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2D32-35D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2D32-40D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2D32-45D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2D32-50D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2D32-75D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2D32-100D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2D40-5D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2D40-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2D40-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2D40-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2D40-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2D40-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2D40-35D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2D40-40D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2D40-45D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2D40-50D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2D40-75D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2D40-100D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2D50-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2D50-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2D50-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2D50-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2D50-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2D50-35D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2D50-40D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2D50-45D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2D50-50D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2D50-75D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2D50-100D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2D63-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2D63-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2D63-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2D63-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2D63-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2D63-35D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2D63-40D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2D63-45D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2D63-50D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2D63-75D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2D63-100D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2D80-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2D80-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2D80-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2D80-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2D80-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2D80-35D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2D80-40D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2D80-45D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2D80-50D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2D80-75D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2D80-100D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2D100-10D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2D100-15D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2D100-20D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2D100-25D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2D100-30D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2D100-35D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2D100-40D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2D100-45D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2D100-50D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2D100-75D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2D100-100D Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2F12-5D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F12-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F12-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2F12-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2F12-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2F12-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2F16-5D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F16-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F16-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2F16-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2F16-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2F16-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2F20-5D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F20-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F20-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2F20-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2F20-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2F20-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2F20-35D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2F20-40D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2F20-45D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2F20-50D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2F25-5D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F25-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F25-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2F25-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2F25-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2F25-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2F25-35D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2F25-40D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2F25-45D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2F25-50D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2F32-5D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2F32-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2F32-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2F32-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2F32-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2F32-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2F32-35D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2F32-40D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2F32-45D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2F32-50D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2F32-75D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2F32-100D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2F40-5D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2F40-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2F40-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2F40-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2F40-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2F40-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2F40-35D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2F40-40D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2F40-45D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2F40-50D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2F40-75D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2F40-100D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2F50-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2F50-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2F50-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2F50-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2F50-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2F50-35D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2F50-40D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2F50-45D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2F50-50D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2F50-75D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2F50-100D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2F63-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2F63-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2F63-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2F63-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2F63-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2F63-35D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2F63-40D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2F63-45D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2F63-50D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2F63-75D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2F63-100D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2F80-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2F80-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2F80-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2F80-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2F80-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2F80-35D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2F80-40D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2F80-45D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2F80-50D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2F80-75D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2F80-100D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2F100-10D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2F100-15D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2F100-20D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2F100-25D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2F100-30D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2F100-35D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2F100-40D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2F100-45D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2F100-50D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2F100-75D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2F100-100D Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2G12-5D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G12-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G12-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2G12-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2G12-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2G12-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2G16-5D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G16-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G16-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2G16-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2G16-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2G16-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2G20-5D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G20-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G20-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2G20-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2G20-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2G20-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2G20-35D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2G20-40D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2G20-45D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2G20-50D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2G25-5D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G25-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G25-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2G25-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2G25-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2G25-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2G25-35D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2G25-40D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2G25-45D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2G25-50D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2G32-5D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2G32-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2G32-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2G32-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2G32-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2G32-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2G32-35D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2G32-40D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2G32-45D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2G32-50D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2G32-75D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2G32-100D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2G40-5D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2G40-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2G40-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2G40-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2G40-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2G40-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2G40-35D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2G40-40D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2G40-45D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2G40-50D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2G40-75D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2G40-100D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2G50-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2G50-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2G50-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2G50-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2G50-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2G50-35D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2G50-40D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2G50-45D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2G50-50D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2G50-75D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2G50-100D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2G63-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2G63-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2G63-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2G63-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2G63-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2G63-35D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2G63-40D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2G63-45D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2G63-50D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2G63-75D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2G63-100D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2G80-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2G80-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2G80-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2G80-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2G80-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2G80-35D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2G80-40D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2G80-45D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2G80-50D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2G80-75D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2G80-100D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2G100-10D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2G100-15D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2G100-20D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2G100-25D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2G100-30D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2G100-35D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2G100-40D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2G100-45D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2G100-50D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2G100-75D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2G100-100D Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2L12-5D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L12-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L12-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2L12-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2L12-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2L12-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2L16-5D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L16-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L16-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2L16-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2L16-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2L16-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2L20-5D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L20-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L20-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2L20-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2L20-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2L20-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2L20-35D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2L20-40D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2L20-45D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2L20-50D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2L25-5D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L25-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L25-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2L25-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2L25-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2L25-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2L25-35D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2L25-40D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2L25-45D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2L25-50D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2L32-5D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2L32-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2L32-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2L32-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2L32-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2L32-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2L32-35D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2L32-40D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2L32-45D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2L32-50D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2L32-75D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2L32-100D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2L40-5D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2L40-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2L40-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2L40-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2L40-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2L40-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2L40-35D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2L40-40D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2L40-45D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2L40-50D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2L40-75D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2L40-100D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2L50-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2L50-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2L50-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2L50-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2L50-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2L50-35D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2L50-40D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2L50-45D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2L50-50D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2L50-75D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2L50-100D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2L63-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2L63-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2L63-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2L63-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2L63-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2L63-35D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2L63-40D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2L63-45D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2L63-50D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2L63-75D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2L63-100D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2L80-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2L80-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2L80-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2L80-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2L80-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2L80-35D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2L80-40D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2L80-45D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2L80-50D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2L80-75D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2L80-100D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2L100-10D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2L100-15D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2L100-20D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2L100-25D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2L100-30D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2L100-35D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2L100-40D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2L100-45D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2L100-50D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2L100-75D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2L100-100D Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2Z32-5D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2Z32-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2Z32-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2Z32-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2Z32-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2Z32-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2Z32-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2Z32-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2Z32-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2Z32-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2Z32-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2Z32-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2Z40-5D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2Z40-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2Z40-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2Z40-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2Z40-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2Z40-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2Z40-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2Z40-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2Z40-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2Z40-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2Z40-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2Z40-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2Z50-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2Z50-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2Z50-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2Z50-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2Z50-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2Z50-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2Z50-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2Z50-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2Z50-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2Z50-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2Z50-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2Z63-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2Z63-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2Z63-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2Z63-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2Z63-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2Z63-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2Z63-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2Z63-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2Z63-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2Z63-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2Z63-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2Z80-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2Z80-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2Z80-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2Z80-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2Z80-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2Z80-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2Z80-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2Z80-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2Z80-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2Z80-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2Z80-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2Z100-10D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2Z100-15D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2Z100-20D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2Z100-25D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2Z100-30D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2Z100-35D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2Z100-40D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2Z100-45D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2Z100-50D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2Z100-75D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2Z100-100D Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
Pneumatic CylindersTPC Mechatronics
1336 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-AQ2 Compact Cylinder for Secondary Battery (Bore 12-100 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (1336)

2B-AQ2B12-5D, 2B-AQ2B12-10D, 2B-AQ2B12-15D, 2B-AQ2B12-20D, 2B-AQ2B12-25D, 2B-AQ2B12-30D, 2B-AQ2B16-5D, 2B-AQ2B16-10D, 2B-AQ2B16-15D, 2B-AQ2B16-20D + 1326 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-AQ2B12-5DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B12-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B12-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2B12-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2B12-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2B12-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2B16-5DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B16-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B16-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2B16-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2B16-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2B16-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2B20-5DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B20-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B20-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2B20-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2B20-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2B20-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2B20-35DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2B20-40DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2B20-45DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2B20-50DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2B25-5DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B25-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B25-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2B25-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2B25-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2B25-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2B25-35DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2B25-40DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2B25-45DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2B25-50DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2B32-5DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B32-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2B32-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2B32-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2B32-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2B32-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2B32-35DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2B32-40DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2B32-45DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2B32-50DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2B32-75DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2B32-100DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2B40-5DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2B40-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2B40-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2B40-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2B40-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2B40-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2B40-35DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2B40-40DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2B40-45DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2B40-50DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2B40-75DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2B40-100DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2B50-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2B50-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2B50-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2B50-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2B50-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2B50-35DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2B50-40DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2B50-45DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2B50-50DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2B50-75DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2B50-100DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2B63-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2B63-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2B63-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2B63-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2B63-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2B63-35DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2B63-40DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2B63-45DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2B63-50DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2B63-75DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2B63-100DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2B80-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2B80-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2B80-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2B80-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2B80-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2B80-35DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2B80-40DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2B80-45DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2B80-50DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2B80-75DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2B80-100DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2B100-10DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2B100-15DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2B100-20DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2B100-25DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2B100-30DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2B100-35DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2B100-40DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2B100-45DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2B100-50DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2B100-75DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2B100-100DMagnet: None (basic type) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2A12-5DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A12-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A12-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2A12-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2A12-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2A12-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2A16-5DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A16-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A16-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2A16-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2A16-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2A16-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2A20-5DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A20-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A20-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2A20-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2A20-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2A20-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2A20-35DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2A20-40DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2A20-45DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2A20-50DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2A25-5DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A25-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A25-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2A25-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2A25-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2A25-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2A25-35DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2A25-40DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2A25-45DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2A25-50DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2A32-5DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A32-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2A32-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2A32-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2A32-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2A32-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2A32-35DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2A32-40DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2A32-45DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2A32-50DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2A32-75DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2A32-100DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2A40-5DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2A40-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2A40-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2A40-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2A40-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2A40-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2A40-35DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2A40-40DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2A40-45DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2A40-50DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2A40-75DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2A40-100DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2A50-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2A50-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2A50-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2A50-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2A50-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2A50-35DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2A50-40DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2A50-45DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2A50-50DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2A50-75DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2A50-100DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2A63-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2A63-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2A63-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2A63-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2A63-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2A63-35DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2A63-40DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2A63-45DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2A63-50DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2A63-75DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2A63-100DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2A80-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2A80-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2A80-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2A80-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2A80-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2A80-35DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2A80-40DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2A80-45DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2A80-50DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2A80-75DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2A80-100DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2A100-10DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2A100-15DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2A100-20DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2A100-25DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2A100-30DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2A100-35DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2A100-40DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2A100-45DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2A100-50DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2A100-75DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2A100-100DMagnet: None (basic type) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2D12-5DMagnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D12-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D12-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2D12-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2D12-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2D12-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2D16-5DMagnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D16-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D16-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2D16-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2D16-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2D16-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2D20-5DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D20-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D20-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2D20-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2D20-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2D20-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2D20-35DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2D20-40DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2D20-45DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2D20-50DMagnet: None (basic type) | Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2D25-5DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D25-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D25-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2D25-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2D25-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2D25-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2D25-35DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2D25-40DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2D25-45DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2D25-50DMagnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2D32-5DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D32-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2D32-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2D32-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2D32-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2D32-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2D32-35DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2D32-40DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2D32-45DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2D32-50DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2D32-75DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2D32-100DMagnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2D40-5DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2D40-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2D40-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2D40-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2D40-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2D40-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2D40-35DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2D40-40DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2D40-45DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2D40-50DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2D40-75DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2D40-100DMagnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2D50-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2D50-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2D50-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2D50-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2D50-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2D50-35DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2D50-40DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2D50-45DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2D50-50DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2D50-75DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2D50-100DMagnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2D63-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2D63-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2D63-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2D63-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2D63-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2D63-35DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2D63-40DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2D63-45DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2D63-50DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2D63-75DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2D63-100DMagnet: None (basic type) | Mounting: Double clevis | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2D80-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2D80-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2D80-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2D80-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2D80-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2D80-35DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2D80-40DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2D80-45DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2D80-50DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2D80-75DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2D80-100DMagnet: None (basic type) | Mounting: Double clevis | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2D100-10DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2D100-15DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2D100-20DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2D100-25DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2D100-30DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2D100-35DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2D100-40DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2D100-45DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2D100-50DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2D100-75DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2D100-100DMagnet: None (basic type) | Mounting: Double clevis | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2F12-5DMagnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F12-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F12-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2F12-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2F12-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2F12-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2F16-5DMagnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F16-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F16-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2F16-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2F16-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2F16-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2F20-5DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F20-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F20-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2F20-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2F20-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2F20-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2F20-35DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2F20-40DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2F20-45DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2F20-50DMagnet: None (basic type) | Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2F25-5DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F25-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F25-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2F25-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2F25-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2F25-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2F25-35DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2F25-40DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2F25-45DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2F25-50DMagnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2F32-5DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F32-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2F32-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2F32-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2F32-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2F32-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2F32-35DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2F32-40DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2F32-45DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2F32-50DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2F32-75DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2F32-100DMagnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2F40-5DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2F40-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2F40-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2F40-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2F40-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2F40-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2F40-35DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2F40-40DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2F40-45DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2F40-50DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2F40-75DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2F40-100DMagnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2F50-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2F50-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2F50-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2F50-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2F50-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2F50-35DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2F50-40DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2F50-45DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2F50-50DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2F50-75DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2F50-100DMagnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2F63-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2F63-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2F63-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2F63-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2F63-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2F63-35DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2F63-40DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2F63-45DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2F63-50DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2F63-75DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2F63-100DMagnet: None (basic type) | Mounting: Rod flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2F80-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2F80-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2F80-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2F80-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2F80-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2F80-35DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2F80-40DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2F80-45DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2F80-50DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2F80-75DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2F80-100DMagnet: None (basic type) | Mounting: Rod flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2F100-10DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2F100-15DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2F100-20DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2F100-25DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2F100-30DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2F100-35DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2F100-40DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2F100-45DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2F100-50DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2F100-75DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2F100-100DMagnet: None (basic type) | Mounting: Rod flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2G12-5DMagnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G12-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G12-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2G12-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2G12-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2G12-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2G16-5DMagnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G16-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G16-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2G16-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2G16-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2G16-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2G20-5DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G20-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G20-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2G20-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2G20-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2G20-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2G20-35DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2G20-40DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2G20-45DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2G20-50DMagnet: None (basic type) | Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2G25-5DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G25-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G25-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2G25-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2G25-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2G25-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2G25-35DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2G25-40DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2G25-45DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2G25-50DMagnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2G32-5DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G32-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2G32-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2G32-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2G32-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2G32-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2G32-35DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2G32-40DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2G32-45DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2G32-50DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2G32-75DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2G32-100DMagnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2G40-5DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2G40-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2G40-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2G40-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2G40-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2G40-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2G40-35DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2G40-40DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2G40-45DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2G40-50DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2G40-75DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2G40-100DMagnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2G50-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2G50-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2G50-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2G50-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2G50-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2G50-35DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2G50-40DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2G50-45DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2G50-50DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2G50-75DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2G50-100DMagnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2G63-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2G63-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2G63-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2G63-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2G63-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2G63-35DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2G63-40DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2G63-45DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2G63-50DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2G63-75DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2G63-100DMagnet: None (basic type) | Mounting: Head flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2G80-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2G80-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2G80-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2G80-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2G80-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2G80-35DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2G80-40DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2G80-45DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2G80-50DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2G80-75DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2G80-100DMagnet: None (basic type) | Mounting: Head flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2G100-10DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2G100-15DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2G100-20DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2G100-25DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2G100-30DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2G100-35DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2G100-40DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2G100-45DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2G100-50DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2G100-75DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2G100-100DMagnet: None (basic type) | Mounting: Head flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2L12-5DMagnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L12-10DMagnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L12-15DMagnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2L12-20DMagnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2L12-25DMagnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2L12-30DMagnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2L16-5DMagnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L16-10DMagnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L16-15DMagnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2L16-20DMagnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2L16-25DMagnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2L16-30DMagnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2L20-5DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L20-10DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L20-15DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2L20-20DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2L20-25DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2L20-30DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2L20-35DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2L20-40DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2L20-45DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2L20-50DMagnet: None (basic type) | Mounting: Foot | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2L25-5DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L25-10DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L25-15DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-AQ2L25-20DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-AQ2L25-25DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-AQ2L25-30DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-AQ2L25-35DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-AQ2L25-40DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-AQ2L25-45DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-AQ2L25-50DMagnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-AQ2L32-5DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L32-10DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2L32-15DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2L32-20DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2L32-25DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2L32-30DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2L32-35DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2L32-40DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2L32-45DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2L32-50DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2L32-75DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2L32-100DMagnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2L40-5DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2L40-10DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2L40-15DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2L40-20DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2L40-25DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2L40-30DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2L40-35DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2L40-40DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2L40-45DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2L40-50DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2L40-75DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2L40-100DMagnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2L50-10DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2L50-15DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2L50-20DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2L50-25DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2L50-30DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2L50-35DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2L50-40DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2L50-45DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2L50-50DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2L50-75DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2L50-100DMagnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2L63-10DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2L63-15DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2L63-20DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2L63-25DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2L63-30DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2L63-35DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2L63-40DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2L63-45DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2L63-50DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2L63-75DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2L63-100DMagnet: None (basic type) | Mounting: Foot | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2L80-10DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2L80-15DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2L80-20DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2L80-25DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2L80-30DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2L80-35DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2L80-40DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2L80-45DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2L80-50DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2L80-75DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2L80-100DMagnet: None (basic type) | Mounting: Foot | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2L100-10DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2L100-15DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2L100-20DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2L100-25DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2L100-30DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2L100-35DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2L100-40DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2L100-45DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2L100-50DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2L100-75DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2L100-100DMagnet: None (basic type) | Mounting: Foot | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2Z32-5DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2Z32-10DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2Z32-15DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2Z32-20DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2Z32-25DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2Z32-30DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2Z32-35DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2Z32-40DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2Z32-45DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2Z32-50DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2Z32-75DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2Z32-100DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2Z40-5DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-AQ2Z40-10DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2Z40-15DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-AQ2Z40-20DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-AQ2Z40-25DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-AQ2Z40-30DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-AQ2Z40-35DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-AQ2Z40-40DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-AQ2Z40-45DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-AQ2Z40-50DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-AQ2Z40-75DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-AQ2Z40-100DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-AQ2Z50-10DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2Z50-15DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2Z50-20DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2Z50-25DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2Z50-30DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2Z50-35DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2Z50-40DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2Z50-45DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2Z50-50DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2Z50-75DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2Z50-100DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2Z63-10DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2Z63-15DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-AQ2Z63-20DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-AQ2Z63-25DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-AQ2Z63-30DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-AQ2Z63-35DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-AQ2Z63-40DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-AQ2Z63-45DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-AQ2Z63-50DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-AQ2Z63-75DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-AQ2Z63-100DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-AQ2Z80-10DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2Z80-15DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2Z80-20DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2Z80-25DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2Z80-30DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2Z80-35DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2Z80-40DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2Z80-45DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2Z80-50DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2Z80-75DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2Z80-100DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-AQ2Z100-10DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-AQ2Z100-15DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-AQ2Z100-20DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-AQ2Z100-25DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-AQ2Z100-30DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-AQ2Z100-35DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-AQ2Z100-40DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-AQ2Z100-45DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-AQ2Z100-50DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-AQ2Z100-75DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-AQ2Z100-100DMagnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2B12-5DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B12-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B12-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2B12-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2B12-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2B12-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2B16-5DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B16-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B16-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2B16-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2B16-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2B16-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2B20-5DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B20-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B20-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2B20-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2B20-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2B20-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2B20-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2B20-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2B20-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2B20-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2B25-5DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B25-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B25-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2B25-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2B25-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2B25-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2B25-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2B25-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2B25-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2B25-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2B32-5DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2B32-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2B32-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2B32-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2B32-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2B32-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2B32-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2B32-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2B32-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2B32-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2B32-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2B32-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2B40-5DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2B40-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2B40-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2B40-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2B40-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2B40-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2B40-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2B40-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2B40-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2B40-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2B40-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2B40-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2B50-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2B50-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2B50-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2B50-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2B50-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2B50-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2B50-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2B50-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2B50-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2B50-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2B50-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2B63-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2B63-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2B63-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2B63-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2B63-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2B63-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2B63-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2B63-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2B63-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2B63-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2B63-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2B80-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2B80-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2B80-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2B80-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2B80-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2B80-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2B80-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2B80-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2B80-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2B80-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2B80-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2B100-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2B100-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2B100-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2B100-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2B100-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2B100-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2B100-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2B100-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2B100-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2B100-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2B100-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2A12-5DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A12-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A12-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2A12-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2A12-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2A12-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2A16-5DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A16-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A16-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2A16-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2A16-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2A16-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2A20-5DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A20-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A20-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2A20-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2A20-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2A20-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2A20-35DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2A20-40DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2A20-45DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2A20-50DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2A25-5DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A25-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A25-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2A25-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2A25-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2A25-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2A25-35DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2A25-40DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2A25-45DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2A25-50DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2A32-5DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2A32-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2A32-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2A32-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2A32-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2A32-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2A32-35DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2A32-40DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2A32-45DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2A32-50DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2A32-75DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2A32-100DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2A40-5DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2A40-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2A40-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2A40-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2A40-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2A40-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2A40-35DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2A40-40DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2A40-45DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2A40-50DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2A40-75DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2A40-100DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2A50-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2A50-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2A50-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2A50-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2A50-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2A50-35DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2A50-40DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2A50-45DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2A50-50DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2A50-75DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2A50-100DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2A63-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2A63-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2A63-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2A63-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2A63-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2A63-35DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2A63-40DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2A63-45DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2A63-50DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2A63-75DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2A63-100DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2A80-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2A80-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2A80-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2A80-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2A80-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2A80-35DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2A80-40DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2A80-45DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2A80-50DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2A80-75DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2A80-100DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2A100-10DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2A100-15DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2A100-20DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2A100-25DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2A100-30DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2A100-35DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2A100-40DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2A100-45DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2A100-50DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2A100-75DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2A100-100DMagnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2D12-5DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D12-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D12-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2D12-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2D12-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2D12-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2D16-5DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D16-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D16-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2D16-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2D16-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2D16-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2D20-5DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D20-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D20-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2D20-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2D20-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2D20-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2D20-35DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2D20-40DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2D20-45DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2D20-50DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2D25-5DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D25-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D25-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2D25-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2D25-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2D25-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2D25-35DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2D25-40DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2D25-45DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2D25-50DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2D32-5DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2D32-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2D32-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2D32-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2D32-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2D32-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2D32-35DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2D32-40DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2D32-45DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2D32-50DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2D32-75DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2D32-100DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2D40-5DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2D40-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2D40-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2D40-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2D40-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2D40-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2D40-35DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2D40-40DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2D40-45DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2D40-50DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2D40-75DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2D40-100DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2D50-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2D50-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2D50-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2D50-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2D50-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2D50-35DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2D50-40DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2D50-45DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2D50-50DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2D50-75DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2D50-100DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2D63-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2D63-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2D63-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2D63-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2D63-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2D63-35DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2D63-40DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2D63-45DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2D63-50DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2D63-75DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2D63-100DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2D80-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2D80-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2D80-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2D80-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2D80-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2D80-35DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2D80-40DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2D80-45DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2D80-50DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2D80-75DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2D80-100DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2D100-10DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2D100-15DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2D100-20DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2D100-25DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2D100-30DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2D100-35DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2D100-40DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2D100-45DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2D100-50DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2D100-75DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2D100-100DMagnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2F12-5DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F12-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F12-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2F12-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2F12-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2F12-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2F16-5DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F16-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F16-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2F16-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2F16-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2F16-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2F20-5DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F20-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F20-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2F20-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2F20-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2F20-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2F20-35DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2F20-40DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2F20-45DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2F20-50DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2F25-5DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F25-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F25-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2F25-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2F25-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2F25-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2F25-35DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2F25-40DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2F25-45DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2F25-50DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2F32-5DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2F32-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2F32-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2F32-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2F32-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2F32-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2F32-35DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2F32-40DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2F32-45DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2F32-50DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2F32-75DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2F32-100DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2F40-5DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2F40-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2F40-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2F40-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2F40-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2F40-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2F40-35DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2F40-40DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2F40-45DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2F40-50DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2F40-75DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2F40-100DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2F50-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2F50-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2F50-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2F50-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2F50-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2F50-35DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2F50-40DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2F50-45DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2F50-50DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2F50-75DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2F50-100DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2F63-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2F63-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2F63-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2F63-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2F63-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2F63-35DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2F63-40DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2F63-45DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2F63-50DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2F63-75DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2F63-100DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2F80-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2F80-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2F80-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2F80-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2F80-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2F80-35DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2F80-40DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2F80-45DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2F80-50DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2F80-75DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2F80-100DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2F100-10DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2F100-15DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2F100-20DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2F100-25DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2F100-30DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2F100-35DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2F100-40DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2F100-45DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2F100-50DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2F100-75DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2F100-100DMagnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2G12-5DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G12-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G12-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2G12-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2G12-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2G12-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2G16-5DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G16-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G16-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2G16-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2G16-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2G16-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2G20-5DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G20-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G20-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2G20-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2G20-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2G20-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2G20-35DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2G20-40DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2G20-45DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2G20-50DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2G25-5DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G25-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G25-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2G25-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2G25-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2G25-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2G25-35DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2G25-40DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2G25-45DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2G25-50DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2G32-5DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2G32-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2G32-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2G32-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2G32-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2G32-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2G32-35DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2G32-40DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2G32-45DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2G32-50DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2G32-75DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2G32-100DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2G40-5DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2G40-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2G40-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2G40-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2G40-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2G40-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2G40-35DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2G40-40DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2G40-45DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2G40-50DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2G40-75DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2G40-100DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2G50-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2G50-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2G50-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2G50-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2G50-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2G50-35DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2G50-40DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2G50-45DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2G50-50DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2G50-75DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2G50-100DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2G63-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2G63-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2G63-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2G63-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2G63-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2G63-35DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2G63-40DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2G63-45DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2G63-50DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2G63-75DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2G63-100DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2G80-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2G80-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2G80-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2G80-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2G80-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2G80-35DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2G80-40DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2G80-45DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2G80-50DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2G80-75DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2G80-100DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2G100-10DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2G100-15DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2G100-20DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2G100-25DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2G100-30DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2G100-35DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2G100-40DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2G100-45DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2G100-50DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2G100-75DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2G100-100DMagnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2L12-5DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L12-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L12-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2L12-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2L12-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2L12-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2L16-5DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L16-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L16-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2L16-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2L16-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2L16-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2L20-5DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L20-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L20-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2L20-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2L20-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2L20-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2L20-35DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2L20-40DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2L20-45DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2L20-50DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 20 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2L25-5DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L25-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L25-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 15 mm | Port: M5x0.8
2B-ADQ2L25-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 20 mm | Port: M5x0.8
2B-ADQ2L25-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 25 mm | Port: M5x0.8
2B-ADQ2L25-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 30 mm | Port: M5x0.8
2B-ADQ2L25-35DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 35 mm | Port: M5x0.8
2B-ADQ2L25-40DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 40 mm | Port: M5x0.8
2B-ADQ2L25-45DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 45 mm | Port: M5x0.8
2B-ADQ2L25-50DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 50 mm | Port: M5x0.8
2B-ADQ2L32-5DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2L32-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2L32-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2L32-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2L32-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2L32-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2L32-35DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2L32-40DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2L32-45DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2L32-50DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2L32-75DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2L32-100DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2L40-5DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2L40-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2L40-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2L40-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2L40-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2L40-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2L40-35DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2L40-40DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2L40-45DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2L40-50DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2L40-75DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2L40-100DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2L50-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2L50-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2L50-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2L50-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2L50-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2L50-35DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2L50-40DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2L50-45DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2L50-50DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2L50-75DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2L50-100DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2L63-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2L63-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2L63-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2L63-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2L63-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2L63-35DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2L63-40DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2L63-45DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2L63-50DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2L63-75DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2L63-100DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2L80-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2L80-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2L80-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2L80-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2L80-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2L80-35DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2L80-40DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2L80-45DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2L80-50DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2L80-75DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2L80-100DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2L100-10DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2L100-15DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2L100-20DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2L100-25DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2L100-30DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2L100-35DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2L100-40DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2L100-45DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2L100-50DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2L100-75DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2L100-100DMagnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2Z32-5DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2Z32-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2Z32-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2Z32-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2Z32-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2Z32-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2Z32-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2Z32-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2Z32-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2Z32-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2Z32-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2Z32-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2Z40-5DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2Z40-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2Z40-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 15 mm | Port: Rc1/8
2B-ADQ2Z40-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 20 mm | Port: Rc1/8
2B-ADQ2Z40-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/8
2B-ADQ2Z40-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 30 mm | Port: Rc1/8
2B-ADQ2Z40-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 35 mm | Port: Rc1/8
2B-ADQ2Z40-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 40 mm | Port: Rc1/8
2B-ADQ2Z40-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 45 mm | Port: Rc1/8
2B-ADQ2Z40-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/8
2B-ADQ2Z40-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/8
2B-ADQ2Z40-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/8
2B-ADQ2Z50-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2Z50-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2Z50-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2Z50-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2Z50-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2Z50-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2Z50-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2Z50-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2Z50-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2Z50-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2Z50-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2Z63-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2Z63-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 15 mm | Port: Rc1/4
2B-ADQ2Z63-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 20 mm | Port: Rc1/4
2B-ADQ2Z63-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 25 mm | Port: Rc1/4
2B-ADQ2Z63-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 30 mm | Port: Rc1/4
2B-ADQ2Z63-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 35 mm | Port: Rc1/4
2B-ADQ2Z63-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 40 mm | Port: Rc1/4
2B-ADQ2Z63-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 45 mm | Port: Rc1/4
2B-ADQ2Z63-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 50 mm | Port: Rc1/4
2B-ADQ2Z63-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 75 mm | Port: Rc1/4
2B-ADQ2Z63-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 63 mm | Stroke: 100 mm | Port: Rc1/4
2B-ADQ2Z80-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2Z80-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2Z80-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2Z80-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2Z80-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2Z80-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2Z80-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2Z80-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2Z80-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2Z80-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2Z80-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 80 mm | Stroke: 100 mm | Port: Rc3/8
2B-ADQ2Z100-10DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 10 mm | Port: Rc3/8
2B-ADQ2Z100-15DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 15 mm | Port: Rc3/8
2B-ADQ2Z100-20DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 20 mm | Port: Rc3/8
2B-ADQ2Z100-25DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 25 mm | Port: Rc3/8
2B-ADQ2Z100-30DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 30 mm | Port: Rc3/8
2B-ADQ2Z100-35DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 35 mm | Port: Rc3/8
2B-ADQ2Z100-40DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 40 mm | Port: Rc3/8
2B-ADQ2Z100-45DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 45 mm | Port: Rc3/8
2B-ADQ2Z100-50DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 50 mm | Port: Rc3/8
2B-ADQ2Z100-75DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 75 mm | Port: Rc3/8
2B-ADQ2Z100-100DMagnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 100 mm | Stroke: 100 mm | Port: Rc3/8

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
