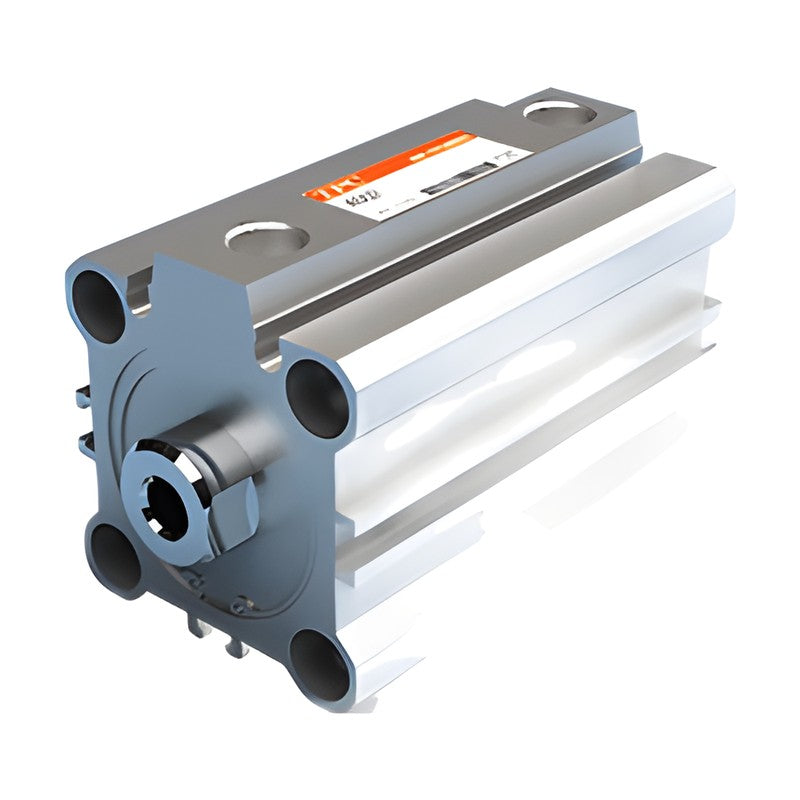

TPC 2B-AQ2 Single Acting Compact Cylinder for Secondary Battery

TPC 2B-AQ2 Single Acting Compact Cylinder for Secondary Battery

TPC 2B-AQ2/2B-ADQ2 single acting spring-return compact cylinder for secondary-battery production lines, bore 12-50 mm.

Key features

  • Single acting spring-return compact cylinder with square aluminium tube; built-in magnet version ADQ2 for auto switches
  • Secondary-battery (2B) version: copper/zinc-restricted materials, electroless nickel plated spring and steel parts
  • Action S spring-return extend (push) for bore 12-50; T retract (pull) for bore 12, 16, 25 only
  • Mounting codes B through hole, A both-end tapped, Z through hole + both-end tap (32-50), L foot, F rod flange, G head flange, D double clevis

Specifications

Fluid Air (non-lube)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.07-0.17 MPa (by bore)
Ambient and fluid temperature -10 to 70 C (no freezing)
Piston speed 50-500 mm/s
Cushion None
Stroke tolerance +1.0/0 mm
Source TPC Mechatronics catalog AQ2 (single acting) 250808.pdf, p. 1, 3
2B-AQ2B12-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B12-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B12-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B12-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B16-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B16-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B16-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B16-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B25-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B25-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B25-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B25-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B32-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B32-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2B40-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2B40-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2B50-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2B50-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2A12-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A12-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A12-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A12-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A16-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A16-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A16-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A16-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A25-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A25-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A25-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A25-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A32-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A32-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2A40-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2A40-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2A50-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2A50-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2D12-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D12-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D12-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D12-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D16-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D16-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D16-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D16-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D25-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D25-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D25-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D25-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D32-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D32-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2D40-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2D40-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2D50-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2D50-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2F12-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F12-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F12-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F12-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F16-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F16-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F16-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F16-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F25-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F25-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F25-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F25-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F32-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F32-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2F40-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2F40-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2F50-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2F50-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2G12-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G12-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G12-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G12-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G16-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G16-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G16-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G16-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G25-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G25-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G25-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G25-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G32-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G32-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2G40-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2G40-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2G50-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2G50-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2L12-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L12-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L12-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L12-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L16-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L16-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L16-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L16-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L25-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L25-5T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L25-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L25-10T Action: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L32-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L32-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2L40-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2L40-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2L50-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2L50-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2Z32-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2Z32-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2Z40-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2Z40-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2Z50-5S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2Z50-10S Action: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2B12-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B12-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B12-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B12-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B16-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B16-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B16-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B16-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B25-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B25-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B25-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B25-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B32-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2B32-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2B40-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2B40-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2B50-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2B50-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2A12-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A12-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A12-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A12-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A16-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A16-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A16-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A16-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A25-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A25-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A25-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A25-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A32-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2A32-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2A40-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2A40-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2A50-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2A50-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2D12-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D12-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D12-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D12-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D16-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D16-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D16-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D16-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D25-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D25-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D25-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D25-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D32-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2D32-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2D40-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2D40-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2D50-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2D50-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2F12-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F12-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F12-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F12-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F16-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F16-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F16-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F16-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F25-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F25-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F25-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F25-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F32-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2F32-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2F40-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2F40-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2F50-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2F50-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2G12-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G12-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G12-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G12-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G16-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G16-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G16-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G16-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G25-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G25-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G25-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G25-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G32-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2G32-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2G40-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2G40-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2G50-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2G50-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2L12-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L12-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L12-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L12-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L16-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L16-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L16-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L16-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L25-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L25-5T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L25-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L25-10T Action: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L32-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2L32-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2L40-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2L40-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2L50-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2L50-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2Z32-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2Z32-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2Z40-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2Z40-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2Z50-5S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2Z50-10S Action: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
Pneumatic CylindersTPC Mechatronics
228 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-AQ2 Single Acting Compact Cylinder for Secondary Battery

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (228)

2B-AQ2B12-5S, 2B-AQ2B12-5T, 2B-AQ2B12-10S, 2B-AQ2B12-10T, 2B-AQ2B16-5S, 2B-AQ2B16-5T, 2B-AQ2B16-10S, 2B-AQ2B16-10T, 2B-AQ2B25-5S, 2B-AQ2B25-5T + 218 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-AQ2B12-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B12-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B12-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B12-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B16-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B16-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B16-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B16-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B25-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B25-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B25-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B25-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2B32-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2B32-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2B40-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2B40-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2B50-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2B50-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2A12-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A12-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A12-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A12-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A16-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A16-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A16-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A16-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A25-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A25-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A25-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A25-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2A32-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2A32-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2A40-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2A40-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2A50-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2A50-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2D12-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D12-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D12-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D12-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D16-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D16-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D16-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D16-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D25-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D25-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D25-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D25-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2D32-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2D32-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2D40-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2D40-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2D50-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2D50-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Double clevis | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2F12-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F12-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F12-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F12-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F16-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F16-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F16-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F16-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F25-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F25-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F25-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F25-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2F32-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2F32-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2F40-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2F40-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2F50-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2F50-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Rod flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2G12-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G12-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G12-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G12-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G16-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G16-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G16-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G16-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G25-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G25-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G25-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G25-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2G32-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2G32-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2G40-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2G40-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2G50-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2G50-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Head flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2L12-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L12-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L12-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L12-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L16-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L16-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L16-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L16-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L25-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L25-5TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L25-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L25-10TAction: Single acting, retract (pull) | Magnet: None (basic type) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-AQ2L32-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2L32-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2L40-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2L40-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2L50-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2L50-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Foot | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2Z32-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 5 mm | Port: M5x0.8
2B-AQ2Z32-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-AQ2Z40-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2Z40-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-AQ2Z50-5SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-AQ2Z50-10SAction: Single acting, extend (push) | Magnet: None (basic type) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2B12-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B12-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B12-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B12-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B16-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B16-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B16-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B16-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B25-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B25-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2B25-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B25-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2B32-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2B32-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2B40-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2B40-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2B50-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2B50-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole (std) | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2A12-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A12-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A12-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A12-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A16-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A16-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A16-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A16-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A25-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A25-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2A25-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A25-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2A32-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2A32-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2A40-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2A40-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2A50-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2A50-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Both-end tapped | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2D12-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D12-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D12-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D12-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D16-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D16-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D16-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D16-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D25-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D25-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2D25-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D25-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2D32-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2D32-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2D40-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2D40-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2D50-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2D50-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Double clevis | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2F12-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F12-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F12-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F12-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F16-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F16-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F16-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F16-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F25-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F25-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2F25-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F25-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2F32-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2F32-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2F40-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2F40-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2F50-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2F50-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Rod flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2G12-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G12-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G12-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G12-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G16-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G16-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G16-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G16-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G25-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G25-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2G25-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G25-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2G32-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2G32-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2G40-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2G40-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2G50-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2G50-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Head flange | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2L12-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L12-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L12-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L12-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 12 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L16-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L16-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L16-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L16-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 16 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L25-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L25-5TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 5 mm | Port: M5x0.8
2B-ADQ2L25-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L25-10TAction: Single acting, retract (pull) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 25 mm | Stroke: 10 mm | Port: M5x0.8
2B-ADQ2L32-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2L32-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2L40-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2L40-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2L50-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2L50-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2Z32-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 5 mm | Port: Rc1/8
2B-ADQ2Z32-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 32 mm | Stroke: 10 mm | Port: Rc1/8
2B-ADQ2Z40-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2Z40-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 40 mm | Stroke: 10 mm | Port: Rc1/4
2B-ADQ2Z50-5SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 5 mm | Port: Rc1/4
2B-ADQ2Z50-10SAction: Single acting, extend (push) | Magnet: Built-in (auto switch ready) | Mounting: Through hole + both-end tap | Bore: 50 mm | Stroke: 10 mm | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
