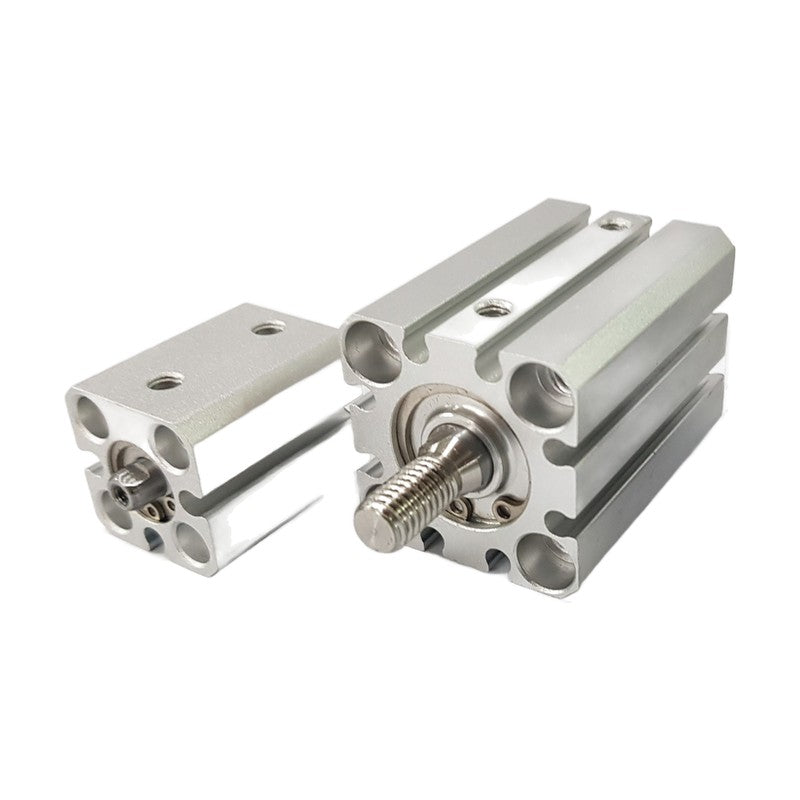

TPC 2B-AQS Compact Thin Cylinder for Secondary Battery (12-20 mm)

TPC 2B-AQS Compact Thin Cylinder for Secondary Battery (12-20 mm)

TPC 2B-AQS series short-tube compact cylinder for secondary battery production lines, double acting, bore 12 to 20 mm, with specifications and dimensions identical to the standard AQS.

Key features

  • 2B prefix: secondary battery compatible version with controlled copper and zinc content (some options not available)
  • Specifications and outer dimensions identical to the standard AQS series
  • Tube length about 6 to 28 percent shorter than the AQ2 series
  • XC16 (freeze-resistant) option not applicable to 2B series
  • Auto switches W8, W9, W10, W20, W30 ordered as suffix (not listed)

Specifications

Action Double acting, single rod
Fluid Air (non-lube)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.07 MPa (12), 0.05 MPa (16, 20)
Ambient and fluid temperature -5 to 70 C (with switch -5 to 60 C), no freezing
Cushion Rubber cushion both ends (C)
Piston speed 50 to 500 mm/s
Port M5x0.8
Mounting Both-end tap (through-hole common)
