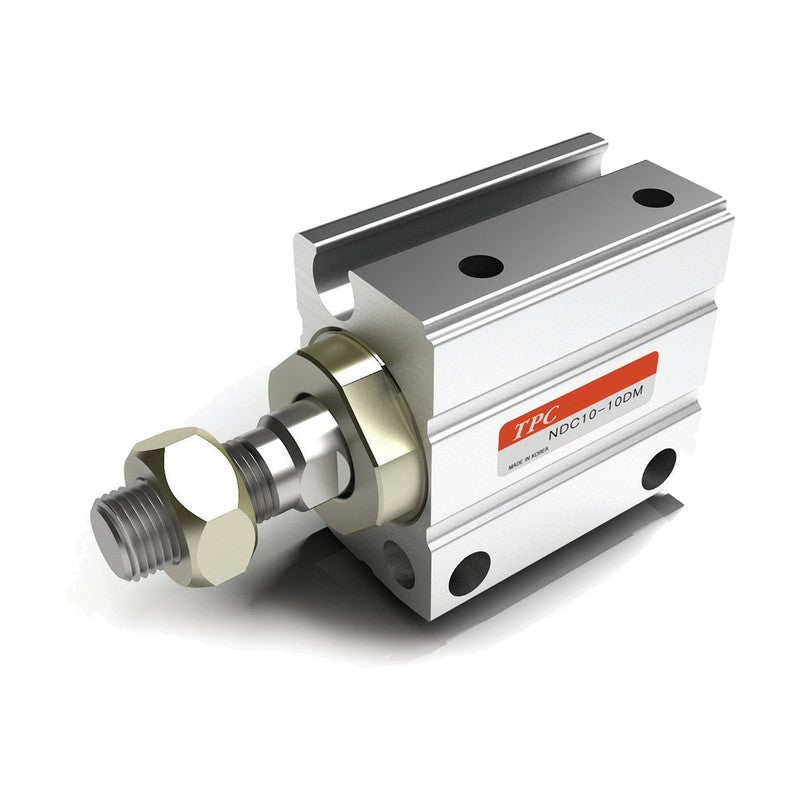

TPC 2B-NDC Compact Direct Mount Cylinder (Battery Industry, Bore 4-20)

TPC 2B-NDC Compact Direct Mount Cylinder (Battery Industry, Bore 4-20)

TPC 2B-NDC series secondary-battery-compatible small direct mount cylinder, double or single acting, bore 4 to 20 mm, with copper/zinc-controlled materials.

Key features

  • 2B prefix: secondary battery industry specification; some options cannot be produced
  • Specifications and outer dimensions identical to the standard NDC series
  • Mountable from four directions (front, rear, left, right) through the body
  • Double acting or single acting (spring extend); female or male (M) rod end thread

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. pressure (double acting) 0.15 (4-8), 0.1 (10), 0.07 (12/16), 0.05 MPa (20)
Ambient and fluid temperature 5 to 60 C
Piston speed 50 to 500 mm/s
Cushion None (4-10), rubber (12-20)
Lubrication Not required
Mounting Through holes (4 directions)
Stroke tolerance 0 to +0.5 mm
Source TPC Mechatronics catalog NDC_Series(230525).pdf, p. 1, 4
2B-NDC04-4D Bore: 4 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: No thread
2B-NDC04-4DM Bore: 4 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC04-6D Bore: 4 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: No thread
2B-NDC04-6DM Bore: 4 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC04-8D Bore: 4 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: No thread
2B-NDC04-8DM Bore: 4 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC04-10D Bore: 4 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: No thread
2B-NDC04-10DM Bore: 4 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC04-15D Bore: 4 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: No thread
2B-NDC04-15DM Bore: 4 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC04-20D Bore: 4 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: No thread
2B-NDC04-20DM Bore: 4 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC04-4S Bore: 4 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: No thread
2B-NDC04-4SM Bore: 4 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC04-6S Bore: 4 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: No thread
2B-NDC04-6SM Bore: 4 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC06-4D Bore: 6 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC06-4DM Bore: 6 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC06-6D Bore: 6 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC06-6DM Bore: 6 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC06-8D Bore: 6 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC06-8DM Bore: 6 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC06-10D Bore: 6 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC06-10DM Bore: 6 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC06-15D Bore: 6 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC06-15DM Bore: 6 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC06-20D Bore: 6 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC06-20DM Bore: 6 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC06-25D Bore: 6 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC06-25DM Bore: 6 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC06-30D Bore: 6 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC06-30DM Bore: 6 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC06-4S Bore: 6 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC06-4SM Bore: 6 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC06-6S Bore: 6 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC06-6SM Bore: 6 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC06-8S Bore: 6 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC06-8SM Bore: 6 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDCD06-4D Bore: 6 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-4DM Bore: 6 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-6D Bore: 6 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-6DM Bore: 6 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-8D Bore: 6 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-8DM Bore: 6 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-10D Bore: 6 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-10DM Bore: 6 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-15D Bore: 6 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-15DM Bore: 6 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-20D Bore: 6 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-20DM Bore: 6 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-25D Bore: 6 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-25DM Bore: 6 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-30D Bore: 6 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-30DM Bore: 6 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-4S Bore: 6 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-4SM Bore: 6 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-6S Bore: 6 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-6SM Bore: 6 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-8S Bore: 6 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-8SM Bore: 6 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDC08-4D Bore: 8 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC08-4DM Bore: 8 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC08-6D Bore: 8 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC08-6DM Bore: 8 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC08-8D Bore: 8 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC08-8DM Bore: 8 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC08-10D Bore: 8 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC08-10DM Bore: 8 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC08-15D Bore: 8 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC08-15DM Bore: 8 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC08-20D Bore: 8 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC08-20DM Bore: 8 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC08-25D Bore: 8 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC08-25DM Bore: 8 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC08-30D Bore: 8 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC08-30DM Bore: 8 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC08-4S Bore: 8 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC08-4SM Bore: 8 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC08-6S Bore: 8 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC08-6SM Bore: 8 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC08-8S Bore: 8 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC08-8SM Bore: 8 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC08-10S Bore: 8 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC08-10SM Bore: 8 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD08-4D Bore: 8 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-4DM Bore: 8 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-6D Bore: 8 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-6DM Bore: 8 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-8D Bore: 8 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-8DM Bore: 8 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-10D Bore: 8 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-10DM Bore: 8 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-15D Bore: 8 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-15DM Bore: 8 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-20D Bore: 8 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-20DM Bore: 8 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-25D Bore: 8 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-25DM Bore: 8 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-30D Bore: 8 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-30DM Bore: 8 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-4S Bore: 8 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-4SM Bore: 8 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-6S Bore: 8 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-6SM Bore: 8 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-8S Bore: 8 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-8SM Bore: 8 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-10S Bore: 8 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-10SM Bore: 8 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDC10-4D Bore: 10 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC10-4DM Bore: 10 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC10-6D Bore: 10 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC10-6DM Bore: 10 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC10-8D Bore: 10 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC10-8DM Bore: 10 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC10-10D Bore: 10 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC10-10DM Bore: 10 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC10-15D Bore: 10 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC10-15DM Bore: 10 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC10-20D Bore: 10 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC10-20DM Bore: 10 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC10-25D Bore: 10 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC10-25DM Bore: 10 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC10-30D Bore: 10 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC10-30DM Bore: 10 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC10-4S Bore: 10 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC10-4SM Bore: 10 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC10-6S Bore: 10 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC10-6SM Bore: 10 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC10-8S Bore: 10 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC10-8SM Bore: 10 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC10-10S Bore: 10 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC10-10SM Bore: 10 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD10-4D Bore: 10 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-4DM Bore: 10 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-6D Bore: 10 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-6DM Bore: 10 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-8D Bore: 10 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-8DM Bore: 10 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-10D Bore: 10 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-10DM Bore: 10 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-15D Bore: 10 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-15DM Bore: 10 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-20D Bore: 10 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-20DM Bore: 10 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-25D Bore: 10 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-25DM Bore: 10 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-30D Bore: 10 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-30DM Bore: 10 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-4S Bore: 10 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-4SM Bore: 10 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-6S Bore: 10 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-6SM Bore: 10 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-8S Bore: 10 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-8SM Bore: 10 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-10S Bore: 10 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-10SM Bore: 10 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDC12-5D Bore: 12 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC12-5DM Bore: 12 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC12-10D Bore: 12 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC12-10DM Bore: 12 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC12-15D Bore: 12 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC12-15DM Bore: 12 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC12-20D Bore: 12 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC12-20DM Bore: 12 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC12-25D Bore: 12 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC12-25DM Bore: 12 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC12-30D Bore: 12 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC12-30DM Bore: 12 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC12-5S Bore: 12 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC12-5SM Bore: 12 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC12-10S Bore: 12 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC12-10SM Bore: 12 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD12-5D Bore: 12 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-5DM Bore: 12 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-10D Bore: 12 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-10DM Bore: 12 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-15D Bore: 12 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-15DM Bore: 12 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-20D Bore: 12 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-20DM Bore: 12 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-25D Bore: 12 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-25DM Bore: 12 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-30D Bore: 12 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-30DM Bore: 12 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-5S Bore: 12 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-5SM Bore: 12 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-10S Bore: 12 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-10SM Bore: 12 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDC16-5D Bore: 16 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC16-5DM Bore: 16 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC16-10D Bore: 16 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC16-10DM Bore: 16 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC16-15D Bore: 16 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC16-15DM Bore: 16 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC16-20D Bore: 16 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC16-20DM Bore: 16 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC16-25D Bore: 16 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC16-25DM Bore: 16 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC16-30D Bore: 16 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC16-30DM Bore: 16 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC16-5S Bore: 16 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC16-5SM Bore: 16 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC16-10S Bore: 16 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC16-10SM Bore: 16 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD16-5D Bore: 16 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-5DM Bore: 16 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-10D Bore: 16 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-10DM Bore: 16 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-15D Bore: 16 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-15DM Bore: 16 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-20D Bore: 16 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-20DM Bore: 16 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-25D Bore: 16 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-25DM Bore: 16 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-30D Bore: 16 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-30DM Bore: 16 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-5S Bore: 16 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-5SM Bore: 16 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-10S Bore: 16 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-10SM Bore: 16 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDC20-5D Bore: 20 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC20-5DM Bore: 20 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC20-10D Bore: 20 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC20-10DM Bore: 20 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC20-15D Bore: 20 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC20-15DM Bore: 20 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC20-20D Bore: 20 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC20-20DM Bore: 20 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC20-25D Bore: 20 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC20-25DM Bore: 20 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC20-30D Bore: 20 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC20-30DM Bore: 20 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC20-35D Bore: 20 mm | Action: Double acting | Stroke: 35 mm | Magnet: No | Rod end: Female thread
2B-NDC20-35DM Bore: 20 mm | Action: Double acting | Stroke: 35 mm | Magnet: No | Rod end: Male thread
2B-NDC20-40D Bore: 20 mm | Action: Double acting | Stroke: 40 mm | Magnet: No | Rod end: Female thread
2B-NDC20-40DM Bore: 20 mm | Action: Double acting | Stroke: 40 mm | Magnet: No | Rod end: Male thread
2B-NDC20-45D Bore: 20 mm | Action: Double acting | Stroke: 45 mm | Magnet: No | Rod end: Female thread
2B-NDC20-45DM Bore: 20 mm | Action: Double acting | Stroke: 45 mm | Magnet: No | Rod end: Male thread
2B-NDC20-50D Bore: 20 mm | Action: Double acting | Stroke: 50 mm | Magnet: No | Rod end: Female thread
2B-NDC20-50DM Bore: 20 mm | Action: Double acting | Stroke: 50 mm | Magnet: No | Rod end: Male thread
2B-NDC20-5S Bore: 20 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC20-5SM Bore: 20 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC20-10S Bore: 20 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC20-10SM Bore: 20 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD20-5D Bore: 20 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-5DM Bore: 20 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-10D Bore: 20 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-10DM Bore: 20 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-15D Bore: 20 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-15DM Bore: 20 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-20D Bore: 20 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-20DM Bore: 20 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-25D Bore: 20 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-25DM Bore: 20 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-30D Bore: 20 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-30DM Bore: 20 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-35D Bore: 20 mm | Action: Double acting | Stroke: 35 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-35DM Bore: 20 mm | Action: Double acting | Stroke: 35 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-40D Bore: 20 mm | Action: Double acting | Stroke: 40 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-40DM Bore: 20 mm | Action: Double acting | Stroke: 40 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-45D Bore: 20 mm | Action: Double acting | Stroke: 45 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-45DM Bore: 20 mm | Action: Double acting | Stroke: 45 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-50D Bore: 20 mm | Action: Double acting | Stroke: 50 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-50DM Bore: 20 mm | Action: Double acting | Stroke: 50 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-5S Bore: 20 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-5SM Bore: 20 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-10S Bore: 20 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-10SM Bore: 20 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
Pneumatic CylindersTPC Mechatronics
268 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-NDC Compact Direct Mount Cylinder (Battery Industry, Bore 4-20)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (268)

2B-NDC04-4D, 2B-NDC04-4DM, 2B-NDC04-6D, 2B-NDC04-6DM, 2B-NDC04-8D, 2B-NDC04-8DM, 2B-NDC04-10D, 2B-NDC04-10DM, 2B-NDC04-15D, 2B-NDC04-15DM + 258 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-NDC04-4DBore: 4 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: No thread
2B-NDC04-4DMBore: 4 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC04-6DBore: 4 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: No thread
2B-NDC04-6DMBore: 4 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC04-8DBore: 4 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: No thread
2B-NDC04-8DMBore: 4 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC04-10DBore: 4 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: No thread
2B-NDC04-10DMBore: 4 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC04-15DBore: 4 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: No thread
2B-NDC04-15DMBore: 4 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC04-20DBore: 4 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: No thread
2B-NDC04-20DMBore: 4 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC04-4SBore: 4 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: No thread
2B-NDC04-4SMBore: 4 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC04-6SBore: 4 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: No thread
2B-NDC04-6SMBore: 4 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC06-4DBore: 6 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC06-4DMBore: 6 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC06-6DBore: 6 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC06-6DMBore: 6 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC06-8DBore: 6 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC06-8DMBore: 6 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC06-10DBore: 6 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC06-10DMBore: 6 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC06-15DBore: 6 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC06-15DMBore: 6 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC06-20DBore: 6 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC06-20DMBore: 6 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC06-25DBore: 6 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC06-25DMBore: 6 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC06-30DBore: 6 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC06-30DMBore: 6 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC06-4SBore: 6 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC06-4SMBore: 6 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC06-6SBore: 6 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC06-6SMBore: 6 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC06-8SBore: 6 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC06-8SMBore: 6 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDCD06-4DBore: 6 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-4DMBore: 6 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-6DBore: 6 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-6DMBore: 6 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-8DBore: 6 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-8DMBore: 6 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-10DBore: 6 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-10DMBore: 6 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-15DBore: 6 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-15DMBore: 6 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-20DBore: 6 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-20DMBore: 6 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-25DBore: 6 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-25DMBore: 6 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-30DBore: 6 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-30DMBore: 6 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-4SBore: 6 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-4SMBore: 6 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-6SBore: 6 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-6SMBore: 6 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD06-8SBore: 6 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD06-8SMBore: 6 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDC08-4DBore: 8 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC08-4DMBore: 8 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC08-6DBore: 8 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC08-6DMBore: 8 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC08-8DBore: 8 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC08-8DMBore: 8 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC08-10DBore: 8 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC08-10DMBore: 8 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC08-15DBore: 8 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC08-15DMBore: 8 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC08-20DBore: 8 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC08-20DMBore: 8 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC08-25DBore: 8 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC08-25DMBore: 8 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC08-30DBore: 8 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC08-30DMBore: 8 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC08-4SBore: 8 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC08-4SMBore: 8 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC08-6SBore: 8 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC08-6SMBore: 8 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC08-8SBore: 8 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC08-8SMBore: 8 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC08-10SBore: 8 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC08-10SMBore: 8 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD08-4DBore: 8 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-4DMBore: 8 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-6DBore: 8 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-6DMBore: 8 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-8DBore: 8 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-8DMBore: 8 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-10DBore: 8 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-10DMBore: 8 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-15DBore: 8 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-15DMBore: 8 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-20DBore: 8 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-20DMBore: 8 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-25DBore: 8 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-25DMBore: 8 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-30DBore: 8 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-30DMBore: 8 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-4SBore: 8 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-4SMBore: 8 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-6SBore: 8 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-6SMBore: 8 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-8SBore: 8 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-8SMBore: 8 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD08-10SBore: 8 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD08-10SMBore: 8 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDC10-4DBore: 10 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC10-4DMBore: 10 mm | Action: Double acting | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC10-6DBore: 10 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC10-6DMBore: 10 mm | Action: Double acting | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC10-8DBore: 10 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC10-8DMBore: 10 mm | Action: Double acting | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC10-10DBore: 10 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC10-10DMBore: 10 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC10-15DBore: 10 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC10-15DMBore: 10 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC10-20DBore: 10 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC10-20DMBore: 10 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC10-25DBore: 10 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC10-25DMBore: 10 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC10-30DBore: 10 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC10-30DMBore: 10 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC10-4SBore: 10 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Female thread
2B-NDC10-4SMBore: 10 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: No | Rod end: Male thread
2B-NDC10-6SBore: 10 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Female thread
2B-NDC10-6SMBore: 10 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: No | Rod end: Male thread
2B-NDC10-8SBore: 10 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Female thread
2B-NDC10-8SMBore: 10 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: No | Rod end: Male thread
2B-NDC10-10SBore: 10 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC10-10SMBore: 10 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD10-4DBore: 10 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-4DMBore: 10 mm | Action: Double acting | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-6DBore: 10 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-6DMBore: 10 mm | Action: Double acting | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-8DBore: 10 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-8DMBore: 10 mm | Action: Double acting | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-10DBore: 10 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-10DMBore: 10 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-15DBore: 10 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-15DMBore: 10 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-20DBore: 10 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-20DMBore: 10 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-25DBore: 10 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-25DMBore: 10 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-30DBore: 10 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-30DMBore: 10 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-4SBore: 10 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-4SMBore: 10 mm | Action: Single acting, extend | Stroke: 4 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-6SBore: 10 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-6SMBore: 10 mm | Action: Single acting, extend | Stroke: 6 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-8SBore: 10 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-8SMBore: 10 mm | Action: Single acting, extend | Stroke: 8 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD10-10SBore: 10 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD10-10SMBore: 10 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDC12-5DBore: 12 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC12-5DMBore: 12 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC12-10DBore: 12 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC12-10DMBore: 12 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC12-15DBore: 12 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC12-15DMBore: 12 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC12-20DBore: 12 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC12-20DMBore: 12 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC12-25DBore: 12 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC12-25DMBore: 12 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC12-30DBore: 12 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC12-30DMBore: 12 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC12-5SBore: 12 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC12-5SMBore: 12 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC12-10SBore: 12 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC12-10SMBore: 12 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD12-5DBore: 12 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-5DMBore: 12 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-10DBore: 12 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-10DMBore: 12 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-15DBore: 12 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-15DMBore: 12 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-20DBore: 12 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-20DMBore: 12 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-25DBore: 12 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-25DMBore: 12 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-30DBore: 12 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-30DMBore: 12 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-5SBore: 12 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-5SMBore: 12 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD12-10SBore: 12 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD12-10SMBore: 12 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDC16-5DBore: 16 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC16-5DMBore: 16 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC16-10DBore: 16 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC16-10DMBore: 16 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC16-15DBore: 16 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC16-15DMBore: 16 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC16-20DBore: 16 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC16-20DMBore: 16 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC16-25DBore: 16 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC16-25DMBore: 16 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC16-30DBore: 16 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC16-30DMBore: 16 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC16-5SBore: 16 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC16-5SMBore: 16 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC16-10SBore: 16 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC16-10SMBore: 16 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD16-5DBore: 16 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-5DMBore: 16 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-10DBore: 16 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-10DMBore: 16 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-15DBore: 16 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-15DMBore: 16 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-20DBore: 16 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-20DMBore: 16 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-25DBore: 16 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-25DMBore: 16 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-30DBore: 16 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-30DMBore: 16 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-5SBore: 16 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-5SMBore: 16 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD16-10SBore: 16 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD16-10SMBore: 16 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDC20-5DBore: 20 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC20-5DMBore: 20 mm | Action: Double acting | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC20-10DBore: 20 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC20-10DMBore: 20 mm | Action: Double acting | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDC20-15DBore: 20 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Female thread
2B-NDC20-15DMBore: 20 mm | Action: Double acting | Stroke: 15 mm | Magnet: No | Rod end: Male thread
2B-NDC20-20DBore: 20 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Female thread
2B-NDC20-20DMBore: 20 mm | Action: Double acting | Stroke: 20 mm | Magnet: No | Rod end: Male thread
2B-NDC20-25DBore: 20 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Female thread
2B-NDC20-25DMBore: 20 mm | Action: Double acting | Stroke: 25 mm | Magnet: No | Rod end: Male thread
2B-NDC20-30DBore: 20 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Female thread
2B-NDC20-30DMBore: 20 mm | Action: Double acting | Stroke: 30 mm | Magnet: No | Rod end: Male thread
2B-NDC20-35DBore: 20 mm | Action: Double acting | Stroke: 35 mm | Magnet: No | Rod end: Female thread
2B-NDC20-35DMBore: 20 mm | Action: Double acting | Stroke: 35 mm | Magnet: No | Rod end: Male thread
2B-NDC20-40DBore: 20 mm | Action: Double acting | Stroke: 40 mm | Magnet: No | Rod end: Female thread
2B-NDC20-40DMBore: 20 mm | Action: Double acting | Stroke: 40 mm | Magnet: No | Rod end: Male thread
2B-NDC20-45DBore: 20 mm | Action: Double acting | Stroke: 45 mm | Magnet: No | Rod end: Female thread
2B-NDC20-45DMBore: 20 mm | Action: Double acting | Stroke: 45 mm | Magnet: No | Rod end: Male thread
2B-NDC20-50DBore: 20 mm | Action: Double acting | Stroke: 50 mm | Magnet: No | Rod end: Female thread
2B-NDC20-50DMBore: 20 mm | Action: Double acting | Stroke: 50 mm | Magnet: No | Rod end: Male thread
2B-NDC20-5SBore: 20 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Female thread
2B-NDC20-5SMBore: 20 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: No | Rod end: Male thread
2B-NDC20-10SBore: 20 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Female thread
2B-NDC20-10SMBore: 20 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: No | Rod end: Male thread
2B-NDCD20-5DBore: 20 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-5DMBore: 20 mm | Action: Double acting | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-10DBore: 20 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-10DMBore: 20 mm | Action: Double acting | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-15DBore: 20 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-15DMBore: 20 mm | Action: Double acting | Stroke: 15 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-20DBore: 20 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-20DMBore: 20 mm | Action: Double acting | Stroke: 20 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-25DBore: 20 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-25DMBore: 20 mm | Action: Double acting | Stroke: 25 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-30DBore: 20 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-30DMBore: 20 mm | Action: Double acting | Stroke: 30 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-35DBore: 20 mm | Action: Double acting | Stroke: 35 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-35DMBore: 20 mm | Action: Double acting | Stroke: 35 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-40DBore: 20 mm | Action: Double acting | Stroke: 40 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-40DMBore: 20 mm | Action: Double acting | Stroke: 40 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-45DBore: 20 mm | Action: Double acting | Stroke: 45 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-45DMBore: 20 mm | Action: Double acting | Stroke: 45 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-50DBore: 20 mm | Action: Double acting | Stroke: 50 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-50DMBore: 20 mm | Action: Double acting | Stroke: 50 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-5SBore: 20 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-5SMBore: 20 mm | Action: Single acting, extend | Stroke: 5 mm | Magnet: Yes | Rod end: Male thread
2B-NDCD20-10SBore: 20 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Female thread
2B-NDCD20-10SMBore: 20 mm | Action: Single acting, extend | Stroke: 10 mm | Magnet: Yes | Rod end: Male thread

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
