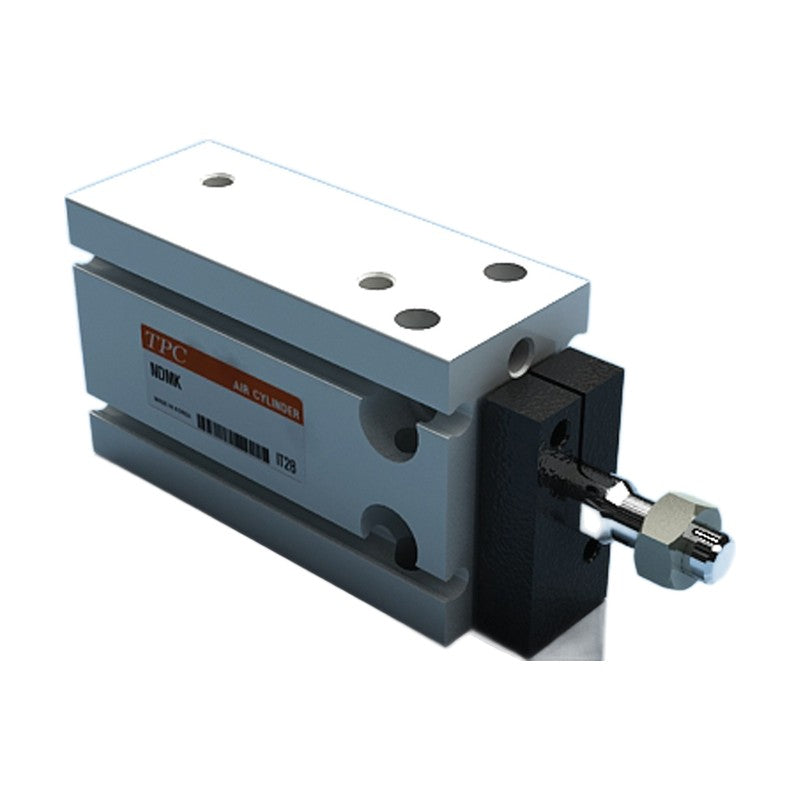

TPC 2B-NDMK Direct Mount Cylinder (Non-Rotating, Battery)

TPC 2B-NDMK Direct Mount Cylinder (Non-Rotating, Battery)

TPC 2B-NDMK series secondary-battery-compatible direct mount cylinder, non-rotating double acting single rod, bore 10 to 25 mm.

Key features

  • 2B prefix: secondary battery industry specification; some options cannot be produced
  • Specifications and outer dimensions identical to the standard series
  • Extended bush length reinforces against lateral load
  • Space-saving design
  • Magnet (D) for W8 reed or W9/W20H solid-state auto switches (H/V), 1 m lead (L = 3 m), ordered separately

Specifications

Fluid Air
Action Double acting
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature 5 to 60 C
Piston speed 50 to 500 mm/s
Cushion Rubber cushion both ends
Rod end Male thread
Stroke tolerance 0 to +1.0 mm
Source TPC Mechatronics catalog NDMK_Series(230428).pdf, p. 1-5
2B-NDMK10-5D Bore: 10 mm | Stroke: 5 mm | Magnet: No
2B-NDMK10-10D Bore: 10 mm | Stroke: 10 mm | Magnet: No
2B-NDMK10-15D Bore: 10 mm | Stroke: 15 mm | Magnet: No
2B-NDMK10-20D Bore: 10 mm | Stroke: 20 mm | Magnet: No
2B-NDMK10-25D Bore: 10 mm | Stroke: 25 mm | Magnet: No
2B-NDMK10-30D Bore: 10 mm | Stroke: 30 mm | Magnet: No
2B-NDMK16-5D Bore: 16 mm | Stroke: 5 mm | Magnet: No
2B-NDMK16-10D Bore: 16 mm | Stroke: 10 mm | Magnet: No
2B-NDMK16-15D Bore: 16 mm | Stroke: 15 mm | Magnet: No
2B-NDMK16-20D Bore: 16 mm | Stroke: 20 mm | Magnet: No
2B-NDMK16-25D Bore: 16 mm | Stroke: 25 mm | Magnet: No
2B-NDMK16-30D Bore: 16 mm | Stroke: 30 mm | Magnet: No
2B-NDMK20-5D Bore: 20 mm | Stroke: 5 mm | Magnet: No
2B-NDMK20-10D Bore: 20 mm | Stroke: 10 mm | Magnet: No
2B-NDMK20-15D Bore: 20 mm | Stroke: 15 mm | Magnet: No
2B-NDMK20-20D Bore: 20 mm | Stroke: 20 mm | Magnet: No
2B-NDMK20-25D Bore: 20 mm | Stroke: 25 mm | Magnet: No
2B-NDMK20-30D Bore: 20 mm | Stroke: 30 mm | Magnet: No
2B-NDMK20-40D Bore: 20 mm | Stroke: 40 mm | Magnet: No
2B-NDMK20-50D Bore: 20 mm | Stroke: 50 mm | Magnet: No
2B-NDMK25-5D Bore: 25 mm | Stroke: 5 mm | Magnet: No
2B-NDMK25-10D Bore: 25 mm | Stroke: 10 mm | Magnet: No
2B-NDMK25-15D Bore: 25 mm | Stroke: 15 mm | Magnet: No
2B-NDMK25-20D Bore: 25 mm | Stroke: 20 mm | Magnet: No
2B-NDMK25-25D Bore: 25 mm | Stroke: 25 mm | Magnet: No
2B-NDMK25-30D Bore: 25 mm | Stroke: 30 mm | Magnet: No
2B-NDMK25-40D Bore: 25 mm | Stroke: 40 mm | Magnet: No
2B-NDMK25-50D Bore: 25 mm | Stroke: 50 mm | Magnet: No
2B-NDMDK10-5D Bore: 10 mm | Stroke: 5 mm | Magnet: Yes
2B-NDMDK10-10D Bore: 10 mm | Stroke: 10 mm | Magnet: Yes
2B-NDMDK10-15D Bore: 10 mm | Stroke: 15 mm | Magnet: Yes
2B-NDMDK10-20D Bore: 10 mm | Stroke: 20 mm | Magnet: Yes
2B-NDMDK10-25D Bore: 10 mm | Stroke: 25 mm | Magnet: Yes
2B-NDMDK10-30D Bore: 10 mm | Stroke: 30 mm | Magnet: Yes
2B-NDMDK16-5D Bore: 16 mm | Stroke: 5 mm | Magnet: Yes
2B-NDMDK16-10D Bore: 16 mm | Stroke: 10 mm | Magnet: Yes
2B-NDMDK16-15D Bore: 16 mm | Stroke: 15 mm | Magnet: Yes
2B-NDMDK16-20D Bore: 16 mm | Stroke: 20 mm | Magnet: Yes
2B-NDMDK16-25D Bore: 16 mm | Stroke: 25 mm | Magnet: Yes
2B-NDMDK16-30D Bore: 16 mm | Stroke: 30 mm | Magnet: Yes
2B-NDMDK20-5D Bore: 20 mm | Stroke: 5 mm | Magnet: Yes
2B-NDMDK20-10D Bore: 20 mm | Stroke: 10 mm | Magnet: Yes
2B-NDMDK20-15D Bore: 20 mm | Stroke: 15 mm | Magnet: Yes
2B-NDMDK20-20D Bore: 20 mm | Stroke: 20 mm | Magnet: Yes
2B-NDMDK20-25D Bore: 20 mm | Stroke: 25 mm | Magnet: Yes
2B-NDMDK20-30D Bore: 20 mm | Stroke: 30 mm | Magnet: Yes
2B-NDMDK20-40D Bore: 20 mm | Stroke: 40 mm | Magnet: Yes
2B-NDMDK20-50D Bore: 20 mm | Stroke: 50 mm | Magnet: Yes
2B-NDMDK25-5D Bore: 25 mm | Stroke: 5 mm | Magnet: Yes
2B-NDMDK25-10D Bore: 25 mm | Stroke: 10 mm | Magnet: Yes
2B-NDMDK25-15D Bore: 25 mm | Stroke: 15 mm | Magnet: Yes
2B-NDMDK25-20D Bore: 25 mm | Stroke: 20 mm | Magnet: Yes
2B-NDMDK25-25D Bore: 25 mm | Stroke: 25 mm | Magnet: Yes
2B-NDMDK25-30D Bore: 25 mm | Stroke: 30 mm | Magnet: Yes
2B-NDMDK25-40D Bore: 25 mm | Stroke: 40 mm | Magnet: Yes
2B-NDMDK25-50D Bore: 25 mm | Stroke: 50 mm | Magnet: Yes
