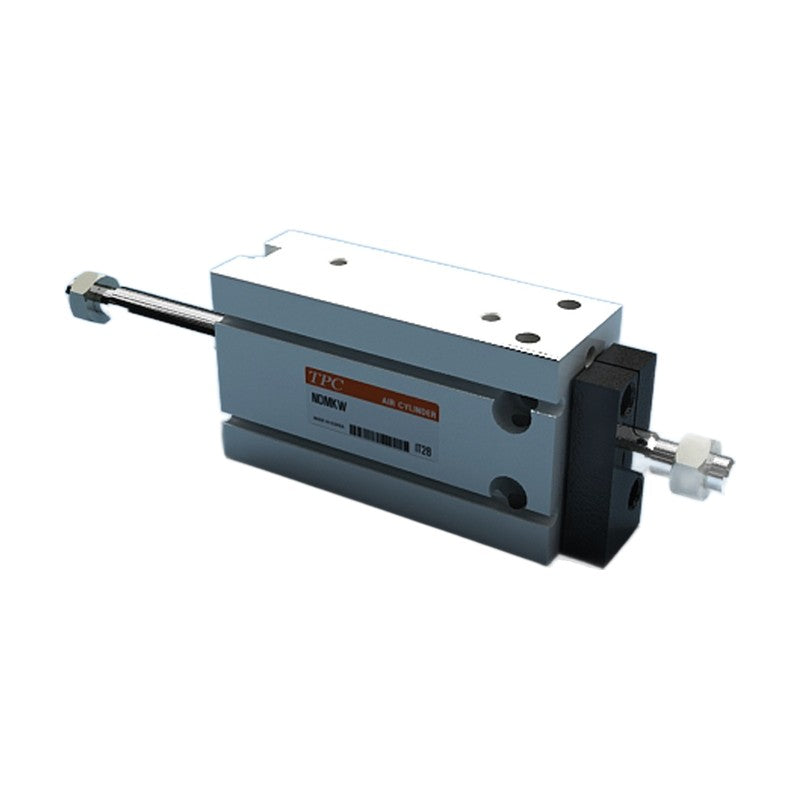

TPC 2B-NDMKW Direct Mount Cylinder (Non-Rotating Double Rod, Battery)

TPC 2B-NDMKW Direct Mount Cylinder (Non-Rotating Double Rod, Battery)

TPC 2B-NDMKW series secondary-battery-compatible direct mount cylinder, non-rotating double acting double rod, bore 10 to 25 mm.

Key features

  • 2B prefix: secondary battery industry specification; some options cannot be produced
  • Specifications and outer dimensions identical to the standard series
  • Extended bush length reinforces against lateral load
  • Space-saving design
  • Magnet (D) for W8 reed or W9/W20H solid-state auto switches (H/V), 1 m lead (L = 3 m), ordered separately

Specifications

Fluid Air
Action Double acting
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature 5 to 60 C
Piston speed 50 to 500 mm/s
Cushion Rubber cushion both ends
Rod end Male thread
Stroke tolerance 0 to +1.0 mm
Source TPC Mechatronics catalog NDMKW_Series(230428).pdf, p. 1-5
