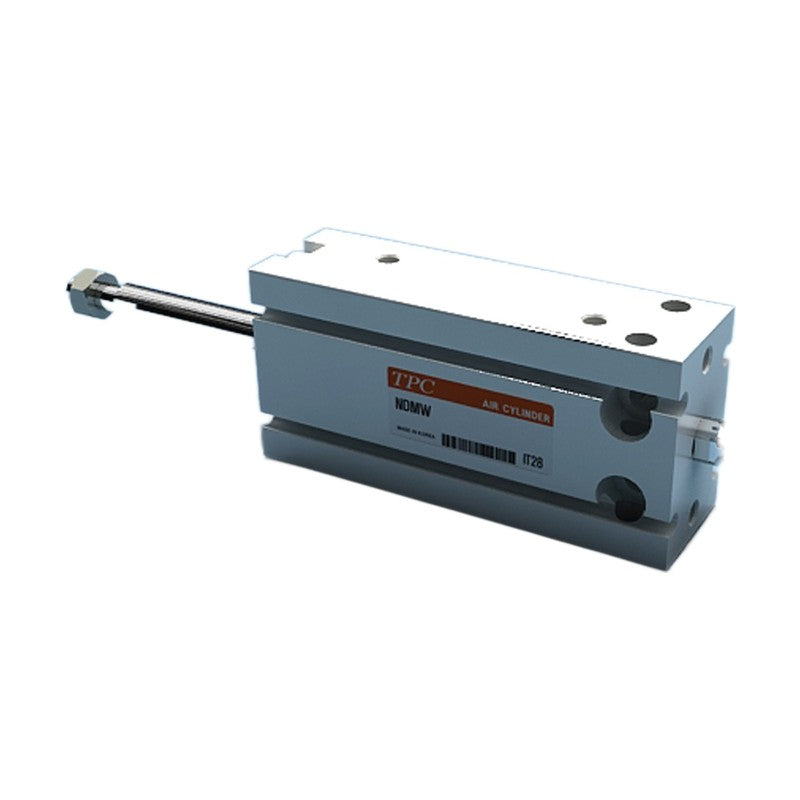

TPC 2B-NDMW Direct Mount Cylinder (Double Rod, Battery)

TPC 2B-NDMW Direct Mount Cylinder (Double Rod, Battery)

TPC 2B-NDMW series secondary-battery-compatible direct mount cylinder, double acting double rod, bore 10 to 25 mm.

Key features

  • 2B prefix: secondary battery industry specification; some options cannot be produced
  • Specifications and outer dimensions identical to the standard series
  • Extended bush length reinforces against lateral load
  • Space-saving design
  • Magnet (D) for W8 reed or W9/W20H solid-state auto switches (H/V), 1 m lead (L = 3 m), ordered separately

Specifications

Fluid Air
Action Double acting
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.05 MPa
Ambient and fluid temperature 5 to 60 C
Piston speed 50 to 500 mm/s
Cushion Rubber cushion both ends
Rod end Male thread
Stroke tolerance 0 to +1.0 mm
Source TPC Mechatronics catalog NDMW_Series(230428).pdf, p. 1-5
2B-NDMW10-5D Bore: 10 mm | Stroke: 5 mm | Magnet: No
2B-NDMW10-10D Bore: 10 mm | Stroke: 10 mm | Magnet: No
2B-NDMW10-15D Bore: 10 mm | Stroke: 15 mm | Magnet: No
2B-NDMW10-20D Bore: 10 mm | Stroke: 20 mm | Magnet: No
2B-NDMW10-25D Bore: 10 mm | Stroke: 25 mm | Magnet: No
2B-NDMW10-30D Bore: 10 mm | Stroke: 30 mm | Magnet: No
2B-NDMW16-5D Bore: 16 mm | Stroke: 5 mm | Magnet: No
2B-NDMW16-10D Bore: 16 mm | Stroke: 10 mm | Magnet: No
2B-NDMW16-15D Bore: 16 mm | Stroke: 15 mm | Magnet: No
2B-NDMW16-20D Bore: 16 mm | Stroke: 20 mm | Magnet: No
2B-NDMW16-25D Bore: 16 mm | Stroke: 25 mm | Magnet: No
2B-NDMW16-30D Bore: 16 mm | Stroke: 30 mm | Magnet: No
2B-NDMW20-5D Bore: 20 mm | Stroke: 5 mm | Magnet: No
2B-NDMW20-10D Bore: 20 mm | Stroke: 10 mm | Magnet: No
2B-NDMW20-15D Bore: 20 mm | Stroke: 15 mm | Magnet: No
2B-NDMW20-20D Bore: 20 mm | Stroke: 20 mm | Magnet: No
2B-NDMW20-25D Bore: 20 mm | Stroke: 25 mm | Magnet: No
2B-NDMW20-30D Bore: 20 mm | Stroke: 30 mm | Magnet: No
2B-NDMW20-40D Bore: 20 mm | Stroke: 40 mm | Magnet: No
2B-NDMW20-50D Bore: 20 mm | Stroke: 50 mm | Magnet: No
2B-NDMW25-5D Bore: 25 mm | Stroke: 5 mm | Magnet: No
2B-NDMW25-10D Bore: 25 mm | Stroke: 10 mm | Magnet: No
2B-NDMW25-15D Bore: 25 mm | Stroke: 15 mm | Magnet: No
2B-NDMW25-20D Bore: 25 mm | Stroke: 20 mm | Magnet: No
2B-NDMW25-25D Bore: 25 mm | Stroke: 25 mm | Magnet: No
2B-NDMW25-30D Bore: 25 mm | Stroke: 30 mm | Magnet: No
2B-NDMW25-40D Bore: 25 mm | Stroke: 40 mm | Magnet: No
2B-NDMW25-50D Bore: 25 mm | Stroke: 50 mm | Magnet: No
2B-NDMDW10-5D Bore: 10 mm | Stroke: 5 mm | Magnet: Yes
2B-NDMDW10-10D Bore: 10 mm | Stroke: 10 mm | Magnet: Yes
2B-NDMDW10-15D Bore: 10 mm | Stroke: 15 mm | Magnet: Yes
2B-NDMDW10-20D Bore: 10 mm | Stroke: 20 mm | Magnet: Yes
2B-NDMDW10-25D Bore: 10 mm | Stroke: 25 mm | Magnet: Yes
2B-NDMDW10-30D Bore: 10 mm | Stroke: 30 mm | Magnet: Yes
2B-NDMDW16-5D Bore: 16 mm | Stroke: 5 mm | Magnet: Yes
2B-NDMDW16-10D Bore: 16 mm | Stroke: 10 mm | Magnet: Yes
2B-NDMDW16-15D Bore: 16 mm | Stroke: 15 mm | Magnet: Yes
2B-NDMDW16-20D Bore: 16 mm | Stroke: 20 mm | Magnet: Yes
2B-NDMDW16-25D Bore: 16 mm | Stroke: 25 mm | Magnet: Yes
2B-NDMDW16-30D Bore: 16 mm | Stroke: 30 mm | Magnet: Yes
2B-NDMDW20-5D Bore: 20 mm | Stroke: 5 mm | Magnet: Yes
2B-NDMDW20-10D Bore: 20 mm | Stroke: 10 mm | Magnet: Yes
2B-NDMDW20-15D Bore: 20 mm | Stroke: 15 mm | Magnet: Yes
2B-NDMDW20-20D Bore: 20 mm | Stroke: 20 mm | Magnet: Yes
2B-NDMDW20-25D Bore: 20 mm | Stroke: 25 mm | Magnet: Yes
2B-NDMDW20-30D Bore: 20 mm | Stroke: 30 mm | Magnet: Yes
2B-NDMDW20-40D Bore: 20 mm | Stroke: 40 mm | Magnet: Yes
2B-NDMDW20-50D Bore: 20 mm | Stroke: 50 mm | Magnet: Yes
2B-NDMDW25-5D Bore: 25 mm | Stroke: 5 mm | Magnet: Yes
2B-NDMDW25-10D Bore: 25 mm | Stroke: 10 mm | Magnet: Yes
2B-NDMDW25-15D Bore: 25 mm | Stroke: 15 mm | Magnet: Yes
2B-NDMDW25-20D Bore: 25 mm | Stroke: 20 mm | Magnet: Yes
2B-NDMDW25-25D Bore: 25 mm | Stroke: 25 mm | Magnet: Yes
2B-NDMDW25-30D Bore: 25 mm | Stroke: 30 mm | Magnet: Yes
2B-NDMDW25-40D Bore: 25 mm | Stroke: 40 mm | Magnet: Yes
2B-NDMDW25-50D Bore: 25 mm | Stroke: 50 mm | Magnet: Yes
