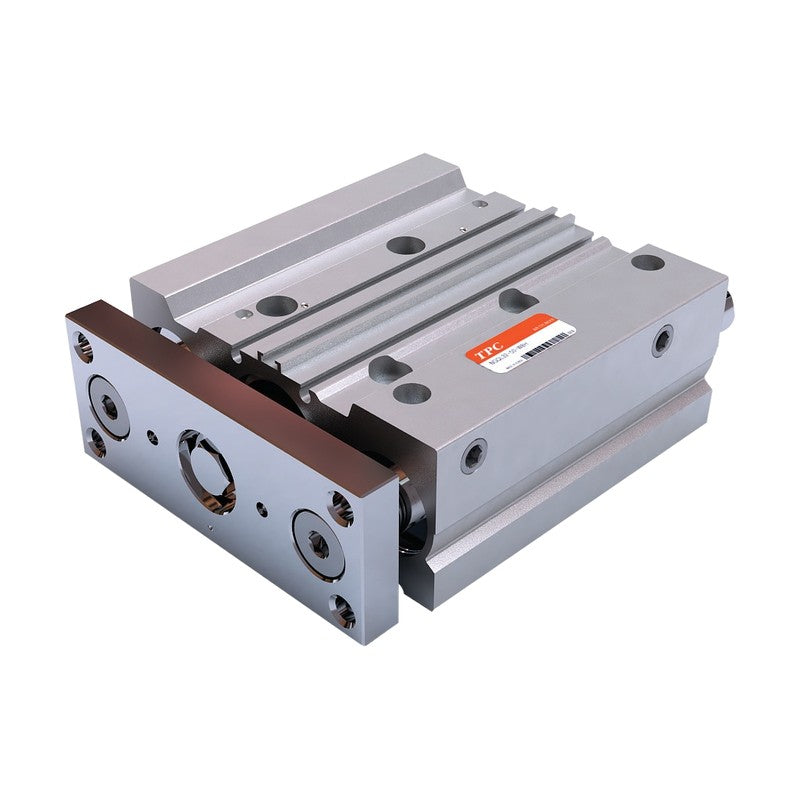

TPC 2B-NGQ Air Cushion Guided Cylinder for Battery Lines (20-63)

TPC 2B-NGQ Air Cushion Guided Cylinder for Battery Lines (20-63)

TPC 2B-NGQ Air Cushion guided compact cylinder, secondary-battery-production version of the NGQ...A series with identical specifications and dimensions.

Key features

  • 2B secondary battery specification (limited copper/zinc exposure; consult TPC for alloy details)
  • Adjustable air cushion at both ends; specifications and dimensions identical to standard NGQ Air Cushion
  • Slide bearing (M) or ball bearing (L) guide rods, built-in magnet
  • Optional side mounting holes (H)
  • XC16 and W2P switch not available on 2B; some other options cannot be produced

Specifications

Fluid Compressed air
Action Double acting, magnet built in
Cushion Air cushion both ends (A), adjustable
Proof pressure 1.5 MPa
Operating pressure 0.1-1.0 MPa
Ambient and fluid temperature -10 to +60°C
Lubrication Not required
Piston speed 50-500 mm/s
Stroke tolerance +1.5/0 mm
Source TPC Mechatronics catalog NGQ(A)_Air-Cushion_Series(250811).pdf, p. 446-453 (PDF p. 2-9)
2B-NGQM20-25A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM20-25A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM20-50A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM20-50A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM20-75A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM20-75A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM20-100A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM20-100A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM20-125A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM20-125A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM20-150A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM20-150A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM20-175A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM20-175A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM20-200A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM20-200A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM20-250A Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM20-250A-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM25-25A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM25-25A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM25-50A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM25-50A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM25-75A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM25-75A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM25-100A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM25-100A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM25-125A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM25-125A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM25-150A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM25-150A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM25-175A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM25-175A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM25-200A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM25-200A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM25-250A Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM25-250A-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM32-25A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM32-25A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM32-50A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM32-50A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM32-75A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM32-75A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM32-100A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM32-100A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM32-125A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM32-125A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM32-150A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM32-150A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM32-175A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM32-175A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM32-200A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM32-200A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM32-250A Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM32-250A-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM40-25A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM40-25A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM40-50A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM40-50A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM40-75A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM40-75A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM40-100A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM40-100A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM40-125A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM40-125A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM40-150A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM40-150A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM40-175A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM40-175A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM40-200A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM40-200A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM40-250A Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM40-250A-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM50-25A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM50-25A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM50-50A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM50-50A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM50-75A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM50-75A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM50-100A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM50-100A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM50-125A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM50-125A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM50-150A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM50-150A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM50-175A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM50-175A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM50-200A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM50-200A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM50-250A Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM50-250A-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM63-25A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM63-25A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM63-50A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM63-50A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM63-75A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM63-75A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM63-100A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM63-100A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM63-125A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM63-125A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM63-150A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM63-150A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM63-175A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM63-175A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM63-200A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM63-200A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM63-250A Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM63-250A-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL20-25A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL20-25A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL20-50A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL20-50A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL20-75A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL20-75A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL20-100A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL20-100A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL20-125A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL20-125A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL20-150A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL20-150A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL20-175A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL20-175A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL20-200A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL20-200A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL20-250A Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL20-250A-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL25-25A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL25-25A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL25-50A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL25-50A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL25-75A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL25-75A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL25-100A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL25-100A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL25-125A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL25-125A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL25-150A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL25-150A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL25-175A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL25-175A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL25-200A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL25-200A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL25-250A Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL25-250A-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL32-25A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL32-25A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL32-50A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL32-50A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL32-75A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL32-75A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL32-100A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL32-100A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL32-125A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL32-125A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL32-150A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL32-150A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL32-175A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL32-175A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL32-200A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL32-200A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL32-250A Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL32-250A-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL40-25A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL40-25A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL40-50A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL40-50A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL40-75A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL40-75A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL40-100A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL40-100A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL40-125A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL40-125A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL40-150A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL40-150A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL40-175A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL40-175A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL40-200A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL40-200A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL40-250A Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL40-250A-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL50-25A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL50-25A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL50-50A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL50-50A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL50-75A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL50-75A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL50-100A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL50-100A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL50-125A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL50-125A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL50-150A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL50-150A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL50-175A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL50-175A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL50-200A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL50-200A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL50-250A Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL50-250A-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL63-25A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL63-25A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL63-50A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL63-50A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL63-75A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL63-75A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL63-100A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL63-100A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL63-125A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL63-125A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL63-150A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL63-150A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL63-175A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL63-175A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL63-200A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL63-200A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL63-250A Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL63-250A-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
Pneumatic CylindersTPC Mechatronics
216 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-NGQ Air Cushion Guided Cylinder for Battery Lines (20-63)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (216)

2B-NGQM20-25A, 2B-NGQM20-25A-H, 2B-NGQM20-50A, 2B-NGQM20-50A-H, 2B-NGQM20-75A, 2B-NGQM20-75A-H, 2B-NGQM20-100A, 2B-NGQM20-100A-H, 2B-NGQM20-125A, 2B-NGQM20-125A-H + 206 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-NGQM20-25ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM20-25A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM20-50ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM20-50A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM20-75ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM20-75A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM20-100ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM20-100A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM20-125ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM20-125A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM20-150ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM20-150A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM20-175ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM20-175A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM20-200ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM20-200A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM20-250ABearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM20-250A-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM25-25ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM25-25A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM25-50ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM25-50A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM25-75ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM25-75A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM25-100ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM25-100A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM25-125ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM25-125A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM25-150ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM25-150A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM25-175ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM25-175A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM25-200ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM25-200A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM25-250ABearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM25-250A-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM32-25ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM32-25A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM32-50ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM32-50A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM32-75ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM32-75A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM32-100ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM32-100A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM32-125ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM32-125A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM32-150ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM32-150A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM32-175ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM32-175A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM32-200ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM32-200A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM32-250ABearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM32-250A-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM40-25ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM40-25A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM40-50ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM40-50A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM40-75ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM40-75A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM40-100ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM40-100A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM40-125ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM40-125A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM40-150ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM40-150A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM40-175ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM40-175A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM40-200ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM40-200A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM40-250ABearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM40-250A-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM50-25ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM50-25A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM50-50ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM50-50A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM50-75ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM50-75A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM50-100ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM50-100A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM50-125ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM50-125A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM50-150ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM50-150A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM50-175ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM50-175A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM50-200ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM50-200A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM50-250ABearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM50-250A-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM63-25ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM63-25A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM63-50ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM63-50A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM63-75ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM63-75A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM63-100ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM63-100A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM63-125ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM63-125A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM63-150ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM63-150A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM63-175ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM63-175A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM63-200ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM63-200A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM63-250ABearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM63-250A-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL20-25ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL20-25A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL20-50ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL20-50A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL20-75ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL20-75A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL20-100ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL20-100A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL20-125ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL20-125A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL20-150ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL20-150A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL20-175ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL20-175A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL20-200ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL20-200A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL20-250ABearing: Ball bearing (L) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL20-250A-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL25-25ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL25-25A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL25-50ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL25-50A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL25-75ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL25-75A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL25-100ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL25-100A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL25-125ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL25-125A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL25-150ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL25-150A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL25-175ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL25-175A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL25-200ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL25-200A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL25-250ABearing: Ball bearing (L) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL25-250A-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL32-25ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL32-25A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL32-50ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL32-50A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL32-75ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL32-75A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL32-100ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL32-100A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL32-125ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL32-125A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL32-150ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL32-150A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL32-175ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL32-175A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL32-200ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL32-200A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL32-250ABearing: Ball bearing (L) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL32-250A-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL40-25ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL40-25A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL40-50ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL40-50A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL40-75ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL40-75A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL40-100ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL40-100A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL40-125ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL40-125A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL40-150ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL40-150A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL40-175ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL40-175A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL40-200ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL40-200A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL40-250ABearing: Ball bearing (L) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL40-250A-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL50-25ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL50-25A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL50-50ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL50-50A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL50-75ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL50-75A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL50-100ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL50-100A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL50-125ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL50-125A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL50-150ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL50-150A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL50-175ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL50-175A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL50-200ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL50-200A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL50-250ABearing: Ball bearing (L) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL50-250A-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL63-25ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL63-25A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL63-50ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL63-50A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL63-75ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL63-75A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL63-100ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL63-100A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL63-125ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL63-125A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL63-150ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL63-150A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL63-175ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL63-175A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL63-200ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL63-200A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL63-250ABearing: Ball bearing (L) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL63-250A-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: Yes (H)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
