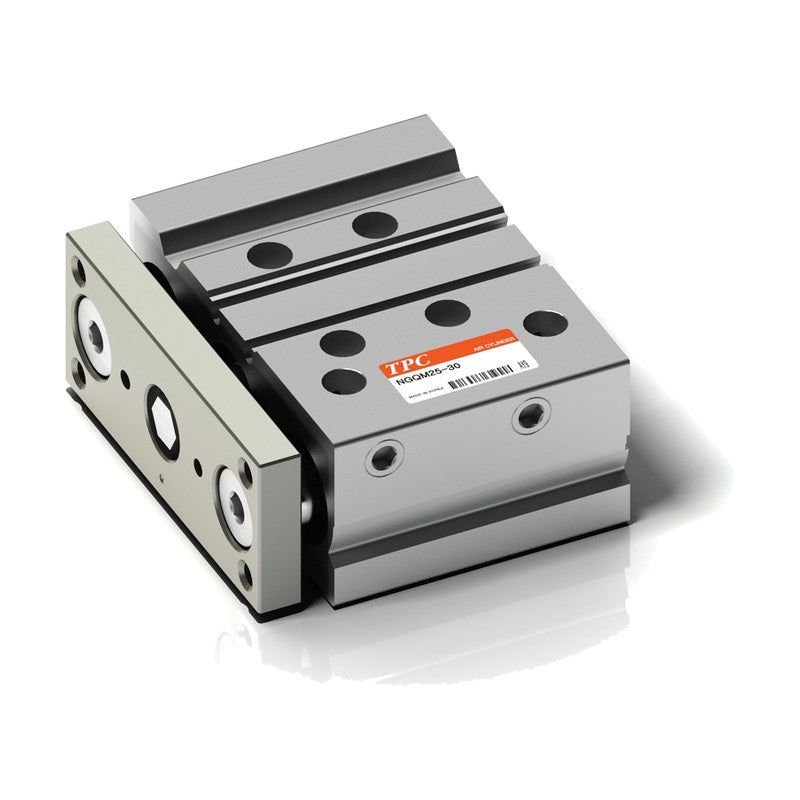

TPC 2B-NGQ Guided Compact Cylinder for Battery Lines (Bore 12-100)

TPC 2B-NGQ Guided Compact Cylinder for Battery Lines (Bore 12-100)

TPC 2B-NGQ guided compact cylinder, the secondary-battery-production version of the NGQ series with the same specifications and dimensions as the standard product.

Key features

  • 2B secondary battery specification: parts chosen to limit copper and zinc exposure (some aluminium alloys may contain small amounts; consult TPC)
  • Specifications and outer dimensions identical to the standard NGQ series
  • Slide bearing (2B-NGQM) or ball bearing (2B-NGQL) guide rods, built-in magnet
  • Optional side mounting holes (H) for bore 12-63 mm
  • XC16 and W2P switch not available on 2B; some other options cannot be produced

Specifications

Fluid Compressed air
Action Double acting, magnet built in
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.12 MPa (12, 16 mm); 0.1 MPa (20-100 mm)
Ambient and fluid temperature -10 to +60°C
Lubrication Not required
Cushion Rubber bumper both ends
Piston speed 50-500 mm/s
Stroke tolerance +1.5/0 mm
Source TPC Mechatronics catalog NGQ_Series(250811).pdf, p. 418-434 (PDF p. 2-18)
2B-NGQM12-10 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 10 mm | Side mounting holes: No
2B-NGQM12-10-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 10 mm | Side mounting holes: Yes (H)
2B-NGQM12-20 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQM12-20-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQM12-30 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQM12-30-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQM12-40 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQM12-40-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQM12-50 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM12-50-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM12-75 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM12-75-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM12-100 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM12-100-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM12-125 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM12-125-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM12-150 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM12-150-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM12-175 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM12-175-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM12-200 Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM12-200-H Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM16-10 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 10 mm | Side mounting holes: No
2B-NGQM16-10-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 10 mm | Side mounting holes: Yes (H)
2B-NGQM16-20 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQM16-20-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQM16-30 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQM16-30-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQM16-40 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQM16-40-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQM16-50 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM16-50-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM16-75 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM16-75-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM16-100 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM16-100-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM16-125 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM16-125-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM16-150 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM16-150-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM16-175 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM16-175-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM16-200 Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM16-200-H Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM20-20 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQM20-20-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQM20-30 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQM20-30-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQM20-40 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQM20-40-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQM20-50 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM20-50-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM20-75 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM20-75-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM20-100 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM20-100-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM20-125 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM20-125-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM20-150 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM20-150-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM20-175 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM20-175-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM20-200 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM20-200-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM20-250 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM20-250-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM20-300 Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM20-300-H Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM25-20 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQM25-20-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQM25-30 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQM25-30-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQM25-40 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQM25-40-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQM25-50 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM25-50-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM25-75 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM25-75-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM25-100 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM25-100-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM25-125 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM25-125-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM25-150 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM25-150-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM25-175 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM25-175-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM25-200 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM25-200-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM25-250 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM25-250-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM25-300 Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM25-300-H Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM32-25 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM32-25-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM32-50 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM32-50-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM32-75 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM32-75-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM32-100 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM32-100-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM32-125 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM32-125-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM32-150 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM32-150-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM32-175 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM32-175-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM32-200 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM32-200-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM32-250 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM32-250-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM32-300 Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM32-300-H Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM40-25 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM40-25-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM40-50 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM40-50-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM40-75 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM40-75-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM40-100 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM40-100-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM40-125 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM40-125-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM40-150 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM40-150-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM40-175 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM40-175-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM40-200 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM40-200-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM40-250 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM40-250-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM40-300 Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM40-300-H Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM50-25 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM50-25-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM50-50 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM50-50-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM50-75 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM50-75-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM50-100 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM50-100-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM50-125 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM50-125-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM50-150 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM50-150-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM50-175 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM50-175-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM50-200 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM50-200-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM50-250 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM50-250-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM50-300 Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM50-300-H Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM63-25 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM63-25-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM63-50 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM63-50-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM63-75 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM63-75-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM63-100 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM63-100-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM63-125 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM63-125-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM63-150 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM63-150-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM63-175 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM63-175-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM63-200 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM63-200-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM63-250 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM63-250-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM63-300 Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM63-300-H Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM80-25 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM80-50 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM80-75 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM80-100 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM80-125 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM80-150 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM80-175 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM80-200 Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM100-25 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM100-50 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM100-75 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM100-100 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM100-125 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM100-150 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM100-175 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM100-200 Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL12-10 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 10 mm | Side mounting holes: No
2B-NGQL12-10-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 10 mm | Side mounting holes: Yes (H)
2B-NGQL12-20 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQL12-20-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQL12-30 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQL12-30-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQL12-40 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQL12-40-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQL12-50 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL12-50-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL12-75 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL12-75-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL12-100 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL12-100-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL12-125 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL12-125-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL12-150 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL12-150-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL12-175 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL12-175-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL12-200 Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL12-200-H Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL16-10 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 10 mm | Side mounting holes: No
2B-NGQL16-10-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 10 mm | Side mounting holes: Yes (H)
2B-NGQL16-20 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQL16-20-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQL16-30 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQL16-30-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQL16-40 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQL16-40-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQL16-50 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL16-50-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL16-75 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL16-75-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL16-100 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL16-100-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL16-125 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL16-125-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL16-150 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL16-150-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL16-175 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL16-175-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL16-200 Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL16-200-H Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL20-20 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQL20-20-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQL20-30 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQL20-30-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQL20-40 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQL20-40-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQL20-50 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL20-50-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL20-75 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL20-75-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL20-100 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL20-100-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL20-125 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL20-125-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL20-150 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL20-150-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL20-175 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL20-175-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL20-200 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL20-200-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL20-250 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL20-250-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL20-300 Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL20-300-H Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL25-20 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQL25-20-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQL25-30 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQL25-30-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQL25-40 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQL25-40-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQL25-50 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL25-50-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL25-75 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL25-75-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL25-100 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL25-100-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL25-125 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL25-125-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL25-150 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL25-150-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL25-175 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL25-175-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL25-200 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL25-200-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL25-250 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL25-250-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL25-300 Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL25-300-H Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL32-25 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL32-25-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL32-50 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL32-50-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL32-75 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL32-75-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL32-100 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL32-100-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL32-125 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL32-125-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL32-150 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL32-150-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL32-175 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL32-175-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL32-200 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL32-200-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL32-250 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL32-250-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL32-300 Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL32-300-H Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL40-25 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL40-25-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL40-50 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL40-50-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL40-75 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL40-75-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL40-100 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL40-100-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL40-125 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL40-125-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL40-150 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL40-150-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL40-175 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL40-175-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL40-200 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL40-200-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL40-250 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL40-250-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL40-300 Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL40-300-H Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL50-25 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL50-25-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL50-50 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL50-50-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL50-75 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL50-75-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL50-100 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL50-100-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL50-125 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL50-125-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL50-150 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL50-150-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL50-175 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL50-175-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL50-200 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL50-200-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL50-250 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL50-250-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL50-300 Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL50-300-H Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL63-25 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL63-25-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL63-50 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL63-50-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL63-75 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL63-75-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL63-100 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL63-100-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL63-125 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL63-125-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL63-150 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL63-150-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL63-175 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL63-175-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL63-200 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL63-200-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL63-250 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL63-250-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL63-300 Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL63-300-H Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL80-25 Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL80-50 Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL80-75 Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL80-100 Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL80-125 Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL80-150 Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL80-175 Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL80-200 Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL100-25 Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL100-50 Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL100-75 Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL100-100 Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL100-125 Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL100-150 Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL100-175 Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL100-200 Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 200 mm | Side mounting holes: No
Pneumatic CylindersTPC Mechatronics
376 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-NGQ Guided Compact Cylinder for Battery Lines (Bore 12-100)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (376)

2B-NGQM12-10, 2B-NGQM12-10-H, 2B-NGQM12-20, 2B-NGQM12-20-H, 2B-NGQM12-30, 2B-NGQM12-30-H, 2B-NGQM12-40, 2B-NGQM12-40-H, 2B-NGQM12-50, 2B-NGQM12-50-H + 366 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-NGQM12-10Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 10 mm | Side mounting holes: No
2B-NGQM12-10-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 10 mm | Side mounting holes: Yes (H)
2B-NGQM12-20Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQM12-20-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQM12-30Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQM12-30-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQM12-40Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQM12-40-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQM12-50Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM12-50-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM12-75Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM12-75-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM12-100Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM12-100-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM12-125Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM12-125-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM12-150Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM12-150-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM12-175Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM12-175-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM12-200Bearing: Slide bearing (M) | Bore: 12 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM12-200-HBearing: Slide bearing (M) | Bore: 12 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM16-10Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 10 mm | Side mounting holes: No
2B-NGQM16-10-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 10 mm | Side mounting holes: Yes (H)
2B-NGQM16-20Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQM16-20-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQM16-30Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQM16-30-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQM16-40Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQM16-40-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQM16-50Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM16-50-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM16-75Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM16-75-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM16-100Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM16-100-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM16-125Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM16-125-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM16-150Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM16-150-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM16-175Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM16-175-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM16-200Bearing: Slide bearing (M) | Bore: 16 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM16-200-HBearing: Slide bearing (M) | Bore: 16 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM20-20Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQM20-20-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQM20-30Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQM20-30-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQM20-40Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQM20-40-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQM20-50Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM20-50-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM20-75Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM20-75-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM20-100Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM20-100-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM20-125Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM20-125-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM20-150Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM20-150-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM20-175Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM20-175-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM20-200Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM20-200-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM20-250Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM20-250-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM20-300Bearing: Slide bearing (M) | Bore: 20 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM20-300-HBearing: Slide bearing (M) | Bore: 20 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM25-20Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQM25-20-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQM25-30Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQM25-30-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQM25-40Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQM25-40-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQM25-50Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM25-50-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM25-75Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM25-75-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM25-100Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM25-100-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM25-125Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM25-125-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM25-150Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM25-150-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM25-175Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM25-175-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM25-200Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM25-200-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM25-250Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM25-250-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM25-300Bearing: Slide bearing (M) | Bore: 25 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM25-300-HBearing: Slide bearing (M) | Bore: 25 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM32-25Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM32-25-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM32-50Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM32-50-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM32-75Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM32-75-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM32-100Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM32-100-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM32-125Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM32-125-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM32-150Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM32-150-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM32-175Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM32-175-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM32-200Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM32-200-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM32-250Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM32-250-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM32-300Bearing: Slide bearing (M) | Bore: 32 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM32-300-HBearing: Slide bearing (M) | Bore: 32 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM40-25Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM40-25-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM40-50Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM40-50-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM40-75Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM40-75-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM40-100Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM40-100-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM40-125Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM40-125-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM40-150Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM40-150-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM40-175Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM40-175-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM40-200Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM40-200-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM40-250Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM40-250-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM40-300Bearing: Slide bearing (M) | Bore: 40 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM40-300-HBearing: Slide bearing (M) | Bore: 40 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM50-25Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM50-25-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM50-50Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM50-50-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM50-75Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM50-75-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM50-100Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM50-100-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM50-125Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM50-125-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM50-150Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM50-150-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM50-175Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM50-175-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM50-200Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM50-200-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM50-250Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM50-250-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM50-300Bearing: Slide bearing (M) | Bore: 50 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM50-300-HBearing: Slide bearing (M) | Bore: 50 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM63-25Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM63-25-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQM63-50Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM63-50-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQM63-75Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM63-75-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQM63-100Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM63-100-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQM63-125Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM63-125-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQM63-150Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM63-150-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQM63-175Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM63-175-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQM63-200Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM63-200-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQM63-250Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQM63-250-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQM63-300Bearing: Slide bearing (M) | Bore: 63 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQM63-300-HBearing: Slide bearing (M) | Bore: 63 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQM80-25Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM80-50Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM80-75Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM80-100Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM80-125Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM80-150Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM80-175Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM80-200Bearing: Slide bearing (M) | Bore: 80 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQM100-25Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQM100-50Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQM100-75Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQM100-100Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQM100-125Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQM100-150Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQM100-175Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQM100-200Bearing: Slide bearing (M) | Bore: 100 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL12-10Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 10 mm | Side mounting holes: No
2B-NGQL12-10-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 10 mm | Side mounting holes: Yes (H)
2B-NGQL12-20Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQL12-20-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQL12-30Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQL12-30-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQL12-40Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQL12-40-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQL12-50Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL12-50-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL12-75Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL12-75-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL12-100Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL12-100-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL12-125Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL12-125-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL12-150Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL12-150-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL12-175Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL12-175-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL12-200Bearing: Ball bearing (L) | Bore: 12 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL12-200-HBearing: Ball bearing (L) | Bore: 12 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL16-10Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 10 mm | Side mounting holes: No
2B-NGQL16-10-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 10 mm | Side mounting holes: Yes (H)
2B-NGQL16-20Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQL16-20-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQL16-30Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQL16-30-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQL16-40Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQL16-40-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQL16-50Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL16-50-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL16-75Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL16-75-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL16-100Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL16-100-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL16-125Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL16-125-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL16-150Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL16-150-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL16-175Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL16-175-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL16-200Bearing: Ball bearing (L) | Bore: 16 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL16-200-HBearing: Ball bearing (L) | Bore: 16 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL20-20Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQL20-20-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQL20-30Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQL20-30-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQL20-40Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQL20-40-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQL20-50Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL20-50-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL20-75Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL20-75-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL20-100Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL20-100-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL20-125Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL20-125-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL20-150Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL20-150-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL20-175Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL20-175-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL20-200Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL20-200-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL20-250Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL20-250-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL20-300Bearing: Ball bearing (L) | Bore: 20 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL20-300-HBearing: Ball bearing (L) | Bore: 20 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL25-20Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 20 mm | Side mounting holes: No
2B-NGQL25-20-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 20 mm | Side mounting holes: Yes (H)
2B-NGQL25-30Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 30 mm | Side mounting holes: No
2B-NGQL25-30-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 30 mm | Side mounting holes: Yes (H)
2B-NGQL25-40Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 40 mm | Side mounting holes: No
2B-NGQL25-40-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 40 mm | Side mounting holes: Yes (H)
2B-NGQL25-50Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL25-50-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL25-75Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL25-75-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL25-100Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL25-100-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL25-125Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL25-125-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL25-150Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL25-150-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL25-175Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL25-175-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL25-200Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL25-200-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL25-250Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL25-250-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL25-300Bearing: Ball bearing (L) | Bore: 25 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL25-300-HBearing: Ball bearing (L) | Bore: 25 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL32-25Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL32-25-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL32-50Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL32-50-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL32-75Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL32-75-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL32-100Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL32-100-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL32-125Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL32-125-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL32-150Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL32-150-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL32-175Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL32-175-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL32-200Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL32-200-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL32-250Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL32-250-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL32-300Bearing: Ball bearing (L) | Bore: 32 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL32-300-HBearing: Ball bearing (L) | Bore: 32 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL40-25Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL40-25-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL40-50Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL40-50-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL40-75Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL40-75-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL40-100Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL40-100-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL40-125Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL40-125-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL40-150Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL40-150-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL40-175Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL40-175-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL40-200Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL40-200-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL40-250Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL40-250-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL40-300Bearing: Ball bearing (L) | Bore: 40 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL40-300-HBearing: Ball bearing (L) | Bore: 40 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL50-25Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL50-25-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL50-50Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL50-50-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL50-75Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL50-75-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL50-100Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL50-100-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL50-125Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL50-125-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL50-150Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL50-150-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL50-175Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL50-175-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL50-200Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL50-200-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL50-250Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL50-250-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL50-300Bearing: Ball bearing (L) | Bore: 50 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL50-300-HBearing: Ball bearing (L) | Bore: 50 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL63-25Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL63-25-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 25 mm | Side mounting holes: Yes (H)
2B-NGQL63-50Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL63-50-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 50 mm | Side mounting holes: Yes (H)
2B-NGQL63-75Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL63-75-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 75 mm | Side mounting holes: Yes (H)
2B-NGQL63-100Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL63-100-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 100 mm | Side mounting holes: Yes (H)
2B-NGQL63-125Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL63-125-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 125 mm | Side mounting holes: Yes (H)
2B-NGQL63-150Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL63-150-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 150 mm | Side mounting holes: Yes (H)
2B-NGQL63-175Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL63-175-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 175 mm | Side mounting holes: Yes (H)
2B-NGQL63-200Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL63-200-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 200 mm | Side mounting holes: Yes (H)
2B-NGQL63-250Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: No
2B-NGQL63-250-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 250 mm | Side mounting holes: Yes (H)
2B-NGQL63-300Bearing: Ball bearing (L) | Bore: 63 mm | Stroke: 300 mm | Side mounting holes: No
2B-NGQL63-300-HBearing: Ball bearing (L) | Bore: 63 mm | Stroke: 300 mm | Side mounting holes: Yes (H)
2B-NGQL80-25Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL80-50Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL80-75Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL80-100Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL80-125Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL80-150Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL80-175Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL80-200Bearing: Ball bearing (L) | Bore: 80 mm | Stroke: 200 mm | Side mounting holes: No
2B-NGQL100-25Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 25 mm | Side mounting holes: No
2B-NGQL100-50Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 50 mm | Side mounting holes: No
2B-NGQL100-75Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 75 mm | Side mounting holes: No
2B-NGQL100-100Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 100 mm | Side mounting holes: No
2B-NGQL100-125Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 125 mm | Side mounting holes: No
2B-NGQL100-150Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 150 mm | Side mounting holes: No
2B-NGQL100-175Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 175 mm | Side mounting holes: No
2B-NGQL100-200Bearing: Ball bearing (L) | Bore: 100 mm | Stroke: 200 mm | Side mounting holes: No

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
