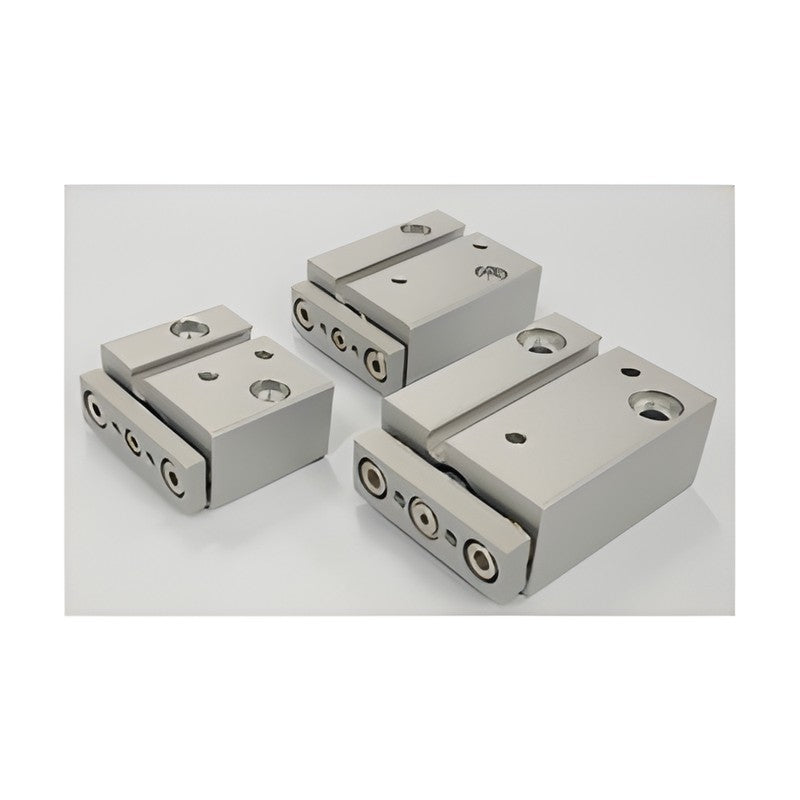

TPC 2B-NGQ(Mini) Miniature Guided Cylinder for Battery Lines (6, 10)

TPC 2B-NGQ(Mini) Miniature Guided Cylinder for Battery Lines (6, 10)

TPC 2B-NGQ(Mini) miniature guided rod cylinder, secondary-battery-production version of the NGQ(Mini) series, bore 6 and 10 mm.

Key features

  • 2B secondary battery specification with nickel-plated / aluminium parts (consult TPC for alloy details)
  • Specifications and outer dimensions identical to the standard NGQ(Mini) series
  • Slide bearing guide rods, built-in neodymium magnet
  • W10V miniature auto switch ordered as suffix

Specifications

Fluid Air
Action Double acting, magnet built in
Bearing Slide bearing (M)
Proof pressure 1.05 MPa
Operating pressure 0.15-0.7 MPa
Ambient and fluid temperature 5 to 60°C
Cushion Rubber bumper
Piston speed 50-500 mm/s
Port size M3x0.5
Stroke tolerance +1.0/0 mm
Source TPC Mechatronics catalog NGQ(Mini)Series(230521).pdf, p. 392-396 (PDF p. 1-5)
2B-NGQM6-5 Bore: 6 mm | Stroke: 5 mm
2B-NGQM6-10 Bore: 6 mm | Stroke: 10 mm
2B-NGQM6-15 Bore: 6 mm | Stroke: 15 mm
2B-NGQM10-5 Bore: 10 mm | Stroke: 5 mm
2B-NGQM10-10 Bore: 10 mm | Stroke: 10 mm
2B-NGQM10-15 Bore: 10 mm | Stroke: 15 mm
2B-NGQM10-20 Bore: 10 mm | Stroke: 20 mm
Pneumatic CylindersTPC Mechatronics
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-NGQ(Mini) Miniature Guided Cylinder for Battery Lines (6, 10)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (7)

2B-NGQM6-5, 2B-NGQM6-10, 2B-NGQM6-15, 2B-NGQM10-5, 2B-NGQM10-10, 2B-NGQM10-15, 2B-NGQM10-20
