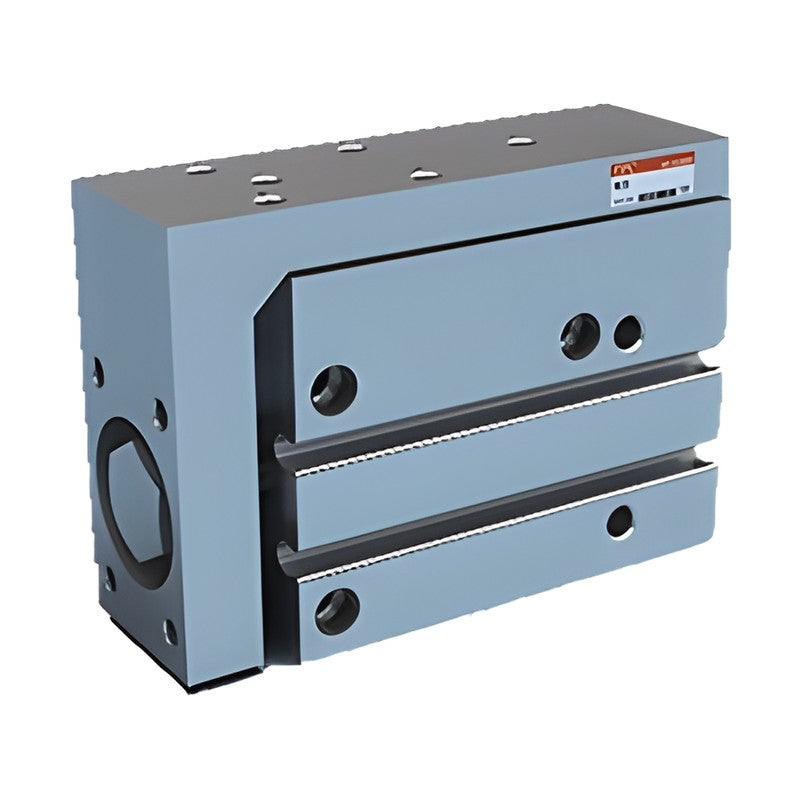

TPC 2B-NLCS Table Cylinder for Battery Lines (Single Rod, 6-16 mm)

TPC 2B-NLCS single-rod table cylinder, the secondary-battery-production version of the NLCS series with identical specifications and dimensions.

Key features

2B secondary battery specification: nickel-plated steel, anodised aluminium and stainless parts (consult TPC for alloy details)
Specifications and outer dimensions identical to the standard NLCS series
Linear guide (LM guide assembly), built-in neodymium magnet (resin magnet on 16 mm)
2B replacement packings listed separately from the standard packing set

Specifications

Type	Table cylinder, single rod
Action	Double acting, magnet built in
Fluid	Air
Operating pressure	0.15-0.7 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	-10 to 60°C
Piston speed	50-500 mm/s
Lubrication	Not required
Cushion	Rubber damper both ends
Stroke tolerance	0 to +1 mm
Source	TPC Mechatronics catalog NLCS_Series(250902).pdf, p. 737-741 (PDF p. 1-5)

2B-NLCS06-5		Item: Cylinder \| Bore: 6 mm \| Stroke: 5 mm
2B-NLCS06-10		Item: Cylinder \| Bore: 6 mm \| Stroke: 10 mm
2B-NLCS06-15		Item: Cylinder \| Bore: 6 mm \| Stroke: 15 mm
2B-NLCS06-20		Item: Cylinder \| Bore: 6 mm \| Stroke: 20 mm
2B-NLCS06-25		Item: Cylinder \| Bore: 6 mm \| Stroke: 25 mm
2B-NLCS06-30		Item: Cylinder \| Bore: 6 mm \| Stroke: 30 mm
2B-NLCS10-5		Item: Cylinder \| Bore: 10 mm \| Stroke: 5 mm
2B-NLCS10-10		Item: Cylinder \| Bore: 10 mm \| Stroke: 10 mm
2B-NLCS10-15		Item: Cylinder \| Bore: 10 mm \| Stroke: 15 mm
2B-NLCS10-20		Item: Cylinder \| Bore: 10 mm \| Stroke: 20 mm
2B-NLCS10-25		Item: Cylinder \| Bore: 10 mm \| Stroke: 25 mm
2B-NLCS10-30		Item: Cylinder \| Bore: 10 mm \| Stroke: 30 mm
2B-NLCS10-40		Item: Cylinder \| Bore: 10 mm \| Stroke: 40 mm
2B-NLCS16-5		Item: Cylinder \| Bore: 16 mm \| Stroke: 5 mm
2B-NLCS16-10		Item: Cylinder \| Bore: 16 mm \| Stroke: 10 mm
2B-NLCS16-15		Item: Cylinder \| Bore: 16 mm \| Stroke: 15 mm
2B-NLCS16-20		Item: Cylinder \| Bore: 16 mm \| Stroke: 20 mm
2B-NLCS16-25		Item: Cylinder \| Bore: 16 mm \| Stroke: 25 mm
2B-NLCS16-30		Item: Cylinder \| Bore: 16 mm \| Stroke: 30 mm
OPA-6		Item: Piston packing (2B) \| Bore: 6 mm \| Stroke: All
OPA-10		Item: Piston packing (2B) \| Bore: 10 mm \| Stroke: All
OPA-16		Item: Piston packing (2B) \| Bore: 16 mm \| Stroke: All
KSYR-3		Item: Rod packing (2B) \| Bore: 6 mm \| Stroke: All
KSYR-4		Item: Rod packing (2B) \| Bore: 10 mm \| Stroke: All
ORA-6		Item: Rod packing (2B) \| Bore: 16 mm \| Stroke: All
TC1P006-16-1693		Item: Tube gasket (2B) \| Bore: 6 mm \| Stroke: All
TC1P006-16-1694		Item: Tube gasket (2B) \| Bore: 10 mm \| Stroke: All
TC1P006-15A-1695		Item: Tube gasket (2B) \| Bore: 16 mm \| Stroke: All
