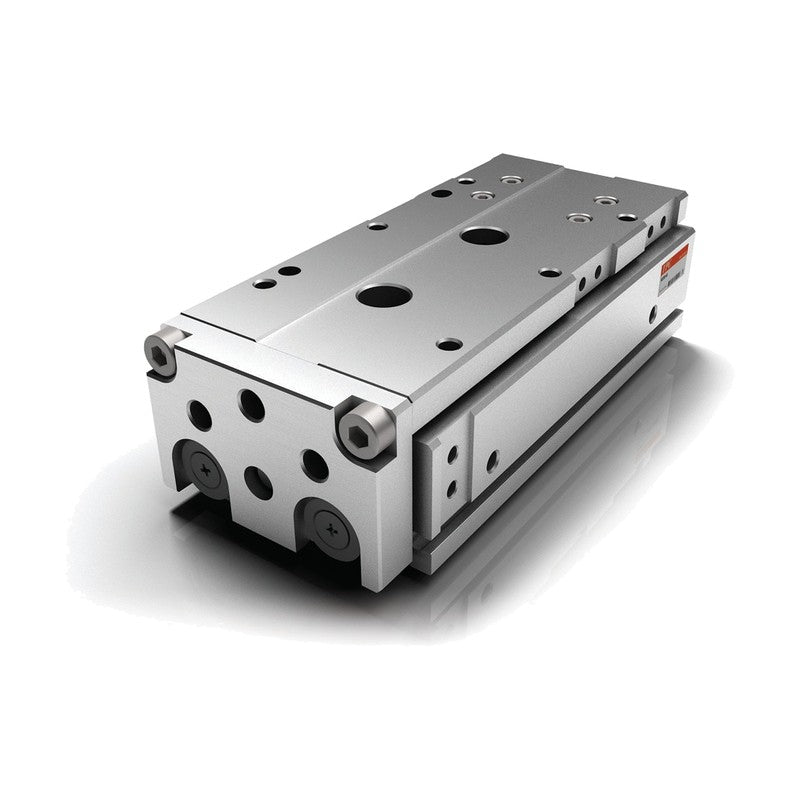

TPC 2B-NLPD Precision Table Cylinder, Battery Spec (6-32 mm)

TPC 2B-NLPD Precision Table Cylinder, Battery Spec (6-32 mm)

TPC 2B-NLPD secondary-battery specification version of the NLPD precision table cylinder, with copper-free internal parts and electroless nickel-plated fasteners.

Key features

  • 2B secondary-battery specification: brass internals replaced by aluminum alloy or stainless steel, fasteners electroless nickel plated
  • Specifications and outline dimensions identical to the standard NLPD; some options cannot be produced in 2B
  • Recirculating linear guide for high rigidity and accuracy; enlarged work mounting surface for stable fixing
  • Dual cylinder construction doubles output in a compact body; bores 6-32 mm
  • Auto switches W8H/W8V/W9H/W9V/W9HN/W9HP/W10V/W20H (bore 8 horizontal type only) ordered as suffix, e.g. 2B-NLPD12-75RF15R-W8HS

Specifications

Fluid Air
Action Double acting (dual rod)
Operating pressure 0.15-0.7 MPa
Proof pressure 1.05 MPa
Ambient and fluid temperature -10 to 60°C (no freezing)
Piston speed 50-500 mm/s (metal stopper 50-200 mm/s)
Lubrication Not required
Stroke tolerance 0 to +1 mm
Specification Secondary battery (2B)
Source TPC Mechatronics catalog NLPD Series (250801), p. 2-7
