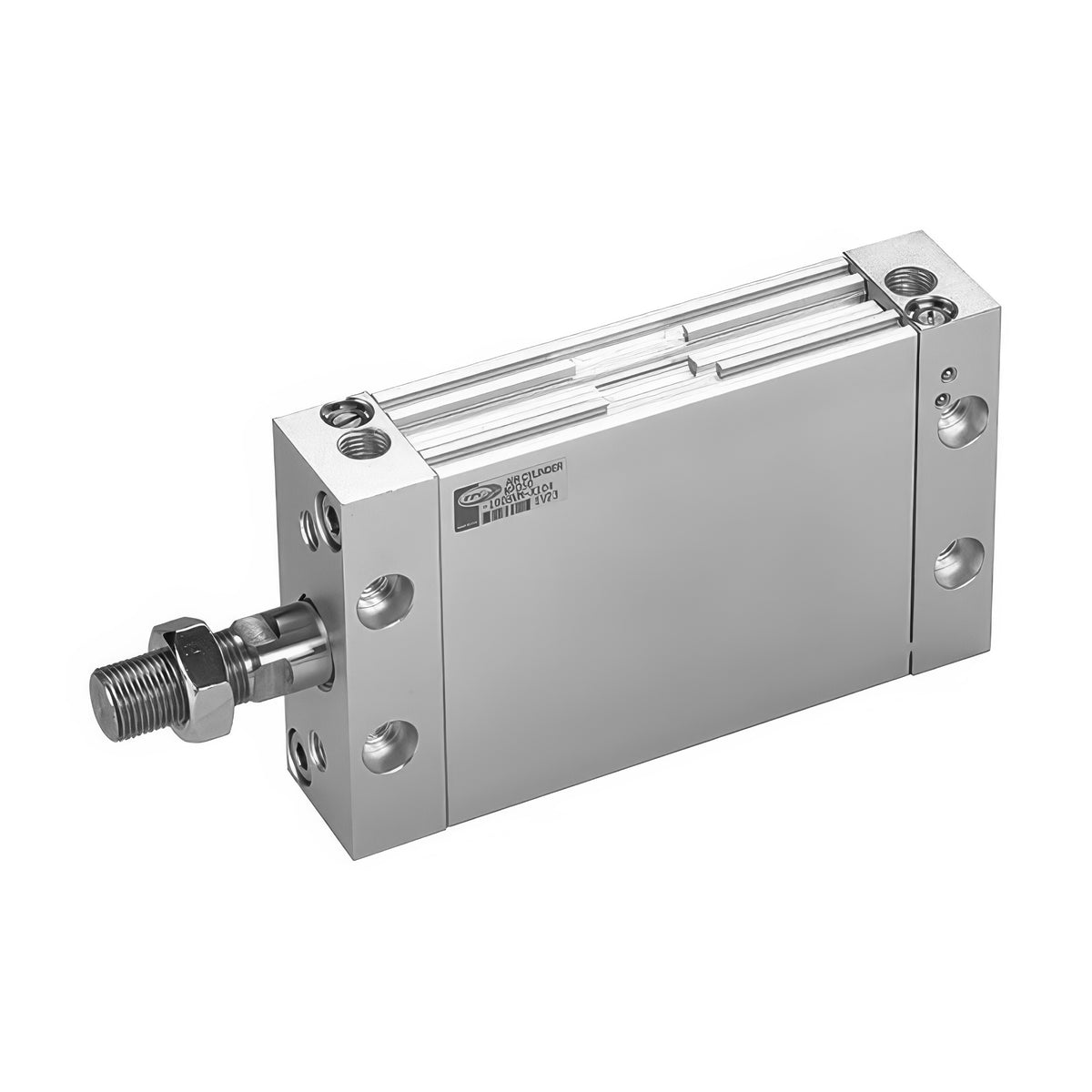

TPC 2B-NP Plate Cylinder, Battery Spec (Bore 50/63 mm)

TPC 2B-NP secondary-battery specification version of the NP double-acting plate cylinder, bore 50 and 63 mm, with electroless nickel-plated steel parts.

Key features

2B secondary-battery specification with electroless nickel-plated rods, bolts and fittings; dimensions identical to standard NP
Coil scraper X104 not available in 2B; W2P strong-field switch on request; some options cannot be produced
Space-saving plate body mountable directly on every face except the port face; dowel pins for mounting parallelism
Built-in speed controllers simplify piping; standard side (V) or axial rear (H) piping removes mounting-face restrictions
Rod non-rotating type (accuracy ±0.5°); allowable rod torque 1.25 N.m (50) / 2.0 N.m (63)

Specifications

Fluid	Air
Action	Double acting, single rod
Operating pressure	0.05-1.02 MPa
Proof pressure	1.05 MPa
Ambient and fluid temperature	-5 to 60°C
Piston speed	50-500 mm/s
Lubrication	Not required
Cushion	Rubber cushion
Stroke tolerance	+1.4/0 mm
Port	Rc1/4 with built-in speed controllers
Specification	Secondary battery (2B)
Source	TPC Mechatronics catalog NP_Series(241002).pdf, p. 2-5

2B-NP50-5V		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-5H		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-5EV		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-5EH		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-5VM		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-5HM		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-5EVM		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-5EHM		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-5BVM		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-5BHM		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-5CVM		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-5CHM		Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-10V		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-10H		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-10EV		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-10EH		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-10VM		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-10HM		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-10EVM		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-10EHM		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-10BVM		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-10BHM		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-10CVM		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-10CHM		Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-15V		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-15H		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-15EV		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-15EH		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-15VM		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-15HM		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-15EVM		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-15EHM		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-15BVM		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-15BHM		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-15CVM		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-15CHM		Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-20V		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-20H		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-20EV		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-20EH		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-20VM		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-20HM		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-20EVM		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-20EHM		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-20BVM		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-20BHM		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-20CVM		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-20CHM		Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-25V		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-25H		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-25EV		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-25EH		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-25VM		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-25HM		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-25EVM		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-25EHM		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-25BVM		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-25BHM		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-25CVM		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-25CHM		Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-30V		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-30H		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-30EV		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-30EH		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-30VM		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-30HM		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-30EVM		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-30EHM		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-30BVM		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-30BHM		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-30CVM		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-30CHM		Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-35V		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-35H		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-35EV		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-35EH		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-35VM		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-35HM		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-35EVM		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-35EHM		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-35BVM		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-35BHM		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-35CVM		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-35CHM		Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-40V		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-40H		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-40EV		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-40EH		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-40VM		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-40HM		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-40EVM		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-40EHM		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-40BVM		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-40BHM		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-40CVM		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-40CHM		Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-45V		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-45H		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-45EV		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-45EH		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-45VM		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-45HM		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-45EVM		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-45EHM		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-45BVM		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-45BHM		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-45CVM		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-45CHM		Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-50V		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-50H		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-50EV		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-50EH		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-50VM		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-50HM		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-50EVM		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-50EHM		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-50BVM		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-50BHM		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-50CVM		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-50CHM		Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-75V		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-75H		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-75EV		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-75EH		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-75VM		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-75HM		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-75EVM		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-75EHM		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-75BVM		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-75BHM		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-75CVM		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-75CHM		Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-100V		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-100H		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-100EV		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-100EH		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-100VM		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-100HM		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-100EVM		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-100EHM		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-100BVM		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-100BHM		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-100CVM		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-100CHM		Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-125V		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-125H		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-125EV		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-125EH		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-125VM		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-125HM		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-125EVM		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-125EHM		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-125BVM		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-125BHM		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-125CVM		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-125CHM		Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-150V		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-150H		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-150EV		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-150EH		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-150VM		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-150HM		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-150EVM		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-150EHM		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-150BVM		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-150BHM		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-150CVM		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-150CHM		Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-200V		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-200H		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-200EV		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP50-200EH		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP50-200VM		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-200HM		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-200EVM		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-200EHM		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-200BVM		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-200BHM		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP50-200CVM		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP50-200CHM		Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-5V		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-5H		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-5EV		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-5EH		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-5VM		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-5HM		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-5EVM		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-5EHM		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-5BVM		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-5BHM		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-5CVM		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-5CHM		Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-10V		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-10H		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-10EV		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-10EH		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-10VM		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-10HM		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-10EVM		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-10EHM		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-10BVM		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-10BHM		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-10CVM		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-10CHM		Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-15V		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-15H		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-15EV		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-15EH		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-15VM		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-15HM		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-15EVM		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-15EHM		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-15BVM		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-15BHM		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-15CVM		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-15CHM		Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-20V		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-20H		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-20EV		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-20EH		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-20VM		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-20HM		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-20EVM		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-20EHM		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-20BVM		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-20BHM		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-20CVM		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-20CHM		Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-25V		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-25H		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-25EV		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-25EH		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-25VM		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-25HM		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-25EVM		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-25EHM		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-25BVM		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-25BHM		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-25CVM		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-25CHM		Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-30V		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-30H		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-30EV		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-30EH		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-30VM		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-30HM		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-30EVM		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-30EHM		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-30BVM		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-30BHM		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-30CVM		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-30CHM		Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-35V		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-35H		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-35EV		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-35EH		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-35VM		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-35HM		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-35EVM		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-35EHM		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-35BVM		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-35BHM		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-35CVM		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-35CHM		Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-40V		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-40H		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-40EV		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-40EH		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-40VM		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-40HM		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-40EVM		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-40EHM		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-40BVM		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-40BHM		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-40CVM		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-40CHM		Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-45V		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-45H		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-45EV		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-45EH		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-45VM		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-45HM		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-45EVM		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-45EHM		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-45BVM		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-45BHM		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-45CVM		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-45CHM		Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-50V		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-50H		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-50EV		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-50EH		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-50VM		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-50HM		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-50EVM		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-50EHM		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-50BVM		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-50BHM		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-50CVM		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-50CHM		Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-75V		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-75H		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-75EV		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-75EH		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-75VM		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-75HM		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-75EVM		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-75EHM		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-75BVM		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-75BHM		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-75CVM		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-75CHM		Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-100V		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-100H		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-100EV		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-100EH		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-100VM		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-100HM		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-100EVM		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-100EHM		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-100BVM		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-100BHM		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-100CVM		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-100CHM		Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-125V		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-125H		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-125EV		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-125EH		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-125VM		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-125HM		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-125EVM		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-125EHM		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-125BVM		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-125BHM		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-125CVM		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-125CHM		Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-150V		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-150H		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-150EV		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-150EH		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-150VM		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-150HM		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-150EVM		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-150EHM		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-150BVM		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-150BHM		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-150CVM		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-150CHM		Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-200V		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-200H		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-200EV		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NP63-200EH		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NP63-200VM		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-200HM		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-200EVM		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-200EHM		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-200BVM		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-200BHM		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NP63-200CVM		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NP63-200CHM		Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-5V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-5H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-5EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-5EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-5VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-5HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-5EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-5EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-5BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-5BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-5CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-5CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-10V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-10H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-10EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-10EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-10VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-10HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-10EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-10EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-10BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-10BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-10CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-10CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-15V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-15H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-15EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-15EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-15VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-15HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-15EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-15EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-15BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-15BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-15CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-15CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-20V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-20H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-20EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-20EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-20VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-20HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-20EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-20EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-20BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-20BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-20CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-20CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-25V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-25H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-25EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-25EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-25VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-25HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-25EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-25EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-25BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-25BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-25CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-25CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-30V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-30H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-30EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-30EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-30VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-30HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-30EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-30EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-30BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-30BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-30CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-30CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-35V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-35H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-35EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-35EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-35VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-35HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-35EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-35EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-35BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-35BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-35CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-35CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-40V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-40H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-40EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-40EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-40VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-40HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-40EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-40EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-40BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-40BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-40CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-40CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-45V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-45H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-45EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-45EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-45VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-45HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-45EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-45EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-45BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-45BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-45CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-45CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-50V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-50H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-50EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-50EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-50VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-50HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-50EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-50EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-50BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-50BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-50CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-50CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-75V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-75H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-75EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-75EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-75VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-75HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-75EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-75EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-75BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-75BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-75CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-75CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-100V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-100H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-100EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-100EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-100VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-100HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-100EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-100EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-100BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-100BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-100CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-100CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-125V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-125H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-125EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-125EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-125VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-125HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-125EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-125EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-125BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-125BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-125CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-125CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-150V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-150H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-150EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-150EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-150VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-150HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-150EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-150EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-150BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-150BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-150CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-150CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-200V		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-200H		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-200EV		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD50-200EH		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD50-200VM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-200HM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-200EVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-200EHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-200BVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-200BHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD50-200CVM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD50-200CHM		Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-5V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-5H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-5EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-5EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-5VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-5HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-5EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-5EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-5BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-5BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-5CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-5CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-10V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-10H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-10EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-10EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-10VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-10HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-10EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-10EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-10BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-10BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-10CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-10CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-15V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-15H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-15EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-15EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-15VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-15HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-15EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-15EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-15BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-15BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-15CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-15CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-20V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-20H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-20EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-20EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-20VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-20HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-20EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-20EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-20BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-20BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-20CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-20CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-25V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-25H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-25EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-25EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-25VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-25HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-25EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-25EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-25BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-25BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-25CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-25CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-30V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-30H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-30EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-30EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-30VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-30HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-30EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-30EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-30BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-30BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-30CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-30CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-35V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-35H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-35EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-35EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-35VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-35HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-35EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-35EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-35BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-35BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-35CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-35CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-40V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-40H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-40EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-40EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-40VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-40HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-40EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-40EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-40BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-40BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-40CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-40CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-45V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-45H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-45EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-45EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-45VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-45HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-45EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-45EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-45BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-45BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-45CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-45CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-50V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-50H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-50EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-50EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-50VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-50HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-50EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-50EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-50BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-50BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-50CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-50CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-75V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-75H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-75EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-75EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-75VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-75HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-75EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-75EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-75BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-75BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-75CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-75CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-100V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-100H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-100EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-100EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-100VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-100HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-100EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-100EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-100BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-100BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-100CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-100CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-125V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-125H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-125EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-125EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-125VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-125HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-125EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-125EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-125BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-125BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-125CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-125CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-150V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-150H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-150EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-150EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-150VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-150HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-150EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-150EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-150BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-150BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-150CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-150CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-200V		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-200H		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-200EV		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
2B-NPD63-200EH		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
2B-NPD63-200VM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-200HM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-200EVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-200EHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-200BVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-200BHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
2B-NPD63-200CVM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
2B-NPD63-200CHM		Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread

Pneumatic CylindersTPC Mechatronics

720 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-NP Plate Cylinder, Battery Spec (Bore 50/63 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (720)

2B-NP50-5V, 2B-NP50-5H, 2B-NP50-5EV, 2B-NP50-5EH, 2B-NP50-5VM, 2B-NP50-5HM, 2B-NP50-5EVM, 2B-NP50-5EHM, 2B-NP50-5BVM, 2B-NP50-5BHM + 710 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	2B-NP50-5V	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-5H	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-5EV	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-5EH	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-5VM	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-5HM	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-5EVM	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-5EHM	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-5BVM	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-5BHM	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-5CVM	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-5CHM	Magnet: None \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-10V	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-10H	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-10EV	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-10EH	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-10VM	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-10HM	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-10EVM	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-10EHM	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-10BVM	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-10BHM	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-10CVM	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-10CHM	Magnet: None \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-15V	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-15H	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-15EV	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-15EH	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-15VM	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-15HM	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-15EVM	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-15EHM	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-15BVM	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-15BHM	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-15CVM	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-15CHM	Magnet: None \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-20V	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-20H	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-20EV	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-20EH	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-20VM	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-20HM	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-20EVM	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-20EHM	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-20BVM	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-20BHM	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-20CVM	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-20CHM	Magnet: None \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-25V	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-25H	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-25EV	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-25EH	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-25VM	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-25HM	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-25EVM	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-25EHM	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-25BVM	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-25BHM	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-25CVM	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-25CHM	Magnet: None \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-30V	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-30H	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-30EV	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-30EH	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-30VM	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-30HM	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-30EVM	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-30EHM	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-30BVM	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-30BHM	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-30CVM	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-30CHM	Magnet: None \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-35V	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-35H	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-35EV	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-35EH	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-35VM	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-35HM	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-35EVM	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-35EHM	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-35BVM	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-35BHM	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-35CVM	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-35CHM	Magnet: None \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-40V	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-40H	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-40EV	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-40EH	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-40VM	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-40HM	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-40EVM	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-40EHM	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-40BVM	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-40BHM	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-40CVM	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-40CHM	Magnet: None \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-45V	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-45H	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-45EV	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-45EH	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-45VM	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-45HM	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-45EVM	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-45EHM	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-45BVM	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-45BHM	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-45CVM	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-45CHM	Magnet: None \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-50V	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-50H	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-50EV	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-50EH	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-50VM	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-50HM	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-50EVM	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-50EHM	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-50BVM	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-50BHM	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-50CVM	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-50CHM	Magnet: None \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-75V	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-75H	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-75EV	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-75EH	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-75VM	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-75HM	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-75EVM	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-75EHM	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-75BVM	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-75BHM	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-75CVM	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-75CHM	Magnet: None \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-100V	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-100H	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-100EV	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-100EH	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-100VM	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-100HM	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-100EVM	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-100EHM	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-100BVM	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-100BHM	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-100CVM	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-100CHM	Magnet: None \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-125V	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-125H	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-125EV	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-125EH	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-125VM	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-125HM	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-125EVM	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-125EHM	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-125BVM	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-125BHM	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-125CVM	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-125CHM	Magnet: None \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-150V	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-150H	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-150EV	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-150EH	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-150VM	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-150HM	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-150EVM	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-150EHM	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-150BVM	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-150BHM	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-150CVM	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-150CHM	Magnet: None \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-200V	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-200H	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-200EV	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP50-200EH	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP50-200VM	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-200HM	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-200EVM	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-200EHM	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-200BVM	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-200BHM	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP50-200CVM	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP50-200CHM	Magnet: None \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-5V	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-5H	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-5EV	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-5EH	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-5VM	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-5HM	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-5EVM	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-5EHM	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-5BVM	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-5BHM	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-5CVM	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-5CHM	Magnet: None \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-10V	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-10H	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-10EV	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-10EH	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-10VM	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-10HM	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-10EVM	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-10EHM	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-10BVM	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-10BHM	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-10CVM	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-10CHM	Magnet: None \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-15V	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-15H	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-15EV	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-15EH	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-15VM	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-15HM	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-15EVM	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-15EHM	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-15BVM	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-15BHM	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-15CVM	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-15CHM	Magnet: None \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-20V	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-20H	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-20EV	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-20EH	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-20VM	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-20HM	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-20EVM	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-20EHM	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-20BVM	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-20BHM	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-20CVM	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-20CHM	Magnet: None \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-25V	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-25H	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-25EV	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-25EH	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-25VM	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-25HM	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-25EVM	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-25EHM	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-25BVM	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-25BHM	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-25CVM	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-25CHM	Magnet: None \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-30V	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-30H	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-30EV	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-30EH	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-30VM	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-30HM	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-30EVM	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-30EHM	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-30BVM	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-30BHM	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-30CVM	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-30CHM	Magnet: None \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-35V	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-35H	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-35EV	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-35EH	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-35VM	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-35HM	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-35EVM	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-35EHM	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-35BVM	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-35BHM	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-35CVM	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-35CHM	Magnet: None \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-40V	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-40H	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-40EV	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-40EH	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-40VM	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-40HM	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-40EVM	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-40EHM	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-40BVM	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-40BHM	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-40CVM	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-40CHM	Magnet: None \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-45V	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-45H	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-45EV	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-45EH	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-45VM	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-45HM	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-45EVM	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-45EHM	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-45BVM	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-45BHM	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-45CVM	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-45CHM	Magnet: None \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-50V	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-50H	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-50EV	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-50EH	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-50VM	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-50HM	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-50EVM	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-50EHM	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-50BVM	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-50BHM	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-50CVM	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-50CHM	Magnet: None \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-75V	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-75H	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-75EV	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-75EH	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-75VM	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-75HM	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-75EVM	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-75EHM	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-75BVM	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-75BHM	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-75CVM	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-75CHM	Magnet: None \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-100V	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-100H	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-100EV	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-100EH	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-100VM	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-100HM	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-100EVM	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-100EHM	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-100BVM	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-100BHM	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-100CVM	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-100CHM	Magnet: None \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-125V	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-125H	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-125EV	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-125EH	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-125VM	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-125HM	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-125EVM	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-125EHM	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-125BVM	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-125BHM	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-125CVM	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-125CHM	Magnet: None \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-150V	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-150H	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-150EV	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-150EH	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-150VM	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-150HM	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-150EVM	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-150EHM	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-150BVM	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-150BHM	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-150CVM	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-150CHM	Magnet: None \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-200V	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-200H	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-200EV	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NP63-200EH	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NP63-200VM	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-200HM	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-200EVM	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-200EHM	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-200BVM	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-200BHM	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NP63-200CVM	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NP63-200CHM	Magnet: None \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-5V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-5H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-5EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-5EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-5VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-5HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-5EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-5EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-5BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-5BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-5CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-5CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-10V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-10H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-10EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-10EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-10VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-10HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-10EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-10EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-10BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-10BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-10CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-10CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-15V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-15H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-15EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-15EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-15VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-15HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-15EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-15EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-15BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-15BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-15CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-15CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-20V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-20H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-20EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-20EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-20VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-20HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-20EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-20EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-20BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-20BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-20CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-20CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-25V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-25H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-25EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-25EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-25VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-25HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-25EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-25EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-25BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-25BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-25CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-25CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-30V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-30H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-30EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-30EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-30VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-30HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-30EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-30EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-30BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-30BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-30CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-30CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-35V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-35H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-35EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-35EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-35VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-35HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-35EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-35EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-35BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-35BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-35CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-35CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-40V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-40H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-40EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-40EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-40VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-40HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-40EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-40EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-40BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-40BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-40CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-40CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-45V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-45H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-45EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-45EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-45VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-45HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-45EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-45EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-45BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-45BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-45CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-45CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-50V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-50H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-50EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-50EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-50VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-50HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-50EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-50EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-50BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-50BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-50CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-50CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-75V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-75H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-75EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-75EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-75VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-75HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-75EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-75EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-75BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-75BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-75CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-75CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-100V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-100H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-100EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-100EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-100VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-100HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-100EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-100EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-100BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-100BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-100CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-100CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-125V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-125H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-125EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-125EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-125VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-125HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-125EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-125EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-125BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-125BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-125CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-125CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-150V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-150H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-150EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-150EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-150VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-150HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-150EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-150EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-150BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-150BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-150CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-150CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-200V	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-200H	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-200EV	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD50-200EH	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD50-200VM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-200HM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-200EVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-200EHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-200BVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-200BHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD50-200CVM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD50-200CHM	Magnet: Built-in \| Bore: 50 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-5V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-5H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-5EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-5EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-5VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-5HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-5EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-5EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-5BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-5BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-5CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-5CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 5 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-10V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-10H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-10EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-10EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-10VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-10HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-10EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-10EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-10BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-10BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-10CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-10CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 10 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-15V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-15H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-15EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-15EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-15VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-15HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-15EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-15EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-15BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-15BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-15CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-15CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 15 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-20V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-20H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-20EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-20EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-20VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-20HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-20EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-20EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-20BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-20BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-20CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-20CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 20 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-25V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-25H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-25EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-25EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-25VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-25HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-25EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-25EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-25BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-25BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-25CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-25CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 25 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-30V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-30H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-30EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-30EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-30VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-30HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-30EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-30EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-30BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-30BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-30CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-30CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 30 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-35V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-35H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-35EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-35EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-35VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-35HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-35EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-35EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-35BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-35BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-35CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-35CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 35 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-40V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-40H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-40EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-40EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-40VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-40HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-40EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-40EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-40BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-40BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-40CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-40CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 40 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-45V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-45H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-45EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-45EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-45VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-45HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-45EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-45EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-45BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-45BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-45CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-45CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 45 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-50V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-50H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-50EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-50EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-50VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-50HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-50EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-50EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-50BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-50BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-50CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-50CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 50 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-75V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-75H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-75EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-75EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-75VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-75HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-75EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-75EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-75BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-75BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-75CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-75CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 75 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-100V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-100H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-100EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-100EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-100VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-100HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-100EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-100EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-100BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-100BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-100CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-100CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 100 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-125V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-125H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-125EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-125EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-125VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-125HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-125EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-125EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-125BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-125BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-125CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-125CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 125 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-150V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-150H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-150EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-150EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-150VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-150HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-150EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-150EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-150BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-150BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-150CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-150CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 150 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-200V	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-200H	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-200EV	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Female thread
	2B-NPD63-200EH	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Female thread
	2B-NPD63-200VM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-200HM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: None (body mount) \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-200EVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-200EHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-200BVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-200BHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle + head 2-clevis \| Piping: Axial (rear) \| Rod end: Male thread
	2B-NPD63-200CVM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Standard (side) \| Rod end: Male thread
	2B-NPD63-200CHM	Magnet: Built-in \| Bore: 63 mm \| Stroke: 200 mm \| Mounting: Y knuckle \| Piping: Axial (rear) \| Rod end: Male thread

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

TPC 2B-NP Plate Cylinder, Battery Spec (Bore 50/63 mm)
