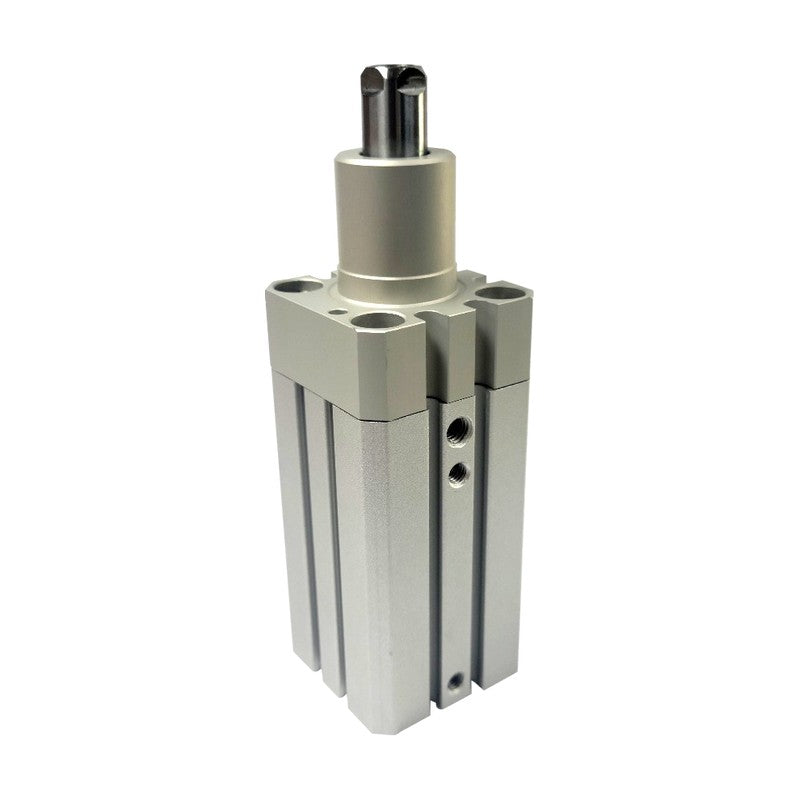

TPC 2B-NSK Swing Clamp Cylinder (Battery Spec, Bore 12-63 mm)

TPC 2B-NSK Swing Clamp Cylinder (Battery Spec, Bore 12-63 mm)

TPC 2B-NSK swing clamp cylinder for secondary battery production lines, with copper and zinc controlled materials, bore 12 to 63 mm.

Key features

  • Rotary-then-linear swing clamp: piston rod turns 90 deg then clamps in the straight stroke
  • Square tube with auto switch rail inside; compact size and clean appearance
  • Rotation direction R (counter-clockwise on extend) or L (clockwise on extend)
  • Swing plate (arm) supplied fitted (P) or separately (NSK**-P); head flange mounting G or through-hole/tap mounting B
  • Rotation stroke 7.5 mm (12/16), 9.5 mm (20/25), 15 mm (32/40), 19 mm (50/63); coil scraper on 40-63
  • 2B secondary battery spec: dimensions and specifications identical to standard; coil scraper and W2P switch not available, some options on request

Specifications

Fluid Compressed air (non-lube)
Action Double acting
Rotation angle 90 +/-10 deg
Proof pressure 15 kgf/cm2
Max. operating pressure 9.9 kgf/cm2
Min. operating pressure 1.0 kgf/cm2
Piston speed 50-200 mm/s
Ambient and fluid temperature -5 to 60 C
Port M5x0.8 (12-32), Rc1/8 (40), Rc1/4 (50, 63)
Source TPC Mechatronics catalog 76. NSK.pdf, p. 1, 2, 6-7
2B-NSKB12-10R Magnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB12-10RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB12-10L Magnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB12-10LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB12-20R Magnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB12-20RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB12-20L Magnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB12-20LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB16-10R Magnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB16-10RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB16-10L Magnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB16-10LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB16-20R Magnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB16-20RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB16-20L Magnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB16-20LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB20-10R Magnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB20-10RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB20-10L Magnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB20-10LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB20-20R Magnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB20-20RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB20-20L Magnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB20-20LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB25-10R Magnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB25-10RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB25-10L Magnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB25-10LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB25-20R Magnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB25-20RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB25-20L Magnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB25-20LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB32-10R Magnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB32-10RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB32-10L Magnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB32-10LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB32-20R Magnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB32-20RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB32-20L Magnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB32-20LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB40-10R Magnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB40-10RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB40-10L Magnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB40-10LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB40-20R Magnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB40-20RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB40-20L Magnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB40-20LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB50-20R Magnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB50-20RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB50-20L Magnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB50-20LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB50-50R Magnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB50-50RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB50-50L Magnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB50-50LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB63-20R Magnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB63-20RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB63-20L Magnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB63-20LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB63-50R Magnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB63-50RP Magnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB63-50L Magnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB63-50LP Magnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG12-10R Magnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG12-10RP Magnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG12-10L Magnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG12-10LP Magnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG12-20R Magnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG12-20RP Magnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG12-20L Magnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG12-20LP Magnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG16-10R Magnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG16-10RP Magnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG16-10L Magnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG16-10LP Magnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG16-20R Magnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG16-20RP Magnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG16-20L Magnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG16-20LP Magnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG20-10R Magnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG20-10RP Magnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG20-10L Magnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG20-10LP Magnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG20-20R Magnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG20-20RP Magnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG20-20L Magnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG20-20LP Magnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG25-10R Magnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG25-10RP Magnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG25-10L Magnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG25-10LP Magnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG25-20R Magnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG25-20RP Magnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG25-20L Magnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG25-20LP Magnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG32-10R Magnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG32-10RP Magnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG32-10L Magnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG32-10LP Magnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG32-20R Magnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG32-20RP Magnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG32-20L Magnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG32-20LP Magnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG40-10R Magnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG40-10RP Magnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG40-10L Magnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG40-10LP Magnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG40-20R Magnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG40-20RP Magnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG40-20L Magnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG40-20LP Magnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG50-20R Magnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG50-20RP Magnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG50-20L Magnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG50-20LP Magnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG50-50R Magnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG50-50RP Magnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG50-50L Magnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG50-50LP Magnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG63-20R Magnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG63-20RP Magnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG63-20L Magnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG63-20LP Magnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG63-50R Magnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG63-50RP Magnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG63-50L Magnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG63-50LP Magnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB12-10R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB12-10RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB12-10L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB12-10LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB12-20R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB12-20RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB12-20L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB12-20LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB16-10R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB16-10RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB16-10L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB16-10LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB16-20R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB16-20RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB16-20L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB16-20LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB20-10R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB20-10RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB20-10L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB20-10LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB20-20R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB20-20RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB20-20L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB20-20LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB25-10R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB25-10RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB25-10L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB25-10LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB25-20R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB25-20RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB25-20L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB25-20LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB32-10R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB32-10RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB32-10L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB32-10LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB32-20R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB32-20RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB32-20L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB32-20LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB40-10R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB40-10RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB40-10L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB40-10LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB40-20R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB40-20RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB40-20L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB40-20LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB50-20R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB50-20RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB50-20L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB50-20LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB50-50R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB50-50RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB50-50L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB50-50LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB63-20R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB63-20RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB63-20L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB63-20LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB63-50R Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB63-50RP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB63-50L Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB63-50LP Magnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG12-10R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG12-10RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG12-10L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG12-10LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG12-20R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG12-20RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG12-20L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG12-20LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG16-10R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG16-10RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG16-10L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG16-10LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG16-20R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG16-20RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG16-20L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG16-20LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG20-10R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG20-10RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG20-10L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG20-10LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG20-20R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG20-20RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG20-20L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG20-20LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG25-10R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG25-10RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG25-10L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG25-10LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG25-20R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG25-20RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG25-20L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG25-20LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG32-10R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG32-10RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG32-10L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG32-10LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG32-20R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG32-20RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG32-20L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG32-20LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG40-10R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG40-10RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG40-10L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG40-10LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG40-20R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG40-20RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG40-20L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG40-20LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG50-20R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG50-20RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG50-20L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG50-20LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG50-50R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG50-50RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG50-50L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG50-50LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG63-20R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG63-20RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG63-20L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG63-20LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG63-50R Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG63-50RP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG63-50L Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG63-50LP Magnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
Clamp CylindersTPC Mechatronics
256 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-NSK Swing Clamp Cylinder (Battery Spec, Bore 12-63 mm)

Brand TPC Mechatronics·Clamp Cylinders

Available part numbers (256)

2B-NSKB12-10R, 2B-NSKB12-10RP, 2B-NSKB12-10L, 2B-NSKB12-10LP, 2B-NSKB12-20R, 2B-NSKB12-20RP, 2B-NSKB12-20L, 2B-NSKB12-20LP, 2B-NSKB16-10R, 2B-NSKB16-10RP + 246 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-NSKB12-10RMagnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB12-10RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB12-10LMagnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB12-10LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB12-20RMagnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB12-20RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB12-20LMagnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB12-20LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB16-10RMagnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB16-10RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB16-10LMagnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB16-10LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB16-20RMagnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB16-20RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB16-20LMagnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB16-20LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB20-10RMagnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB20-10RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB20-10LMagnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB20-10LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB20-20RMagnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB20-20RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB20-20LMagnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB20-20LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB25-10RMagnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB25-10RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB25-10LMagnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB25-10LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB25-20RMagnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB25-20RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB25-20LMagnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB25-20LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB32-10RMagnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB32-10RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB32-10LMagnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB32-10LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB32-20RMagnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB32-20RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB32-20LMagnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB32-20LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB40-10RMagnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB40-10RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB40-10LMagnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB40-10LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB40-20RMagnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB40-20RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB40-20LMagnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB40-20LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB50-20RMagnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB50-20RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB50-20LMagnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB50-20LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB50-50RMagnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB50-50RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB50-50LMagnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB50-50LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB63-20RMagnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB63-20RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB63-20LMagnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB63-20LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKB63-50RMagnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKB63-50RPMagnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKB63-50LMagnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKB63-50LPMagnet: None | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG12-10RMagnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG12-10RPMagnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG12-10LMagnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG12-10LPMagnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG12-20RMagnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG12-20RPMagnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG12-20LMagnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG12-20LPMagnet: None | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG16-10RMagnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG16-10RPMagnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG16-10LMagnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG16-10LPMagnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG16-20RMagnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG16-20RPMagnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG16-20LMagnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG16-20LPMagnet: None | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG20-10RMagnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG20-10RPMagnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG20-10LMagnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG20-10LPMagnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG20-20RMagnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG20-20RPMagnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG20-20LMagnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG20-20LPMagnet: None | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG25-10RMagnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG25-10RPMagnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG25-10LMagnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG25-10LPMagnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG25-20RMagnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG25-20RPMagnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG25-20LMagnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG25-20LPMagnet: None | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG32-10RMagnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG32-10RPMagnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG32-10LMagnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG32-10LPMagnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG32-20RMagnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG32-20RPMagnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG32-20LMagnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG32-20LPMagnet: None | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG40-10RMagnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG40-10RPMagnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG40-10LMagnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG40-10LPMagnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG40-20RMagnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG40-20RPMagnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG40-20LMagnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG40-20LPMagnet: None | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG50-20RMagnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG50-20RPMagnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG50-20LMagnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG50-20LPMagnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG50-50RMagnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG50-50RPMagnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG50-50LMagnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG50-50LPMagnet: None | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG63-20RMagnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG63-20RPMagnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG63-20LMagnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG63-20LPMagnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NSKG63-50RMagnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NSKG63-50RPMagnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NSKG63-50LMagnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NSKG63-50LPMagnet: None | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB12-10RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB12-10RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB12-10LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB12-10LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB12-20RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB12-20RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB12-20LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB12-20LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB16-10RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB16-10RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB16-10LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB16-10LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB16-20RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB16-20RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB16-20LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB16-20LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB20-10RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB20-10RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB20-10LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB20-10LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB20-20RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB20-20RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB20-20LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB20-20LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB25-10RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB25-10RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB25-10LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB25-10LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB25-20RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB25-20RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB25-20LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB25-20LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB32-10RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB32-10RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB32-10LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB32-10LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB32-20RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB32-20RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB32-20LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB32-20LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB40-10RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB40-10RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB40-10LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB40-10LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB40-20RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB40-20RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB40-20LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB40-20LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB50-20RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB50-20RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB50-20LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB50-20LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB50-50RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB50-50RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB50-50LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB50-50LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB63-20RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB63-20RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB63-20LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB63-20LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKB63-50RMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKB63-50RPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKB63-50LMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKB63-50LPMagnet: Built-in (D) | Mounting: Through hole/tap (B) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG12-10RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG12-10RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG12-10LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG12-10LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG12-20RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG12-20RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG12-20LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG12-20LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 12 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG16-10RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG16-10RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG16-10LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG16-10LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG16-20RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG16-20RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG16-20LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG16-20LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 16 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG20-10RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG20-10RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG20-10LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG20-10LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG20-20RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG20-20RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG20-20LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG20-20LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 20 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG25-10RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG25-10RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG25-10LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG25-10LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG25-20RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG25-20RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG25-20LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG25-20LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 25 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG32-10RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG32-10RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG32-10LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG32-10LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG32-20RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG32-20RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG32-20LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG32-20LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 32 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG40-10RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG40-10RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG40-10LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG40-10LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 10 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG40-20RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG40-20RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG40-20LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG40-20LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 40 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG50-20RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG50-20RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG50-20LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG50-20LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG50-50RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG50-50RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG50-50LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG50-50LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 50 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG63-20RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG63-20RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG63-20LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG63-20LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 20 mm | Rotation: L: CW on extend | Arm: With swing plate (P)
2B-NDSKG63-50RMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: Without
2B-NDSKG63-50RPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: R: CCW on extend | Arm: With swing plate (P)
2B-NDSKG63-50LMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: Without
2B-NDSKG63-50LPMagnet: Built-in (D) | Mounting: Head flange (G) | Bore: 63 mm | Stroke: 50 mm | Rotation: L: CW on extend | Arm: With swing plate (P)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
