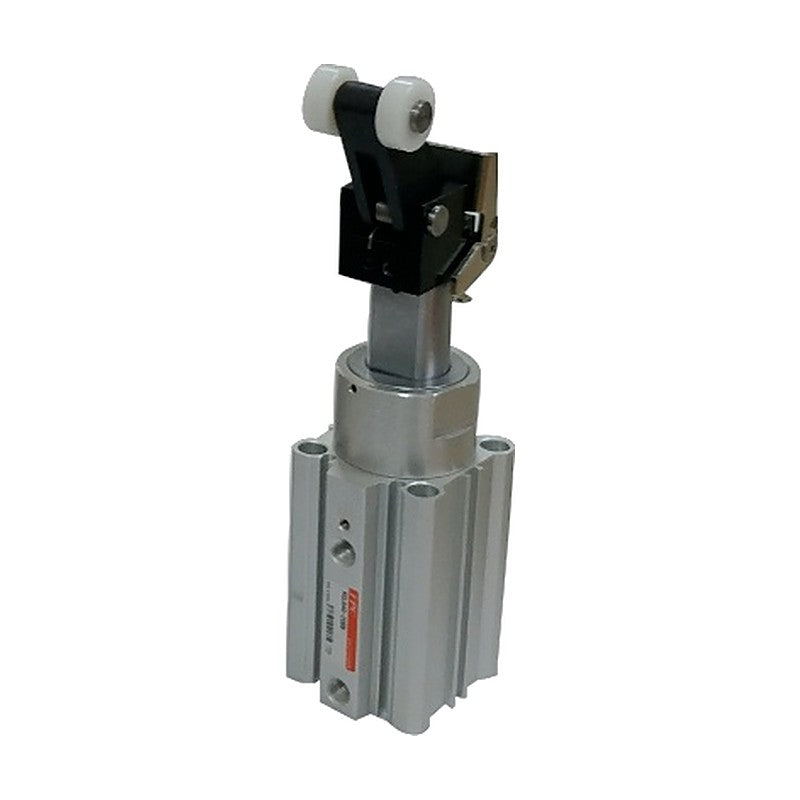

TPC 2B-NSL Light Stopper Cylinder (Battery Spec, Bore 32/40 mm)

TPC 2B-NSL Light Stopper Cylinder (Battery Spec, Bore 32/40 mm)

TPC 2B-NSL light stopper cylinder in secondary battery specification (copper and zinc controlled), bore 32 and 40 mm.

Key features

  • Light-weight stopper cylinder for conveyor pallet stops, bore 32 and 40 mm
  • Rod end: round bar, roller, lever (non-adjust), lever with energy absorption adjustment, or adjustable lever with lock mechanism
  • Replaceable built-in shock absorber on lever types (SC1008 for 32, SC1407 for 40)
  • Single acting retract, double acting, or double acting with spring return
  • Wear ring for reliability; magnet built in for miniature auto switches W8H/V, W9H/V, W20H (ordered as suffix)
  • 2B secondary battery spec: dimensions and specifications identical to standard; some options cannot be made

Specifications

Fluid Air (non-lube)
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature -5 to 60 C (no freezing)
Cushion Rubber
Stroke tolerance +1.4/0 mm
Rod diameter 20 mm (32), 25 mm (40)
Source TPC Mechatronics catalog NSL.pdf, p. 1-2
2B-NSLB32-10T Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB32-10TR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB32-10TL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB32-10TB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB32-10TD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-10D Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB32-10DR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB32-10DL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB32-10DB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB32-10DD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-10Z Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB32-10ZR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB32-10ZL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB32-10ZB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB32-10ZD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-15T Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB32-15TR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB32-15TL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB32-15TB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB32-15TD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-15D Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB32-15DR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB32-15DL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB32-15DB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB32-15DD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-15Z Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB32-15ZR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB32-15ZL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB32-15ZB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB32-15ZD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-20T Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB32-20TR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB32-20TL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB32-20TB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB32-20TD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-20D Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB32-20DR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB32-20DL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB32-20DB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB32-20DD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-20Z Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB32-20ZR Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB32-20ZL Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB32-20ZB Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB32-20ZD Mounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-20T Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB40-20TR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB40-20TL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB40-20TB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB40-20TD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-20D Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB40-20DR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB40-20DL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB40-20DB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB40-20DD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-20Z Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB40-20ZR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB40-20ZL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB40-20ZB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB40-20ZD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-25T Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB40-25TR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB40-25TL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB40-25TB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB40-25TD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-25D Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB40-25DR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB40-25DL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB40-25DB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB40-25DD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-25Z Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB40-25ZR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB40-25ZL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB40-25ZB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB40-25ZD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-30T Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB40-30TR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB40-30TL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB40-30TB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB40-30TD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-30D Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB40-30DR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB40-30DL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB40-30DB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB40-30DD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-30Z Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB40-30ZR Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB40-30ZL Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB40-30ZB Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB40-30ZD Mounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-10T Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA32-10TR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA32-10TL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA32-10TB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA32-10TD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-10D Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA32-10DR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA32-10DL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA32-10DB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA32-10DD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-10Z Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA32-10ZR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA32-10ZL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA32-10ZB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA32-10ZD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-15T Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA32-15TR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA32-15TL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA32-15TB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA32-15TD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-15D Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA32-15DR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA32-15DL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA32-15DB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA32-15DD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-15Z Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA32-15ZR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA32-15ZL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA32-15ZB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA32-15ZD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-20T Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA32-20TR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA32-20TL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA32-20TB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA32-20TD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-20D Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA32-20DR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA32-20DL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA32-20DB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA32-20DD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-20Z Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA32-20ZR Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA32-20ZL Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA32-20ZB Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA32-20ZD Mounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-20T Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA40-20TR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA40-20TL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA40-20TB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA40-20TD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-20D Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA40-20DR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA40-20DL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA40-20DB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA40-20DD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-20Z Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA40-20ZR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA40-20ZL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA40-20ZB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA40-20ZD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-25T Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA40-25TR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA40-25TL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA40-25TB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA40-25TD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-25D Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA40-25DR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA40-25DL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA40-25DB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA40-25DD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-25Z Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA40-25ZR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA40-25ZL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA40-25ZB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA40-25ZD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-30T Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA40-30TR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA40-30TL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA40-30TB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA40-30TD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-30D Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA40-30DR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA40-30DL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA40-30DB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA40-30DD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-30Z Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA40-30ZR Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA40-30ZL Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA40-30ZB Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA40-30ZD Mounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
Pneumatic CylindersTPC Mechatronics
180 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-NSL Light Stopper Cylinder (Battery Spec, Bore 32/40 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (180)

2B-NSLB32-10T, 2B-NSLB32-10TR, 2B-NSLB32-10TL, 2B-NSLB32-10TB, 2B-NSLB32-10TD, 2B-NSLB32-10D, 2B-NSLB32-10DR, 2B-NSLB32-10DL, 2B-NSLB32-10DB, 2B-NSLB32-10DD + 170 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-NSLB32-10TMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB32-10TRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB32-10TLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB32-10TBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB32-10TDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-10DMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB32-10DRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB32-10DLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB32-10DBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB32-10DDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-10ZMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB32-10ZRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB32-10ZLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB32-10ZBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB32-10ZDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-15TMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB32-15TRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB32-15TLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB32-15TBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB32-15TDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-15DMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB32-15DRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB32-15DLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB32-15DBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB32-15DDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-15ZMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB32-15ZRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB32-15ZLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB32-15ZBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB32-15ZDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-20TMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB32-20TRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB32-20TLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB32-20TBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB32-20TDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-20DMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB32-20DRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB32-20DLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB32-20DBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB32-20DDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB32-20ZMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB32-20ZRMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB32-20ZLMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB32-20ZBMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB32-20ZDMounting: Through hole (B, std) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-20TMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB40-20TRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB40-20TLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB40-20TBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB40-20TDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-20DMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB40-20DRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB40-20DLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB40-20DBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB40-20DDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-20ZMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB40-20ZRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB40-20ZLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB40-20ZBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB40-20ZDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-25TMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB40-25TRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB40-25TLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB40-25TBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB40-25TDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-25DMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB40-25DRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB40-25DLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB40-25DBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB40-25DDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-25ZMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB40-25ZRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB40-25ZLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB40-25ZBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB40-25ZDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-30TMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLB40-30TRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLB40-30TLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLB40-30TBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLB40-30TDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-30DMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLB40-30DRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLB40-30DLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLB40-30DBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLB40-30DDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLB40-30ZMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLB40-30ZRMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLB40-30ZLMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLB40-30ZBMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLB40-30ZDMounting: Through hole (B, std) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-10TMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA32-10TRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA32-10TLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA32-10TBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA32-10TDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-10DMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA32-10DRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA32-10DLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA32-10DBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA32-10DDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-10ZMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA32-10ZRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA32-10ZLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA32-10ZBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA32-10ZDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 10 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-15TMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA32-15TRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA32-15TLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA32-15TBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA32-15TDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-15DMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA32-15DRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA32-15DLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA32-15DBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA32-15DDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-15ZMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA32-15ZRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA32-15ZLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA32-15ZBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA32-15ZDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 15 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-20TMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA32-20TRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA32-20TLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA32-20TBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA32-20TDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-20DMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA32-20DRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA32-20DLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA32-20DBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA32-20DDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA32-20ZMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA32-20ZRMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA32-20ZLMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA32-20ZBMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA32-20ZDMounting: Both-end tap (A) | Bore: 32 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-20TMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA40-20TRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA40-20TLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA40-20TBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA40-20TDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-20DMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA40-20DRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA40-20DLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA40-20DBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA40-20DDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-20ZMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA40-20ZRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA40-20ZLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA40-20ZBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA40-20ZDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 20 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-25TMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA40-25TRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA40-25TLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA40-25TBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA40-25TDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-25DMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA40-25DRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA40-25DLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA40-25DBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA40-25DDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-25ZMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA40-25ZRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA40-25ZLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA40-25ZBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA40-25ZDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-30TMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Round bar
2B-NSLA40-30TRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Roller (R)
2B-NSLA40-30TLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, non-adjust (L)
2B-NSLA40-30TBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, energy adjust (B)
2B-NSLA40-30TDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Single acting, retract (T) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-30DMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Round bar
2B-NSLA40-30DRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Roller (R)
2B-NSLA40-30DLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, non-adjust (L)
2B-NSLA40-30DBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, energy adjust (B)
2B-NSLA40-30DDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double acting (D) | Rod end: Lever, adjust + lock (D)
2B-NSLA40-30ZMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Round bar
2B-NSLA40-30ZRMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Roller (R)
2B-NSLA40-30ZLMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, non-adjust (L)
2B-NSLA40-30ZBMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, energy adjust (B)
2B-NSLA40-30ZDMounting: Both-end tap (A) | Bore: 40 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Rod end: Lever, adjust + lock (D)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
