TPC 2B-NST Stopper Cylinder (Battery Spec, Bore 50/63/80 mm)

TPC 2B-NST Stopper Cylinder (Battery Spec, Bore 50/63/80 mm)

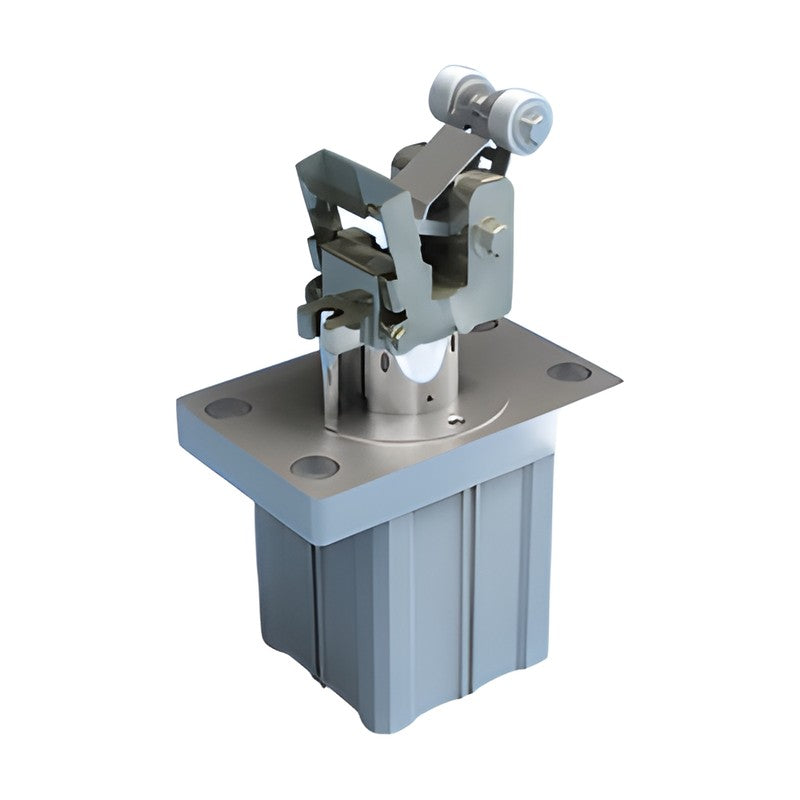

TPC 2B-NST lever stopper cylinder in secondary battery specification (copper and zinc controlled), bore 50, 63 and 80 mm.

Key features

  • Heavy-duty lever stopper cylinder for conveyor pallets, bore 50, 63 and 80 mm
  • Lever direction changeable in 90 deg steps (4 directions); replaceable built-in shock absorber
  • Single acting retract, double acting or double acting with spring return; resin or steel roller
  • Lever lock options: stop with lever lock (S), pass pin (P), stop + pass (SP), reverse-direction lock release (R, bore 80)
  • Sealed structure prevents oil leakage to the outside for a clean work area
  • 2B secondary battery spec: dimensions and specifications identical to standard; valve mounting and some options on request

Specifications

Fluid Air (non-lube)
Proof pressure 1.5 MPa
Max. operating pressure 1 MPa
Min. operating pressure 1 kgf/cm2
Ambient and fluid temperature -5 to 60 C (no freezing)
Cushion Rubber
Stroke tolerance +1.4/0 mm
Rod diameter 32 (50), 40 (63), 50 (80) mm
Port Rc1/8 (50), Rc1/4 (63, 80)
Source TPC Mechatronics catalog NST_Series(230525).pdf, p. 1, 5, 7
2B-NSTLA50-25 Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-25-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-25M Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-25M-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25M-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25M-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-25D Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-25D-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25D-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25D-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-25DM Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-25DM-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25DM-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25DM-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-25Z Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-25Z-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25Z-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25Z-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-25ZM Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-25ZM-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25ZM-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25ZM-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-30 Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-30-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-30M Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-30M-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30M-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30M-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-30D Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-30D-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30D-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30D-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-30DM Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-30DM-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30DM-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30DM-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-30Z Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-30Z-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30Z-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30Z-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-30ZM Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-30ZM-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30ZM-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30ZM-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-40 Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-40-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-40M Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-40M-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40M-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40M-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-40D Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-40D-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40D-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40D-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-40DM Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-40DM-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40DM-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40DM-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-40Z Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-40Z-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40Z-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40Z-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-40ZM Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-40ZM-SP Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40ZM-S Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40ZM-P Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-25 Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-25-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-25M Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-25M-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25M-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25M-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-25D Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-25D-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25D-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25D-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-25DM Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-25DM-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25DM-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25DM-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-25Z Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-25Z-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25Z-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25Z-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-25ZM Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-25ZM-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25ZM-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25ZM-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-30 Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-30-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-30M Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-30M-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30M-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30M-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-30D Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-30D-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30D-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30D-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-30DM Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-30DM-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30DM-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30DM-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-30Z Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-30Z-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30Z-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30Z-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-30ZM Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-30ZM-SP Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30ZM-S Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30ZM-P Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLC50-30 Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLC50-30-SP Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30-S Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30-P Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLC50-30M Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLC50-30M-SP Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30M-S Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30M-P Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLC50-30D Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLC50-30D-SP Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30D-S Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30D-P Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLC50-30DM Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLC50-30DM-SP Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30DM-S Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30DM-P Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLC50-30Z Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLC50-30Z-SP Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30Z-S Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30Z-P Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLC50-30ZM Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLC50-30ZM-SP Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30ZM-S Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30ZM-P Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-30 Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-30-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-30M Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-30M-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30M-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30M-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-30D Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-30D-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30D-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30D-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-30DM Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-30DM-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30DM-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30DM-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-30Z Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-30Z-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30Z-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30Z-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-30ZM Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-30ZM-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30ZM-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30ZM-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-40 Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-40-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-40M Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-40M-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40M-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40M-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-40D Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-40D-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40D-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40D-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-40DM Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-40DM-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40DM-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40DM-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-40Z Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-40Z-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40Z-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40Z-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-40ZM Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-40ZM-SP Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40ZM-S Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40ZM-P Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-30 Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-30-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-30-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30M Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-30M-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30M-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30M-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-30M-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30D Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-30D-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30D-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30D-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-30D-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30DM Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-30DM-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30DM-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30DM-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-30DM-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30Z Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-30Z-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30Z-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30Z-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-30Z-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30ZM Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-30ZM-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30ZM-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30ZM-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-30ZM-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40 Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-40-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-40-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40M Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-40M-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40M-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40M-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-40M-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40D Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-40D-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40D-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40D-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-40D-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40DM Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-40DM-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40DM-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40DM-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-40DM-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40Z Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-40Z-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40Z-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40Z-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-40Z-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40ZM Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-40ZM-SP Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40ZM-S Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40ZM-P Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-40ZM-R Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
Pneumatic CylindersTPC Mechatronics
252 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-NST Stopper Cylinder (Battery Spec, Bore 50/63/80 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (252)

2B-NSTLA50-25, 2B-NSTLA50-25-SP, 2B-NSTLA50-25-S, 2B-NSTLA50-25-P, 2B-NSTLA50-25M, 2B-NSTLA50-25M-SP, 2B-NSTLA50-25M-S, 2B-NSTLA50-25M-P, 2B-NSTLA50-25D, 2B-NSTLA50-25D-SP + 242 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-NSTLA50-25Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-25-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-25MType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-25M-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25M-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25M-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-25DType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-25D-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25D-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25D-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-25DMType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-25DM-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25DM-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25DM-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-25ZType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-25Z-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25Z-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25Z-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-25ZMType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-25ZM-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-25ZM-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-25ZM-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-30Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-30-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-30MType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-30M-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30M-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30M-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-30DType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-30D-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30D-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30D-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-30DMType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-30DM-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30DM-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30DM-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-30ZType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-30Z-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30Z-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30Z-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-30ZMType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-30ZM-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-30ZM-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-30ZM-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-40Type: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-40-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-40MType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-40M-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40M-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40M-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-40DType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-40D-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40D-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40D-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-40DMType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-40DM-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40DM-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40DM-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA50-40ZType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA50-40Z-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40Z-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40Z-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA50-40ZMType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA50-40ZM-SPType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA50-40ZM-SType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA50-40ZM-PType: Lever, standard (LA) | Bore: 50 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-25Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-25-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-25MType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-25M-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25M-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25M-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-25DType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-25D-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25D-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25D-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-25DMType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-25DM-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25DM-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25DM-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-25ZType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-25Z-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25Z-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25Z-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-25ZMType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-25ZM-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-25ZM-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-25ZM-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 25 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-30Type: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-30-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-30MType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-30M-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30M-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30M-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-30DType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-30D-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30D-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30D-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-30DMType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-30DM-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30DM-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30DM-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLB50-30ZType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLB50-30Z-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30Z-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30Z-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLB50-30ZMType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLB50-30ZM-SPType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLB50-30ZM-SType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLB50-30ZM-PType: Lever, slim cover (LB) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLC50-30Type: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLC50-30-SPType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30-SType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30-PType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLC50-30MType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLC50-30M-SPType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30M-SType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30M-PType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLC50-30DType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLC50-30D-SPType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30D-SType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30D-PType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLC50-30DMType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLC50-30DM-SPType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30DM-SType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30DM-PType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLC50-30ZType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLC50-30Z-SPType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30Z-SType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30Z-PType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLC50-30ZMType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLC50-30ZM-SPType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLC50-30ZM-SType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLC50-30ZM-PType: Lever, square cover (LC) | Bore: 50 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-30Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-30-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-30MType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-30M-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30M-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30M-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-30DType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-30D-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30D-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30D-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-30DMType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-30DM-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30DM-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30DM-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-30ZType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-30Z-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30Z-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30Z-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-30ZMType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-30ZM-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-30ZM-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-30ZM-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-40Type: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-40-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-40MType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-40M-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40M-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40M-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-40DType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-40D-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40D-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40D-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-40DMType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-40DM-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40DM-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40DM-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA63-40ZType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA63-40Z-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40Z-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40Z-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA63-40ZMType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA63-40ZM-SPType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA63-40ZM-SType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA63-40ZM-PType: Lever, standard (LA) | Bore: 63 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-30Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-30-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-30-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30MType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-30M-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30M-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30M-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-30M-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30DType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-30D-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30D-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30D-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-30D-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30DMType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-30DM-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30DM-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30DM-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-30DM-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30ZType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-30Z-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30Z-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30Z-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-30Z-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-30ZMType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-30ZM-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-30ZM-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-30ZM-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-30ZM-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 30 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40Type: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-40-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-40-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40MType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-40M-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40M-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40M-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-40M-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Single acting, retract | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40DType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-40D-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40D-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40D-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-40D-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40DMType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-40DM-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40DM-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40DM-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-40DM-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double acting (D) | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40ZType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: None
2B-NSTLA80-40Z-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40Z-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40Z-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Pass pin only (P)
2B-NSTLA80-40Z-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Resin (MC nylon) | Lever lock: Reverse lock release (R)
2B-NSTLA80-40ZMType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: None
2B-NSTLA80-40ZM-SPType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop + pass, lever lock (SP)
2B-NSTLA80-40ZM-SType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Stop, lever lock (S)
2B-NSTLA80-40ZM-PType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Pass pin only (P)
2B-NSTLA80-40ZM-RType: Lever, standard (LA) | Bore: 80 mm | Stroke: 40 mm | Action: Double, spring return (Z) | Roller: Rolled steel (M) | Lever lock: Reverse lock release (R)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
