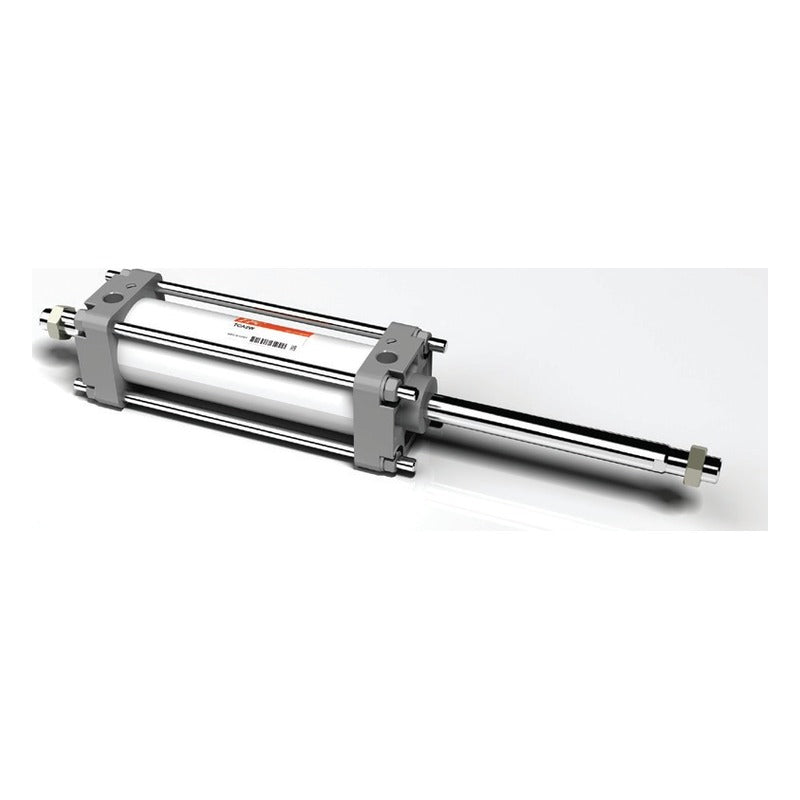

TPC 2B-TCA2W Double Rod Cylinder, Battery Industry (Bore 40-100)

TPC 2B-TCA2W Double Rod Cylinder, Battery Industry (Bore 40-100)

TPC 2B-TCA2W secondary-battery industry version of the TCA2W double rod tie-rod cylinder, non-lube, bore 40 to 100 mm.

Key features

  • 2B series: stainless tie rods, nuts and rod-end nuts, iron bush, electroless nickel plated cushion valve
  • Specifications and dimensions identical to standard TCA2W
  • Mountings: basic, foot, rod-end flange, center trunnion
  • Low-hydraulic type, XC16, A54K and W2PL switches not available for 2B
  • Bellows J/JJ/K/KK and auto switches ordered as suffixes, not listed

Specifications

Action Double acting, double rod
Type N: non-lube
Fluid Air
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Min. operating pressure 0.08 MPa
Piston speed 50 to 500 mm/s
Ambient and fluid temperature 5 to 60°C
Source TPC Mechatronics catalog TC(D)A2W double rod type (240131), p. 196-197
2B-TCA2WBN40-25 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCA2WBN40-50 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCA2WBN40-75 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCA2WBN40-100 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCA2WBN40-125 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCA2WBN40-150 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCA2WBN40-175 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCA2WBN40-200 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCA2WBN40-300 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCA2WBN40-350 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCA2WBN40-400 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCA2WBN40-450 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCA2WBN40-500 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCA2WBN50-25 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WBN50-50 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WBN50-75 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WBN50-100 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WBN50-125 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WBN50-150 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WBN50-175 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WBN50-200 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WBN50-300 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WBN50-350 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WBN50-400 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WBN50-450 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WBN50-500 Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WBN63-25 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WBN63-50 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WBN63-75 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WBN63-100 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WBN63-125 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WBN63-150 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WBN63-175 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WBN63-200 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WBN63-300 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WBN63-350 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WBN63-400 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WBN63-450 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WBN63-500 Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WBN80-25 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WBN80-50 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WBN80-75 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WBN80-100 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WBN80-125 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WBN80-150 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WBN80-175 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WBN80-200 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WBN80-300 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WBN80-350 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WBN80-400 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WBN80-450 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WBN80-500 Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WBN100-25 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WBN100-50 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WBN100-75 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WBN100-100 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WBN100-125 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WBN100-150 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WBN100-175 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WBN100-200 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WBN100-300 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WBN100-350 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WBN100-400 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WBN100-450 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WBN100-500 Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WLN40-25 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCA2WLN40-50 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCA2WLN40-75 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCA2WLN40-100 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCA2WLN40-125 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCA2WLN40-150 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCA2WLN40-175 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCA2WLN40-200 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCA2WLN40-300 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCA2WLN40-350 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCA2WLN40-400 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCA2WLN40-450 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCA2WLN40-500 Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCA2WLN50-25 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WLN50-50 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WLN50-75 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WLN50-100 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WLN50-125 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WLN50-150 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WLN50-175 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WLN50-200 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WLN50-300 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WLN50-350 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WLN50-400 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WLN50-450 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WLN50-500 Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WLN63-25 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WLN63-50 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WLN63-75 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WLN63-100 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WLN63-125 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WLN63-150 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WLN63-175 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WLN63-200 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WLN63-300 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WLN63-350 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WLN63-400 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WLN63-450 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WLN63-500 Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WLN80-25 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WLN80-50 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WLN80-75 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WLN80-100 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WLN80-125 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WLN80-150 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WLN80-175 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WLN80-200 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WLN80-300 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WLN80-350 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WLN80-400 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WLN80-450 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WLN80-500 Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WLN100-25 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WLN100-50 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WLN100-75 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WLN100-100 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WLN100-125 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WLN100-150 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WLN100-175 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WLN100-200 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WLN100-300 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WLN100-350 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WLN100-400 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WLN100-450 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WLN100-500 Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WFN40-25 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCA2WFN40-50 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCA2WFN40-75 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCA2WFN40-100 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCA2WFN40-125 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCA2WFN40-150 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCA2WFN40-175 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCA2WFN40-200 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCA2WFN40-300 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCA2WFN40-350 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCA2WFN40-400 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCA2WFN40-450 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCA2WFN40-500 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCA2WFN50-25 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WFN50-50 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WFN50-75 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WFN50-100 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WFN50-125 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WFN50-150 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WFN50-175 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WFN50-200 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WFN50-300 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WFN50-350 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WFN50-400 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WFN50-450 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WFN50-500 Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WFN63-25 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WFN63-50 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WFN63-75 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WFN63-100 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WFN63-125 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WFN63-150 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WFN63-175 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WFN63-200 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WFN63-300 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WFN63-350 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WFN63-400 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WFN63-450 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WFN63-500 Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WFN80-25 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WFN80-50 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WFN80-75 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WFN80-100 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WFN80-125 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WFN80-150 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WFN80-175 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WFN80-200 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WFN80-300 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WFN80-350 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WFN80-400 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WFN80-450 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WFN80-500 Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WFN100-25 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WFN100-50 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WFN100-75 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WFN100-100 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WFN100-125 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WFN100-150 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WFN100-175 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WFN100-200 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WFN100-300 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WFN100-350 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WFN100-400 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WFN100-450 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WFN100-500 Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WTN40-25 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCA2WTN40-50 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCA2WTN40-75 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCA2WTN40-100 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCA2WTN40-125 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCA2WTN40-150 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCA2WTN40-175 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCA2WTN40-200 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCA2WTN40-300 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCA2WTN40-350 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCA2WTN40-400 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCA2WTN40-450 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCA2WTN40-500 Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCA2WTN50-25 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WTN50-50 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WTN50-75 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WTN50-100 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WTN50-125 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WTN50-150 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WTN50-175 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WTN50-200 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WTN50-300 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WTN50-350 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WTN50-400 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WTN50-450 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WTN50-500 Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WTN63-25 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WTN63-50 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WTN63-75 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WTN63-100 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WTN63-125 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WTN63-150 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WTN63-175 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WTN63-200 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WTN63-300 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WTN63-350 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WTN63-400 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WTN63-450 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WTN63-500 Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WTN80-25 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WTN80-50 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WTN80-75 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WTN80-100 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WTN80-125 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WTN80-150 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WTN80-175 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WTN80-200 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WTN80-300 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WTN80-350 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WTN80-400 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WTN80-450 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WTN80-500 Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WTN100-25 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WTN100-50 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WTN100-75 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WTN100-100 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WTN100-125 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WTN100-150 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WTN100-175 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WTN100-200 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WTN100-300 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WTN100-350 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WTN100-400 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WTN100-450 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WTN100-500 Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WBN40-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCDA2WBN40-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCDA2WBN40-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCDA2WBN40-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCDA2WBN40-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCDA2WBN40-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCDA2WBN40-175 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCDA2WBN40-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCDA2WBN40-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCDA2WBN40-350 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCDA2WBN40-400 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCDA2WBN40-450 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCDA2WBN40-500 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCDA2WBN50-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WBN50-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WBN50-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WBN50-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WBN50-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WBN50-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WBN50-175 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WBN50-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WBN50-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WBN50-350 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WBN50-400 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WBN50-450 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WBN50-500 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WBN63-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WBN63-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WBN63-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WBN63-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WBN63-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WBN63-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WBN63-175 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WBN63-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WBN63-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WBN63-350 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WBN63-400 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WBN63-450 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WBN63-500 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WBN80-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WBN80-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WBN80-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WBN80-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WBN80-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WBN80-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WBN80-175 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WBN80-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WBN80-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WBN80-350 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WBN80-400 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WBN80-450 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WBN80-500 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WBN100-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WBN100-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WBN100-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WBN100-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WBN100-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WBN100-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WBN100-175 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WBN100-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WBN100-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WBN100-350 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WBN100-400 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WBN100-450 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WBN100-500 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WLN40-25 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCDA2WLN40-50 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCDA2WLN40-75 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCDA2WLN40-100 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCDA2WLN40-125 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCDA2WLN40-150 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCDA2WLN40-175 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCDA2WLN40-200 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCDA2WLN40-300 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCDA2WLN40-350 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCDA2WLN40-400 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCDA2WLN40-450 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCDA2WLN40-500 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCDA2WLN50-25 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WLN50-50 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WLN50-75 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WLN50-100 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WLN50-125 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WLN50-150 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WLN50-175 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WLN50-200 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WLN50-300 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WLN50-350 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WLN50-400 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WLN50-450 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WLN50-500 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WLN63-25 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WLN63-50 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WLN63-75 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WLN63-100 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WLN63-125 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WLN63-150 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WLN63-175 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WLN63-200 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WLN63-300 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WLN63-350 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WLN63-400 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WLN63-450 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WLN63-500 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WLN80-25 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WLN80-50 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WLN80-75 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WLN80-100 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WLN80-125 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WLN80-150 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WLN80-175 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WLN80-200 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WLN80-300 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WLN80-350 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WLN80-400 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WLN80-450 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WLN80-500 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WLN100-25 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WLN100-50 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WLN100-75 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WLN100-100 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WLN100-125 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WLN100-150 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WLN100-175 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WLN100-200 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WLN100-300 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WLN100-350 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WLN100-400 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WLN100-450 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WLN100-500 Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WFN40-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCDA2WFN40-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCDA2WFN40-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCDA2WFN40-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCDA2WFN40-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCDA2WFN40-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCDA2WFN40-175 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCDA2WFN40-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCDA2WFN40-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCDA2WFN40-350 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCDA2WFN40-400 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCDA2WFN40-450 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCDA2WFN40-500 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCDA2WFN50-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WFN50-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WFN50-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WFN50-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WFN50-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WFN50-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WFN50-175 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WFN50-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WFN50-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WFN50-350 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WFN50-400 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WFN50-450 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WFN50-500 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WFN63-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WFN63-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WFN63-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WFN63-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WFN63-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WFN63-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WFN63-175 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WFN63-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WFN63-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WFN63-350 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WFN63-400 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WFN63-450 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WFN63-500 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WFN80-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WFN80-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WFN80-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WFN80-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WFN80-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WFN80-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WFN80-175 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WFN80-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WFN80-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WFN80-350 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WFN80-400 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WFN80-450 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WFN80-500 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WFN100-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WFN100-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WFN100-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WFN100-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WFN100-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WFN100-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WFN100-175 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WFN100-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WFN100-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WFN100-350 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WFN100-400 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WFN100-450 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WFN100-500 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WTN40-25 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCDA2WTN40-50 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCDA2WTN40-75 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCDA2WTN40-100 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCDA2WTN40-125 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCDA2WTN40-150 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCDA2WTN40-175 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCDA2WTN40-200 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCDA2WTN40-300 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCDA2WTN40-350 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCDA2WTN40-400 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCDA2WTN40-450 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCDA2WTN40-500 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCDA2WTN50-25 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WTN50-50 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WTN50-75 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WTN50-100 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WTN50-125 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WTN50-150 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WTN50-175 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WTN50-200 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WTN50-300 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WTN50-350 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WTN50-400 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WTN50-450 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WTN50-500 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WTN63-25 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WTN63-50 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WTN63-75 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WTN63-100 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WTN63-125 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WTN63-150 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WTN63-175 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WTN63-200 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WTN63-300 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WTN63-350 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WTN63-400 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WTN63-450 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WTN63-500 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WTN80-25 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WTN80-50 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WTN80-75 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WTN80-100 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WTN80-125 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WTN80-150 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WTN80-175 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WTN80-200 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WTN80-300 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WTN80-350 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WTN80-400 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WTN80-450 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WTN80-500 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WTN100-25 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WTN100-50 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WTN100-75 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WTN100-100 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WTN100-125 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WTN100-150 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WTN100-175 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WTN100-200 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WTN100-300 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WTN100-350 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WTN100-400 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WTN100-450 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WTN100-500 Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
Pneumatic CylindersTPC Mechatronics
520 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-TCA2W Double Rod Cylinder, Battery Industry (Bore 40-100)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (520)

2B-TCA2WBN40-25, 2B-TCA2WBN40-50, 2B-TCA2WBN40-75, 2B-TCA2WBN40-100, 2B-TCA2WBN40-125, 2B-TCA2WBN40-150, 2B-TCA2WBN40-175, 2B-TCA2WBN40-200, 2B-TCA2WBN40-300, 2B-TCA2WBN40-350 + 510 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-TCA2WBN40-25Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCA2WBN40-50Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCA2WBN40-75Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCA2WBN40-100Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCA2WBN40-125Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCA2WBN40-150Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCA2WBN40-175Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCA2WBN40-200Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCA2WBN40-300Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCA2WBN40-350Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCA2WBN40-400Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCA2WBN40-450Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCA2WBN40-500Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCA2WBN50-25Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WBN50-50Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WBN50-75Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WBN50-100Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WBN50-125Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WBN50-150Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WBN50-175Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WBN50-200Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WBN50-300Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WBN50-350Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WBN50-400Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WBN50-450Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WBN50-500Magnet: None | Mounting: Basic | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WBN63-25Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WBN63-50Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WBN63-75Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WBN63-100Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WBN63-125Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WBN63-150Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WBN63-175Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WBN63-200Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WBN63-300Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WBN63-350Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WBN63-400Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WBN63-450Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WBN63-500Magnet: None | Mounting: Basic | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WBN80-25Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WBN80-50Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WBN80-75Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WBN80-100Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WBN80-125Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WBN80-150Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WBN80-175Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WBN80-200Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WBN80-300Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WBN80-350Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WBN80-400Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WBN80-450Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WBN80-500Magnet: None | Mounting: Basic | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WBN100-25Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WBN100-50Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WBN100-75Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WBN100-100Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WBN100-125Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WBN100-150Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WBN100-175Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WBN100-200Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WBN100-300Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WBN100-350Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WBN100-400Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WBN100-450Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WBN100-500Magnet: None | Mounting: Basic | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WLN40-25Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCA2WLN40-50Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCA2WLN40-75Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCA2WLN40-100Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCA2WLN40-125Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCA2WLN40-150Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCA2WLN40-175Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCA2WLN40-200Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCA2WLN40-300Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCA2WLN40-350Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCA2WLN40-400Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCA2WLN40-450Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCA2WLN40-500Magnet: None | Mounting: Foot | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCA2WLN50-25Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WLN50-50Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WLN50-75Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WLN50-100Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WLN50-125Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WLN50-150Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WLN50-175Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WLN50-200Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WLN50-300Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WLN50-350Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WLN50-400Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WLN50-450Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WLN50-500Magnet: None | Mounting: Foot | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WLN63-25Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WLN63-50Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WLN63-75Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WLN63-100Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WLN63-125Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WLN63-150Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WLN63-175Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WLN63-200Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WLN63-300Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WLN63-350Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WLN63-400Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WLN63-450Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WLN63-500Magnet: None | Mounting: Foot | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WLN80-25Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WLN80-50Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WLN80-75Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WLN80-100Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WLN80-125Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WLN80-150Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WLN80-175Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WLN80-200Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WLN80-300Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WLN80-350Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WLN80-400Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WLN80-450Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WLN80-500Magnet: None | Mounting: Foot | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WLN100-25Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WLN100-50Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WLN100-75Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WLN100-100Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WLN100-125Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WLN100-150Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WLN100-175Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WLN100-200Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WLN100-300Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WLN100-350Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WLN100-400Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WLN100-450Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WLN100-500Magnet: None | Mounting: Foot | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WFN40-25Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCA2WFN40-50Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCA2WFN40-75Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCA2WFN40-100Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCA2WFN40-125Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCA2WFN40-150Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCA2WFN40-175Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCA2WFN40-200Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCA2WFN40-300Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCA2WFN40-350Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCA2WFN40-400Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCA2WFN40-450Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCA2WFN40-500Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCA2WFN50-25Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WFN50-50Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WFN50-75Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WFN50-100Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WFN50-125Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WFN50-150Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WFN50-175Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WFN50-200Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WFN50-300Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WFN50-350Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WFN50-400Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WFN50-450Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WFN50-500Magnet: None | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WFN63-25Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WFN63-50Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WFN63-75Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WFN63-100Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WFN63-125Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WFN63-150Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WFN63-175Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WFN63-200Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WFN63-300Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WFN63-350Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WFN63-400Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WFN63-450Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WFN63-500Magnet: None | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WFN80-25Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WFN80-50Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WFN80-75Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WFN80-100Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WFN80-125Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WFN80-150Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WFN80-175Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WFN80-200Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WFN80-300Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WFN80-350Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WFN80-400Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WFN80-450Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WFN80-500Magnet: None | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WFN100-25Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WFN100-50Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WFN100-75Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WFN100-100Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WFN100-125Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WFN100-150Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WFN100-175Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WFN100-200Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WFN100-300Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WFN100-350Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WFN100-400Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WFN100-450Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WFN100-500Magnet: None | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WTN40-25Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCA2WTN40-50Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCA2WTN40-75Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCA2WTN40-100Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCA2WTN40-125Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCA2WTN40-150Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCA2WTN40-175Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCA2WTN40-200Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCA2WTN40-300Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCA2WTN40-350Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCA2WTN40-400Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCA2WTN40-450Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCA2WTN40-500Magnet: None | Mounting: Center trunnion | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCA2WTN50-25Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WTN50-50Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WTN50-75Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WTN50-100Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WTN50-125Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WTN50-150Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WTN50-175Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WTN50-200Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WTN50-300Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WTN50-350Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WTN50-400Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WTN50-450Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WTN50-500Magnet: None | Mounting: Center trunnion | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WTN63-25Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCA2WTN63-50Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCA2WTN63-75Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCA2WTN63-100Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCA2WTN63-125Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCA2WTN63-150Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCA2WTN63-175Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCA2WTN63-200Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCA2WTN63-300Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCA2WTN63-350Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCA2WTN63-400Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCA2WTN63-450Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCA2WTN63-500Magnet: None | Mounting: Center trunnion | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCA2WTN80-25Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WTN80-50Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WTN80-75Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WTN80-100Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WTN80-125Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WTN80-150Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WTN80-175Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WTN80-200Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WTN80-300Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WTN80-350Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WTN80-400Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WTN80-450Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WTN80-500Magnet: None | Mounting: Center trunnion | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCA2WTN100-25Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCA2WTN100-50Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCA2WTN100-75Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCA2WTN100-100Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCA2WTN100-125Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCA2WTN100-150Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCA2WTN100-175Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCA2WTN100-200Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCA2WTN100-300Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCA2WTN100-350Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCA2WTN100-400Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCA2WTN100-450Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCA2WTN100-500Magnet: None | Mounting: Center trunnion | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WBN40-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCDA2WBN40-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCDA2WBN40-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCDA2WBN40-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCDA2WBN40-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCDA2WBN40-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCDA2WBN40-175Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCDA2WBN40-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCDA2WBN40-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCDA2WBN40-350Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCDA2WBN40-400Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCDA2WBN40-450Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCDA2WBN40-500Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCDA2WBN50-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WBN50-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WBN50-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WBN50-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WBN50-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WBN50-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WBN50-175Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WBN50-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WBN50-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WBN50-350Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WBN50-400Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WBN50-450Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WBN50-500Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WBN63-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WBN63-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WBN63-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WBN63-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WBN63-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WBN63-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WBN63-175Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WBN63-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WBN63-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WBN63-350Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WBN63-400Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WBN63-450Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WBN63-500Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WBN80-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WBN80-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WBN80-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WBN80-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WBN80-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WBN80-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WBN80-175Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WBN80-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WBN80-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WBN80-350Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WBN80-400Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WBN80-450Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WBN80-500Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WBN100-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WBN100-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WBN100-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WBN100-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WBN100-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WBN100-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WBN100-175Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WBN100-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WBN100-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WBN100-350Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WBN100-400Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WBN100-450Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WBN100-500Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WLN40-25Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCDA2WLN40-50Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCDA2WLN40-75Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCDA2WLN40-100Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCDA2WLN40-125Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCDA2WLN40-150Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCDA2WLN40-175Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCDA2WLN40-200Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCDA2WLN40-300Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCDA2WLN40-350Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCDA2WLN40-400Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCDA2WLN40-450Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCDA2WLN40-500Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCDA2WLN50-25Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WLN50-50Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WLN50-75Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WLN50-100Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WLN50-125Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WLN50-150Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WLN50-175Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WLN50-200Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WLN50-300Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WLN50-350Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WLN50-400Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WLN50-450Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WLN50-500Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WLN63-25Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WLN63-50Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WLN63-75Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WLN63-100Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WLN63-125Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WLN63-150Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WLN63-175Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WLN63-200Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WLN63-300Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WLN63-350Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WLN63-400Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WLN63-450Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WLN63-500Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WLN80-25Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WLN80-50Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WLN80-75Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WLN80-100Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WLN80-125Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WLN80-150Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WLN80-175Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WLN80-200Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WLN80-300Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WLN80-350Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WLN80-400Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WLN80-450Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WLN80-500Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WLN100-25Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WLN100-50Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WLN100-75Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WLN100-100Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WLN100-125Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WLN100-150Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WLN100-175Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WLN100-200Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WLN100-300Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WLN100-350Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WLN100-400Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WLN100-450Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WLN100-500Magnet: Built-in (switch ready) | Mounting: Foot | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WFN40-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCDA2WFN40-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCDA2WFN40-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCDA2WFN40-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCDA2WFN40-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCDA2WFN40-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCDA2WFN40-175Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCDA2WFN40-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCDA2WFN40-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCDA2WFN40-350Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCDA2WFN40-400Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCDA2WFN40-450Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCDA2WFN40-500Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCDA2WFN50-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WFN50-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WFN50-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WFN50-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WFN50-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WFN50-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WFN50-175Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WFN50-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WFN50-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WFN50-350Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WFN50-400Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WFN50-450Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WFN50-500Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WFN63-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WFN63-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WFN63-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WFN63-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WFN63-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WFN63-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WFN63-175Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WFN63-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WFN63-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WFN63-350Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WFN63-400Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WFN63-450Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WFN63-500Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WFN80-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WFN80-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WFN80-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WFN80-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WFN80-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WFN80-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WFN80-175Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WFN80-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WFN80-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WFN80-350Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WFN80-400Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WFN80-450Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WFN80-500Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WFN100-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WFN100-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WFN100-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WFN100-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WFN100-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WFN100-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WFN100-175Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WFN100-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WFN100-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WFN100-350Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WFN100-400Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WFN100-450Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WFN100-500Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WTN40-25Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
2B-TCDA2WTN40-50Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
2B-TCDA2WTN40-75Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
2B-TCDA2WTN40-100Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
2B-TCDA2WTN40-125Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
2B-TCDA2WTN40-150Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
2B-TCDA2WTN40-175Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 175 mm | Port: Rc1/4
2B-TCDA2WTN40-200Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
2B-TCDA2WTN40-300Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
2B-TCDA2WTN40-350Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 350 mm | Port: Rc1/4
2B-TCDA2WTN40-400Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 400 mm | Port: Rc1/4
2B-TCDA2WTN40-450Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 450 mm | Port: Rc1/4
2B-TCDA2WTN40-500Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 40 mm | Stroke: 500 mm | Port: Rc1/4
2B-TCDA2WTN50-25Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WTN50-50Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WTN50-75Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WTN50-100Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WTN50-125Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WTN50-150Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WTN50-175Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WTN50-200Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WTN50-300Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WTN50-350Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WTN50-400Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WTN50-450Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WTN50-500Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 50 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WTN63-25Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 25 mm | Port: Rc3/8
2B-TCDA2WTN63-50Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 50 mm | Port: Rc3/8
2B-TCDA2WTN63-75Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 75 mm | Port: Rc3/8
2B-TCDA2WTN63-100Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 100 mm | Port: Rc3/8
2B-TCDA2WTN63-125Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 125 mm | Port: Rc3/8
2B-TCDA2WTN63-150Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 150 mm | Port: Rc3/8
2B-TCDA2WTN63-175Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 175 mm | Port: Rc3/8
2B-TCDA2WTN63-200Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 200 mm | Port: Rc3/8
2B-TCDA2WTN63-300Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 300 mm | Port: Rc3/8
2B-TCDA2WTN63-350Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 350 mm | Port: Rc3/8
2B-TCDA2WTN63-400Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 400 mm | Port: Rc3/8
2B-TCDA2WTN63-450Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 450 mm | Port: Rc3/8
2B-TCDA2WTN63-500Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 63 mm | Stroke: 500 mm | Port: Rc3/8
2B-TCDA2WTN80-25Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WTN80-50Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WTN80-75Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WTN80-100Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WTN80-125Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WTN80-150Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WTN80-175Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WTN80-200Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WTN80-300Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WTN80-350Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WTN80-400Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WTN80-450Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WTN80-500Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 80 mm | Stroke: 500 mm | Port: Rc1/2
2B-TCDA2WTN100-25Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 25 mm | Port: Rc1/2
2B-TCDA2WTN100-50Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 50 mm | Port: Rc1/2
2B-TCDA2WTN100-75Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 75 mm | Port: Rc1/2
2B-TCDA2WTN100-100Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 100 mm | Port: Rc1/2
2B-TCDA2WTN100-125Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 125 mm | Port: Rc1/2
2B-TCDA2WTN100-150Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 150 mm | Port: Rc1/2
2B-TCDA2WTN100-175Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 175 mm | Port: Rc1/2
2B-TCDA2WTN100-200Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 200 mm | Port: Rc1/2
2B-TCDA2WTN100-300Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 300 mm | Port: Rc1/2
2B-TCDA2WTN100-350Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 350 mm | Port: Rc1/2
2B-TCDA2WTN100-400Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 400 mm | Port: Rc1/2
2B-TCDA2WTN100-450Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 450 mm | Port: Rc1/2
2B-TCDA2WTN100-500Magnet: Built-in (switch ready) | Mounting: Center trunnion | Bore: 100 mm | Stroke: 500 mm | Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
