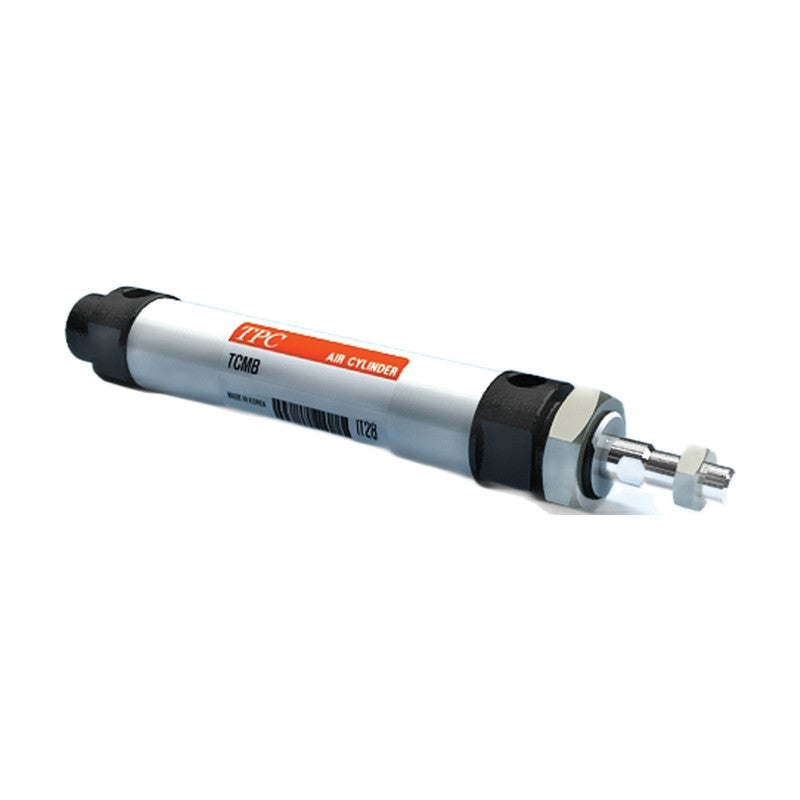

TPC 2B-TCM Compact Round Cylinder, Battery Industry (Bore 20-40)

TPC 2B-TCM secondary-battery industry version of the TCM compact round cylinder, double acting, lubricated or non-lube, bore 20 to 40 mm.

Key features

2B series: iron bush and electroless nickel plated nuts, washers and steel parts for battery production lines
Specifications and dimensions identical to the standard TCM series
Mountings: basic, axial foot, rod/head flange, single/double clevis, head-end and rod-end trunnion
Magnet version (TCDM) for band-mounted D-C73K reed auto switch
Some options cannot be made in 2B; cushions, bellows, knuckles and switches ordered as suffixes, not listed

Specifications

Action	Double acting
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	5 to 60°C
Stroke tolerance	+1.0 (to 250), +1.4 mm (251-500)
Rod thread tolerance	KS class 2
Min. operating pressure	0.05 MPa
Piston speed	50 to 500 mm/s
Source	TPC Mechatronics catalog TCM series (standard) 230525, p. 46-49

2B-TCMB20-25		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMB20-50		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMB20-75		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMB20-100		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMB20-125		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMB20-150		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMB20-200		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMB20-250		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMB25-25		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMB25-50		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMB25-75		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMB25-100		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMB25-125		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMB25-150		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMB25-200		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMB25-250		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMB30-25		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMB30-50		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMB30-75		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMB30-100		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMB30-125		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMB30-150		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMB30-200		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMB30-250		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMB40-25		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMB40-50		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMB40-75		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMB40-100		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMB40-125		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMB40-150		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMB40-200		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMB40-250		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMBN20-25		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMBN20-50		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMBN20-75		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMBN20-100		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMBN20-125		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMBN20-150		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMBN20-200		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMBN20-250		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMBN20-300		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMBN25-25		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMBN25-50		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMBN25-75		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMBN25-100		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMBN25-125		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMBN25-150		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMBN25-200		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMBN25-250		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMBN25-300		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMBN30-25		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMBN30-50		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMBN30-75		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMBN30-100		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMBN30-125		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMBN30-150		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMBN30-200		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMBN30-250		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMBN30-300		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMBN40-25		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMBN40-50		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMBN40-75		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMBN40-100		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMBN40-125		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMBN40-150		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMBN40-200		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMBN40-250		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMBN40-300		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCML20-25		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCML20-50		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCML20-75		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCML20-100		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCML20-125		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCML20-150		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCML20-200		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCML20-250		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCML25-25		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCML25-50		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCML25-75		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCML25-100		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCML25-125		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCML25-150		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCML25-200		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCML25-250		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCML30-25		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCML30-50		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCML30-75		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCML30-100		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCML30-125		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCML30-150		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCML30-200		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCML30-250		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCML40-25		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCML40-50		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCML40-75		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCML40-100		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCML40-125		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCML40-150		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCML40-200		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCML40-250		Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMLN20-25		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMLN20-50		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMLN20-75		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMLN20-100		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMLN20-125		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMLN20-150		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMLN20-200		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMLN20-250		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMLN20-300		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMLN25-25		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMLN25-50		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMLN25-75		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMLN25-100		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMLN25-125		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMLN25-150		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMLN25-200		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMLN25-250		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMLN25-300		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMLN30-25		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMLN30-50		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMLN30-75		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMLN30-100		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMLN30-125		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMLN30-150		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMLN30-200		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMLN30-250		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMLN30-300		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMLN40-25		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMLN40-50		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMLN40-75		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMLN40-100		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMLN40-125		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMLN40-150		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMLN40-200		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMLN40-250		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMLN40-300		Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMF20-25		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMF20-50		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMF20-75		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMF20-100		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMF20-125		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMF20-150		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMF20-200		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMF20-250		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMF25-25		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMF25-50		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMF25-75		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMF25-100		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMF25-125		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMF25-150		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMF25-200		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMF25-250		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMF30-25		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMF30-50		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMF30-75		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMF30-100		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMF30-125		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMF30-150		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMF30-200		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMF30-250		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMF40-25		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMF40-50		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMF40-75		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMF40-100		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMF40-125		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMF40-150		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMF40-200		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMF40-250		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMFN20-25		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMFN20-50		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMFN20-75		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMFN20-100		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMFN20-125		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMFN20-150		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMFN20-200		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMFN20-250		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMFN20-300		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMFN25-25		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMFN25-50		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMFN25-75		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMFN25-100		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMFN25-125		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMFN25-150		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMFN25-200		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMFN25-250		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMFN25-300		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMFN30-25		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMFN30-50		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMFN30-75		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMFN30-100		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMFN30-125		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMFN30-150		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMFN30-200		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMFN30-250		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMFN30-300		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMFN40-25		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMFN40-50		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMFN40-75		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMFN40-100		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMFN40-125		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMFN40-150		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMFN40-200		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMFN40-250		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMFN40-300		Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMG20-25		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMG20-50		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMG20-75		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMG20-100		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMG20-125		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMG20-150		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMG20-200		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMG20-250		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMG25-25		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMG25-50		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMG25-75		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMG25-100		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMG25-125		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMG25-150		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMG25-200		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMG25-250		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMG30-25		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMG30-50		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMG30-75		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMG30-100		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMG30-125		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMG30-150		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMG30-200		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMG30-250		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMG40-25		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMG40-50		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMG40-75		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMG40-100		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMG40-125		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMG40-150		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMG40-200		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMG40-250		Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMGN20-25		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMGN20-50		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMGN20-75		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMGN20-100		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMGN20-125		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMGN20-150		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMGN20-200		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMGN20-250		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMGN20-300		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMGN25-25		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMGN25-50		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMGN25-75		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMGN25-100		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMGN25-125		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMGN25-150		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMGN25-200		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMGN25-250		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMGN25-300		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMGN30-25		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMGN30-50		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMGN30-75		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMGN30-100		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMGN30-125		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMGN30-150		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMGN30-200		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMGN30-250		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMGN30-300		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMGN40-25		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMGN40-50		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMGN40-75		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMGN40-100		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMGN40-125		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMGN40-150		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMGN40-200		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMGN40-250		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMGN40-300		Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMC20-25		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMC20-50		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMC20-75		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMC20-100		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMC20-125		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMC20-150		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMC20-200		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMC20-250		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMC25-25		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMC25-50		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMC25-75		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMC25-100		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMC25-125		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMC25-150		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMC25-200		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMC25-250		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMC30-25		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMC30-50		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMC30-75		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMC30-100		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMC30-125		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMC30-150		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMC30-200		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMC30-250		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMC40-25		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMC40-50		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMC40-75		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMC40-100		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMC40-125		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMC40-150		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMC40-200		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMC40-250		Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMCN20-25		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMCN20-50		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMCN20-75		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMCN20-100		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMCN20-125		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMCN20-150		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMCN20-200		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMCN20-250		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMCN20-300		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMCN25-25		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMCN25-50		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMCN25-75		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMCN25-100		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMCN25-125		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMCN25-150		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMCN25-200		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMCN25-250		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMCN25-300		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMCN30-25		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMCN30-50		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMCN30-75		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMCN30-100		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMCN30-125		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMCN30-150		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMCN30-200		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMCN30-250		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMCN30-300		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMCN40-25		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMCN40-50		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMCN40-75		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMCN40-100		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMCN40-125		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMCN40-150		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMCN40-200		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMCN40-250		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMCN40-300		Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMD20-25		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMD20-50		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMD20-75		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMD20-100		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMD20-125		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMD20-150		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMD20-200		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMD20-250		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMD25-25		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMD25-50		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMD25-75		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMD25-100		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMD25-125		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMD25-150		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMD25-200		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMD25-250		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMD30-25		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMD30-50		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMD30-75		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMD30-100		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMD30-125		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMD30-150		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMD30-200		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMD30-250		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMD40-25		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMD40-50		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMD40-75		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMD40-100		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMD40-125		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMD40-150		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMD40-200		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMD40-250		Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMDN20-25		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMDN20-50		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMDN20-75		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMDN20-100		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMDN20-125		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMDN20-150		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMDN20-200		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMDN20-250		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMDN20-300		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMDN25-25		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMDN25-50		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMDN25-75		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMDN25-100		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMDN25-125		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMDN25-150		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMDN25-200		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMDN25-250		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMDN25-300		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMDN30-25		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMDN30-50		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMDN30-75		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMDN30-100		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMDN30-125		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMDN30-150		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMDN30-200		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMDN30-250		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMDN30-300		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMDN40-25		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMDN40-50		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMDN40-75		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMDN40-100		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMDN40-125		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMDN40-150		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMDN40-200		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMDN40-250		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMDN40-300		Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMT20-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMT20-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMT20-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMT20-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMT20-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMT20-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMT20-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMT20-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMT25-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMT25-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMT25-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMT25-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMT25-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMT25-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMT25-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMT25-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMT30-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMT30-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMT30-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMT30-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMT30-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMT30-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMT30-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMT30-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMT40-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMT40-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMT40-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMT40-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMT40-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMT40-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMT40-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMT40-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMTN20-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMTN20-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMTN20-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMTN20-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMTN20-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMTN20-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMTN20-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMTN20-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMTN20-300		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMTN25-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMTN25-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMTN25-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMTN25-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMTN25-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMTN25-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMTN25-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMTN25-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMTN25-300		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMTN30-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMTN30-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMTN30-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMTN30-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMTN30-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMTN30-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMTN30-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMTN30-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMTN30-300		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMTN40-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMTN40-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMTN40-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMTN40-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMTN40-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMTN40-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMTN40-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMTN40-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMTN40-300		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMU20-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMU20-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMU20-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMU20-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMU20-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMU20-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMU20-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMU20-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMU25-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMU25-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMU25-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMU25-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMU25-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMU25-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMU25-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMU25-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMU30-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMU30-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMU30-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMU30-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMU30-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMU30-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMU30-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMU30-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMU40-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMU40-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMU40-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMU40-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMU40-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMU40-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMU40-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMU40-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMUN20-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMUN20-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMUN20-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMUN20-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMUN20-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMUN20-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMUN20-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMUN20-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMUN20-300		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMUN25-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMUN25-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMUN25-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMUN25-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMUN25-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMUN25-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMUN25-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMUN25-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMUN25-300		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMUN30-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMUN30-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMUN30-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMUN30-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMUN30-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMUN30-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMUN30-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMUN30-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMUN30-300		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMUN40-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMUN40-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMUN40-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMUN40-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMUN40-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMUN40-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMUN40-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMUN40-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMUN40-300		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMB20-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMB20-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMB20-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMB20-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMB20-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMB20-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMB20-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMB20-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMB25-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMB25-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMB25-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMB25-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMB25-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMB25-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMB25-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMB25-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMB30-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMB30-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMB30-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMB30-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMB30-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMB30-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMB30-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMB30-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMB40-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMB40-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMB40-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMB40-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMB40-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMB40-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMB40-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMB40-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMBN20-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMBN20-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMBN20-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMBN20-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMBN20-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMBN20-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMBN20-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMBN20-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMBN20-300		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMBN25-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMBN25-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMBN25-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMBN25-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMBN25-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMBN25-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMBN25-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMBN25-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMBN25-300		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMBN30-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMBN30-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMBN30-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMBN30-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMBN30-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMBN30-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMBN30-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMBN30-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMBN30-300		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMBN40-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMBN40-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMBN40-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMBN40-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMBN40-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMBN40-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMBN40-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMBN40-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMBN40-300		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDML20-25		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDML20-50		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDML20-75		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDML20-100		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDML20-125		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDML20-150		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDML20-200		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDML20-250		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDML25-25		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDML25-50		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDML25-75		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDML25-100		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDML25-125		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDML25-150		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDML25-200		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDML25-250		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDML30-25		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDML30-50		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDML30-75		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDML30-100		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDML30-125		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDML30-150		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDML30-200		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDML30-250		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDML40-25		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDML40-50		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDML40-75		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDML40-100		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDML40-125		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDML40-150		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDML40-200		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDML40-250		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMLN20-25		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMLN20-50		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMLN20-75		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMLN20-100		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMLN20-125		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMLN20-150		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMLN20-200		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMLN20-250		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMLN20-300		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMLN25-25		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMLN25-50		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMLN25-75		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMLN25-100		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMLN25-125		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMLN25-150		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMLN25-200		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMLN25-250		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMLN25-300		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMLN30-25		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMLN30-50		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMLN30-75		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMLN30-100		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMLN30-125		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMLN30-150		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMLN30-200		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMLN30-250		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMLN30-300		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMLN40-25		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMLN40-50		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMLN40-75		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMLN40-100		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMLN40-125		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMLN40-150		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMLN40-200		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMLN40-250		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMLN40-300		Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMF20-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMF20-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMF20-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMF20-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMF20-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMF20-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMF20-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMF20-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMF25-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMF25-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMF25-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMF25-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMF25-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMF25-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMF25-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMF25-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMF30-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMF30-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMF30-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMF30-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMF30-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMF30-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMF30-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMF30-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMF40-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMF40-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMF40-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMF40-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMF40-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMF40-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMF40-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMF40-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMFN20-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMFN20-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMFN20-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMFN20-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMFN20-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMFN20-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMFN20-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMFN20-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMFN20-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMFN25-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMFN25-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMFN25-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMFN25-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMFN25-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMFN25-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMFN25-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMFN25-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMFN25-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMFN30-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMFN30-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMFN30-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMFN30-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMFN30-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMFN30-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMFN30-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMFN30-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMFN30-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMFN40-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMFN40-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMFN40-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMFN40-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMFN40-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMFN40-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMFN40-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMFN40-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMFN40-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMG20-25		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMG20-50		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMG20-75		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMG20-100		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMG20-125		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMG20-150		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMG20-200		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMG20-250		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMG25-25		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMG25-50		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMG25-75		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMG25-100		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMG25-125		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMG25-150		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMG25-200		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMG25-250		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMG30-25		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMG30-50		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMG30-75		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMG30-100		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMG30-125		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMG30-150		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMG30-200		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMG30-250		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMG40-25		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMG40-50		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMG40-75		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMG40-100		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMG40-125		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMG40-150		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMG40-200		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMG40-250		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMGN20-25		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMGN20-50		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMGN20-75		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMGN20-100		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMGN20-125		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMGN20-150		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMGN20-200		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMGN20-250		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMGN20-300		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMGN25-25		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMGN25-50		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMGN25-75		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMGN25-100		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMGN25-125		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMGN25-150		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMGN25-200		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMGN25-250		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMGN25-300		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMGN30-25		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMGN30-50		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMGN30-75		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMGN30-100		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMGN30-125		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMGN30-150		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMGN30-200		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMGN30-250		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMGN30-300		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMGN40-25		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMGN40-50		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMGN40-75		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMGN40-100		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMGN40-125		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMGN40-150		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMGN40-200		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMGN40-250		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMGN40-300		Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMC20-25		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMC20-50		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMC20-75		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMC20-100		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMC20-125		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMC20-150		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMC20-200		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMC20-250		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMC25-25		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMC25-50		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMC25-75		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMC25-100		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMC25-125		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMC25-150		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMC25-200		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMC25-250		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMC30-25		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMC30-50		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMC30-75		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMC30-100		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMC30-125		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMC30-150		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMC30-200		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMC30-250		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMC40-25		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMC40-50		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMC40-75		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMC40-100		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMC40-125		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMC40-150		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMC40-200		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMC40-250		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMCN20-25		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMCN20-50		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMCN20-75		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMCN20-100		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMCN20-125		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMCN20-150		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMCN20-200		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMCN20-250		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMCN20-300		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMCN25-25		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMCN25-50		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMCN25-75		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMCN25-100		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMCN25-125		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMCN25-150		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMCN25-200		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMCN25-250		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMCN25-300		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMCN30-25		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMCN30-50		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMCN30-75		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMCN30-100		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMCN30-125		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMCN30-150		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMCN30-200		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMCN30-250		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMCN30-300		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMCN40-25		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMCN40-50		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMCN40-75		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMCN40-100		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMCN40-125		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMCN40-150		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMCN40-200		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMCN40-250		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMCN40-300		Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMD20-25		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMD20-50		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMD20-75		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMD20-100		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMD20-125		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMD20-150		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMD20-200		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMD20-250		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMD25-25		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMD25-50		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMD25-75		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMD25-100		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMD25-125		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMD25-150		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMD25-200		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMD25-250		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMD30-25		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMD30-50		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMD30-75		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMD30-100		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMD30-125		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMD30-150		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMD30-200		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMD30-250		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMD40-25		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMD40-50		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMD40-75		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMD40-100		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMD40-125		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMD40-150		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMD40-200		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMD40-250		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMDN20-25		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMDN20-50		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMDN20-75		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMDN20-100		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMDN20-125		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMDN20-150		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMDN20-200		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMDN20-250		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMDN20-300		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMDN25-25		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMDN25-50		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMDN25-75		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMDN25-100		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMDN25-125		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMDN25-150		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMDN25-200		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMDN25-250		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMDN25-300		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMDN30-25		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMDN30-50		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMDN30-75		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMDN30-100		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMDN30-125		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMDN30-150		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMDN30-200		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMDN30-250		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMDN30-300		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMDN40-25		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMDN40-50		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMDN40-75		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMDN40-100		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMDN40-125		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMDN40-150		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMDN40-200		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMDN40-250		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMDN40-300		Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMT20-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMT20-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMT20-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMT20-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMT20-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMT20-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMT20-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMT20-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMT25-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMT25-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMT25-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMT25-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMT25-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMT25-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMT25-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMT25-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMT30-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMT30-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMT30-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMT30-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMT30-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMT30-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMT30-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMT30-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMT40-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMT40-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMT40-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMT40-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMT40-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMT40-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMT40-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMT40-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMTN20-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMTN20-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMTN20-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMTN20-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMTN20-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMTN20-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMTN20-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMTN20-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMTN20-300		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMTN25-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMTN25-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMTN25-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMTN25-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMTN25-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMTN25-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMTN25-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMTN25-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMTN25-300		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMTN30-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMTN30-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMTN30-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMTN30-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMTN30-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMTN30-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMTN30-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMTN30-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMTN30-300		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMTN40-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMTN40-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMTN40-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMTN40-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMTN40-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMTN40-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMTN40-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMTN40-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMTN40-300		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMU20-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMU20-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMU20-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMU20-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMU20-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMU20-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMU20-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMU20-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMU25-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMU25-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMU25-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMU25-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMU25-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMU25-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMU25-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMU25-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMU30-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMU30-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMU30-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMU30-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMU30-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMU30-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMU30-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMU30-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMU40-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMU40-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMU40-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMU40-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMU40-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMU40-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMU40-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMU40-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMUN20-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMUN20-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMUN20-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMUN20-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMUN20-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMUN20-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMUN20-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMUN20-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMUN20-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMUN25-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMUN25-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMUN25-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMUN25-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMUN25-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMUN25-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMUN25-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMUN25-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMUN25-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMUN30-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMUN30-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMUN30-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMUN30-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMUN30-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMUN30-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMUN30-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMUN30-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMUN30-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMUN40-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMUN40-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMUN40-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMUN40-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMUN40-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMUN40-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMUN40-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMUN40-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMUN40-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4

Pneumatic CylindersTPC Mechatronics

1088 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-TCM Compact Round Cylinder, Battery Industry (Bore 20-40)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (1088)

2B-TCMB20-25, 2B-TCMB20-50, 2B-TCMB20-75, 2B-TCMB20-100, 2B-TCMB20-125, 2B-TCMB20-150, 2B-TCMB20-200, 2B-TCMB20-250, 2B-TCMB25-25, 2B-TCMB25-50 + 1078 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	2B-TCMB20-25	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMB20-50	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMB20-75	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMB20-100	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMB20-125	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMB20-150	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMB20-200	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMB20-250	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMB25-25	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMB25-50	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMB25-75	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMB25-100	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMB25-125	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMB25-150	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMB25-200	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMB25-250	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMB30-25	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMB30-50	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMB30-75	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMB30-100	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMB30-125	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMB30-150	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMB30-200	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMB30-250	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMB40-25	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMB40-50	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMB40-75	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMB40-100	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMB40-125	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMB40-150	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMB40-200	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMB40-250	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMBN20-25	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMBN20-50	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMBN20-75	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMBN20-100	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMBN20-125	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMBN20-150	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMBN20-200	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMBN20-250	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMBN20-300	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMBN25-25	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMBN25-50	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMBN25-75	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMBN25-100	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMBN25-125	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMBN25-150	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMBN25-200	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMBN25-250	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMBN25-300	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMBN30-25	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMBN30-50	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMBN30-75	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMBN30-100	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMBN30-125	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMBN30-150	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMBN30-200	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMBN30-250	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMBN30-300	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMBN40-25	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMBN40-50	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMBN40-75	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMBN40-100	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMBN40-125	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMBN40-150	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMBN40-200	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMBN40-250	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMBN40-300	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCML20-25	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCML20-50	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCML20-75	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCML20-100	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCML20-125	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCML20-150	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCML20-200	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCML20-250	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCML25-25	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCML25-50	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCML25-75	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCML25-100	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCML25-125	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCML25-150	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCML25-200	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCML25-250	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCML30-25	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCML30-50	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCML30-75	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCML30-100	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCML30-125	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCML30-150	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCML30-200	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCML30-250	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCML40-25	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCML40-50	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCML40-75	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCML40-100	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCML40-125	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCML40-150	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCML40-200	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCML40-250	Magnet: None \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMLN20-25	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMLN20-50	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMLN20-75	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMLN20-100	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMLN20-125	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMLN20-150	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMLN20-200	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMLN20-250	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMLN20-300	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMLN25-25	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMLN25-50	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMLN25-75	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMLN25-100	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMLN25-125	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMLN25-150	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMLN25-200	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMLN25-250	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMLN25-300	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMLN30-25	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMLN30-50	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMLN30-75	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMLN30-100	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMLN30-125	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMLN30-150	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMLN30-200	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMLN30-250	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMLN30-300	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMLN40-25	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMLN40-50	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMLN40-75	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMLN40-100	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMLN40-125	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMLN40-150	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMLN40-200	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMLN40-250	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMLN40-300	Magnet: None \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMF20-25	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMF20-50	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMF20-75	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMF20-100	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMF20-125	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMF20-150	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMF20-200	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMF20-250	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMF25-25	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMF25-50	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMF25-75	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMF25-100	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMF25-125	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMF25-150	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMF25-200	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMF25-250	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMF30-25	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMF30-50	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMF30-75	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMF30-100	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMF30-125	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMF30-150	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMF30-200	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMF30-250	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMF40-25	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMF40-50	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMF40-75	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMF40-100	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMF40-125	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMF40-150	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMF40-200	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMF40-250	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMFN20-25	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMFN20-50	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMFN20-75	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMFN20-100	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMFN20-125	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMFN20-150	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMFN20-200	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMFN20-250	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMFN20-300	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMFN25-25	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMFN25-50	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMFN25-75	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMFN25-100	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMFN25-125	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMFN25-150	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMFN25-200	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMFN25-250	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMFN25-300	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMFN30-25	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMFN30-50	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMFN30-75	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMFN30-100	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMFN30-125	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMFN30-150	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMFN30-200	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMFN30-250	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMFN30-300	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMFN40-25	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMFN40-50	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMFN40-75	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMFN40-100	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMFN40-125	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMFN40-150	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMFN40-200	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMFN40-250	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMFN40-300	Magnet: None \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMG20-25	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMG20-50	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMG20-75	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMG20-100	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMG20-125	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMG20-150	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMG20-200	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMG20-250	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMG25-25	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMG25-50	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMG25-75	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMG25-100	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMG25-125	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMG25-150	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMG25-200	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMG25-250	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMG30-25	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMG30-50	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMG30-75	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMG30-100	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMG30-125	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMG30-150	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMG30-200	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMG30-250	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMG40-25	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMG40-50	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMG40-75	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMG40-100	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMG40-125	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMG40-150	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMG40-200	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMG40-250	Magnet: None \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMGN20-25	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMGN20-50	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMGN20-75	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMGN20-100	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMGN20-125	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMGN20-150	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMGN20-200	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMGN20-250	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMGN20-300	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMGN25-25	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMGN25-50	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMGN25-75	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMGN25-100	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMGN25-125	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMGN25-150	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMGN25-200	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMGN25-250	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMGN25-300	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMGN30-25	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMGN30-50	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMGN30-75	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMGN30-100	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMGN30-125	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMGN30-150	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMGN30-200	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMGN30-250	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMGN30-300	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMGN40-25	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMGN40-50	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMGN40-75	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMGN40-100	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMGN40-125	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMGN40-150	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMGN40-200	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMGN40-250	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMGN40-300	Magnet: None \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMC20-25	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMC20-50	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMC20-75	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMC20-100	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMC20-125	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMC20-150	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMC20-200	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMC20-250	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMC25-25	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMC25-50	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMC25-75	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMC25-100	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMC25-125	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMC25-150	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMC25-200	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMC25-250	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMC30-25	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMC30-50	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMC30-75	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMC30-100	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMC30-125	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMC30-150	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMC30-200	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMC30-250	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMC40-25	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMC40-50	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMC40-75	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMC40-100	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMC40-125	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMC40-150	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMC40-200	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMC40-250	Magnet: None \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMCN20-25	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMCN20-50	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMCN20-75	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMCN20-100	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMCN20-125	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMCN20-150	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMCN20-200	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMCN20-250	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMCN20-300	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMCN25-25	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMCN25-50	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMCN25-75	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMCN25-100	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMCN25-125	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMCN25-150	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMCN25-200	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMCN25-250	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMCN25-300	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMCN30-25	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMCN30-50	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMCN30-75	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMCN30-100	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMCN30-125	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMCN30-150	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMCN30-200	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMCN30-250	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMCN30-300	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMCN40-25	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMCN40-50	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMCN40-75	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMCN40-100	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMCN40-125	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMCN40-150	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMCN40-200	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMCN40-250	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMCN40-300	Magnet: None \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMD20-25	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMD20-50	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMD20-75	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMD20-100	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMD20-125	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMD20-150	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMD20-200	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMD20-250	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMD25-25	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMD25-50	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMD25-75	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMD25-100	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMD25-125	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMD25-150	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMD25-200	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMD25-250	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMD30-25	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMD30-50	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMD30-75	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMD30-100	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMD30-125	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMD30-150	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMD30-200	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMD30-250	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMD40-25	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMD40-50	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMD40-75	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMD40-100	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMD40-125	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMD40-150	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMD40-200	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMD40-250	Magnet: None \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMDN20-25	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMDN20-50	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMDN20-75	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMDN20-100	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMDN20-125	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMDN20-150	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMDN20-200	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMDN20-250	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMDN20-300	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMDN25-25	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMDN25-50	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMDN25-75	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMDN25-100	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMDN25-125	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMDN25-150	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMDN25-200	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMDN25-250	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMDN25-300	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMDN30-25	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMDN30-50	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMDN30-75	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMDN30-100	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMDN30-125	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMDN30-150	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMDN30-200	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMDN30-250	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMDN30-300	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMDN40-25	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMDN40-50	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMDN40-75	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMDN40-100	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMDN40-125	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMDN40-150	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMDN40-200	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMDN40-250	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMDN40-300	Magnet: None \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMT20-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMT20-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMT20-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMT20-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMT20-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMT20-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMT20-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMT20-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMT25-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMT25-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMT25-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMT25-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMT25-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMT25-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMT25-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMT25-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMT30-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMT30-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMT30-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMT30-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMT30-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMT30-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMT30-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMT30-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMT40-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMT40-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMT40-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMT40-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMT40-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMT40-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMT40-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMT40-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMTN20-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMTN20-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMTN20-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMTN20-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMTN20-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMTN20-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMTN20-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMTN20-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMTN20-300	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMTN25-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMTN25-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMTN25-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMTN25-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMTN25-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMTN25-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMTN25-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMTN25-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMTN25-300	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMTN30-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMTN30-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMTN30-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMTN30-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMTN30-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMTN30-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMTN30-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMTN30-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMTN30-300	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMTN40-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMTN40-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMTN40-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMTN40-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMTN40-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMTN40-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMTN40-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMTN40-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMTN40-300	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMU20-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMU20-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMU20-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMU20-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMU20-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMU20-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMU20-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMU20-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMU25-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMU25-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMU25-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMU25-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMU25-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMU25-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMU25-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMU25-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMU30-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMU30-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMU30-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMU30-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMU30-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMU30-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMU30-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMU30-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMU40-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMU40-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMU40-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMU40-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMU40-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMU40-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMU40-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMU40-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMUN20-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMUN20-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMUN20-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMUN20-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMUN20-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMUN20-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMUN20-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMUN20-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMUN20-300	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMUN25-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMUN25-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMUN25-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMUN25-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMUN25-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMUN25-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMUN25-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMUN25-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMUN25-300	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMUN30-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMUN30-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMUN30-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMUN30-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMUN30-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMUN30-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMUN30-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMUN30-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMUN30-300	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMUN40-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMUN40-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMUN40-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMUN40-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMUN40-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMUN40-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMUN40-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMUN40-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMUN40-300	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMB20-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMB20-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMB20-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMB20-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMB20-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMB20-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMB20-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMB20-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMB25-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMB25-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMB25-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMB25-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMB25-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMB25-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMB25-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMB25-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMB30-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMB30-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMB30-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMB30-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMB30-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMB30-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMB30-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMB30-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMB40-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMB40-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMB40-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMB40-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMB40-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMB40-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMB40-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMB40-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMBN20-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMBN20-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMBN20-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMBN20-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMBN20-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMBN20-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMBN20-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMBN20-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMBN20-300	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMBN25-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMBN25-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMBN25-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMBN25-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMBN25-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMBN25-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMBN25-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMBN25-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMBN25-300	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMBN30-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMBN30-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMBN30-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMBN30-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMBN30-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMBN30-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMBN30-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMBN30-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMBN30-300	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMBN40-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMBN40-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMBN40-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMBN40-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMBN40-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMBN40-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMBN40-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMBN40-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMBN40-300	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDML20-25	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDML20-50	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDML20-75	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDML20-100	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDML20-125	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDML20-150	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDML20-200	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDML20-250	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDML25-25	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDML25-50	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDML25-75	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDML25-100	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDML25-125	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDML25-150	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDML25-200	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDML25-250	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDML30-25	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDML30-50	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDML30-75	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDML30-100	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDML30-125	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDML30-150	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDML30-200	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDML30-250	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDML40-25	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDML40-50	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDML40-75	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDML40-100	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDML40-125	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDML40-150	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDML40-200	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDML40-250	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMLN20-25	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMLN20-50	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMLN20-75	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMLN20-100	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMLN20-125	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMLN20-150	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMLN20-200	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMLN20-250	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMLN20-300	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMLN25-25	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMLN25-50	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMLN25-75	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMLN25-100	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMLN25-125	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMLN25-150	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMLN25-200	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMLN25-250	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMLN25-300	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMLN30-25	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMLN30-50	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMLN30-75	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMLN30-100	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMLN30-125	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMLN30-150	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMLN30-200	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMLN30-250	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMLN30-300	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMLN40-25	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMLN40-50	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMLN40-75	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMLN40-100	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMLN40-125	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMLN40-150	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMLN40-200	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMLN40-250	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMLN40-300	Magnet: Built-in (switch ready) \| Mounting: Axial foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMF20-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMF20-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMF20-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMF20-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMF20-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMF20-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMF20-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMF20-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMF25-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMF25-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMF25-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMF25-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMF25-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMF25-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMF25-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMF25-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMF30-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMF30-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMF30-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMF30-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMF30-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMF30-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMF30-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMF30-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMF40-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMF40-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMF40-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMF40-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMF40-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMF40-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMF40-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMF40-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMFN20-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMFN20-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMFN20-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMFN20-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMFN20-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMFN20-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMFN20-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMFN20-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMFN20-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMFN25-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMFN25-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMFN25-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMFN25-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMFN25-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMFN25-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMFN25-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMFN25-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMFN25-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMFN30-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMFN30-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMFN30-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMFN30-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMFN30-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMFN30-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMFN30-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMFN30-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMFN30-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMFN40-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMFN40-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMFN40-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMFN40-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMFN40-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMFN40-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMFN40-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMFN40-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMFN40-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMG20-25	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMG20-50	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMG20-75	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMG20-100	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMG20-125	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMG20-150	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMG20-200	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMG20-250	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMG25-25	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMG25-50	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMG25-75	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMG25-100	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMG25-125	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMG25-150	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMG25-200	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMG25-250	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMG30-25	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMG30-50	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMG30-75	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMG30-100	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMG30-125	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMG30-150	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMG30-200	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMG30-250	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMG40-25	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMG40-50	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMG40-75	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMG40-100	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMG40-125	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMG40-150	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMG40-200	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMG40-250	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMGN20-25	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMGN20-50	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMGN20-75	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMGN20-100	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMGN20-125	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMGN20-150	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMGN20-200	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMGN20-250	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMGN20-300	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMGN25-25	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMGN25-50	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMGN25-75	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMGN25-100	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMGN25-125	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMGN25-150	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMGN25-200	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMGN25-250	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMGN25-300	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMGN30-25	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMGN30-50	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMGN30-75	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMGN30-100	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMGN30-125	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMGN30-150	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMGN30-200	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMGN30-250	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMGN30-300	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMGN40-25	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMGN40-50	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMGN40-75	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMGN40-100	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMGN40-125	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMGN40-150	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMGN40-200	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMGN40-250	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMGN40-300	Magnet: Built-in (switch ready) \| Mounting: Head-end flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMC20-25	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMC20-50	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMC20-75	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMC20-100	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMC20-125	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMC20-150	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMC20-200	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMC20-250	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMC25-25	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMC25-50	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMC25-75	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMC25-100	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMC25-125	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMC25-150	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMC25-200	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMC25-250	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMC30-25	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMC30-50	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMC30-75	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMC30-100	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMC30-125	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMC30-150	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMC30-200	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMC30-250	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMC40-25	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMC40-50	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMC40-75	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMC40-100	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMC40-125	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMC40-150	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMC40-200	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMC40-250	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMCN20-25	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMCN20-50	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMCN20-75	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMCN20-100	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMCN20-125	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMCN20-150	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMCN20-200	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMCN20-250	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMCN20-300	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMCN25-25	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMCN25-50	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMCN25-75	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMCN25-100	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMCN25-125	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMCN25-150	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMCN25-200	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMCN25-250	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMCN25-300	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMCN30-25	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMCN30-50	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMCN30-75	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMCN30-100	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMCN30-125	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMCN30-150	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMCN30-200	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMCN30-250	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMCN30-300	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMCN40-25	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMCN40-50	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMCN40-75	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMCN40-100	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMCN40-125	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMCN40-150	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMCN40-200	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMCN40-250	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMCN40-300	Magnet: Built-in (switch ready) \| Mounting: Single clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMD20-25	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMD20-50	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMD20-75	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMD20-100	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMD20-125	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMD20-150	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMD20-200	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMD20-250	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMD25-25	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMD25-50	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMD25-75	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMD25-100	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMD25-125	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMD25-150	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMD25-200	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMD25-250	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMD30-25	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMD30-50	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMD30-75	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMD30-100	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMD30-125	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMD30-150	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMD30-200	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMD30-250	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMD40-25	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMD40-50	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMD40-75	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMD40-100	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMD40-125	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMD40-150	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMD40-200	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMD40-250	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMDN20-25	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMDN20-50	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMDN20-75	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMDN20-100	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMDN20-125	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMDN20-150	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMDN20-200	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMDN20-250	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMDN20-300	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMDN25-25	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMDN25-50	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMDN25-75	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMDN25-100	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMDN25-125	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMDN25-150	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMDN25-200	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMDN25-250	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMDN25-300	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMDN30-25	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMDN30-50	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMDN30-75	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMDN30-100	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMDN30-125	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMDN30-150	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMDN30-200	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMDN30-250	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMDN30-300	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMDN40-25	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMDN40-50	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMDN40-75	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMDN40-100	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMDN40-125	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMDN40-150	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMDN40-200	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMDN40-250	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMDN40-300	Magnet: Built-in (switch ready) \| Mounting: Double clevis \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMT20-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMT20-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMT20-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMT20-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMT20-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMT20-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMT20-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMT20-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMT25-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMT25-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMT25-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMT25-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMT25-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMT25-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMT25-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMT25-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMT30-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMT30-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMT30-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMT30-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMT30-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMT30-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMT30-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMT30-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMT40-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMT40-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMT40-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMT40-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMT40-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMT40-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMT40-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMT40-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMTN20-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMTN20-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMTN20-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMTN20-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMTN20-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMTN20-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMTN20-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMTN20-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMTN20-300	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMTN25-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMTN25-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMTN25-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMTN25-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMTN25-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMTN25-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMTN25-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMTN25-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMTN25-300	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMTN30-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMTN30-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMTN30-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMTN30-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMTN30-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMTN30-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMTN30-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMTN30-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMTN30-300	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMTN40-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMTN40-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMTN40-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMTN40-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMTN40-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMTN40-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMTN40-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMTN40-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMTN40-300	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMU20-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMU20-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMU20-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMU20-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMU20-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMU20-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMU20-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMU20-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMU25-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMU25-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMU25-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMU25-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMU25-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMU25-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMU25-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMU25-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMU30-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMU30-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMU30-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMU30-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMU30-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMU30-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMU30-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMU30-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMU40-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMU40-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMU40-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMU40-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMU40-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMU40-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMU40-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMU40-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMUN20-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMUN20-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMUN20-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMUN20-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMUN20-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMUN20-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMUN20-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMUN20-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMUN20-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMUN25-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMUN25-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMUN25-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMUN25-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMUN25-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMUN25-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMUN25-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMUN25-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMUN25-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMUN30-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMUN30-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMUN30-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMUN30-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMUN30-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMUN30-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMUN30-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMUN30-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMUN30-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMUN40-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMUN40-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMUN40-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMUN40-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMUN40-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMUN40-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMUN40-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMUN40-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMUN40-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

TPC 2B-TCM Compact Round Cylinder, Battery Industry (Bore 20-40)
