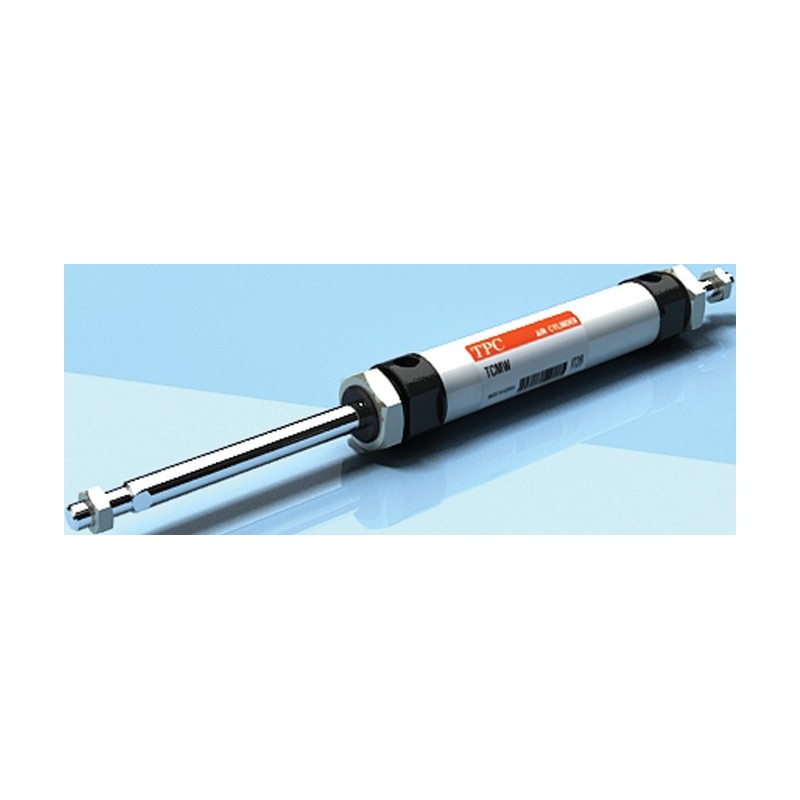

TPC 2B-TCMW Double Rod Compact Cylinder, Battery Industry

TPC 2B-TCMW secondary-battery industry version of the TCMW double rod compact cylinder, lubricated or non-lube, bore 20 to 40 mm.

Key features

2B series: iron bush and electroless nickel plated nuts and steel parts
Specifications and dimensions identical to standard TCMW
Mountings: basic, foot, flange, head-end and rod-end trunnion
Magnet version (TCDMW) for D-C73K band switch
Some options cannot be made in 2B; cushions, bellows and switches ordered as suffixes, not listed

Specifications

Action	Double acting, double rod
Fluid	Air
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	5 to 60°C
Stroke tolerance	+1.0 (to 250), +1.4 mm (251-500)
Rod thread tolerance	KS class 2
Min. operating pressure	0.05 MPa
Piston speed	50 to 500 mm/s
Source	TPC Mechatronics catalog TCMW (compact cylinder, double rod) 240408, p. 56-57

2B-TCMWB20-25		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWB20-50		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWB20-75		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWB20-100		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWB20-125		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWB20-150		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWB20-200		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWB20-250		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWB25-25		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWB25-50		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWB25-75		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWB25-100		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWB25-125		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWB25-150		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWB25-200		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWB25-250		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWB30-25		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWB30-50		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWB30-75		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWB30-100		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWB30-125		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWB30-150		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWB30-200		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWB30-250		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWB40-25		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWB40-50		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWB40-75		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWB40-100		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWB40-125		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWB40-150		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWB40-200		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWB40-250		Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWBN20-25		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWBN20-50		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWBN20-75		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWBN20-100		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWBN20-125		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWBN20-150		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWBN20-200		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWBN20-250		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWBN20-300		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWBN25-25		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWBN25-50		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWBN25-75		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWBN25-100		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWBN25-125		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWBN25-150		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWBN25-200		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWBN25-250		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWBN25-300		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWBN30-25		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWBN30-50		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWBN30-75		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWBN30-100		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWBN30-125		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWBN30-150		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWBN30-200		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWBN30-250		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWBN30-300		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWBN40-25		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWBN40-50		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWBN40-75		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWBN40-100		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWBN40-125		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWBN40-150		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWBN40-200		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWBN40-250		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWBN40-300		Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMWL20-25		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWL20-50		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWL20-75		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWL20-100		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWL20-125		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWL20-150		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWL20-200		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWL20-250		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWL25-25		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWL25-50		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWL25-75		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWL25-100		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWL25-125		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWL25-150		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWL25-200		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWL25-250		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWL30-25		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWL30-50		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWL30-75		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWL30-100		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWL30-125		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWL30-150		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWL30-200		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWL30-250		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWL40-25		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWL40-50		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWL40-75		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWL40-100		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWL40-125		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWL40-150		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWL40-200		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWL40-250		Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWLN20-25		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWLN20-50		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWLN20-75		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWLN20-100		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWLN20-125		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWLN20-150		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWLN20-200		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWLN20-250		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWLN20-300		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWLN25-25		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWLN25-50		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWLN25-75		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWLN25-100		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWLN25-125		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWLN25-150		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWLN25-200		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWLN25-250		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWLN25-300		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWLN30-25		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWLN30-50		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWLN30-75		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWLN30-100		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWLN30-125		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWLN30-150		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWLN30-200		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWLN30-250		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWLN30-300		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWLN40-25		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWLN40-50		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWLN40-75		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWLN40-100		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWLN40-125		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWLN40-150		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWLN40-200		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWLN40-250		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWLN40-300		Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMWF20-25		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWF20-50		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWF20-75		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWF20-100		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWF20-125		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWF20-150		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWF20-200		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWF20-250		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWF25-25		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWF25-50		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWF25-75		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWF25-100		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWF25-125		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWF25-150		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWF25-200		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWF25-250		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWF30-25		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWF30-50		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWF30-75		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWF30-100		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWF30-125		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWF30-150		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWF30-200		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWF30-250		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWF40-25		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWF40-50		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWF40-75		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWF40-100		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWF40-125		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWF40-150		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWF40-200		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWF40-250		Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWFN20-25		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWFN20-50		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWFN20-75		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWFN20-100		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWFN20-125		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWFN20-150		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWFN20-200		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWFN20-250		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWFN20-300		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWFN25-25		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWFN25-50		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWFN25-75		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWFN25-100		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWFN25-125		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWFN25-150		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWFN25-200		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWFN25-250		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWFN25-300		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWFN30-25		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWFN30-50		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWFN30-75		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWFN30-100		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWFN30-125		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWFN30-150		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWFN30-200		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWFN30-250		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWFN30-300		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWFN40-25		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWFN40-50		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWFN40-75		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWFN40-100		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWFN40-125		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWFN40-150		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWFN40-200		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWFN40-250		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWFN40-300		Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMWT20-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWT20-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWT20-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWT20-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWT20-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWT20-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWT20-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWT20-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWT25-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWT25-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWT25-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWT25-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWT25-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWT25-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWT25-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWT25-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWT30-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWT30-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWT30-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWT30-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWT30-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWT30-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWT30-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWT30-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWT40-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWT40-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWT40-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWT40-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWT40-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWT40-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWT40-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWT40-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWTN20-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWTN20-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWTN20-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWTN20-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWTN20-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWTN20-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWTN20-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWTN20-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWTN20-300		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWTN25-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWTN25-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWTN25-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWTN25-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWTN25-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWTN25-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWTN25-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWTN25-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWTN25-300		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWTN30-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWTN30-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWTN30-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWTN30-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWTN30-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWTN30-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWTN30-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWTN30-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWTN30-300		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWTN40-25		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWTN40-50		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWTN40-75		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWTN40-100		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWTN40-125		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWTN40-150		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWTN40-200		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWTN40-250		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWTN40-300		Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCMWU20-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWU20-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWU20-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWU20-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWU20-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWU20-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWU20-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWU20-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWU25-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWU25-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWU25-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWU25-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWU25-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWU25-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWU25-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWU25-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWU30-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWU30-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWU30-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWU30-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWU30-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWU30-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWU30-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWU30-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWU40-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWU40-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWU40-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWU40-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWU40-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWU40-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWU40-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWU40-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWUN20-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWUN20-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWUN20-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWUN20-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWUN20-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWUN20-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWUN20-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWUN20-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWUN20-300		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWUN25-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWUN25-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWUN25-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWUN25-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWUN25-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWUN25-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWUN25-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWUN25-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWUN25-300		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWUN30-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCMWUN30-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCMWUN30-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCMWUN30-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCMWUN30-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCMWUN30-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCMWUN30-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCMWUN30-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCMWUN30-300		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCMWUN40-25		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCMWUN40-50		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCMWUN40-75		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCMWUN40-100		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCMWUN40-125		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCMWUN40-150		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCMWUN40-200		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCMWUN40-250		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCMWUN40-300		Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMWB20-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWB20-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWB20-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWB20-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWB20-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWB20-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWB20-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWB20-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWB25-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWB25-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWB25-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWB25-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWB25-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWB25-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWB25-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWB25-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWB30-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWB30-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWB30-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWB30-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWB30-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWB30-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWB30-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWB30-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWB40-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWB40-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWB40-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWB40-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWB40-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWB40-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWB40-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWB40-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWBN20-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWBN20-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWBN20-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWBN20-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWBN20-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWBN20-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWBN20-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWBN20-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWBN20-300		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWBN25-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWBN25-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWBN25-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWBN25-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWBN25-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWBN25-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWBN25-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWBN25-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWBN25-300		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWBN30-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWBN30-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWBN30-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWBN30-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWBN30-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWBN30-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWBN30-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWBN30-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWBN30-300		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWBN40-25		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWBN40-50		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWBN40-75		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWBN40-100		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWBN40-125		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWBN40-150		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWBN40-200		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWBN40-250		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWBN40-300		Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMWL20-25		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWL20-50		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWL20-75		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWL20-100		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWL20-125		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWL20-150		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWL20-200		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWL20-250		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWL25-25		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWL25-50		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWL25-75		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWL25-100		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWL25-125		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWL25-150		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWL25-200		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWL25-250		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWL30-25		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWL30-50		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWL30-75		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWL30-100		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWL30-125		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWL30-150		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWL30-200		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWL30-250		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWL40-25		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWL40-50		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWL40-75		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWL40-100		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWL40-125		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWL40-150		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWL40-200		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWL40-250		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWLN20-25		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWLN20-50		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWLN20-75		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWLN20-100		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWLN20-125		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWLN20-150		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWLN20-200		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWLN20-250		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWLN20-300		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWLN25-25		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWLN25-50		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWLN25-75		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWLN25-100		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWLN25-125		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWLN25-150		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWLN25-200		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWLN25-250		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWLN25-300		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWLN30-25		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWLN30-50		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWLN30-75		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWLN30-100		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWLN30-125		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWLN30-150		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWLN30-200		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWLN30-250		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWLN30-300		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWLN40-25		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWLN40-50		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWLN40-75		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWLN40-100		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWLN40-125		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWLN40-150		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWLN40-200		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWLN40-250		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWLN40-300		Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMWF20-25		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWF20-50		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWF20-75		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWF20-100		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWF20-125		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWF20-150		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWF20-200		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWF20-250		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWF25-25		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWF25-50		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWF25-75		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWF25-100		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWF25-125		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWF25-150		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWF25-200		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWF25-250		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWF30-25		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWF30-50		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWF30-75		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWF30-100		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWF30-125		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWF30-150		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWF30-200		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWF30-250		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWF40-25		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWF40-50		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWF40-75		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWF40-100		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWF40-125		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWF40-150		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWF40-200		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWF40-250		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWFN20-25		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWFN20-50		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWFN20-75		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWFN20-100		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWFN20-125		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWFN20-150		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWFN20-200		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWFN20-250		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWFN20-300		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWFN25-25		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWFN25-50		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWFN25-75		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWFN25-100		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWFN25-125		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWFN25-150		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWFN25-200		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWFN25-250		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWFN25-300		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWFN30-25		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWFN30-50		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWFN30-75		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWFN30-100		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWFN30-125		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWFN30-150		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWFN30-200		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWFN30-250		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWFN30-300		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWFN40-25		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWFN40-50		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWFN40-75		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWFN40-100		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWFN40-125		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWFN40-150		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWFN40-200		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWFN40-250		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWFN40-300		Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMWT20-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWT20-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWT20-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWT20-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWT20-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWT20-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWT20-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWT20-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWT25-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWT25-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWT25-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWT25-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWT25-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWT25-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWT25-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWT25-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWT30-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWT30-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWT30-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWT30-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWT30-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWT30-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWT30-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWT30-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWT40-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWT40-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWT40-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWT40-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWT40-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWT40-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWT40-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWT40-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWTN20-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWTN20-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWTN20-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWTN20-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWTN20-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWTN20-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWTN20-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWTN20-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWTN20-300		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWTN25-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWTN25-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWTN25-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWTN25-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWTN25-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWTN25-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWTN25-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWTN25-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWTN25-300		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWTN30-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWTN30-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWTN30-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWTN30-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWTN30-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWTN30-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWTN30-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWTN30-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWTN30-300		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWTN40-25		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWTN40-50		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWTN40-75		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWTN40-100		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWTN40-125		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWTN40-150		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWTN40-200		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWTN40-250		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWTN40-300		Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
2B-TCDMWU20-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWU20-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWU20-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWU20-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWU20-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWU20-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWU20-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWU20-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWU25-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWU25-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWU25-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWU25-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWU25-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWU25-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWU25-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWU25-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWU30-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWU30-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWU30-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWU30-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWU30-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWU30-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWU30-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWU30-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWU40-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWU40-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWU40-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWU40-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWU40-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWU40-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWU40-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWU40-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWUN20-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWUN20-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWUN20-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWUN20-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWUN20-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWUN20-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWUN20-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWUN20-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWUN20-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWUN25-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWUN25-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWUN25-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWUN25-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWUN25-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWUN25-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWUN25-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWUN25-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWUN25-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWUN30-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
2B-TCDMWUN30-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
2B-TCDMWUN30-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
2B-TCDMWUN30-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
2B-TCDMWUN30-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
2B-TCDMWUN30-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
2B-TCDMWUN30-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
2B-TCDMWUN30-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
2B-TCDMWUN30-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
2B-TCDMWUN40-25		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
2B-TCDMWUN40-50		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
2B-TCDMWUN40-75		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
2B-TCDMWUN40-100		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
2B-TCDMWUN40-125		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
2B-TCDMWUN40-150		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
2B-TCDMWUN40-200		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
2B-TCDMWUN40-250		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
2B-TCDMWUN40-300		Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4

Pneumatic CylindersTPC Mechatronics

680 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-TCMW Double Rod Compact Cylinder, Battery Industry

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (680)

2B-TCMWB20-25, 2B-TCMWB20-50, 2B-TCMWB20-75, 2B-TCMWB20-100, 2B-TCMWB20-125, 2B-TCMWB20-150, 2B-TCMWB20-200, 2B-TCMWB20-250, 2B-TCMWB25-25, 2B-TCMWB25-50 + 670 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	2B-TCMWB20-25	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWB20-50	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWB20-75	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWB20-100	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWB20-125	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWB20-150	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWB20-200	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWB20-250	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWB25-25	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWB25-50	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWB25-75	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWB25-100	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWB25-125	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWB25-150	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWB25-200	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWB25-250	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWB30-25	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWB30-50	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWB30-75	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWB30-100	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWB30-125	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWB30-150	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWB30-200	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWB30-250	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWB40-25	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWB40-50	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWB40-75	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWB40-100	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWB40-125	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWB40-150	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWB40-200	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWB40-250	Magnet: None \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWBN20-25	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWBN20-50	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWBN20-75	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWBN20-100	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWBN20-125	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWBN20-150	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWBN20-200	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWBN20-250	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWBN20-300	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWBN25-25	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWBN25-50	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWBN25-75	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWBN25-100	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWBN25-125	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWBN25-150	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWBN25-200	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWBN25-250	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWBN25-300	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWBN30-25	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWBN30-50	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWBN30-75	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWBN30-100	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWBN30-125	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWBN30-150	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWBN30-200	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWBN30-250	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWBN30-300	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWBN40-25	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWBN40-50	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWBN40-75	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWBN40-100	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWBN40-125	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWBN40-150	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWBN40-200	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWBN40-250	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWBN40-300	Magnet: None \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMWL20-25	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWL20-50	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWL20-75	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWL20-100	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWL20-125	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWL20-150	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWL20-200	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWL20-250	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWL25-25	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWL25-50	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWL25-75	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWL25-100	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWL25-125	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWL25-150	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWL25-200	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWL25-250	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWL30-25	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWL30-50	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWL30-75	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWL30-100	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWL30-125	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWL30-150	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWL30-200	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWL30-250	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWL40-25	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWL40-50	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWL40-75	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWL40-100	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWL40-125	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWL40-150	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWL40-200	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWL40-250	Magnet: None \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWLN20-25	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWLN20-50	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWLN20-75	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWLN20-100	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWLN20-125	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWLN20-150	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWLN20-200	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWLN20-250	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWLN20-300	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWLN25-25	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWLN25-50	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWLN25-75	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWLN25-100	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWLN25-125	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWLN25-150	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWLN25-200	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWLN25-250	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWLN25-300	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWLN30-25	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWLN30-50	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWLN30-75	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWLN30-100	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWLN30-125	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWLN30-150	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWLN30-200	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWLN30-250	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWLN30-300	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWLN40-25	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWLN40-50	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWLN40-75	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWLN40-100	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWLN40-125	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWLN40-150	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWLN40-200	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWLN40-250	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWLN40-300	Magnet: None \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMWF20-25	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWF20-50	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWF20-75	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWF20-100	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWF20-125	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWF20-150	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWF20-200	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWF20-250	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWF25-25	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWF25-50	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWF25-75	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWF25-100	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWF25-125	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWF25-150	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWF25-200	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWF25-250	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWF30-25	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWF30-50	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWF30-75	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWF30-100	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWF30-125	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWF30-150	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWF30-200	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWF30-250	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWF40-25	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWF40-50	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWF40-75	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWF40-100	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWF40-125	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWF40-150	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWF40-200	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWF40-250	Magnet: None \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWFN20-25	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWFN20-50	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWFN20-75	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWFN20-100	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWFN20-125	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWFN20-150	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWFN20-200	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWFN20-250	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWFN20-300	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWFN25-25	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWFN25-50	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWFN25-75	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWFN25-100	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWFN25-125	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWFN25-150	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWFN25-200	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWFN25-250	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWFN25-300	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWFN30-25	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWFN30-50	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWFN30-75	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWFN30-100	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWFN30-125	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWFN30-150	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWFN30-200	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWFN30-250	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWFN30-300	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWFN40-25	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWFN40-50	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWFN40-75	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWFN40-100	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWFN40-125	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWFN40-150	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWFN40-200	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWFN40-250	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWFN40-300	Magnet: None \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMWT20-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWT20-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWT20-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWT20-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWT20-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWT20-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWT20-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWT20-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWT25-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWT25-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWT25-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWT25-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWT25-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWT25-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWT25-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWT25-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWT30-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWT30-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWT30-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWT30-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWT30-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWT30-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWT30-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWT30-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWT40-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWT40-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWT40-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWT40-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWT40-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWT40-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWT40-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWT40-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWTN20-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWTN20-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWTN20-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWTN20-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWTN20-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWTN20-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWTN20-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWTN20-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWTN20-300	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWTN25-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWTN25-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWTN25-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWTN25-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWTN25-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWTN25-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWTN25-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWTN25-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWTN25-300	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWTN30-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWTN30-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWTN30-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWTN30-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWTN30-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWTN30-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWTN30-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWTN30-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWTN30-300	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWTN40-25	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWTN40-50	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWTN40-75	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWTN40-100	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWTN40-125	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWTN40-150	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWTN40-200	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWTN40-250	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWTN40-300	Magnet: None \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCMWU20-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWU20-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWU20-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWU20-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWU20-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWU20-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWU20-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWU20-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWU25-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWU25-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWU25-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWU25-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWU25-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWU25-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWU25-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWU25-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWU30-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWU30-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWU30-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWU30-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWU30-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWU30-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWU30-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWU30-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWU40-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWU40-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWU40-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWU40-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWU40-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWU40-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWU40-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWU40-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWUN20-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWUN20-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWUN20-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWUN20-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWUN20-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWUN20-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWUN20-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWUN20-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWUN20-300	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWUN25-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWUN25-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWUN25-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWUN25-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWUN25-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWUN25-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWUN25-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWUN25-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWUN25-300	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWUN30-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCMWUN30-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCMWUN30-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCMWUN30-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCMWUN30-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCMWUN30-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCMWUN30-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCMWUN30-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCMWUN30-300	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCMWUN40-25	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCMWUN40-50	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCMWUN40-75	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCMWUN40-100	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCMWUN40-125	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCMWUN40-150	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCMWUN40-200	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCMWUN40-250	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCMWUN40-300	Magnet: None \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMWB20-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWB20-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWB20-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWB20-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWB20-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWB20-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWB20-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWB20-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWB25-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWB25-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWB25-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWB25-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWB25-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWB25-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWB25-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWB25-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWB30-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWB30-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWB30-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWB30-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWB30-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWB30-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWB30-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWB30-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWB40-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWB40-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWB40-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWB40-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWB40-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWB40-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWB40-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWB40-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWBN20-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWBN20-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWBN20-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWBN20-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWBN20-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWBN20-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWBN20-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWBN20-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWBN20-300	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWBN25-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWBN25-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWBN25-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWBN25-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWBN25-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWBN25-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWBN25-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWBN25-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWBN25-300	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWBN30-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWBN30-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWBN30-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWBN30-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWBN30-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWBN30-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWBN30-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWBN30-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWBN30-300	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWBN40-25	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWBN40-50	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWBN40-75	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWBN40-100	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWBN40-125	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWBN40-150	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWBN40-200	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWBN40-250	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWBN40-300	Magnet: Built-in (switch ready) \| Mounting: Basic \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMWL20-25	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWL20-50	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWL20-75	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWL20-100	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWL20-125	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWL20-150	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWL20-200	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWL20-250	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWL25-25	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWL25-50	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWL25-75	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWL25-100	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWL25-125	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWL25-150	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWL25-200	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWL25-250	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWL30-25	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWL30-50	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWL30-75	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWL30-100	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWL30-125	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWL30-150	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWL30-200	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWL30-250	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWL40-25	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWL40-50	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWL40-75	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWL40-100	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWL40-125	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWL40-150	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWL40-200	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWL40-250	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWLN20-25	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWLN20-50	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWLN20-75	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWLN20-100	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWLN20-125	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWLN20-150	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWLN20-200	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWLN20-250	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWLN20-300	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWLN25-25	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWLN25-50	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWLN25-75	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWLN25-100	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWLN25-125	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWLN25-150	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWLN25-200	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWLN25-250	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWLN25-300	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWLN30-25	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWLN30-50	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWLN30-75	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWLN30-100	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWLN30-125	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWLN30-150	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWLN30-200	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWLN30-250	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWLN30-300	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWLN40-25	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWLN40-50	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWLN40-75	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWLN40-100	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWLN40-125	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWLN40-150	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWLN40-200	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWLN40-250	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWLN40-300	Magnet: Built-in (switch ready) \| Mounting: Foot \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMWF20-25	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWF20-50	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWF20-75	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWF20-100	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWF20-125	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWF20-150	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWF20-200	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWF20-250	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWF25-25	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWF25-50	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWF25-75	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWF25-100	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWF25-125	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWF25-150	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWF25-200	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWF25-250	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWF30-25	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWF30-50	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWF30-75	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWF30-100	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWF30-125	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWF30-150	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWF30-200	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWF30-250	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWF40-25	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWF40-50	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWF40-75	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWF40-100	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWF40-125	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWF40-150	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWF40-200	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWF40-250	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWFN20-25	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWFN20-50	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWFN20-75	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWFN20-100	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWFN20-125	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWFN20-150	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWFN20-200	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWFN20-250	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWFN20-300	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWFN25-25	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWFN25-50	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWFN25-75	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWFN25-100	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWFN25-125	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWFN25-150	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWFN25-200	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWFN25-250	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWFN25-300	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWFN30-25	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWFN30-50	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWFN30-75	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWFN30-100	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWFN30-125	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWFN30-150	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWFN30-200	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWFN30-250	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWFN30-300	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWFN40-25	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWFN40-50	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWFN40-75	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWFN40-100	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWFN40-125	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWFN40-150	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWFN40-200	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWFN40-250	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWFN40-300	Magnet: Built-in (switch ready) \| Mounting: Flange \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMWT20-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWT20-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWT20-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWT20-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWT20-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWT20-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWT20-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWT20-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWT25-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWT25-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWT25-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWT25-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWT25-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWT25-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWT25-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWT25-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWT30-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWT30-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWT30-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWT30-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWT30-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWT30-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWT30-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWT30-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWT40-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWT40-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWT40-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWT40-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWT40-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWT40-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWT40-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWT40-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWTN20-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWTN20-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWTN20-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWTN20-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWTN20-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWTN20-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWTN20-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWTN20-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWTN20-300	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWTN25-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWTN25-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWTN25-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWTN25-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWTN25-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWTN25-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWTN25-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWTN25-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWTN25-300	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWTN30-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWTN30-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWTN30-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWTN30-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWTN30-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWTN30-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWTN30-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWTN30-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWTN30-300	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWTN40-25	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWTN40-50	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWTN40-75	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWTN40-100	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWTN40-125	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWTN40-150	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWTN40-200	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWTN40-250	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWTN40-300	Magnet: Built-in (switch ready) \| Mounting: Head-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	2B-TCDMWU20-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWU20-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWU20-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWU20-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWU20-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWU20-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWU20-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWU20-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWU25-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWU25-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWU25-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWU25-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWU25-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWU25-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWU25-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWU25-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWU30-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWU30-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWU30-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWU30-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWU30-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWU30-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWU30-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWU30-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWU40-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWU40-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWU40-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWU40-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWU40-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWU40-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWU40-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWU40-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Lubricated \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWUN20-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWUN20-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWUN20-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWUN20-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWUN20-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWUN20-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWUN20-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWUN20-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWUN20-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 20 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWUN25-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWUN25-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWUN25-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWUN25-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWUN25-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWUN25-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWUN25-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWUN25-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWUN25-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 25 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWUN30-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 25 mm \| Port: Rc1/8
	2B-TCDMWUN30-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 50 mm \| Port: Rc1/8
	2B-TCDMWUN30-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 75 mm \| Port: Rc1/8
	2B-TCDMWUN30-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 100 mm \| Port: Rc1/8
	2B-TCDMWUN30-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 125 mm \| Port: Rc1/8
	2B-TCDMWUN30-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 150 mm \| Port: Rc1/8
	2B-TCDMWUN30-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 200 mm \| Port: Rc1/8
	2B-TCDMWUN30-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 250 mm \| Port: Rc1/8
	2B-TCDMWUN30-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 30 mm \| Stroke: 300 mm \| Port: Rc1/8
	2B-TCDMWUN40-25	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	2B-TCDMWUN40-50	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	2B-TCDMWUN40-75	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	2B-TCDMWUN40-100	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	2B-TCDMWUN40-125	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	2B-TCDMWUN40-150	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	2B-TCDMWUN40-200	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	2B-TCDMWUN40-250	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	2B-TCDMWUN40-300	Magnet: Built-in (switch ready) \| Mounting: Rod-end trunnion \| Lubrication: Non-lube \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

TPC 2B-TCMW Double Rod Compact Cylinder, Battery Industry
