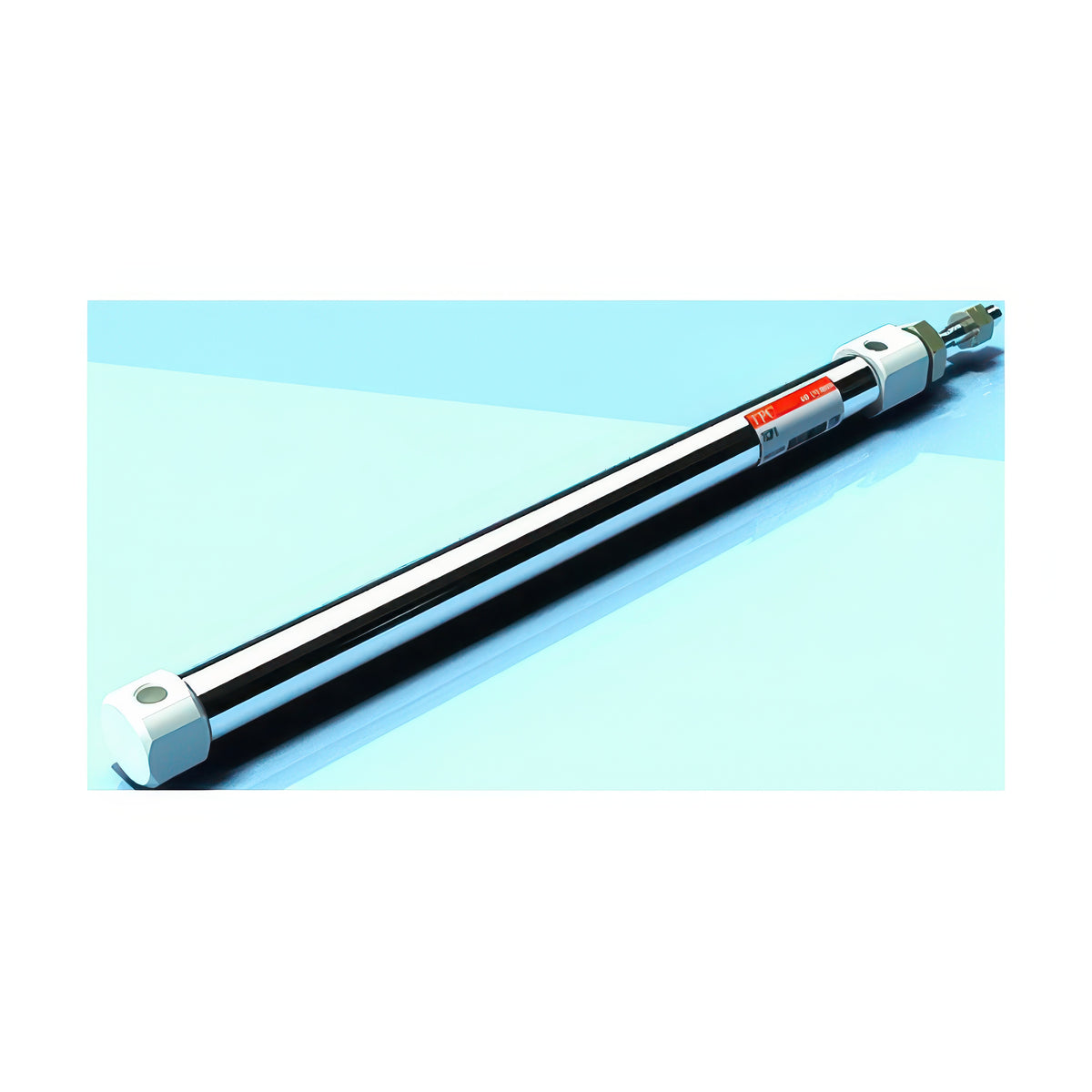

TPC 2B-TCP1 Mini Cylinder (Secondary Battery Compatible)

TPC 2B-TCP1 Mini Cylinder (Secondary Battery Compatible)

TPC 2B-TCP1 series mini round-body cylinders for secondary battery production lines, in double acting single rod, double rod (TCP1W) and single acting versions, bores 6, 10 and 16 mm.

Key features

  • 2B prefix version for secondary battery manufacturing, with restricted use of copper and zinc materials
  • Specifications and outer dimensions identical to the standard TCP1 / TCP1W series
  • Double acting single rod, double acting double rod (W) and single acting S/T versions
  • Mounting styles B, L, F and D (D for bore 10 and 16 only; double rod B, L, F)
  • Some options are not available for the 2B series (e.g. XC16 freeze-resistant)

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Ambient and fluid temperature 5 to 60 C
Cushion Rubber cushion
Lubrication Not required
Port size M5x0.8
Source TPC Mechatronics catalog TCP1(Series)241031.pdf, p. 1-8
2B-TCP1B6-5 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm
2B-TCP1B6-10 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm
2B-TCP1B6-15 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
2B-TCP1B6-20 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm
2B-TCP1B6-25 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm
2B-TCP1B6-30 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
2B-TCP1B6-35 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 35 mm
2B-TCP1B6-40 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 40 mm
2B-TCP1B6-45 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
2B-TCP1B6-50 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 50 mm
2B-TCP1B6-60 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
2B-TCP1B6-75 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 75 mm
2B-TCP1B6-100 Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 100 mm
2B-TCP1L6-5 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 5 mm
2B-TCP1L6-10 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 10 mm
2B-TCP1L6-15 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 15 mm
2B-TCP1L6-20 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 20 mm
2B-TCP1L6-25 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 25 mm
2B-TCP1L6-30 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 30 mm
2B-TCP1L6-35 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 35 mm
2B-TCP1L6-40 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 40 mm
2B-TCP1L6-45 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 45 mm
2B-TCP1L6-50 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 50 mm
2B-TCP1L6-60 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 60 mm
2B-TCP1L6-75 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 75 mm
2B-TCP1L6-100 Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 100 mm
2B-TCP1F6-5 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 5 mm
2B-TCP1F6-10 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 10 mm
2B-TCP1F6-15 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm
2B-TCP1F6-20 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 20 mm
2B-TCP1F6-25 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 25 mm
2B-TCP1F6-30 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm
2B-TCP1F6-35 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 35 mm
2B-TCP1F6-40 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 40 mm
2B-TCP1F6-45 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm
2B-TCP1F6-50 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 50 mm
2B-TCP1F6-60 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm
2B-TCP1F6-75 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 75 mm
2B-TCP1F6-100 Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 100 mm
2B-TCP1B10-5 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm
2B-TCP1B10-10 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm
2B-TCP1B10-15 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
2B-TCP1B10-20 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm
2B-TCP1B10-25 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm
2B-TCP1B10-30 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
2B-TCP1B10-35 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm
2B-TCP1B10-40 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm
2B-TCP1B10-45 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
2B-TCP1B10-50 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 50 mm
2B-TCP1B10-60 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
2B-TCP1B10-75 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 75 mm
2B-TCP1B10-100 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 100 mm
2B-TCP1B10-125 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 125 mm
2B-TCP1B10-150 Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 150 mm
2B-TCP1L10-5 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 5 mm
2B-TCP1L10-10 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 10 mm
2B-TCP1L10-15 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 15 mm
2B-TCP1L10-20 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 20 mm
2B-TCP1L10-25 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 25 mm
2B-TCP1L10-30 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 30 mm
2B-TCP1L10-35 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 35 mm
2B-TCP1L10-40 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 40 mm
2B-TCP1L10-45 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 45 mm
2B-TCP1L10-50 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 50 mm
2B-TCP1L10-60 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 60 mm
2B-TCP1L10-75 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 75 mm
2B-TCP1L10-100 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 100 mm
2B-TCP1L10-125 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 125 mm
2B-TCP1L10-150 Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 150 mm
2B-TCP1F10-5 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 5 mm
2B-TCP1F10-10 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 10 mm
2B-TCP1F10-15 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm
2B-TCP1F10-20 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 20 mm
2B-TCP1F10-25 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 25 mm
2B-TCP1F10-30 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm
2B-TCP1F10-35 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 35 mm
2B-TCP1F10-40 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 40 mm
2B-TCP1F10-45 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm
2B-TCP1F10-50 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 50 mm
2B-TCP1F10-60 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm
2B-TCP1F10-75 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 75 mm
2B-TCP1F10-100 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 100 mm
2B-TCP1F10-125 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 125 mm
2B-TCP1F10-150 Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 150 mm
2B-TCP1D10-5 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 5 mm
2B-TCP1D10-10 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 10 mm
2B-TCP1D10-15 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
2B-TCP1D10-20 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 20 mm
2B-TCP1D10-25 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 25 mm
2B-TCP1D10-30 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
2B-TCP1D10-35 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 35 mm
2B-TCP1D10-40 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 40 mm
2B-TCP1D10-45 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
2B-TCP1D10-50 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 50 mm
2B-TCP1D10-60 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
2B-TCP1D10-75 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 75 mm
2B-TCP1D10-100 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 100 mm
2B-TCP1D10-125 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 125 mm
2B-TCP1D10-150 Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 150 mm
2B-TCP1B16-5 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm
2B-TCP1B16-10 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm
2B-TCP1B16-15 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
2B-TCP1B16-20 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm
2B-TCP1B16-25 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm
2B-TCP1B16-30 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
2B-TCP1B16-35 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm
2B-TCP1B16-40 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm
2B-TCP1B16-45 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
2B-TCP1B16-50 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 50 mm
2B-TCP1B16-60 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
2B-TCP1B16-75 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 75 mm
2B-TCP1B16-100 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 100 mm
2B-TCP1B16-125 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 125 mm
2B-TCP1B16-150 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 150 mm
2B-TCP1B16-175 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 175 mm
2B-TCP1B16-200 Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 200 mm
2B-TCP1L16-5 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 5 mm
2B-TCP1L16-10 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 10 mm
2B-TCP1L16-15 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 15 mm
2B-TCP1L16-20 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 20 mm
2B-TCP1L16-25 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 25 mm
2B-TCP1L16-30 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 30 mm
2B-TCP1L16-35 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 35 mm
2B-TCP1L16-40 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 40 mm
2B-TCP1L16-45 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 45 mm
2B-TCP1L16-50 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 50 mm
2B-TCP1L16-60 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 60 mm
2B-TCP1L16-75 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 75 mm
2B-TCP1L16-100 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 100 mm
2B-TCP1L16-125 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 125 mm
2B-TCP1L16-150 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 150 mm
2B-TCP1L16-175 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 175 mm
2B-TCP1L16-200 Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 200 mm
2B-TCP1F16-5 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm
2B-TCP1F16-10 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm
2B-TCP1F16-15 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm
2B-TCP1F16-20 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 20 mm
2B-TCP1F16-25 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 25 mm
2B-TCP1F16-30 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm
2B-TCP1F16-35 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 35 mm
2B-TCP1F16-40 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 40 mm
2B-TCP1F16-45 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm
2B-TCP1F16-50 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 50 mm
2B-TCP1F16-60 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm
2B-TCP1F16-75 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 75 mm
2B-TCP1F16-100 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 100 mm
2B-TCP1F16-125 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 125 mm
2B-TCP1F16-150 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 150 mm
2B-TCP1F16-175 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 175 mm
2B-TCP1F16-200 Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 200 mm
2B-TCP1D16-5 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm
2B-TCP1D16-10 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm
2B-TCP1D16-15 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
2B-TCP1D16-20 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 20 mm
2B-TCP1D16-25 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 25 mm
2B-TCP1D16-30 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
2B-TCP1D16-35 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 35 mm
2B-TCP1D16-40 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 40 mm
2B-TCP1D16-45 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
2B-TCP1D16-50 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 50 mm
2B-TCP1D16-60 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
2B-TCP1D16-75 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 75 mm
2B-TCP1D16-100 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 100 mm
2B-TCP1D16-125 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 125 mm
2B-TCP1D16-150 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 150 mm
2B-TCP1D16-175 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 175 mm
2B-TCP1D16-200 Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 200 mm
2B-TCP1WB6-10 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm
2B-TCP1WB6-15 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
2B-TCP1WB6-20 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm
2B-TCP1WB6-25 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm
2B-TCP1WB6-30 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
2B-TCP1WB6-35 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 35 mm
2B-TCP1WB6-40 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 40 mm
2B-TCP1WB6-45 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
2B-TCP1WB6-50 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 50 mm
2B-TCP1WB6-60 Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
2B-TCP1WL6-10 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 10 mm
2B-TCP1WL6-15 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 15 mm
2B-TCP1WL6-20 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 20 mm
2B-TCP1WL6-25 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 25 mm
2B-TCP1WL6-30 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 30 mm
2B-TCP1WL6-35 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 35 mm
2B-TCP1WL6-40 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 40 mm
2B-TCP1WL6-45 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 45 mm
2B-TCP1WL6-50 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 50 mm
2B-TCP1WL6-60 Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 60 mm
2B-TCP1WF6-10 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 10 mm
2B-TCP1WF6-15 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm
2B-TCP1WF6-20 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 20 mm
2B-TCP1WF6-25 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 25 mm
2B-TCP1WF6-30 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm
2B-TCP1WF6-35 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 35 mm
2B-TCP1WF6-40 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 40 mm
2B-TCP1WF6-45 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm
2B-TCP1WF6-50 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 50 mm
2B-TCP1WF6-60 Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm
2B-TCP1WB10-10 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm
2B-TCP1WB10-15 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
2B-TCP1WB10-20 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm
2B-TCP1WB10-25 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm
2B-TCP1WB10-30 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
2B-TCP1WB10-35 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm
2B-TCP1WB10-40 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm
2B-TCP1WB10-45 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
2B-TCP1WB10-50 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 50 mm
2B-TCP1WB10-60 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
2B-TCP1WB10-75 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 75 mm
2B-TCP1WB10-100 Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 100 mm
2B-TCP1WL10-10 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 10 mm
2B-TCP1WL10-15 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 15 mm
2B-TCP1WL10-20 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 20 mm
2B-TCP1WL10-25 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 25 mm
2B-TCP1WL10-30 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 30 mm
2B-TCP1WL10-35 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 35 mm
2B-TCP1WL10-40 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 40 mm
2B-TCP1WL10-45 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 45 mm
2B-TCP1WL10-50 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 50 mm
2B-TCP1WL10-60 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 60 mm
2B-TCP1WL10-75 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 75 mm
2B-TCP1WL10-100 Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 100 mm
2B-TCP1WF10-10 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 10 mm
2B-TCP1WF10-15 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm
2B-TCP1WF10-20 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 20 mm
2B-TCP1WF10-25 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 25 mm
2B-TCP1WF10-30 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm
2B-TCP1WF10-35 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 35 mm
2B-TCP1WF10-40 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 40 mm
2B-TCP1WF10-45 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm
2B-TCP1WF10-50 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 50 mm
2B-TCP1WF10-60 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm
2B-TCP1WF10-75 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 75 mm
2B-TCP1WF10-100 Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 100 mm
2B-TCP1WB16-10 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm
2B-TCP1WB16-15 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
2B-TCP1WB16-20 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm
2B-TCP1WB16-25 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm
2B-TCP1WB16-30 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
2B-TCP1WB16-35 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm
2B-TCP1WB16-40 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm
2B-TCP1WB16-45 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
2B-TCP1WB16-50 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 50 mm
2B-TCP1WB16-60 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
2B-TCP1WB16-75 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 75 mm
2B-TCP1WB16-100 Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 100 mm
2B-TCP1WL16-10 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 10 mm
2B-TCP1WL16-15 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 15 mm
2B-TCP1WL16-20 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 20 mm
2B-TCP1WL16-25 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 25 mm
2B-TCP1WL16-30 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 30 mm
2B-TCP1WL16-35 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 35 mm
2B-TCP1WL16-40 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 40 mm
2B-TCP1WL16-45 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 45 mm
2B-TCP1WL16-50 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 50 mm
2B-TCP1WL16-60 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 60 mm
2B-TCP1WL16-75 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 75 mm
2B-TCP1WL16-100 Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 100 mm
2B-TCP1WF16-10 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm
2B-TCP1WF16-15 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm
2B-TCP1WF16-20 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 20 mm
2B-TCP1WF16-25 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 25 mm
2B-TCP1WF16-30 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm
2B-TCP1WF16-35 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 35 mm
2B-TCP1WF16-40 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 40 mm
2B-TCP1WF16-45 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm
2B-TCP1WF16-50 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 50 mm
2B-TCP1WF16-60 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm
2B-TCP1WF16-75 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 75 mm
2B-TCP1WF16-100 Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 100 mm
2B-TCP1B6-15S Type: Single acting, spring return | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
2B-TCP1B6-15T Type: Single acting, spring extend | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
2B-TCP1B6-30S Type: Single acting, spring return | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
2B-TCP1B6-30T Type: Single acting, spring extend | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
2B-TCP1B6-45S Type: Single acting, spring return | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
2B-TCP1B6-45T Type: Single acting, spring extend | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
2B-TCP1B6-60S Type: Single acting, spring return | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
2B-TCP1B6-60T Type: Single acting, spring extend | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
2B-TCP1L6-15S Type: Single acting, spring return | Mounting: Axial foot | Bore: 6 mm | Stroke: 15 mm
2B-TCP1L6-15T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 6 mm | Stroke: 15 mm
2B-TCP1L6-30S Type: Single acting, spring return | Mounting: Axial foot | Bore: 6 mm | Stroke: 30 mm
2B-TCP1L6-30T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 6 mm | Stroke: 30 mm
2B-TCP1L6-45S Type: Single acting, spring return | Mounting: Axial foot | Bore: 6 mm | Stroke: 45 mm
2B-TCP1L6-45T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 6 mm | Stroke: 45 mm
2B-TCP1L6-60S Type: Single acting, spring return | Mounting: Axial foot | Bore: 6 mm | Stroke: 60 mm
2B-TCP1L6-60T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 6 mm | Stroke: 60 mm
2B-TCP1F6-15S Type: Single acting, spring return | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm
2B-TCP1F6-15T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm
2B-TCP1F6-30S Type: Single acting, spring return | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm
2B-TCP1F6-30T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm
2B-TCP1F6-45S Type: Single acting, spring return | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm
2B-TCP1F6-45T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm
2B-TCP1F6-60S Type: Single acting, spring return | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm
2B-TCP1F6-60T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm
2B-TCP1B10-15S Type: Single acting, spring return | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
2B-TCP1B10-15T Type: Single acting, spring extend | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
2B-TCP1B10-30S Type: Single acting, spring return | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
2B-TCP1B10-30T Type: Single acting, spring extend | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
2B-TCP1B10-45S Type: Single acting, spring return | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
2B-TCP1B10-45T Type: Single acting, spring extend | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
2B-TCP1B10-60S Type: Single acting, spring return | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
2B-TCP1B10-60T Type: Single acting, spring extend | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
2B-TCP1L10-15S Type: Single acting, spring return | Mounting: Axial foot | Bore: 10 mm | Stroke: 15 mm
2B-TCP1L10-15T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 10 mm | Stroke: 15 mm
2B-TCP1L10-30S Type: Single acting, spring return | Mounting: Axial foot | Bore: 10 mm | Stroke: 30 mm
2B-TCP1L10-30T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 10 mm | Stroke: 30 mm
2B-TCP1L10-45S Type: Single acting, spring return | Mounting: Axial foot | Bore: 10 mm | Stroke: 45 mm
2B-TCP1L10-45T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 10 mm | Stroke: 45 mm
2B-TCP1L10-60S Type: Single acting, spring return | Mounting: Axial foot | Bore: 10 mm | Stroke: 60 mm
2B-TCP1L10-60T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 10 mm | Stroke: 60 mm
2B-TCP1F10-15S Type: Single acting, spring return | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm
2B-TCP1F10-15T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm
2B-TCP1F10-30S Type: Single acting, spring return | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm
2B-TCP1F10-30T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm
2B-TCP1F10-45S Type: Single acting, spring return | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm
2B-TCP1F10-45T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm
2B-TCP1F10-60S Type: Single acting, spring return | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm
2B-TCP1F10-60T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm
2B-TCP1D10-15S Type: Single acting, spring return | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
2B-TCP1D10-15T Type: Single acting, spring extend | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
2B-TCP1D10-30S Type: Single acting, spring return | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
2B-TCP1D10-30T Type: Single acting, spring extend | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
2B-TCP1D10-45S Type: Single acting, spring return | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
2B-TCP1D10-45T Type: Single acting, spring extend | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
2B-TCP1D10-60S Type: Single acting, spring return | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
2B-TCP1D10-60T Type: Single acting, spring extend | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
2B-TCP1B16-15S Type: Single acting, spring return | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
2B-TCP1B16-15T Type: Single acting, spring extend | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
2B-TCP1B16-30S Type: Single acting, spring return | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
2B-TCP1B16-30T Type: Single acting, spring extend | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
2B-TCP1B16-45S Type: Single acting, spring return | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
2B-TCP1B16-45T Type: Single acting, spring extend | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
2B-TCP1B16-60S Type: Single acting, spring return | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
2B-TCP1B16-60T Type: Single acting, spring extend | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
2B-TCP1L16-15S Type: Single acting, spring return | Mounting: Axial foot | Bore: 16 mm | Stroke: 15 mm
2B-TCP1L16-15T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 16 mm | Stroke: 15 mm
2B-TCP1L16-30S Type: Single acting, spring return | Mounting: Axial foot | Bore: 16 mm | Stroke: 30 mm
2B-TCP1L16-30T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 16 mm | Stroke: 30 mm
2B-TCP1L16-45S Type: Single acting, spring return | Mounting: Axial foot | Bore: 16 mm | Stroke: 45 mm
2B-TCP1L16-45T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 16 mm | Stroke: 45 mm
2B-TCP1L16-60S Type: Single acting, spring return | Mounting: Axial foot | Bore: 16 mm | Stroke: 60 mm
2B-TCP1L16-60T Type: Single acting, spring extend | Mounting: Axial foot | Bore: 16 mm | Stroke: 60 mm
2B-TCP1F16-15S Type: Single acting, spring return | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm
2B-TCP1F16-15T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm
2B-TCP1F16-30S Type: Single acting, spring return | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm
2B-TCP1F16-30T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm
2B-TCP1F16-45S Type: Single acting, spring return | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm
2B-TCP1F16-45T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm
2B-TCP1F16-60S Type: Single acting, spring return | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm
2B-TCP1F16-60T Type: Single acting, spring extend | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm
2B-TCP1D16-15S Type: Single acting, spring return | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
2B-TCP1D16-15T Type: Single acting, spring extend | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
2B-TCP1D16-30S Type: Single acting, spring return | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
2B-TCP1D16-30T Type: Single acting, spring extend | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
2B-TCP1D16-45S Type: Single acting, spring return | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
2B-TCP1D16-45T Type: Single acting, spring extend | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
2B-TCP1D16-60S Type: Single acting, spring return | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
2B-TCP1D16-60T Type: Single acting, spring extend | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
Pneumatic CylindersTPC Mechatronics
357 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-TCP1 Mini Cylinder (Secondary Battery Compatible)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (357)

2B-TCP1B6-5, 2B-TCP1B6-10, 2B-TCP1B6-15, 2B-TCP1B6-20, 2B-TCP1B6-25, 2B-TCP1B6-30, 2B-TCP1B6-35, 2B-TCP1B6-40, 2B-TCP1B6-45, 2B-TCP1B6-50 + 347 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
2B-TCP1B6-5Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 5 mm
2B-TCP1B6-10Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm
2B-TCP1B6-15Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
2B-TCP1B6-20Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm
2B-TCP1B6-25Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm
2B-TCP1B6-30Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
2B-TCP1B6-35Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 35 mm
2B-TCP1B6-40Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 40 mm
2B-TCP1B6-45Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
2B-TCP1B6-50Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 50 mm
2B-TCP1B6-60Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
2B-TCP1B6-75Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 75 mm
2B-TCP1B6-100Type: Double acting, single rod | Mounting: Basic | Bore: 6 mm | Stroke: 100 mm
2B-TCP1L6-5Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 5 mm
2B-TCP1L6-10Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 10 mm
2B-TCP1L6-15Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 15 mm
2B-TCP1L6-20Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 20 mm
2B-TCP1L6-25Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 25 mm
2B-TCP1L6-30Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 30 mm
2B-TCP1L6-35Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 35 mm
2B-TCP1L6-40Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 40 mm
2B-TCP1L6-45Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 45 mm
2B-TCP1L6-50Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 50 mm
2B-TCP1L6-60Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 60 mm
2B-TCP1L6-75Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 75 mm
2B-TCP1L6-100Type: Double acting, single rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 100 mm
2B-TCP1F6-5Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 5 mm
2B-TCP1F6-10Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 10 mm
2B-TCP1F6-15Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm
2B-TCP1F6-20Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 20 mm
2B-TCP1F6-25Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 25 mm
2B-TCP1F6-30Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm
2B-TCP1F6-35Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 35 mm
2B-TCP1F6-40Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 40 mm
2B-TCP1F6-45Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm
2B-TCP1F6-50Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 50 mm
2B-TCP1F6-60Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm
2B-TCP1F6-75Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 75 mm
2B-TCP1F6-100Type: Double acting, single rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 100 mm
2B-TCP1B10-5Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 5 mm
2B-TCP1B10-10Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm
2B-TCP1B10-15Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
2B-TCP1B10-20Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm
2B-TCP1B10-25Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm
2B-TCP1B10-30Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
2B-TCP1B10-35Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm
2B-TCP1B10-40Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm
2B-TCP1B10-45Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
2B-TCP1B10-50Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 50 mm
2B-TCP1B10-60Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
2B-TCP1B10-75Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 75 mm
2B-TCP1B10-100Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 100 mm
2B-TCP1B10-125Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 125 mm
2B-TCP1B10-150Type: Double acting, single rod | Mounting: Basic | Bore: 10 mm | Stroke: 150 mm
2B-TCP1L10-5Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 5 mm
2B-TCP1L10-10Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 10 mm
2B-TCP1L10-15Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 15 mm
2B-TCP1L10-20Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 20 mm
2B-TCP1L10-25Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 25 mm
2B-TCP1L10-30Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 30 mm
2B-TCP1L10-35Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 35 mm
2B-TCP1L10-40Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 40 mm
2B-TCP1L10-45Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 45 mm
2B-TCP1L10-50Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 50 mm
2B-TCP1L10-60Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 60 mm
2B-TCP1L10-75Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 75 mm
2B-TCP1L10-100Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 100 mm
2B-TCP1L10-125Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 125 mm
2B-TCP1L10-150Type: Double acting, single rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 150 mm
2B-TCP1F10-5Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 5 mm
2B-TCP1F10-10Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 10 mm
2B-TCP1F10-15Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm
2B-TCP1F10-20Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 20 mm
2B-TCP1F10-25Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 25 mm
2B-TCP1F10-30Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm
2B-TCP1F10-35Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 35 mm
2B-TCP1F10-40Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 40 mm
2B-TCP1F10-45Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm
2B-TCP1F10-50Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 50 mm
2B-TCP1F10-60Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm
2B-TCP1F10-75Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 75 mm
2B-TCP1F10-100Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 100 mm
2B-TCP1F10-125Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 125 mm
2B-TCP1F10-150Type: Double acting, single rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 150 mm
2B-TCP1D10-5Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 5 mm
2B-TCP1D10-10Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 10 mm
2B-TCP1D10-15Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
2B-TCP1D10-20Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 20 mm
2B-TCP1D10-25Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 25 mm
2B-TCP1D10-30Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
2B-TCP1D10-35Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 35 mm
2B-TCP1D10-40Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 40 mm
2B-TCP1D10-45Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
2B-TCP1D10-50Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 50 mm
2B-TCP1D10-60Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
2B-TCP1D10-75Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 75 mm
2B-TCP1D10-100Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 100 mm
2B-TCP1D10-125Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 125 mm
2B-TCP1D10-150Type: Double acting, single rod | Mounting: Double clevis | Bore: 10 mm | Stroke: 150 mm
2B-TCP1B16-5Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 5 mm
2B-TCP1B16-10Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm
2B-TCP1B16-15Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
2B-TCP1B16-20Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm
2B-TCP1B16-25Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm
2B-TCP1B16-30Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
2B-TCP1B16-35Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm
2B-TCP1B16-40Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm
2B-TCP1B16-45Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
2B-TCP1B16-50Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 50 mm
2B-TCP1B16-60Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
2B-TCP1B16-75Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 75 mm
2B-TCP1B16-100Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 100 mm
2B-TCP1B16-125Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 125 mm
2B-TCP1B16-150Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 150 mm
2B-TCP1B16-175Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 175 mm
2B-TCP1B16-200Type: Double acting, single rod | Mounting: Basic | Bore: 16 mm | Stroke: 200 mm
2B-TCP1L16-5Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 5 mm
2B-TCP1L16-10Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 10 mm
2B-TCP1L16-15Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 15 mm
2B-TCP1L16-20Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 20 mm
2B-TCP1L16-25Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 25 mm
2B-TCP1L16-30Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 30 mm
2B-TCP1L16-35Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 35 mm
2B-TCP1L16-40Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 40 mm
2B-TCP1L16-45Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 45 mm
2B-TCP1L16-50Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 50 mm
2B-TCP1L16-60Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 60 mm
2B-TCP1L16-75Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 75 mm
2B-TCP1L16-100Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 100 mm
2B-TCP1L16-125Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 125 mm
2B-TCP1L16-150Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 150 mm
2B-TCP1L16-175Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 175 mm
2B-TCP1L16-200Type: Double acting, single rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 200 mm
2B-TCP1F16-5Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 5 mm
2B-TCP1F16-10Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm
2B-TCP1F16-15Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm
2B-TCP1F16-20Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 20 mm
2B-TCP1F16-25Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 25 mm
2B-TCP1F16-30Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm
2B-TCP1F16-35Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 35 mm
2B-TCP1F16-40Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 40 mm
2B-TCP1F16-45Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm
2B-TCP1F16-50Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 50 mm
2B-TCP1F16-60Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm
2B-TCP1F16-75Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 75 mm
2B-TCP1F16-100Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 100 mm
2B-TCP1F16-125Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 125 mm
2B-TCP1F16-150Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 150 mm
2B-TCP1F16-175Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 175 mm
2B-TCP1F16-200Type: Double acting, single rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 200 mm
2B-TCP1D16-5Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 5 mm
2B-TCP1D16-10Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 10 mm
2B-TCP1D16-15Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
2B-TCP1D16-20Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 20 mm
2B-TCP1D16-25Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 25 mm
2B-TCP1D16-30Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
2B-TCP1D16-35Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 35 mm
2B-TCP1D16-40Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 40 mm
2B-TCP1D16-45Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
2B-TCP1D16-50Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 50 mm
2B-TCP1D16-60Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
2B-TCP1D16-75Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 75 mm
2B-TCP1D16-100Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 100 mm
2B-TCP1D16-125Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 125 mm
2B-TCP1D16-150Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 150 mm
2B-TCP1D16-175Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 175 mm
2B-TCP1D16-200Type: Double acting, single rod | Mounting: Double clevis | Bore: 16 mm | Stroke: 200 mm
2B-TCP1WB6-10Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 10 mm
2B-TCP1WB6-15Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
2B-TCP1WB6-20Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 20 mm
2B-TCP1WB6-25Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 25 mm
2B-TCP1WB6-30Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
2B-TCP1WB6-35Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 35 mm
2B-TCP1WB6-40Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 40 mm
2B-TCP1WB6-45Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
2B-TCP1WB6-50Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 50 mm
2B-TCP1WB6-60Type: Double acting, double rod | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
2B-TCP1WL6-10Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 10 mm
2B-TCP1WL6-15Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 15 mm
2B-TCP1WL6-20Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 20 mm
2B-TCP1WL6-25Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 25 mm
2B-TCP1WL6-30Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 30 mm
2B-TCP1WL6-35Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 35 mm
2B-TCP1WL6-40Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 40 mm
2B-TCP1WL6-45Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 45 mm
2B-TCP1WL6-50Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 50 mm
2B-TCP1WL6-60Type: Double acting, double rod | Mounting: Axial foot | Bore: 6 mm | Stroke: 60 mm
2B-TCP1WF6-10Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 10 mm
2B-TCP1WF6-15Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm
2B-TCP1WF6-20Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 20 mm
2B-TCP1WF6-25Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 25 mm
2B-TCP1WF6-30Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm
2B-TCP1WF6-35Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 35 mm
2B-TCP1WF6-40Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 40 mm
2B-TCP1WF6-45Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm
2B-TCP1WF6-50Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 50 mm
2B-TCP1WF6-60Type: Double acting, double rod | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm
2B-TCP1WB10-10Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 10 mm
2B-TCP1WB10-15Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
2B-TCP1WB10-20Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 20 mm
2B-TCP1WB10-25Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 25 mm
2B-TCP1WB10-30Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
2B-TCP1WB10-35Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 35 mm
2B-TCP1WB10-40Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 40 mm
2B-TCP1WB10-45Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
2B-TCP1WB10-50Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 50 mm
2B-TCP1WB10-60Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
2B-TCP1WB10-75Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 75 mm
2B-TCP1WB10-100Type: Double acting, double rod | Mounting: Basic | Bore: 10 mm | Stroke: 100 mm
2B-TCP1WL10-10Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 10 mm
2B-TCP1WL10-15Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 15 mm
2B-TCP1WL10-20Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 20 mm
2B-TCP1WL10-25Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 25 mm
2B-TCP1WL10-30Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 30 mm
2B-TCP1WL10-35Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 35 mm
2B-TCP1WL10-40Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 40 mm
2B-TCP1WL10-45Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 45 mm
2B-TCP1WL10-50Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 50 mm
2B-TCP1WL10-60Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 60 mm
2B-TCP1WL10-75Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 75 mm
2B-TCP1WL10-100Type: Double acting, double rod | Mounting: Axial foot | Bore: 10 mm | Stroke: 100 mm
2B-TCP1WF10-10Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 10 mm
2B-TCP1WF10-15Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm
2B-TCP1WF10-20Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 20 mm
2B-TCP1WF10-25Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 25 mm
2B-TCP1WF10-30Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm
2B-TCP1WF10-35Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 35 mm
2B-TCP1WF10-40Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 40 mm
2B-TCP1WF10-45Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm
2B-TCP1WF10-50Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 50 mm
2B-TCP1WF10-60Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm
2B-TCP1WF10-75Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 75 mm
2B-TCP1WF10-100Type: Double acting, double rod | Mounting: Rod flange | Bore: 10 mm | Stroke: 100 mm
2B-TCP1WB16-10Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 10 mm
2B-TCP1WB16-15Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
2B-TCP1WB16-20Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 20 mm
2B-TCP1WB16-25Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 25 mm
2B-TCP1WB16-30Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
2B-TCP1WB16-35Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 35 mm
2B-TCP1WB16-40Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 40 mm
2B-TCP1WB16-45Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
2B-TCP1WB16-50Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 50 mm
2B-TCP1WB16-60Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
2B-TCP1WB16-75Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 75 mm
2B-TCP1WB16-100Type: Double acting, double rod | Mounting: Basic | Bore: 16 mm | Stroke: 100 mm
2B-TCP1WL16-10Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 10 mm
2B-TCP1WL16-15Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 15 mm
2B-TCP1WL16-20Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 20 mm
2B-TCP1WL16-25Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 25 mm
2B-TCP1WL16-30Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 30 mm
2B-TCP1WL16-35Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 35 mm
2B-TCP1WL16-40Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 40 mm
2B-TCP1WL16-45Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 45 mm
2B-TCP1WL16-50Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 50 mm
2B-TCP1WL16-60Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 60 mm
2B-TCP1WL16-75Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 75 mm
2B-TCP1WL16-100Type: Double acting, double rod | Mounting: Axial foot | Bore: 16 mm | Stroke: 100 mm
2B-TCP1WF16-10Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 10 mm
2B-TCP1WF16-15Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm
2B-TCP1WF16-20Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 20 mm
2B-TCP1WF16-25Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 25 mm
2B-TCP1WF16-30Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm
2B-TCP1WF16-35Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 35 mm
2B-TCP1WF16-40Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 40 mm
2B-TCP1WF16-45Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm
2B-TCP1WF16-50Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 50 mm
2B-TCP1WF16-60Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm
2B-TCP1WF16-75Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 75 mm
2B-TCP1WF16-100Type: Double acting, double rod | Mounting: Rod flange | Bore: 16 mm | Stroke: 100 mm
2B-TCP1B6-15SType: Single acting, spring return | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
2B-TCP1B6-15TType: Single acting, spring extend | Mounting: Basic | Bore: 6 mm | Stroke: 15 mm
2B-TCP1B6-30SType: Single acting, spring return | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
2B-TCP1B6-30TType: Single acting, spring extend | Mounting: Basic | Bore: 6 mm | Stroke: 30 mm
2B-TCP1B6-45SType: Single acting, spring return | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
2B-TCP1B6-45TType: Single acting, spring extend | Mounting: Basic | Bore: 6 mm | Stroke: 45 mm
2B-TCP1B6-60SType: Single acting, spring return | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
2B-TCP1B6-60TType: Single acting, spring extend | Mounting: Basic | Bore: 6 mm | Stroke: 60 mm
2B-TCP1L6-15SType: Single acting, spring return | Mounting: Axial foot | Bore: 6 mm | Stroke: 15 mm
2B-TCP1L6-15TType: Single acting, spring extend | Mounting: Axial foot | Bore: 6 mm | Stroke: 15 mm
2B-TCP1L6-30SType: Single acting, spring return | Mounting: Axial foot | Bore: 6 mm | Stroke: 30 mm
2B-TCP1L6-30TType: Single acting, spring extend | Mounting: Axial foot | Bore: 6 mm | Stroke: 30 mm
2B-TCP1L6-45SType: Single acting, spring return | Mounting: Axial foot | Bore: 6 mm | Stroke: 45 mm
2B-TCP1L6-45TType: Single acting, spring extend | Mounting: Axial foot | Bore: 6 mm | Stroke: 45 mm
2B-TCP1L6-60SType: Single acting, spring return | Mounting: Axial foot | Bore: 6 mm | Stroke: 60 mm
2B-TCP1L6-60TType: Single acting, spring extend | Mounting: Axial foot | Bore: 6 mm | Stroke: 60 mm
2B-TCP1F6-15SType: Single acting, spring return | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm
2B-TCP1F6-15TType: Single acting, spring extend | Mounting: Rod flange | Bore: 6 mm | Stroke: 15 mm
2B-TCP1F6-30SType: Single acting, spring return | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm
2B-TCP1F6-30TType: Single acting, spring extend | Mounting: Rod flange | Bore: 6 mm | Stroke: 30 mm
2B-TCP1F6-45SType: Single acting, spring return | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm
2B-TCP1F6-45TType: Single acting, spring extend | Mounting: Rod flange | Bore: 6 mm | Stroke: 45 mm
2B-TCP1F6-60SType: Single acting, spring return | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm
2B-TCP1F6-60TType: Single acting, spring extend | Mounting: Rod flange | Bore: 6 mm | Stroke: 60 mm
2B-TCP1B10-15SType: Single acting, spring return | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
2B-TCP1B10-15TType: Single acting, spring extend | Mounting: Basic | Bore: 10 mm | Stroke: 15 mm
2B-TCP1B10-30SType: Single acting, spring return | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
2B-TCP1B10-30TType: Single acting, spring extend | Mounting: Basic | Bore: 10 mm | Stroke: 30 mm
2B-TCP1B10-45SType: Single acting, spring return | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
2B-TCP1B10-45TType: Single acting, spring extend | Mounting: Basic | Bore: 10 mm | Stroke: 45 mm
2B-TCP1B10-60SType: Single acting, spring return | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
2B-TCP1B10-60TType: Single acting, spring extend | Mounting: Basic | Bore: 10 mm | Stroke: 60 mm
2B-TCP1L10-15SType: Single acting, spring return | Mounting: Axial foot | Bore: 10 mm | Stroke: 15 mm
2B-TCP1L10-15TType: Single acting, spring extend | Mounting: Axial foot | Bore: 10 mm | Stroke: 15 mm
2B-TCP1L10-30SType: Single acting, spring return | Mounting: Axial foot | Bore: 10 mm | Stroke: 30 mm
2B-TCP1L10-30TType: Single acting, spring extend | Mounting: Axial foot | Bore: 10 mm | Stroke: 30 mm
2B-TCP1L10-45SType: Single acting, spring return | Mounting: Axial foot | Bore: 10 mm | Stroke: 45 mm
2B-TCP1L10-45TType: Single acting, spring extend | Mounting: Axial foot | Bore: 10 mm | Stroke: 45 mm
2B-TCP1L10-60SType: Single acting, spring return | Mounting: Axial foot | Bore: 10 mm | Stroke: 60 mm
2B-TCP1L10-60TType: Single acting, spring extend | Mounting: Axial foot | Bore: 10 mm | Stroke: 60 mm
2B-TCP1F10-15SType: Single acting, spring return | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm
2B-TCP1F10-15TType: Single acting, spring extend | Mounting: Rod flange | Bore: 10 mm | Stroke: 15 mm
2B-TCP1F10-30SType: Single acting, spring return | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm
2B-TCP1F10-30TType: Single acting, spring extend | Mounting: Rod flange | Bore: 10 mm | Stroke: 30 mm
2B-TCP1F10-45SType: Single acting, spring return | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm
2B-TCP1F10-45TType: Single acting, spring extend | Mounting: Rod flange | Bore: 10 mm | Stroke: 45 mm
2B-TCP1F10-60SType: Single acting, spring return | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm
2B-TCP1F10-60TType: Single acting, spring extend | Mounting: Rod flange | Bore: 10 mm | Stroke: 60 mm
2B-TCP1D10-15SType: Single acting, spring return | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
2B-TCP1D10-15TType: Single acting, spring extend | Mounting: Double clevis | Bore: 10 mm | Stroke: 15 mm
2B-TCP1D10-30SType: Single acting, spring return | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
2B-TCP1D10-30TType: Single acting, spring extend | Mounting: Double clevis | Bore: 10 mm | Stroke: 30 mm
2B-TCP1D10-45SType: Single acting, spring return | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
2B-TCP1D10-45TType: Single acting, spring extend | Mounting: Double clevis | Bore: 10 mm | Stroke: 45 mm
2B-TCP1D10-60SType: Single acting, spring return | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
2B-TCP1D10-60TType: Single acting, spring extend | Mounting: Double clevis | Bore: 10 mm | Stroke: 60 mm
2B-TCP1B16-15SType: Single acting, spring return | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
2B-TCP1B16-15TType: Single acting, spring extend | Mounting: Basic | Bore: 16 mm | Stroke: 15 mm
2B-TCP1B16-30SType: Single acting, spring return | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
2B-TCP1B16-30TType: Single acting, spring extend | Mounting: Basic | Bore: 16 mm | Stroke: 30 mm
2B-TCP1B16-45SType: Single acting, spring return | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
2B-TCP1B16-45TType: Single acting, spring extend | Mounting: Basic | Bore: 16 mm | Stroke: 45 mm
2B-TCP1B16-60SType: Single acting, spring return | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
2B-TCP1B16-60TType: Single acting, spring extend | Mounting: Basic | Bore: 16 mm | Stroke: 60 mm
2B-TCP1L16-15SType: Single acting, spring return | Mounting: Axial foot | Bore: 16 mm | Stroke: 15 mm
2B-TCP1L16-15TType: Single acting, spring extend | Mounting: Axial foot | Bore: 16 mm | Stroke: 15 mm
2B-TCP1L16-30SType: Single acting, spring return | Mounting: Axial foot | Bore: 16 mm | Stroke: 30 mm
2B-TCP1L16-30TType: Single acting, spring extend | Mounting: Axial foot | Bore: 16 mm | Stroke: 30 mm
2B-TCP1L16-45SType: Single acting, spring return | Mounting: Axial foot | Bore: 16 mm | Stroke: 45 mm
2B-TCP1L16-45TType: Single acting, spring extend | Mounting: Axial foot | Bore: 16 mm | Stroke: 45 mm
2B-TCP1L16-60SType: Single acting, spring return | Mounting: Axial foot | Bore: 16 mm | Stroke: 60 mm
2B-TCP1L16-60TType: Single acting, spring extend | Mounting: Axial foot | Bore: 16 mm | Stroke: 60 mm
2B-TCP1F16-15SType: Single acting, spring return | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm
2B-TCP1F16-15TType: Single acting, spring extend | Mounting: Rod flange | Bore: 16 mm | Stroke: 15 mm
2B-TCP1F16-30SType: Single acting, spring return | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm
2B-TCP1F16-30TType: Single acting, spring extend | Mounting: Rod flange | Bore: 16 mm | Stroke: 30 mm
2B-TCP1F16-45SType: Single acting, spring return | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm
2B-TCP1F16-45TType: Single acting, spring extend | Mounting: Rod flange | Bore: 16 mm | Stroke: 45 mm
2B-TCP1F16-60SType: Single acting, spring return | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm
2B-TCP1F16-60TType: Single acting, spring extend | Mounting: Rod flange | Bore: 16 mm | Stroke: 60 mm
2B-TCP1D16-15SType: Single acting, spring return | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
2B-TCP1D16-15TType: Single acting, spring extend | Mounting: Double clevis | Bore: 16 mm | Stroke: 15 mm
2B-TCP1D16-30SType: Single acting, spring return | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
2B-TCP1D16-30TType: Single acting, spring extend | Mounting: Double clevis | Bore: 16 mm | Stroke: 30 mm
2B-TCP1D16-45SType: Single acting, spring return | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
2B-TCP1D16-45TType: Single acting, spring extend | Mounting: Double clevis | Bore: 16 mm | Stroke: 45 mm
2B-TCP1D16-60SType: Single acting, spring return | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm
2B-TCP1D16-60TType: Single acting, spring extend | Mounting: Double clevis | Bore: 16 mm | Stroke: 60 mm

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
