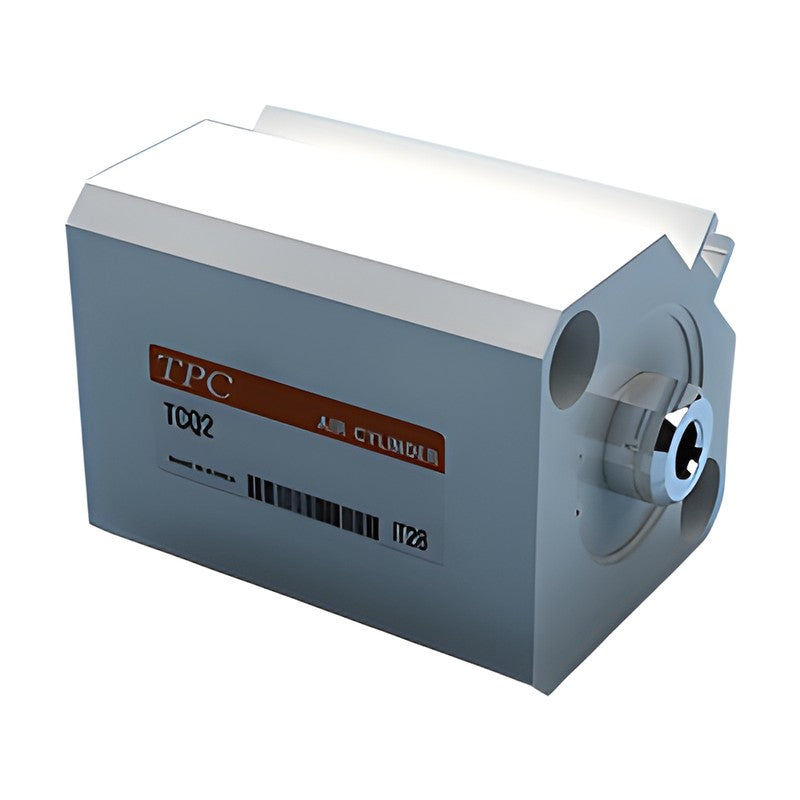

TPC 2B-TCQ2 Thin Cylinder, Battery Industry (Bore 12-25 mm)

TPC 2B-TCQ2 series ultra-thin single-rod pneumatic cylinder in the 2B secondary-battery (copper/zinc-restricted) specification, double acting in bores ø12 to ø25 mm and single acting in ø20 mm, with or without a built-in auto switch magnet (2B-TCDQ2).

Key features

2B prefix: secondary-battery industry version; specifications and outer dimensions identical to the standard TCQ2
Ultra-thin, space-saving body for compact machine design
Mounting code letters: through-hole B (standard), both ends tapped A, double clevis D, rod flange F, head flange G, foot L (brackets shipped unassembled)
Double acting (D) in ø12-ø25 mm; single acting spring return (S) or spring extend (T) in ø20 mm, 5 and 10 mm strokes
Order options not multiplied: rubber cushion C (double acting), male rod end M, head spigot F, knuckle joint I/Y, D-A73K auto switch (suffix S = 1 pc, n = n pcs; L = 3 m lead)
Intermediate strokes from 3 mm in 1 mm steps by spacer in a standard-stroke cylinder; long strokes over 50 mm via TC180 (ø20) / TC335 (ø25)

Specifications

Medium	Air (non-lube)
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Min. operating pressure	0.07 MPa (ø12, ø16); 0.05 MPa (ø20, ø25)
Ambient and fluid temperature	5 to 60 °C (double acting); -10 to 70 °C, no freezing (single acting)
Piston speed	50 to 500 mm/s
Port size	M5×0.8
Stroke tolerance	+1.0/0 mm
Rod end	Female thread (standard); male thread option M
Mounting brackets	QL- foot, QF- flange, QD- clevis, QI-/QY- knuckle, QP- pin (-012 to -025)
Source	TPC Mechatronics catalog 2B-TCQ2 Series (230918).pdf, p. 214-225, 236-249

2B-TCQ2B12-5D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2B12-10D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2B12-15D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2B12-20D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2B12-25D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2B12-30D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2B16-5D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2B16-10D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2B16-15D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2B16-20D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2B16-25D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2B16-30D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2B20-5D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2B20-10D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2B20-15D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2B20-20D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2B20-25D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2B20-30D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2B20-35D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2B20-40D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2B20-45D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2B20-50D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2B20-75D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2B20-100D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2B25-5D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2B25-10D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2B25-15D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2B25-20D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2B25-25D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2B25-30D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2B25-35D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2B25-40D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2B25-45D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2B25-50D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2B25-75D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2B25-100D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2A12-5D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2A12-10D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2A12-15D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2A12-20D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2A12-25D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2A12-30D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2A16-5D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2A16-10D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2A16-15D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2A16-20D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2A16-25D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2A16-30D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2A20-5D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2A20-10D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2A20-15D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2A20-20D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2A20-25D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2A20-30D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2A20-35D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2A20-40D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2A20-45D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2A20-50D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2A20-75D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2A20-100D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2A25-5D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2A25-10D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2A25-15D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2A25-20D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2A25-25D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2A25-30D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2A25-35D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2A25-40D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2A25-45D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2A25-50D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2A25-75D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2A25-100D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2D12-5D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2D12-10D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2D12-15D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2D12-20D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2D12-25D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2D12-30D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2D16-5D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2D16-10D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2D16-15D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2D16-20D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2D16-25D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2D16-30D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2D20-5D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2D20-10D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2D20-15D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2D20-20D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2D20-25D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2D20-30D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2D20-35D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2D20-40D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2D20-45D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2D20-50D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2D20-75D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2D20-100D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2D25-5D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2D25-10D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2D25-15D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2D25-20D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2D25-25D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2D25-30D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2D25-35D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2D25-40D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2D25-45D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2D25-50D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2D25-75D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2D25-100D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2F12-5D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2F12-10D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2F12-15D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2F12-20D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2F12-25D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2F12-30D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2F16-5D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2F16-10D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2F16-15D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2F16-20D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2F16-25D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2F16-30D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2F20-5D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2F20-10D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2F20-15D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2F20-20D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2F20-25D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2F20-30D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2F20-35D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2F20-40D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2F20-45D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2F20-50D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2F20-75D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2F20-100D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2F25-5D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2F25-10D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2F25-15D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2F25-20D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2F25-25D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2F25-30D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2F25-35D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2F25-40D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2F25-45D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2F25-50D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2F25-75D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2F25-100D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2G12-5D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2G12-10D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2G12-15D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2G12-20D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2G12-25D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2G12-30D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2G16-5D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2G16-10D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2G16-15D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2G16-20D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2G16-25D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2G16-30D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2G20-5D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2G20-10D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2G20-15D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2G20-20D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2G20-25D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2G20-30D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2G20-35D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2G20-40D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2G20-45D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2G20-50D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2G20-75D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2G20-100D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2G25-5D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2G25-10D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2G25-15D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2G25-20D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2G25-25D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2G25-30D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2G25-35D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2G25-40D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2G25-45D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2G25-50D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2G25-75D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2G25-100D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2L12-5D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2L12-10D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2L12-15D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2L12-20D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2L12-25D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2L12-30D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2L16-5D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2L16-10D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2L16-15D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2L16-20D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2L16-25D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2L16-30D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2L20-5D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2L20-10D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2L20-15D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2L20-20D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2L20-25D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2L20-30D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2L20-35D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2L20-40D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2L20-45D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2L20-50D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2L20-75D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2L20-100D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2L25-5D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2L25-10D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2L25-15D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
2B-TCQ2L25-20D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
2B-TCQ2L25-25D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
2B-TCQ2L25-30D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
2B-TCQ2L25-35D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
2B-TCQ2L25-40D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
2B-TCQ2L25-45D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
2B-TCQ2L25-50D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
2B-TCQ2L25-75D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
2B-TCQ2L25-100D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
2B-TCQ2B20-5S		Action: Single acting, spring return \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2B20-10S		Action: Single acting, spring return \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2B20-5T		Action: Single acting, spring extend \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2B20-10T		Action: Single acting, spring extend \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2A20-5S		Action: Single acting, spring return \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2A20-10S		Action: Single acting, spring return \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2A20-5T		Action: Single acting, spring extend \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2A20-10T		Action: Single acting, spring extend \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2D20-5S		Action: Single acting, spring return \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2D20-10S		Action: Single acting, spring return \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2D20-5T		Action: Single acting, spring extend \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2D20-10T		Action: Single acting, spring extend \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2F20-5S		Action: Single acting, spring return \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2F20-10S		Action: Single acting, spring return \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2F20-5T		Action: Single acting, spring extend \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2F20-10T		Action: Single acting, spring extend \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2G20-5S		Action: Single acting, spring return \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2G20-10S		Action: Single acting, spring return \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2G20-5T		Action: Single acting, spring extend \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2G20-10T		Action: Single acting, spring extend \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2L20-5S		Action: Single acting, spring return \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2L20-10S		Action: Single acting, spring return \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCQ2L20-5T		Action: Single acting, spring extend \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
2B-TCQ2L20-10T		Action: Single acting, spring extend \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
2B-TCDQ2B12-5D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2B12-10D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2B12-15D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2B12-20D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2B12-25D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2B12-30D		Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2B16-5D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2B16-10D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2B16-15D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2B16-20D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2B16-25D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2B16-30D		Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-5D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-10D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-15D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-20D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-25D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-30D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-35D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-40D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-45D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-50D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-75D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-100D		Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-5D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-10D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-15D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-20D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-25D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-30D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-35D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-40D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-45D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-50D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-75D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2B25-100D		Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2A12-5D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2A12-10D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2A12-15D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2A12-20D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2A12-25D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2A12-30D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2A16-5D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2A16-10D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2A16-15D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2A16-20D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2A16-25D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2A16-30D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-5D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-10D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-15D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-20D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-25D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-30D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-35D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-40D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-45D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-50D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-75D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-100D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-5D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-10D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-15D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-20D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-25D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-30D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-35D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-40D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-45D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-50D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-75D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2A25-100D		Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2D12-5D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2D12-10D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2D12-15D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2D12-20D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2D12-25D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2D12-30D		Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2D16-5D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2D16-10D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2D16-15D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2D16-20D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2D16-25D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2D16-30D		Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-5D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-10D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-15D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-20D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-25D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-30D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-35D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-40D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-45D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-50D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-75D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-100D		Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-5D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-10D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-15D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-20D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-25D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-30D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-35D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-40D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-45D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-50D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-75D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2D25-100D		Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2F12-5D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2F12-10D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2F12-15D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2F12-20D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2F12-25D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2F12-30D		Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2F16-5D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2F16-10D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2F16-15D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2F16-20D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2F16-25D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2F16-30D		Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-5D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-10D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-15D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-20D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-25D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-30D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-35D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-40D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-45D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-50D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-75D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-100D		Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-5D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-10D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-15D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-20D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-25D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-30D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-35D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-40D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-45D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-50D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-75D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2F25-100D		Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2G12-5D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2G12-10D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2G12-15D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2G12-20D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2G12-25D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2G12-30D		Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2G16-5D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2G16-10D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2G16-15D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2G16-20D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2G16-25D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2G16-30D		Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-5D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-10D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-15D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-20D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-25D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-30D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-35D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-40D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-45D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-50D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-75D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-100D		Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-5D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-10D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-15D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-20D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-25D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-30D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-35D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-40D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-45D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-50D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-75D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2G25-100D		Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2L12-5D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2L12-10D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2L12-15D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2L12-20D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2L12-25D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2L12-30D		Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2L16-5D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2L16-10D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2L16-15D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2L16-20D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2L16-25D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2L16-30D		Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-5D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-10D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-15D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-20D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-25D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-30D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-35D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-40D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-45D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-50D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-75D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-100D		Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-5D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-10D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-15D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-20D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-25D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-30D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-35D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-40D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-45D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-50D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-75D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
2B-TCDQ2L25-100D		Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-5S		Action: Single acting, spring return \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-10S		Action: Single acting, spring return \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-5T		Action: Single acting, spring extend \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2B20-10T		Action: Single acting, spring extend \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-5S		Action: Single acting, spring return \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-10S		Action: Single acting, spring return \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-5T		Action: Single acting, spring extend \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2A20-10T		Action: Single acting, spring extend \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-5S		Action: Single acting, spring return \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-10S		Action: Single acting, spring return \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-5T		Action: Single acting, spring extend \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2D20-10T		Action: Single acting, spring extend \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-5S		Action: Single acting, spring return \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-10S		Action: Single acting, spring return \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-5T		Action: Single acting, spring extend \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2F20-10T		Action: Single acting, spring extend \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-5S		Action: Single acting, spring return \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-10S		Action: Single acting, spring return \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-5T		Action: Single acting, spring extend \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2G20-10T		Action: Single acting, spring extend \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-5S		Action: Single acting, spring return \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-10S		Action: Single acting, spring return \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-5T		Action: Single acting, spring extend \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
2B-TCDQ2L20-10T		Action: Single acting, spring extend \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes

Pneumatic CylindersTPC Mechatronics

480 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 2B-TCQ2 Thin Cylinder, Battery Industry (Bore 12-25 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (480)

2B-TCQ2B12-5D, 2B-TCQ2B12-10D, 2B-TCQ2B12-15D, 2B-TCQ2B12-20D, 2B-TCQ2B12-25D, 2B-TCQ2B12-30D, 2B-TCQ2B16-5D, 2B-TCQ2B16-10D, 2B-TCQ2B16-15D, 2B-TCQ2B16-20D + 470 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	2B-TCQ2B12-5D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2B12-10D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2B12-15D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2B12-20D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2B12-25D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2B12-30D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2B16-5D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2B16-10D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2B16-15D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2B16-20D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2B16-25D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2B16-30D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2B20-5D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2B20-10D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2B20-15D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2B20-20D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2B20-25D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2B20-30D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2B20-35D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2B20-40D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2B20-45D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2B20-50D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2B20-75D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2B20-100D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2B25-5D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2B25-10D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2B25-15D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2B25-20D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2B25-25D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2B25-30D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2B25-35D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2B25-40D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2B25-45D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2B25-50D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2B25-75D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2B25-100D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2A12-5D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2A12-10D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2A12-15D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2A12-20D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2A12-25D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2A12-30D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2A16-5D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2A16-10D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2A16-15D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2A16-20D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2A16-25D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2A16-30D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2A20-5D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2A20-10D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2A20-15D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2A20-20D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2A20-25D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2A20-30D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2A20-35D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2A20-40D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2A20-45D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2A20-50D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2A20-75D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2A20-100D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2A25-5D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2A25-10D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2A25-15D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2A25-20D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2A25-25D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2A25-30D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2A25-35D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2A25-40D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2A25-45D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2A25-50D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2A25-75D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2A25-100D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2D12-5D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2D12-10D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2D12-15D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2D12-20D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2D12-25D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2D12-30D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2D16-5D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2D16-10D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2D16-15D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2D16-20D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2D16-25D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2D16-30D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2D20-5D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2D20-10D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2D20-15D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2D20-20D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2D20-25D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2D20-30D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2D20-35D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2D20-40D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2D20-45D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2D20-50D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2D20-75D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2D20-100D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2D25-5D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2D25-10D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2D25-15D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2D25-20D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2D25-25D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2D25-30D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2D25-35D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2D25-40D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2D25-45D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2D25-50D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2D25-75D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2D25-100D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2F12-5D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2F12-10D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2F12-15D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2F12-20D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2F12-25D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2F12-30D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2F16-5D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2F16-10D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2F16-15D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2F16-20D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2F16-25D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2F16-30D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2F20-5D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2F20-10D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2F20-15D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2F20-20D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2F20-25D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2F20-30D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2F20-35D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2F20-40D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2F20-45D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2F20-50D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2F20-75D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2F20-100D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2F25-5D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2F25-10D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2F25-15D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2F25-20D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2F25-25D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2F25-30D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2F25-35D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2F25-40D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2F25-45D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2F25-50D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2F25-75D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2F25-100D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2G12-5D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2G12-10D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2G12-15D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2G12-20D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2G12-25D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2G12-30D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2G16-5D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2G16-10D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2G16-15D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2G16-20D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2G16-25D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2G16-30D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2G20-5D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2G20-10D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2G20-15D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2G20-20D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2G20-25D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2G20-30D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2G20-35D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2G20-40D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2G20-45D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2G20-50D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2G20-75D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2G20-100D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2G25-5D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2G25-10D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2G25-15D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2G25-20D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2G25-25D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2G25-30D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2G25-35D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2G25-40D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2G25-45D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2G25-50D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2G25-75D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2G25-100D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2L12-5D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2L12-10D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2L12-15D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2L12-20D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2L12-25D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2L12-30D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2L16-5D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2L16-10D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2L16-15D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2L16-20D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2L16-25D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2L16-30D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2L20-5D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2L20-10D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2L20-15D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2L20-20D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2L20-25D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2L20-30D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2L20-35D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2L20-40D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2L20-45D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2L20-50D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2L20-75D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2L20-100D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2L25-5D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2L25-10D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2L25-15D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: No
	2B-TCQ2L25-20D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: No
	2B-TCQ2L25-25D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: No
	2B-TCQ2L25-30D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: No
	2B-TCQ2L25-35D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: No
	2B-TCQ2L25-40D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: No
	2B-TCQ2L25-45D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: No
	2B-TCQ2L25-50D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: No
	2B-TCQ2L25-75D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: No
	2B-TCQ2L25-100D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: No
	2B-TCQ2B20-5S	Action: Single acting, spring return \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2B20-10S	Action: Single acting, spring return \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2B20-5T	Action: Single acting, spring extend \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2B20-10T	Action: Single acting, spring extend \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2A20-5S	Action: Single acting, spring return \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2A20-10S	Action: Single acting, spring return \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2A20-5T	Action: Single acting, spring extend \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2A20-10T	Action: Single acting, spring extend \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2D20-5S	Action: Single acting, spring return \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2D20-10S	Action: Single acting, spring return \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2D20-5T	Action: Single acting, spring extend \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2D20-10T	Action: Single acting, spring extend \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2F20-5S	Action: Single acting, spring return \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2F20-10S	Action: Single acting, spring return \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2F20-5T	Action: Single acting, spring extend \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2F20-10T	Action: Single acting, spring extend \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2G20-5S	Action: Single acting, spring return \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2G20-10S	Action: Single acting, spring return \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2G20-5T	Action: Single acting, spring extend \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2G20-10T	Action: Single acting, spring extend \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2L20-5S	Action: Single acting, spring return \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2L20-10S	Action: Single acting, spring return \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCQ2L20-5T	Action: Single acting, spring extend \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: No
	2B-TCQ2L20-10T	Action: Single acting, spring extend \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: No
	2B-TCDQ2B12-5D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2B12-10D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2B12-15D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2B12-20D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2B12-25D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2B12-30D	Action: Double acting \| Mounting: Through-hole \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2B16-5D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2B16-10D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2B16-15D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2B16-20D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2B16-25D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2B16-30D	Action: Double acting \| Mounting: Through-hole \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-5D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-10D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-15D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-20D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-25D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-30D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-35D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-40D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-45D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-50D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-75D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-100D	Action: Double acting \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-5D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-10D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-15D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-20D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-25D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-30D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-35D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-40D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-45D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-50D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-75D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2B25-100D	Action: Double acting \| Mounting: Through-hole \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2A12-5D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2A12-10D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2A12-15D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2A12-20D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2A12-25D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2A12-30D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2A16-5D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2A16-10D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2A16-15D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2A16-20D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2A16-25D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2A16-30D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-5D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-10D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-15D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-20D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-25D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-30D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-35D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-40D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-45D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-50D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-75D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-100D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-5D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-10D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-15D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-20D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-25D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-30D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-35D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-40D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-45D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-50D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-75D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2A25-100D	Action: Double acting \| Mounting: Both ends tapped \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2D12-5D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2D12-10D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2D12-15D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2D12-20D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2D12-25D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2D12-30D	Action: Double acting \| Mounting: Double clevis \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2D16-5D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2D16-10D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2D16-15D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2D16-20D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2D16-25D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2D16-30D	Action: Double acting \| Mounting: Double clevis \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-5D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-10D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-15D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-20D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-25D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-30D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-35D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-40D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-45D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-50D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-75D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-100D	Action: Double acting \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-5D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-10D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-15D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-20D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-25D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-30D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-35D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-40D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-45D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-50D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-75D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2D25-100D	Action: Double acting \| Mounting: Double clevis \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2F12-5D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2F12-10D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2F12-15D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2F12-20D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2F12-25D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2F12-30D	Action: Double acting \| Mounting: Rod flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2F16-5D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2F16-10D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2F16-15D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2F16-20D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2F16-25D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2F16-30D	Action: Double acting \| Mounting: Rod flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-5D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-10D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-15D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-20D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-25D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-30D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-35D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-40D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-45D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-50D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-75D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-100D	Action: Double acting \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-5D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-10D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-15D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-20D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-25D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-30D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-35D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-40D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-45D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-50D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-75D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2F25-100D	Action: Double acting \| Mounting: Rod flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2G12-5D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2G12-10D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2G12-15D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2G12-20D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2G12-25D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2G12-30D	Action: Double acting \| Mounting: Head flange \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2G16-5D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2G16-10D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2G16-15D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2G16-20D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2G16-25D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2G16-30D	Action: Double acting \| Mounting: Head flange \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-5D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-10D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-15D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-20D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-25D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-30D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-35D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-40D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-45D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-50D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-75D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-100D	Action: Double acting \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-5D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-10D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-15D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-20D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-25D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-30D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-35D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-40D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-45D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-50D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-75D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2G25-100D	Action: Double acting \| Mounting: Head flange \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2L12-5D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2L12-10D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2L12-15D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2L12-20D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2L12-25D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2L12-30D	Action: Double acting \| Mounting: Foot \| Bore: ø12 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2L16-5D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2L16-10D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2L16-15D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2L16-20D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2L16-25D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2L16-30D	Action: Double acting \| Mounting: Foot \| Bore: ø16 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-5D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-10D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-15D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-20D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-25D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-30D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-35D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-40D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-45D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-50D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-75D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-100D	Action: Double acting \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-5D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-10D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-15D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 15 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-20D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 20 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-25D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 25 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-30D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 30 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-35D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 35 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-40D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 40 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-45D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 45 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-50D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 50 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-75D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 75 mm \| Auto switch magnet: Yes
	2B-TCDQ2L25-100D	Action: Double acting \| Mounting: Foot \| Bore: ø25 mm \| Stroke: 100 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-5S	Action: Single acting, spring return \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-10S	Action: Single acting, spring return \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-5T	Action: Single acting, spring extend \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2B20-10T	Action: Single acting, spring extend \| Mounting: Through-hole \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-5S	Action: Single acting, spring return \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-10S	Action: Single acting, spring return \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-5T	Action: Single acting, spring extend \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2A20-10T	Action: Single acting, spring extend \| Mounting: Both ends tapped \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-5S	Action: Single acting, spring return \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-10S	Action: Single acting, spring return \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-5T	Action: Single acting, spring extend \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2D20-10T	Action: Single acting, spring extend \| Mounting: Double clevis \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-5S	Action: Single acting, spring return \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-10S	Action: Single acting, spring return \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-5T	Action: Single acting, spring extend \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2F20-10T	Action: Single acting, spring extend \| Mounting: Rod flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-5S	Action: Single acting, spring return \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-10S	Action: Single acting, spring return \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-5T	Action: Single acting, spring extend \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2G20-10T	Action: Single acting, spring extend \| Mounting: Head flange \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-5S	Action: Single acting, spring return \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-10S	Action: Single acting, spring return \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-5T	Action: Single acting, spring extend \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 5 mm \| Auto switch magnet: Yes
	2B-TCDQ2L20-10T	Action: Single acting, spring extend \| Mounting: Foot \| Bore: ø20 mm \| Stroke: 10 mm \| Auto switch magnet: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

TPC 2B-TCQ2 Thin Cylinder, Battery Industry (Bore 12-25 mm)
