TPC 5L-TCP1 Mini Cylinder Brackets, Nuts and Knuckle Joints

TPC 5L-TCP1 Mini Cylinder Brackets, Nuts and Knuckle Joints

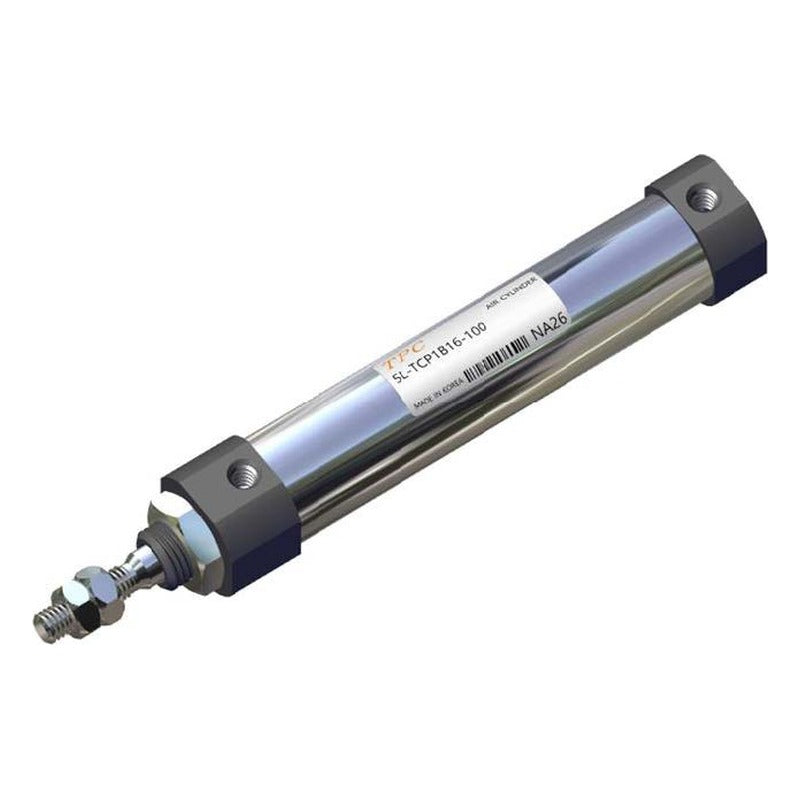

Mounting brackets, nuts, knuckle joints and auto switch brackets for the TPC 5L-TCP1 long-life mini cylinder, bore 6, 10 and 16 mm.

Key features

  • Foot (-19) and flange (-20) brackets for bore 6, 10 and 16 mm
  • Band-mount auto switch brackets 5L-TC1P-006/-010/-016 for D-C7 K type switches
  • Single (-17) and double (-18) knuckle joints for bore 10 and 16 mm (M4x0.7 / M5x0.8)
  • Mounting nuts (-13A, M6/M8/M10x1.0) and rod end nuts (-13B, M3/M4/M5)
  • Knuckle pin TC1P010-23A

Specifications

Compatible series 5L-TCP1, 5L-2B-TCP1
Brand TPC Mechatronics
Rod end thread M3x0.5 (6), M4x0.7 (10), M5x0.8 (16)
Mounting thread M6x1 (6), M8x1 (10), M10x1 (16)
Knuckle options Bore 10 and 16 only
Source TPC Mechatronics catalog 5L-TCP1_Series(250915).pdf, p. 2, 6
5L-TC1P006-19 Part: Foot bracket | Bore: 6 mm | Use: Cylinder mounting
5L-TC1P010-19 Part: Foot bracket | Bore: 10 mm | Use: Cylinder mounting
5L-TC1P016-19 Part: Foot bracket | Bore: 16 mm | Use: Cylinder mounting
5L-TC1P006-20 Part: Flange bracket | Bore: 6 mm | Use: Cylinder mounting
5L-TC1P010-20 Part: Flange bracket | Bore: 10 mm | Use: Cylinder mounting
5L-TC1P016-20 Part: Flange bracket | Bore: 16 mm | Use: Cylinder mounting
5L-TC1P-006 Part: Auto switch bracket (band) | Bore: 6 mm | Use: For D-C7 K switch
5L-TC1P-010 Part: Auto switch bracket (band) | Bore: 10 mm | Use: For D-C7 K switch
5L-TC1P-016 Part: Auto switch bracket (band) | Bore: 16 mm | Use: For D-C7 K switch
5L-TC1P010-17 Part: Single knuckle joint (I) | Bore: 10 mm | Use: Rod end
5L-TC1P016-17 Part: Single knuckle joint (I) | Bore: 16 mm | Use: Rod end
5L-TC1P010-18 Part: Double knuckle joint (Y) | Bore: 10 mm | Use: Rod end
5L-TC1P016-18 Part: Double knuckle joint (Y) | Bore: 16 mm | Use: Rod end
5L-TC1P006-13A Part: Mounting nut | Bore: 6 mm | Use: Rod cover mounting
5L-TC1P010-13A Part: Mounting nut | Bore: 10 mm | Use: Rod cover mounting
5L-TC1P016-13A Part: Mounting nut | Bore: 16 mm | Use: Rod cover mounting
5L-TC1P006-13B Part: Rod end nut | Bore: 6 mm | Use: Rod end
5L-TC1P010-13B Part: Rod end nut | Bore: 10 mm | Use: Rod end
5L-TC1P016-13B Part: Rod end nut | Bore: 16 mm | Use: Rod end
TC1P010-23A Part: Knuckle pin | Bore: 10 mm | Use: Knuckle joint pin
Cylinder AccessoriesTPC Mechatronics
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC 5L-TCP1 Mini Cylinder Brackets, Nuts and Knuckle Joints

Brand TPC Mechatronics·Cylinder Accessories

Available part numbers (20)

5L-TC1P006-19, 5L-TC1P010-19, 5L-TC1P016-19, 5L-TC1P006-20, 5L-TC1P010-20, 5L-TC1P016-20, 5L-TC1P-006, 5L-TC1P-010, 5L-TC1P-016, 5L-TC1P010-17 + 10 more — see full table ↓
