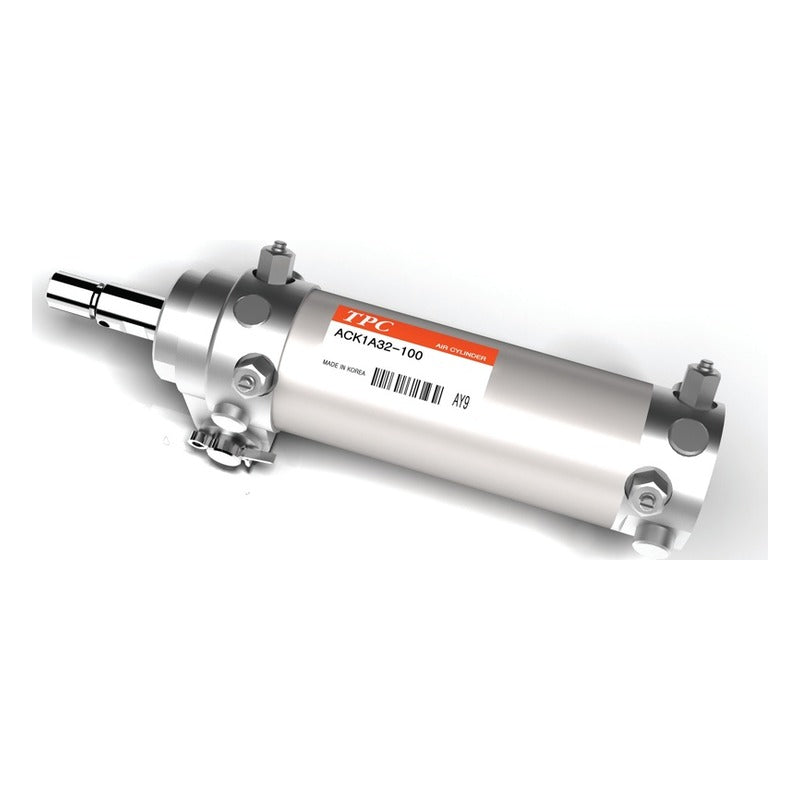

TPC ACK1 / ABK Clamp Cylinder Mounting Accessories

Replacement and optional mounting parts for TPC ACK1 and ABK clamp cylinders: limit switch brackets, dogs, feet, pins and knuckle joints.

Key features

Limit switch bracket and dog mount at any position using the hex socket bolts on the cover
Foot brackets for bore 80 ACK1 and bore 40-63 ABK cylinders
Clevis and knuckle pins matched to clevis width type A/B or C
Double knuckle joint for ACK1 bore 80 C type (A/B use the 50/63 knuckle)

Specifications

Brand	TPC Mechatronics
Product group	Clamp cylinder accessories
Material	Steel
Supply	Ordered separately or by cylinder suffix B/D/19
Compatible cylinders	ACK1, ACKP1, ACKG1, ABK
Source	TPC Mechatronics catalog 74. ACK1_series.pdf, p. 2-4

ACK1A080-48-001		Item: Limit switch bracket \| Series: ACK1 \| Applies to: Bore 80, A/B/C type
ACKA080-48-001		Item: Limit switch bracket \| Series: ACK1 \| Applies to: Bore 80 (spec-page number)
ACK1A080-42-001		Item: Dog fitting \| Series: ACK1 \| Applies to: Bore 80, C type
ACKA080-42-001		Item: Dog fitting \| Series: ACK1 \| Applies to: Bore 80 (spec-page number)
TCKM040-42-16070		Item: Dog fitting \| Series: ACK1, ABK \| Applies to: ACK1 80 A/B; ABK 40-63
ACK1A080-19-001		Item: Foot \| Series: ACK1 \| Applies to: Bore 80, A/B/C type
ACKA080-19-001		Item: Foot \| Series: ACK1 \| Applies to: Bore 80 (spec-page number)
ACK1A080-23-001		Item: Clevis pin \| Series: ACK1 \| Applies to: Bore 80, C type
ACK1A080-23-003		Item: Clevis pin \| Series: ACK1 \| Applies to: Bore 80, A/B type
ACK1A080-23-002		Item: Knuckle pin \| Series: ACK1 \| Applies to: Bore 80, C type
TC1K040-23-54806		Item: Knuckle pin \| Series: ACK1 \| Applies to: Bore 80, A/B type
ACK1A080-18-001		Item: Double knuckle joint \| Series: ACK1 \| Applies to: Bore 80, C type
TCKM040-48-16070A		Item: Limit switch bracket \| Series: ABK \| Applies to: ABKA/ABKB, bore 40-63
TCKA-19		Item: Foot \| Series: ABK \| Applies to: ABKA/ABKB, bore 40-63

Cylinder AccessoriesTPC Mechatronics

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC ACK1 / ABK Clamp Cylinder Mounting Accessories

Brand TPC Mechatronics·Cylinder Accessories

Available part numbers (14)

ACK1A080-48-001, ACKA080-48-001, ACK1A080-42-001, ACKA080-42-001, TCKM040-42-16070, ACK1A080-19-001, ACKA080-19-001, ACK1A080-23-001, ACK1A080-23-003, ACK1A080-23-002 + 4 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
