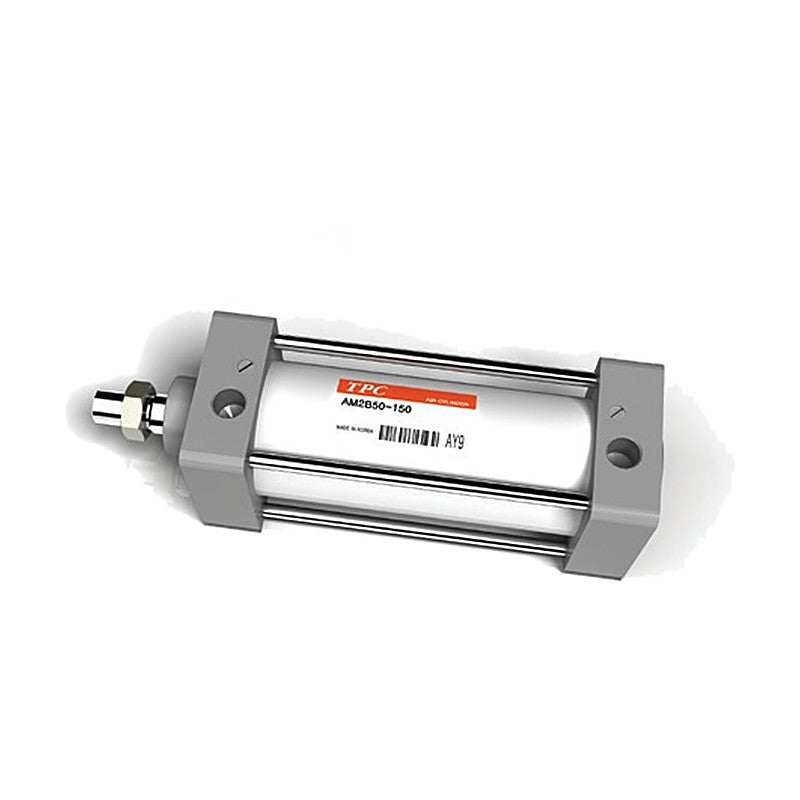

TPC AM2 Medium Tie-Rod Cylinder, Low Hydraulic (Bore 40-100 mm)

TPC AM2 series low-hydraulic-pressure (H) medium-bore double-acting tie-rod cylinder for hydraulic oil service, bore 40 to 100 mm.

Key features

Low-pressure hydraulic version with SKY rod packing, RPS piston packing and SCB scraper
Socket-type built-in tie rods for clean design; longer bush engagement reduces rod deflection
Mountings: basic, foot, rod/head flange, single/double clevis, center trunnion, rod-end/head-end trunnion
Magnet version (AMD2) accepts D-A54K, W2PL (strong field), W8/W9/W20H/W30H switches
Cushion R/H/N, bellows J/K, trunnion bracket N, rod end I/Y, port tap K, XC16 and auto switches ordered as suffixes, not listed

Specifications

Action	Double acting, single rod
Type	H: low hydraulic pressure
Fluid	Hydraulic oil
Min. operating pressure	0.1 MPa
Piston speed	0.5 to 300 mm/s
Cushion	None
Proof pressure	1.5 MPa
Max. operating pressure	1.0 MPa
Ambient and fluid temperature	5 to 60°C
Rod thread tolerance	KS class 2
Stroke tolerance	+1.0 (to 250), +1.4 (to 1000), +1.8 mm
Source	TPC Mechatronics catalog AM2 series (standard) 240724, p. 1-13

AM2BH40-25		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2BH40-50		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2BH40-75		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2BH40-100		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2BH40-125		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2BH40-150		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2BH40-175		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2BH40-200		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2BH40-250		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2BH40-300		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2BH40-350		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2BH40-400		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2BH40-450		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2BH40-500		Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2BH50-25		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2BH50-50		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2BH50-75		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2BH50-100		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2BH50-125		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2BH50-150		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2BH50-175		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2BH50-200		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2BH50-250		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2BH50-300		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2BH50-350		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2BH50-400		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2BH50-450		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2BH50-500		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2BH50-600		Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2BH63-25		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2BH63-50		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2BH63-75		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2BH63-100		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2BH63-125		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2BH63-150		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2BH63-175		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2BH63-200		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2BH63-250		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2BH63-300		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2BH63-350		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2BH63-400		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2BH63-450		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2BH63-500		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2BH63-600		Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2BH80-25		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2BH80-50		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2BH80-75		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2BH80-100		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2BH80-125		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2BH80-150		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2BH80-175		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2BH80-200		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2BH80-250		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2BH80-300		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2BH80-350		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2BH80-400		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2BH80-450		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2BH80-500		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2BH80-600		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2BH80-700		Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2BH100-25		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2BH100-50		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2BH100-75		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2BH100-100		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2BH100-125		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2BH100-150		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2BH100-175		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2BH100-200		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2BH100-250		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2BH100-300		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2BH100-350		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2BH100-400		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2BH100-450		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2BH100-500		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2BH100-600		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2BH100-700		Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2LH40-25		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2LH40-50		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2LH40-75		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2LH40-100		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2LH40-125		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2LH40-150		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2LH40-175		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2LH40-200		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2LH40-250		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2LH40-300		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2LH40-350		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2LH40-400		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2LH40-450		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2LH40-500		Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2LH50-25		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2LH50-50		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2LH50-75		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2LH50-100		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2LH50-125		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2LH50-150		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2LH50-175		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2LH50-200		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2LH50-250		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2LH50-300		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2LH50-350		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2LH50-400		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2LH50-450		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2LH50-500		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2LH50-600		Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2LH63-25		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2LH63-50		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2LH63-75		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2LH63-100		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2LH63-125		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2LH63-150		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2LH63-175		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2LH63-200		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2LH63-250		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2LH63-300		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2LH63-350		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2LH63-400		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2LH63-450		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2LH63-500		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2LH63-600		Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2LH80-25		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2LH80-50		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2LH80-75		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2LH80-100		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2LH80-125		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2LH80-150		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2LH80-175		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2LH80-200		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2LH80-250		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2LH80-300		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2LH80-350		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2LH80-400		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2LH80-450		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2LH80-500		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2LH80-600		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2LH80-700		Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2LH100-25		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2LH100-50		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2LH100-75		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2LH100-100		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2LH100-125		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2LH100-150		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2LH100-175		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2LH100-200		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2LH100-250		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2LH100-300		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2LH100-350		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2LH100-400		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2LH100-450		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2LH100-500		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2LH100-600		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2LH100-700		Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2FH40-25		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2FH40-50		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2FH40-75		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2FH40-100		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2FH40-125		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2FH40-150		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2FH40-175		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2FH40-200		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2FH40-250		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2FH40-300		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2FH40-350		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2FH40-400		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2FH40-450		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2FH40-500		Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2FH50-25		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2FH50-50		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2FH50-75		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2FH50-100		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2FH50-125		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2FH50-150		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2FH50-175		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2FH50-200		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2FH50-250		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2FH50-300		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2FH50-350		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2FH50-400		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2FH50-450		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2FH50-500		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2FH50-600		Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2FH63-25		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2FH63-50		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2FH63-75		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2FH63-100		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2FH63-125		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2FH63-150		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2FH63-175		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2FH63-200		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2FH63-250		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2FH63-300		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2FH63-350		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2FH63-400		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2FH63-450		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2FH63-500		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2FH63-600		Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2FH80-25		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2FH80-50		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2FH80-75		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2FH80-100		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2FH80-125		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2FH80-150		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2FH80-175		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2FH80-200		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2FH80-250		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2FH80-300		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2FH80-350		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2FH80-400		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2FH80-450		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2FH80-500		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2FH80-600		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2FH80-700		Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2FH100-25		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2FH100-50		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2FH100-75		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2FH100-100		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2FH100-125		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2FH100-150		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2FH100-175		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2FH100-200		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2FH100-250		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2FH100-300		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2FH100-350		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2FH100-400		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2FH100-450		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2FH100-500		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2FH100-600		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2FH100-700		Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2GH40-25		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2GH40-50		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2GH40-75		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2GH40-100		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2GH40-125		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2GH40-150		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2GH40-175		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2GH40-200		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2GH40-250		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2GH40-300		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2GH40-350		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2GH40-400		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2GH40-450		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2GH40-500		Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2GH50-25		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2GH50-50		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2GH50-75		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2GH50-100		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2GH50-125		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2GH50-150		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2GH50-175		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2GH50-200		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2GH50-250		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2GH50-300		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2GH50-350		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2GH50-400		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2GH50-450		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2GH50-500		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2GH50-600		Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2GH63-25		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2GH63-50		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2GH63-75		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2GH63-100		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2GH63-125		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2GH63-150		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2GH63-175		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2GH63-200		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2GH63-250		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2GH63-300		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2GH63-350		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2GH63-400		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2GH63-450		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2GH63-500		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2GH63-600		Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2GH80-25		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2GH80-50		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2GH80-75		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2GH80-100		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2GH80-125		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2GH80-150		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2GH80-175		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2GH80-200		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2GH80-250		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2GH80-300		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2GH80-350		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2GH80-400		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2GH80-450		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2GH80-500		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2GH80-600		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2GH80-700		Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2GH100-25		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2GH100-50		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2GH100-75		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2GH100-100		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2GH100-125		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2GH100-150		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2GH100-175		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2GH100-200		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2GH100-250		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2GH100-300		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2GH100-350		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2GH100-400		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2GH100-450		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2GH100-500		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2GH100-600		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2GH100-700		Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2CH40-25		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2CH40-50		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2CH40-75		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2CH40-100		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2CH40-125		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2CH40-150		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2CH40-175		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2CH40-200		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2CH40-250		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2CH40-300		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2CH40-350		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2CH40-400		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2CH40-450		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2CH40-500		Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2CH50-25		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2CH50-50		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2CH50-75		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2CH50-100		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2CH50-125		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2CH50-150		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2CH50-175		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2CH50-200		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2CH50-250		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2CH50-300		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2CH50-350		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2CH50-400		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2CH50-450		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2CH50-500		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2CH50-600		Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2CH63-25		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2CH63-50		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2CH63-75		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2CH63-100		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2CH63-125		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2CH63-150		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2CH63-175		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2CH63-200		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2CH63-250		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2CH63-300		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2CH63-350		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2CH63-400		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2CH63-450		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2CH63-500		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2CH63-600		Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2CH80-25		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2CH80-50		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2CH80-75		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2CH80-100		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2CH80-125		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2CH80-150		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2CH80-175		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2CH80-200		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2CH80-250		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2CH80-300		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2CH80-350		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2CH80-400		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2CH80-450		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2CH80-500		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2CH80-600		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2CH80-700		Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2CH100-25		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2CH100-50		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2CH100-75		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2CH100-100		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2CH100-125		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2CH100-150		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2CH100-175		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2CH100-200		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2CH100-250		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2CH100-300		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2CH100-350		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2CH100-400		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2CH100-450		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2CH100-500		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2CH100-600		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2CH100-700		Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2TH40-25		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2TH40-50		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2TH40-75		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2TH40-100		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2TH40-125		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2TH40-150		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2TH40-175		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2TH40-200		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2TH40-250		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2TH40-300		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2TH40-350		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2TH40-400		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2TH40-450		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2TH40-500		Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2TH50-25		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2TH50-50		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2TH50-75		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2TH50-100		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2TH50-125		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2TH50-150		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2TH50-175		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2TH50-200		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2TH50-250		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2TH50-300		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2TH50-350		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2TH50-400		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2TH50-450		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2TH50-500		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2TH50-600		Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2TH63-25		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2TH63-50		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2TH63-75		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2TH63-100		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2TH63-125		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2TH63-150		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2TH63-175		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2TH63-200		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2TH63-250		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2TH63-300		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2TH63-350		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2TH63-400		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2TH63-450		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2TH63-500		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2TH63-600		Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2TH80-25		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2TH80-50		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2TH80-75		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2TH80-100		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2TH80-125		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2TH80-150		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2TH80-175		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2TH80-200		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2TH80-250		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2TH80-300		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2TH80-350		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2TH80-400		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2TH80-450		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2TH80-500		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2TH80-600		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2TH80-700		Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2TH100-25		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2TH100-50		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2TH100-75		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2TH100-100		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2TH100-125		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2TH100-150		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2TH100-175		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2TH100-200		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2TH100-250		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2TH100-300		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2TH100-350		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2TH100-400		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2TH100-450		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2TH100-500		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2TH100-600		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2TH100-700		Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2DH40-25		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2DH40-50		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2DH40-75		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2DH40-100		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2DH40-125		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2DH40-150		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2DH40-175		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2DH40-200		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2DH40-250		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2DH40-300		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2DH40-350		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2DH40-400		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2DH40-450		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2DH40-500		Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2DH50-25		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2DH50-50		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2DH50-75		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2DH50-100		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2DH50-125		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2DH50-150		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2DH50-175		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2DH50-200		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2DH50-250		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2DH50-300		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2DH50-350		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2DH50-400		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2DH50-450		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2DH50-500		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2DH50-600		Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2DH63-25		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2DH63-50		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2DH63-75		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2DH63-100		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2DH63-125		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2DH63-150		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2DH63-175		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2DH63-200		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2DH63-250		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2DH63-300		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2DH63-350		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2DH63-400		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2DH63-450		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2DH63-500		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2DH63-600		Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2DH80-25		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2DH80-50		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2DH80-75		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2DH80-100		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2DH80-125		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2DH80-150		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2DH80-175		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2DH80-200		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2DH80-250		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2DH80-300		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2DH80-350		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2DH80-400		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2DH80-450		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2DH80-500		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2DH80-600		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2DH80-700		Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2DH100-25		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2DH100-50		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2DH100-75		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2DH100-100		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2DH100-125		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2DH100-150		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2DH100-175		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2DH100-200		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2DH100-250		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2DH100-300		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2DH100-350		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2DH100-400		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2DH100-450		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2DH100-500		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2DH100-600		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2DH100-700		Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2TAH40-25		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2TAH40-50		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2TAH40-75		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2TAH40-100		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2TAH40-125		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2TAH40-150		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2TAH40-175		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2TAH40-200		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2TAH40-250		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2TAH40-300		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2TAH40-350		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2TAH40-400		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2TAH40-450		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2TAH40-500		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2TAH50-25		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2TAH50-50		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2TAH50-75		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2TAH50-100		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2TAH50-125		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2TAH50-150		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2TAH50-175		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2TAH50-200		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2TAH50-250		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2TAH50-300		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2TAH50-350		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2TAH50-400		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2TAH50-450		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2TAH50-500		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2TAH50-600		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2TAH63-25		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2TAH63-50		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2TAH63-75		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2TAH63-100		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2TAH63-125		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2TAH63-150		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2TAH63-175		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2TAH63-200		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2TAH63-250		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2TAH63-300		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2TAH63-350		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2TAH63-400		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2TAH63-450		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2TAH63-500		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2TAH63-600		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2TAH80-25		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2TAH80-50		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2TAH80-75		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2TAH80-100		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2TAH80-125		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2TAH80-150		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2TAH80-175		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2TAH80-200		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2TAH80-250		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2TAH80-300		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2TAH80-350		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2TAH80-400		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2TAH80-450		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2TAH80-500		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2TAH80-600		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2TAH80-700		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2TAH100-25		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2TAH100-50		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2TAH100-75		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2TAH100-100		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2TAH100-125		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2TAH100-150		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2TAH100-175		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2TAH100-200		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2TAH100-250		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2TAH100-300		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2TAH100-350		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2TAH100-400		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2TAH100-450		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2TAH100-500		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2TAH100-600		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2TAH100-700		Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2TBH40-25		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AM2TBH40-50		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AM2TBH40-75		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AM2TBH40-100		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AM2TBH40-125		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AM2TBH40-150		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AM2TBH40-175		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AM2TBH40-200		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AM2TBH40-250		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AM2TBH40-300		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AM2TBH40-350		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AM2TBH40-400		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AM2TBH40-450		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AM2TBH40-500		Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AM2TBH50-25		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2TBH50-50		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2TBH50-75		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2TBH50-100		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2TBH50-125		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2TBH50-150		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2TBH50-175		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2TBH50-200		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2TBH50-250		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2TBH50-300		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2TBH50-350		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2TBH50-400		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2TBH50-450		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2TBH50-500		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2TBH50-600		Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2TBH63-25		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AM2TBH63-50		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AM2TBH63-75		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AM2TBH63-100		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AM2TBH63-125		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AM2TBH63-150		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AM2TBH63-175		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AM2TBH63-200		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AM2TBH63-250		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AM2TBH63-300		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AM2TBH63-350		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AM2TBH63-400		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AM2TBH63-450		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AM2TBH63-500		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AM2TBH63-600		Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AM2TBH80-25		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2TBH80-50		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2TBH80-75		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2TBH80-100		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2TBH80-125		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2TBH80-150		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2TBH80-175		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2TBH80-200		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2TBH80-250		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2TBH80-300		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2TBH80-350		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2TBH80-400		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2TBH80-450		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2TBH80-500		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2TBH80-600		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2TBH80-700		Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AM2TBH100-25		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AM2TBH100-50		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AM2TBH100-75		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AM2TBH100-100		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AM2TBH100-125		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AM2TBH100-150		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AM2TBH100-175		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AM2TBH100-200		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AM2TBH100-250		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AM2TBH100-300		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AM2TBH100-350		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AM2TBH100-400		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AM2TBH100-450		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AM2TBH100-500		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AM2TBH100-600		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AM2TBH100-700		Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2BH40-25		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2BH40-50		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2BH40-75		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2BH40-100		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2BH40-125		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2BH40-150		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2BH40-175		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2BH40-200		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2BH40-250		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2BH40-300		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2BH40-350		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2BH40-400		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2BH40-450		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2BH40-500		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2BH50-25		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2BH50-50		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2BH50-75		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2BH50-100		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2BH50-125		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2BH50-150		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2BH50-175		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2BH50-200		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2BH50-250		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2BH50-300		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2BH50-350		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2BH50-400		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2BH50-450		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2BH50-500		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2BH50-600		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2BH63-25		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2BH63-50		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2BH63-75		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2BH63-100		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2BH63-125		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2BH63-150		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2BH63-175		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2BH63-200		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2BH63-250		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2BH63-300		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2BH63-350		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2BH63-400		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2BH63-450		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2BH63-500		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2BH63-600		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2BH80-25		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2BH80-50		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2BH80-75		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2BH80-100		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2BH80-125		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2BH80-150		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2BH80-175		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2BH80-200		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2BH80-250		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2BH80-300		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2BH80-350		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2BH80-400		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2BH80-450		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2BH80-500		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2BH80-600		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2BH80-700		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2BH100-25		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2BH100-50		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2BH100-75		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2BH100-100		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2BH100-125		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2BH100-150		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2BH100-175		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2BH100-200		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2BH100-250		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2BH100-300		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2BH100-350		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2BH100-400		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2BH100-450		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2BH100-500		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2BH100-600		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2BH100-700		Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2LH40-25		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2LH40-50		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2LH40-75		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2LH40-100		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2LH40-125		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2LH40-150		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2LH40-175		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2LH40-200		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2LH40-250		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2LH40-300		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2LH40-350		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2LH40-400		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2LH40-450		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2LH40-500		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2LH50-25		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2LH50-50		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2LH50-75		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2LH50-100		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2LH50-125		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2LH50-150		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2LH50-175		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2LH50-200		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2LH50-250		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2LH50-300		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2LH50-350		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2LH50-400		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2LH50-450		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2LH50-500		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2LH50-600		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2LH63-25		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2LH63-50		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2LH63-75		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2LH63-100		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2LH63-125		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2LH63-150		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2LH63-175		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2LH63-200		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2LH63-250		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2LH63-300		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2LH63-350		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2LH63-400		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2LH63-450		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2LH63-500		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2LH63-600		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2LH80-25		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2LH80-50		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2LH80-75		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2LH80-100		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2LH80-125		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2LH80-150		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2LH80-175		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2LH80-200		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2LH80-250		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2LH80-300		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2LH80-350		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2LH80-400		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2LH80-450		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2LH80-500		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2LH80-600		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2LH80-700		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2LH100-25		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2LH100-50		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2LH100-75		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2LH100-100		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2LH100-125		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2LH100-150		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2LH100-175		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2LH100-200		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2LH100-250		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2LH100-300		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2LH100-350		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2LH100-400		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2LH100-450		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2LH100-500		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2LH100-600		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2LH100-700		Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2FH40-25		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2FH40-50		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2FH40-75		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2FH40-100		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2FH40-125		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2FH40-150		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2FH40-175		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2FH40-200		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2FH40-250		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2FH40-300		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2FH40-350		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2FH40-400		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2FH40-450		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2FH40-500		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2FH50-25		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2FH50-50		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2FH50-75		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2FH50-100		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2FH50-125		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2FH50-150		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2FH50-175		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2FH50-200		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2FH50-250		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2FH50-300		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2FH50-350		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2FH50-400		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2FH50-450		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2FH50-500		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2FH50-600		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2FH63-25		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2FH63-50		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2FH63-75		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2FH63-100		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2FH63-125		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2FH63-150		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2FH63-175		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2FH63-200		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2FH63-250		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2FH63-300		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2FH63-350		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2FH63-400		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2FH63-450		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2FH63-500		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2FH63-600		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2FH80-25		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2FH80-50		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2FH80-75		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2FH80-100		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2FH80-125		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2FH80-150		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2FH80-175		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2FH80-200		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2FH80-250		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2FH80-300		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2FH80-350		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2FH80-400		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2FH80-450		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2FH80-500		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2FH80-600		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2FH80-700		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2FH100-25		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2FH100-50		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2FH100-75		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2FH100-100		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2FH100-125		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2FH100-150		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2FH100-175		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2FH100-200		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2FH100-250		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2FH100-300		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2FH100-350		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2FH100-400		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2FH100-450		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2FH100-500		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2FH100-600		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2FH100-700		Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2GH40-25		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2GH40-50		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2GH40-75		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2GH40-100		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2GH40-125		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2GH40-150		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2GH40-175		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2GH40-200		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2GH40-250		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2GH40-300		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2GH40-350		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2GH40-400		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2GH40-450		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2GH40-500		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2GH50-25		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2GH50-50		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2GH50-75		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2GH50-100		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2GH50-125		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2GH50-150		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2GH50-175		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2GH50-200		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2GH50-250		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2GH50-300		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2GH50-350		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2GH50-400		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2GH50-450		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2GH50-500		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2GH50-600		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2GH63-25		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2GH63-50		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2GH63-75		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2GH63-100		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2GH63-125		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2GH63-150		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2GH63-175		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2GH63-200		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2GH63-250		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2GH63-300		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2GH63-350		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2GH63-400		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2GH63-450		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2GH63-500		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2GH63-600		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2GH80-25		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2GH80-50		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2GH80-75		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2GH80-100		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2GH80-125		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2GH80-150		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2GH80-175		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2GH80-200		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2GH80-250		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2GH80-300		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2GH80-350		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2GH80-400		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2GH80-450		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2GH80-500		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2GH80-600		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2GH80-700		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2GH100-25		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2GH100-50		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2GH100-75		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2GH100-100		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2GH100-125		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2GH100-150		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2GH100-175		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2GH100-200		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2GH100-250		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2GH100-300		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2GH100-350		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2GH100-400		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2GH100-450		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2GH100-500		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2GH100-600		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2GH100-700		Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2CH40-25		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2CH40-50		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2CH40-75		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2CH40-100		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2CH40-125		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2CH40-150		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2CH40-175		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2CH40-200		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2CH40-250		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2CH40-300		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2CH40-350		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2CH40-400		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2CH40-450		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2CH40-500		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2CH50-25		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2CH50-50		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2CH50-75		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2CH50-100		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2CH50-125		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2CH50-150		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2CH50-175		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2CH50-200		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2CH50-250		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2CH50-300		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2CH50-350		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2CH50-400		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2CH50-450		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2CH50-500		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2CH50-600		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2CH63-25		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2CH63-50		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2CH63-75		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2CH63-100		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2CH63-125		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2CH63-150		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2CH63-175		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2CH63-200		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2CH63-250		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2CH63-300		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2CH63-350		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2CH63-400		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2CH63-450		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2CH63-500		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2CH63-600		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2CH80-25		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2CH80-50		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2CH80-75		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2CH80-100		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2CH80-125		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2CH80-150		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2CH80-175		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2CH80-200		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2CH80-250		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2CH80-300		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2CH80-350		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2CH80-400		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2CH80-450		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2CH80-500		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2CH80-600		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2CH80-700		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2CH100-25		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2CH100-50		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2CH100-75		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2CH100-100		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2CH100-125		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2CH100-150		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2CH100-175		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2CH100-200		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2CH100-250		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2CH100-300		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2CH100-350		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2CH100-400		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2CH100-450		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2CH100-500		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2CH100-600		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2CH100-700		Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2TH40-25		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2TH40-50		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2TH40-75		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2TH40-100		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2TH40-125		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2TH40-150		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2TH40-175		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2TH40-200		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2TH40-250		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2TH40-300		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2TH40-350		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2TH40-400		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2TH40-450		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2TH40-500		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2TH50-25		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2TH50-50		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2TH50-75		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2TH50-100		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2TH50-125		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2TH50-150		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2TH50-175		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2TH50-200		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2TH50-250		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2TH50-300		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2TH50-350		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2TH50-400		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2TH50-450		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2TH50-500		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2TH50-600		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2TH63-25		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2TH63-50		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2TH63-75		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2TH63-100		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2TH63-125		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2TH63-150		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2TH63-175		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2TH63-200		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2TH63-250		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2TH63-300		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2TH63-350		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2TH63-400		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2TH63-450		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2TH63-500		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2TH63-600		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2TH80-25		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2TH80-50		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2TH80-75		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2TH80-100		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2TH80-125		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2TH80-150		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2TH80-175		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2TH80-200		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2TH80-250		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2TH80-300		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2TH80-350		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2TH80-400		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2TH80-450		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2TH80-500		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2TH80-600		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2TH80-700		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2TH100-25		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2TH100-50		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2TH100-75		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2TH100-100		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2TH100-125		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2TH100-150		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2TH100-175		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2TH100-200		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2TH100-250		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2TH100-300		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2TH100-350		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2TH100-400		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2TH100-450		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2TH100-500		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2TH100-600		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2TH100-700		Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2DH40-25		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2DH40-50		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2DH40-75		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2DH40-100		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2DH40-125		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2DH40-150		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2DH40-175		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2DH40-200		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2DH40-250		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2DH40-300		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2DH40-350		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2DH40-400		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2DH40-450		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2DH40-500		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2DH50-25		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2DH50-50		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2DH50-75		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2DH50-100		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2DH50-125		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2DH50-150		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2DH50-175		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2DH50-200		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2DH50-250		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2DH50-300		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2DH50-350		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2DH50-400		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2DH50-450		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2DH50-500		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2DH50-600		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2DH63-25		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2DH63-50		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2DH63-75		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2DH63-100		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2DH63-125		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2DH63-150		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2DH63-175		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2DH63-200		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2DH63-250		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2DH63-300		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2DH63-350		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2DH63-400		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2DH63-450		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2DH63-500		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2DH63-600		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2DH80-25		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2DH80-50		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2DH80-75		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2DH80-100		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2DH80-125		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2DH80-150		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2DH80-175		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2DH80-200		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2DH80-250		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2DH80-300		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2DH80-350		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2DH80-400		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2DH80-450		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2DH80-500		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2DH80-600		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2DH80-700		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2DH100-25		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2DH100-50		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2DH100-75		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2DH100-100		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2DH100-125		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2DH100-150		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2DH100-175		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2DH100-200		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2DH100-250		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2DH100-300		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2DH100-350		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2DH100-400		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2DH100-450		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2DH100-500		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2DH100-600		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2DH100-700		Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2TAH40-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2TAH40-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2TAH40-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2TAH40-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2TAH40-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2TAH40-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2TAH40-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2TAH40-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2TAH40-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2TAH40-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2TAH40-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2TAH40-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2TAH40-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2TAH40-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2TAH50-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2TAH50-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2TAH50-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2TAH50-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2TAH50-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2TAH50-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2TAH50-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2TAH50-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2TAH50-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2TAH50-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2TAH50-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2TAH50-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2TAH50-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2TAH50-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2TAH50-600		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2TAH63-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2TAH63-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2TAH63-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2TAH63-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2TAH63-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2TAH63-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2TAH63-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2TAH63-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2TAH63-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2TAH63-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2TAH63-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2TAH63-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2TAH63-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2TAH63-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2TAH63-600		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2TAH80-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2TAH80-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2TAH80-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2TAH80-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2TAH80-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2TAH80-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2TAH80-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2TAH80-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2TAH80-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2TAH80-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2TAH80-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2TAH80-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2TAH80-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2TAH80-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2TAH80-600		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2TAH80-700		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2TAH100-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2TAH100-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2TAH100-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2TAH100-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2TAH100-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2TAH100-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2TAH100-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2TAH100-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2TAH100-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2TAH100-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2TAH100-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2TAH100-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2TAH100-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2TAH100-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2TAH100-600		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2TAH100-700		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2TBH40-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
AMD2TBH40-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
AMD2TBH40-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
AMD2TBH40-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
AMD2TBH40-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
AMD2TBH40-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
AMD2TBH40-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
AMD2TBH40-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
AMD2TBH40-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
AMD2TBH40-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
AMD2TBH40-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
AMD2TBH40-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
AMD2TBH40-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
AMD2TBH40-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
AMD2TBH50-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2TBH50-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2TBH50-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2TBH50-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2TBH50-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2TBH50-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2TBH50-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2TBH50-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2TBH50-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2TBH50-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2TBH50-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2TBH50-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2TBH50-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2TBH50-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2TBH50-600		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2TBH63-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
AMD2TBH63-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
AMD2TBH63-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
AMD2TBH63-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
AMD2TBH63-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
AMD2TBH63-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
AMD2TBH63-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
AMD2TBH63-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
AMD2TBH63-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
AMD2TBH63-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
AMD2TBH63-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
AMD2TBH63-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
AMD2TBH63-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
AMD2TBH63-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
AMD2TBH63-600		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
AMD2TBH80-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2TBH80-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2TBH80-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2TBH80-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2TBH80-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2TBH80-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2TBH80-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2TBH80-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2TBH80-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2TBH80-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2TBH80-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2TBH80-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2TBH80-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2TBH80-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2TBH80-600		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2TBH80-700		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
AMD2TBH100-25		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
AMD2TBH100-50		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
AMD2TBH100-75		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
AMD2TBH100-100		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
AMD2TBH100-125		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
AMD2TBH100-150		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
AMD2TBH100-175		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
AMD2TBH100-200		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
AMD2TBH100-250		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
AMD2TBH100-300		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
AMD2TBH100-350		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
AMD2TBH100-400		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
AMD2TBH100-450		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
AMD2TBH100-500		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
AMD2TBH100-600		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
AMD2TBH100-700		Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2

Pneumatic CylindersTPC Mechatronics

1368 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC AM2 Medium Tie-Rod Cylinder, Low Hydraulic (Bore 40-100 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (1368)

AM2BH40-25, AM2BH40-50, AM2BH40-75, AM2BH40-100, AM2BH40-125, AM2BH40-150, AM2BH40-175, AM2BH40-200, AM2BH40-250, AM2BH40-300 + 1358 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	AM2BH40-25	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2BH40-50	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2BH40-75	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2BH40-100	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2BH40-125	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2BH40-150	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2BH40-175	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2BH40-200	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2BH40-250	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2BH40-300	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2BH40-350	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2BH40-400	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2BH40-450	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2BH40-500	Magnet: None \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2BH50-25	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2BH50-50	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2BH50-75	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2BH50-100	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2BH50-125	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2BH50-150	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2BH50-175	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2BH50-200	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2BH50-250	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2BH50-300	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2BH50-350	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2BH50-400	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2BH50-450	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2BH50-500	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2BH50-600	Magnet: None \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2BH63-25	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2BH63-50	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2BH63-75	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2BH63-100	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2BH63-125	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2BH63-150	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2BH63-175	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2BH63-200	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2BH63-250	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2BH63-300	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2BH63-350	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2BH63-400	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2BH63-450	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2BH63-500	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2BH63-600	Magnet: None \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2BH80-25	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2BH80-50	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2BH80-75	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2BH80-100	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2BH80-125	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2BH80-150	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2BH80-175	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2BH80-200	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2BH80-250	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2BH80-300	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2BH80-350	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2BH80-400	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2BH80-450	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2BH80-500	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2BH80-600	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2BH80-700	Magnet: None \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2BH100-25	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2BH100-50	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2BH100-75	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2BH100-100	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2BH100-125	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2BH100-150	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2BH100-175	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2BH100-200	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2BH100-250	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2BH100-300	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2BH100-350	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2BH100-400	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2BH100-450	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2BH100-500	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2BH100-600	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2BH100-700	Magnet: None \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2LH40-25	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2LH40-50	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2LH40-75	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2LH40-100	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2LH40-125	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2LH40-150	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2LH40-175	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2LH40-200	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2LH40-250	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2LH40-300	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2LH40-350	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2LH40-400	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2LH40-450	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2LH40-500	Magnet: None \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2LH50-25	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2LH50-50	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2LH50-75	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2LH50-100	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2LH50-125	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2LH50-150	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2LH50-175	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2LH50-200	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2LH50-250	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2LH50-300	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2LH50-350	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2LH50-400	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2LH50-450	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2LH50-500	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2LH50-600	Magnet: None \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2LH63-25	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2LH63-50	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2LH63-75	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2LH63-100	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2LH63-125	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2LH63-150	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2LH63-175	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2LH63-200	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2LH63-250	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2LH63-300	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2LH63-350	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2LH63-400	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2LH63-450	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2LH63-500	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2LH63-600	Magnet: None \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2LH80-25	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2LH80-50	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2LH80-75	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2LH80-100	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2LH80-125	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2LH80-150	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2LH80-175	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2LH80-200	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2LH80-250	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2LH80-300	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2LH80-350	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2LH80-400	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2LH80-450	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2LH80-500	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2LH80-600	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2LH80-700	Magnet: None \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2LH100-25	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2LH100-50	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2LH100-75	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2LH100-100	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2LH100-125	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2LH100-150	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2LH100-175	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2LH100-200	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2LH100-250	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2LH100-300	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2LH100-350	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2LH100-400	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2LH100-450	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2LH100-500	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2LH100-600	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2LH100-700	Magnet: None \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2FH40-25	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2FH40-50	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2FH40-75	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2FH40-100	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2FH40-125	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2FH40-150	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2FH40-175	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2FH40-200	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2FH40-250	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2FH40-300	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2FH40-350	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2FH40-400	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2FH40-450	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2FH40-500	Magnet: None \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2FH50-25	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2FH50-50	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2FH50-75	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2FH50-100	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2FH50-125	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2FH50-150	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2FH50-175	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2FH50-200	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2FH50-250	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2FH50-300	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2FH50-350	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2FH50-400	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2FH50-450	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2FH50-500	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2FH50-600	Magnet: None \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2FH63-25	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2FH63-50	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2FH63-75	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2FH63-100	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2FH63-125	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2FH63-150	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2FH63-175	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2FH63-200	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2FH63-250	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2FH63-300	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2FH63-350	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2FH63-400	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2FH63-450	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2FH63-500	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2FH63-600	Magnet: None \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2FH80-25	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2FH80-50	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2FH80-75	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2FH80-100	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2FH80-125	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2FH80-150	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2FH80-175	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2FH80-200	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2FH80-250	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2FH80-300	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2FH80-350	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2FH80-400	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2FH80-450	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2FH80-500	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2FH80-600	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2FH80-700	Magnet: None \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2FH100-25	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2FH100-50	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2FH100-75	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2FH100-100	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2FH100-125	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2FH100-150	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2FH100-175	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2FH100-200	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2FH100-250	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2FH100-300	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2FH100-350	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2FH100-400	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2FH100-450	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2FH100-500	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2FH100-600	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2FH100-700	Magnet: None \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2GH40-25	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2GH40-50	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2GH40-75	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2GH40-100	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2GH40-125	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2GH40-150	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2GH40-175	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2GH40-200	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2GH40-250	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2GH40-300	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2GH40-350	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2GH40-400	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2GH40-450	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2GH40-500	Magnet: None \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2GH50-25	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2GH50-50	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2GH50-75	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2GH50-100	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2GH50-125	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2GH50-150	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2GH50-175	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2GH50-200	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2GH50-250	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2GH50-300	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2GH50-350	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2GH50-400	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2GH50-450	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2GH50-500	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2GH50-600	Magnet: None \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2GH63-25	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2GH63-50	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2GH63-75	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2GH63-100	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2GH63-125	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2GH63-150	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2GH63-175	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2GH63-200	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2GH63-250	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2GH63-300	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2GH63-350	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2GH63-400	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2GH63-450	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2GH63-500	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2GH63-600	Magnet: None \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2GH80-25	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2GH80-50	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2GH80-75	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2GH80-100	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2GH80-125	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2GH80-150	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2GH80-175	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2GH80-200	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2GH80-250	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2GH80-300	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2GH80-350	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2GH80-400	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2GH80-450	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2GH80-500	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2GH80-600	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2GH80-700	Magnet: None \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2GH100-25	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2GH100-50	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2GH100-75	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2GH100-100	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2GH100-125	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2GH100-150	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2GH100-175	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2GH100-200	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2GH100-250	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2GH100-300	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2GH100-350	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2GH100-400	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2GH100-450	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2GH100-500	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2GH100-600	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2GH100-700	Magnet: None \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2CH40-25	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2CH40-50	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2CH40-75	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2CH40-100	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2CH40-125	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2CH40-150	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2CH40-175	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2CH40-200	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2CH40-250	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2CH40-300	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2CH40-350	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2CH40-400	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2CH40-450	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2CH40-500	Magnet: None \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2CH50-25	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2CH50-50	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2CH50-75	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2CH50-100	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2CH50-125	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2CH50-150	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2CH50-175	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2CH50-200	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2CH50-250	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2CH50-300	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2CH50-350	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2CH50-400	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2CH50-450	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2CH50-500	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2CH50-600	Magnet: None \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2CH63-25	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2CH63-50	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2CH63-75	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2CH63-100	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2CH63-125	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2CH63-150	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2CH63-175	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2CH63-200	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2CH63-250	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2CH63-300	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2CH63-350	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2CH63-400	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2CH63-450	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2CH63-500	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2CH63-600	Magnet: None \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2CH80-25	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2CH80-50	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2CH80-75	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2CH80-100	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2CH80-125	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2CH80-150	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2CH80-175	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2CH80-200	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2CH80-250	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2CH80-300	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2CH80-350	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2CH80-400	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2CH80-450	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2CH80-500	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2CH80-600	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2CH80-700	Magnet: None \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2CH100-25	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2CH100-50	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2CH100-75	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2CH100-100	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2CH100-125	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2CH100-150	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2CH100-175	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2CH100-200	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2CH100-250	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2CH100-300	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2CH100-350	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2CH100-400	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2CH100-450	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2CH100-500	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2CH100-600	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2CH100-700	Magnet: None \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2TH40-25	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2TH40-50	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2TH40-75	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2TH40-100	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2TH40-125	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2TH40-150	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2TH40-175	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2TH40-200	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2TH40-250	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2TH40-300	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2TH40-350	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2TH40-400	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2TH40-450	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2TH40-500	Magnet: None \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2TH50-25	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2TH50-50	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2TH50-75	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2TH50-100	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2TH50-125	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2TH50-150	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2TH50-175	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2TH50-200	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2TH50-250	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2TH50-300	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2TH50-350	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2TH50-400	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2TH50-450	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2TH50-500	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2TH50-600	Magnet: None \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2TH63-25	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2TH63-50	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2TH63-75	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2TH63-100	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2TH63-125	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2TH63-150	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2TH63-175	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2TH63-200	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2TH63-250	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2TH63-300	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2TH63-350	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2TH63-400	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2TH63-450	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2TH63-500	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2TH63-600	Magnet: None \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2TH80-25	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2TH80-50	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2TH80-75	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2TH80-100	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2TH80-125	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2TH80-150	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2TH80-175	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2TH80-200	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2TH80-250	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2TH80-300	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2TH80-350	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2TH80-400	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2TH80-450	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2TH80-500	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2TH80-600	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2TH80-700	Magnet: None \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2TH100-25	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2TH100-50	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2TH100-75	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2TH100-100	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2TH100-125	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2TH100-150	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2TH100-175	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2TH100-200	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2TH100-250	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2TH100-300	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2TH100-350	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2TH100-400	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2TH100-450	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2TH100-500	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2TH100-600	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2TH100-700	Magnet: None \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2DH40-25	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2DH40-50	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2DH40-75	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2DH40-100	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2DH40-125	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2DH40-150	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2DH40-175	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2DH40-200	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2DH40-250	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2DH40-300	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2DH40-350	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2DH40-400	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2DH40-450	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2DH40-500	Magnet: None \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2DH50-25	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2DH50-50	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2DH50-75	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2DH50-100	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2DH50-125	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2DH50-150	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2DH50-175	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2DH50-200	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2DH50-250	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2DH50-300	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2DH50-350	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2DH50-400	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2DH50-450	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2DH50-500	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2DH50-600	Magnet: None \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2DH63-25	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2DH63-50	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2DH63-75	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2DH63-100	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2DH63-125	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2DH63-150	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2DH63-175	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2DH63-200	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2DH63-250	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2DH63-300	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2DH63-350	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2DH63-400	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2DH63-450	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2DH63-500	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2DH63-600	Magnet: None \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2DH80-25	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2DH80-50	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2DH80-75	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2DH80-100	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2DH80-125	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2DH80-150	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2DH80-175	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2DH80-200	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2DH80-250	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2DH80-300	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2DH80-350	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2DH80-400	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2DH80-450	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2DH80-500	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2DH80-600	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2DH80-700	Magnet: None \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2DH100-25	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2DH100-50	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2DH100-75	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2DH100-100	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2DH100-125	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2DH100-150	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2DH100-175	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2DH100-200	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2DH100-250	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2DH100-300	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2DH100-350	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2DH100-400	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2DH100-450	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2DH100-500	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2DH100-600	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2DH100-700	Magnet: None \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2TAH40-25	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2TAH40-50	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2TAH40-75	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2TAH40-100	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2TAH40-125	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2TAH40-150	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2TAH40-175	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2TAH40-200	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2TAH40-250	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2TAH40-300	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2TAH40-350	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2TAH40-400	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2TAH40-450	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2TAH40-500	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2TAH50-25	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2TAH50-50	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2TAH50-75	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2TAH50-100	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2TAH50-125	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2TAH50-150	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2TAH50-175	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2TAH50-200	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2TAH50-250	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2TAH50-300	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2TAH50-350	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2TAH50-400	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2TAH50-450	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2TAH50-500	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2TAH50-600	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2TAH63-25	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2TAH63-50	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2TAH63-75	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2TAH63-100	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2TAH63-125	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2TAH63-150	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2TAH63-175	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2TAH63-200	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2TAH63-250	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2TAH63-300	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2TAH63-350	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2TAH63-400	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2TAH63-450	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2TAH63-500	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2TAH63-600	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2TAH80-25	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2TAH80-50	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2TAH80-75	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2TAH80-100	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2TAH80-125	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2TAH80-150	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2TAH80-175	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2TAH80-200	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2TAH80-250	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2TAH80-300	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2TAH80-350	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2TAH80-400	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2TAH80-450	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2TAH80-500	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2TAH80-600	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2TAH80-700	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2TAH100-25	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2TAH100-50	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2TAH100-75	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2TAH100-100	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2TAH100-125	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2TAH100-150	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2TAH100-175	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2TAH100-200	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2TAH100-250	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2TAH100-300	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2TAH100-350	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2TAH100-400	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2TAH100-450	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2TAH100-500	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2TAH100-600	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2TAH100-700	Magnet: None \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2TBH40-25	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AM2TBH40-50	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AM2TBH40-75	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AM2TBH40-100	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AM2TBH40-125	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AM2TBH40-150	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AM2TBH40-175	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AM2TBH40-200	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AM2TBH40-250	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AM2TBH40-300	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AM2TBH40-350	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AM2TBH40-400	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AM2TBH40-450	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AM2TBH40-500	Magnet: None \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AM2TBH50-25	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2TBH50-50	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2TBH50-75	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2TBH50-100	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2TBH50-125	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2TBH50-150	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2TBH50-175	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2TBH50-200	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2TBH50-250	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2TBH50-300	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2TBH50-350	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2TBH50-400	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2TBH50-450	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2TBH50-500	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2TBH50-600	Magnet: None \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2TBH63-25	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AM2TBH63-50	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AM2TBH63-75	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AM2TBH63-100	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AM2TBH63-125	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AM2TBH63-150	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AM2TBH63-175	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AM2TBH63-200	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AM2TBH63-250	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AM2TBH63-300	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AM2TBH63-350	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AM2TBH63-400	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AM2TBH63-450	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AM2TBH63-500	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AM2TBH63-600	Magnet: None \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AM2TBH80-25	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2TBH80-50	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2TBH80-75	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2TBH80-100	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2TBH80-125	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2TBH80-150	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2TBH80-175	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2TBH80-200	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2TBH80-250	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2TBH80-300	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2TBH80-350	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2TBH80-400	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2TBH80-450	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2TBH80-500	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2TBH80-600	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2TBH80-700	Magnet: None \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AM2TBH100-25	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AM2TBH100-50	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AM2TBH100-75	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AM2TBH100-100	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AM2TBH100-125	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AM2TBH100-150	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AM2TBH100-175	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AM2TBH100-200	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AM2TBH100-250	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AM2TBH100-300	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AM2TBH100-350	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AM2TBH100-400	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AM2TBH100-450	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AM2TBH100-500	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AM2TBH100-600	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AM2TBH100-700	Magnet: None \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2BH40-25	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2BH40-50	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2BH40-75	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2BH40-100	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2BH40-125	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2BH40-150	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2BH40-175	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2BH40-200	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2BH40-250	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2BH40-300	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2BH40-350	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2BH40-400	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2BH40-450	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2BH40-500	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2BH50-25	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2BH50-50	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2BH50-75	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2BH50-100	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2BH50-125	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2BH50-150	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2BH50-175	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2BH50-200	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2BH50-250	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2BH50-300	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2BH50-350	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2BH50-400	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2BH50-450	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2BH50-500	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2BH50-600	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2BH63-25	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2BH63-50	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2BH63-75	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2BH63-100	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2BH63-125	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2BH63-150	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2BH63-175	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2BH63-200	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2BH63-250	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2BH63-300	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2BH63-350	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2BH63-400	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2BH63-450	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2BH63-500	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2BH63-600	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2BH80-25	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2BH80-50	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2BH80-75	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2BH80-100	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2BH80-125	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2BH80-150	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2BH80-175	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2BH80-200	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2BH80-250	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2BH80-300	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2BH80-350	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2BH80-400	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2BH80-450	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2BH80-500	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2BH80-600	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2BH80-700	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2BH100-25	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2BH100-50	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2BH100-75	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2BH100-100	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2BH100-125	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2BH100-150	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2BH100-175	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2BH100-200	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2BH100-250	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2BH100-300	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2BH100-350	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2BH100-400	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2BH100-450	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2BH100-500	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2BH100-600	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2BH100-700	Magnet: Built in (auto switch ready) \| Mounting: Basic \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2LH40-25	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2LH40-50	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2LH40-75	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2LH40-100	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2LH40-125	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2LH40-150	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2LH40-175	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2LH40-200	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2LH40-250	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2LH40-300	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2LH40-350	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2LH40-400	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2LH40-450	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2LH40-500	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2LH50-25	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2LH50-50	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2LH50-75	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2LH50-100	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2LH50-125	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2LH50-150	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2LH50-175	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2LH50-200	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2LH50-250	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2LH50-300	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2LH50-350	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2LH50-400	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2LH50-450	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2LH50-500	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2LH50-600	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2LH63-25	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2LH63-50	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2LH63-75	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2LH63-100	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2LH63-125	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2LH63-150	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2LH63-175	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2LH63-200	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2LH63-250	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2LH63-300	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2LH63-350	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2LH63-400	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2LH63-450	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2LH63-500	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2LH63-600	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2LH80-25	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2LH80-50	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2LH80-75	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2LH80-100	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2LH80-125	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2LH80-150	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2LH80-175	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2LH80-200	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2LH80-250	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2LH80-300	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2LH80-350	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2LH80-400	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2LH80-450	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2LH80-500	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2LH80-600	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2LH80-700	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2LH100-25	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2LH100-50	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2LH100-75	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2LH100-100	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2LH100-125	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2LH100-150	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2LH100-175	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2LH100-200	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2LH100-250	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2LH100-300	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2LH100-350	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2LH100-400	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2LH100-450	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2LH100-500	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2LH100-600	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2LH100-700	Magnet: Built in (auto switch ready) \| Mounting: Foot \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2FH40-25	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2FH40-50	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2FH40-75	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2FH40-100	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2FH40-125	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2FH40-150	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2FH40-175	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2FH40-200	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2FH40-250	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2FH40-300	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2FH40-350	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2FH40-400	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2FH40-450	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2FH40-500	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2FH50-25	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2FH50-50	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2FH50-75	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2FH50-100	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2FH50-125	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2FH50-150	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2FH50-175	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2FH50-200	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2FH50-250	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2FH50-300	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2FH50-350	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2FH50-400	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2FH50-450	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2FH50-500	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2FH50-600	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2FH63-25	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2FH63-50	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2FH63-75	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2FH63-100	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2FH63-125	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2FH63-150	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2FH63-175	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2FH63-200	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2FH63-250	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2FH63-300	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2FH63-350	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2FH63-400	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2FH63-450	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2FH63-500	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2FH63-600	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2FH80-25	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2FH80-50	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2FH80-75	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2FH80-100	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2FH80-125	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2FH80-150	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2FH80-175	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2FH80-200	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2FH80-250	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2FH80-300	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2FH80-350	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2FH80-400	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2FH80-450	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2FH80-500	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2FH80-600	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2FH80-700	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2FH100-25	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2FH100-50	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2FH100-75	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2FH100-100	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2FH100-125	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2FH100-150	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2FH100-175	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2FH100-200	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2FH100-250	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2FH100-300	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2FH100-350	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2FH100-400	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2FH100-450	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2FH100-500	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2FH100-600	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2FH100-700	Magnet: Built in (auto switch ready) \| Mounting: Rod flange \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2GH40-25	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2GH40-50	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2GH40-75	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2GH40-100	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2GH40-125	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2GH40-150	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2GH40-175	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2GH40-200	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2GH40-250	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2GH40-300	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2GH40-350	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2GH40-400	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2GH40-450	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2GH40-500	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2GH50-25	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2GH50-50	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2GH50-75	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2GH50-100	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2GH50-125	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2GH50-150	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2GH50-175	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2GH50-200	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2GH50-250	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2GH50-300	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2GH50-350	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2GH50-400	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2GH50-450	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2GH50-500	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2GH50-600	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2GH63-25	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2GH63-50	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2GH63-75	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2GH63-100	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2GH63-125	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2GH63-150	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2GH63-175	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2GH63-200	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2GH63-250	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2GH63-300	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2GH63-350	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2GH63-400	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2GH63-450	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2GH63-500	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2GH63-600	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2GH80-25	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2GH80-50	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2GH80-75	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2GH80-100	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2GH80-125	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2GH80-150	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2GH80-175	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2GH80-200	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2GH80-250	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2GH80-300	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2GH80-350	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2GH80-400	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2GH80-450	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2GH80-500	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2GH80-600	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2GH80-700	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2GH100-25	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2GH100-50	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2GH100-75	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2GH100-100	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2GH100-125	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2GH100-150	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2GH100-175	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2GH100-200	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2GH100-250	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2GH100-300	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2GH100-350	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2GH100-400	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2GH100-450	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2GH100-500	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2GH100-600	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2GH100-700	Magnet: Built in (auto switch ready) \| Mounting: Head flange \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2CH40-25	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2CH40-50	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2CH40-75	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2CH40-100	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2CH40-125	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2CH40-150	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2CH40-175	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2CH40-200	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2CH40-250	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2CH40-300	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2CH40-350	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2CH40-400	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2CH40-450	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2CH40-500	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2CH50-25	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2CH50-50	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2CH50-75	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2CH50-100	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2CH50-125	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2CH50-150	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2CH50-175	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2CH50-200	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2CH50-250	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2CH50-300	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2CH50-350	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2CH50-400	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2CH50-450	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2CH50-500	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2CH50-600	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2CH63-25	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2CH63-50	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2CH63-75	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2CH63-100	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2CH63-125	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2CH63-150	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2CH63-175	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2CH63-200	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2CH63-250	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2CH63-300	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2CH63-350	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2CH63-400	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2CH63-450	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2CH63-500	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2CH63-600	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2CH80-25	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2CH80-50	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2CH80-75	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2CH80-100	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2CH80-125	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2CH80-150	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2CH80-175	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2CH80-200	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2CH80-250	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2CH80-300	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2CH80-350	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2CH80-400	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2CH80-450	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2CH80-500	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2CH80-600	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2CH80-700	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2CH100-25	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2CH100-50	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2CH100-75	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2CH100-100	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2CH100-125	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2CH100-150	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2CH100-175	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2CH100-200	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2CH100-250	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2CH100-300	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2CH100-350	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2CH100-400	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2CH100-450	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2CH100-500	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2CH100-600	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2CH100-700	Magnet: Built in (auto switch ready) \| Mounting: Single clevis \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2TH40-25	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2TH40-50	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2TH40-75	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2TH40-100	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2TH40-125	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2TH40-150	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2TH40-175	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2TH40-200	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2TH40-250	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2TH40-300	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2TH40-350	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2TH40-400	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2TH40-450	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2TH40-500	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2TH50-25	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2TH50-50	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2TH50-75	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2TH50-100	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2TH50-125	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2TH50-150	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2TH50-175	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2TH50-200	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2TH50-250	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2TH50-300	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2TH50-350	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2TH50-400	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2TH50-450	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2TH50-500	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2TH50-600	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2TH63-25	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2TH63-50	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2TH63-75	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2TH63-100	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2TH63-125	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2TH63-150	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2TH63-175	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2TH63-200	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2TH63-250	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2TH63-300	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2TH63-350	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2TH63-400	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2TH63-450	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2TH63-500	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2TH63-600	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2TH80-25	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2TH80-50	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2TH80-75	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2TH80-100	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2TH80-125	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2TH80-150	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2TH80-175	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2TH80-200	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2TH80-250	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2TH80-300	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2TH80-350	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2TH80-400	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2TH80-450	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2TH80-500	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2TH80-600	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2TH80-700	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2TH100-25	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2TH100-50	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2TH100-75	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2TH100-100	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2TH100-125	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2TH100-150	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2TH100-175	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2TH100-200	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2TH100-250	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2TH100-300	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2TH100-350	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2TH100-400	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2TH100-450	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2TH100-500	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2TH100-600	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2TH100-700	Magnet: Built in (auto switch ready) \| Mounting: Center trunnion \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2DH40-25	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2DH40-50	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2DH40-75	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2DH40-100	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2DH40-125	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2DH40-150	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2DH40-175	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2DH40-200	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2DH40-250	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2DH40-300	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2DH40-350	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2DH40-400	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2DH40-450	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2DH40-500	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2DH50-25	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2DH50-50	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2DH50-75	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2DH50-100	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2DH50-125	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2DH50-150	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2DH50-175	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2DH50-200	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2DH50-250	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2DH50-300	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2DH50-350	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2DH50-400	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2DH50-450	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2DH50-500	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2DH50-600	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2DH63-25	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2DH63-50	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2DH63-75	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2DH63-100	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2DH63-125	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2DH63-150	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2DH63-175	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2DH63-200	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2DH63-250	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2DH63-300	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2DH63-350	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2DH63-400	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2DH63-450	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2DH63-500	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2DH63-600	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2DH80-25	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2DH80-50	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2DH80-75	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2DH80-100	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2DH80-125	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2DH80-150	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2DH80-175	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2DH80-200	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2DH80-250	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2DH80-300	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2DH80-350	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2DH80-400	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2DH80-450	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2DH80-500	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2DH80-600	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2DH80-700	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2DH100-25	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2DH100-50	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2DH100-75	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2DH100-100	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2DH100-125	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2DH100-150	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2DH100-175	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2DH100-200	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2DH100-250	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2DH100-300	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2DH100-350	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2DH100-400	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2DH100-450	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2DH100-500	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2DH100-600	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2DH100-700	Magnet: Built in (auto switch ready) \| Mounting: Double clevis \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2TAH40-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2TAH40-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2TAH40-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2TAH40-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2TAH40-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2TAH40-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2TAH40-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2TAH40-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2TAH40-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2TAH40-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2TAH40-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2TAH40-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2TAH40-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2TAH40-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2TAH50-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2TAH50-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2TAH50-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2TAH50-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2TAH50-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2TAH50-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2TAH50-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2TAH50-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2TAH50-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2TAH50-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2TAH50-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2TAH50-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2TAH50-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2TAH50-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2TAH50-600	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2TAH63-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2TAH63-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2TAH63-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2TAH63-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2TAH63-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2TAH63-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2TAH63-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2TAH63-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2TAH63-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2TAH63-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2TAH63-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2TAH63-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2TAH63-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2TAH63-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2TAH63-600	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2TAH80-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2TAH80-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2TAH80-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2TAH80-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2TAH80-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2TAH80-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2TAH80-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2TAH80-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2TAH80-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2TAH80-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2TAH80-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2TAH80-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2TAH80-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2TAH80-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2TAH80-600	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2TAH80-700	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2TAH100-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2TAH100-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2TAH100-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2TAH100-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2TAH100-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2TAH100-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2TAH100-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2TAH100-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2TAH100-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2TAH100-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2TAH100-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2TAH100-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2TAH100-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2TAH100-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2TAH100-600	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2TAH100-700	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, rod end \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2TBH40-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 25 mm \| Port: Rc1/4
	AMD2TBH40-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 50 mm \| Port: Rc1/4
	AMD2TBH40-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 75 mm \| Port: Rc1/4
	AMD2TBH40-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 100 mm \| Port: Rc1/4
	AMD2TBH40-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 125 mm \| Port: Rc1/4
	AMD2TBH40-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 150 mm \| Port: Rc1/4
	AMD2TBH40-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 175 mm \| Port: Rc1/4
	AMD2TBH40-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 200 mm \| Port: Rc1/4
	AMD2TBH40-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 250 mm \| Port: Rc1/4
	AMD2TBH40-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 300 mm \| Port: Rc1/4
	AMD2TBH40-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 350 mm \| Port: Rc1/4
	AMD2TBH40-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 400 mm \| Port: Rc1/4
	AMD2TBH40-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 450 mm \| Port: Rc1/4
	AMD2TBH40-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 40 mm \| Stroke: 500 mm \| Port: Rc1/4
	AMD2TBH50-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2TBH50-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2TBH50-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2TBH50-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2TBH50-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2TBH50-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2TBH50-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2TBH50-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2TBH50-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2TBH50-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2TBH50-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2TBH50-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2TBH50-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2TBH50-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2TBH50-600	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 50 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2TBH63-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 25 mm \| Port: Rc3/8
	AMD2TBH63-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 50 mm \| Port: Rc3/8
	AMD2TBH63-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 75 mm \| Port: Rc3/8
	AMD2TBH63-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 100 mm \| Port: Rc3/8
	AMD2TBH63-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 125 mm \| Port: Rc3/8
	AMD2TBH63-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 150 mm \| Port: Rc3/8
	AMD2TBH63-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 175 mm \| Port: Rc3/8
	AMD2TBH63-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 200 mm \| Port: Rc3/8
	AMD2TBH63-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 250 mm \| Port: Rc3/8
	AMD2TBH63-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 300 mm \| Port: Rc3/8
	AMD2TBH63-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 350 mm \| Port: Rc3/8
	AMD2TBH63-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 400 mm \| Port: Rc3/8
	AMD2TBH63-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 450 mm \| Port: Rc3/8
	AMD2TBH63-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 500 mm \| Port: Rc3/8
	AMD2TBH63-600	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 63 mm \| Stroke: 600 mm \| Port: Rc3/8
	AMD2TBH80-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2TBH80-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2TBH80-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2TBH80-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2TBH80-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2TBH80-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2TBH80-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2TBH80-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2TBH80-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2TBH80-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2TBH80-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2TBH80-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2TBH80-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2TBH80-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2TBH80-600	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2TBH80-700	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 80 mm \| Stroke: 700 mm \| Port: Rc1/2
	AMD2TBH100-25	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 25 mm \| Port: Rc1/2
	AMD2TBH100-50	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 50 mm \| Port: Rc1/2
	AMD2TBH100-75	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 75 mm \| Port: Rc1/2
	AMD2TBH100-100	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 100 mm \| Port: Rc1/2
	AMD2TBH100-125	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 125 mm \| Port: Rc1/2
	AMD2TBH100-150	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 150 mm \| Port: Rc1/2
	AMD2TBH100-175	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 175 mm \| Port: Rc1/2
	AMD2TBH100-200	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 200 mm \| Port: Rc1/2
	AMD2TBH100-250	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 250 mm \| Port: Rc1/2
	AMD2TBH100-300	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 300 mm \| Port: Rc1/2
	AMD2TBH100-350	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 350 mm \| Port: Rc1/2
	AMD2TBH100-400	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 400 mm \| Port: Rc1/2
	AMD2TBH100-450	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 450 mm \| Port: Rc1/2
	AMD2TBH100-500	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 500 mm \| Port: Rc1/2
	AMD2TBH100-600	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 600 mm \| Port: Rc1/2
	AMD2TBH100-700	Magnet: Built in (auto switch ready) \| Mounting: Trunnion, head end \| Bore: 100 mm \| Stroke: 700 mm \| Port: Rc1/2

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →

Item added to your cart

TPC AM2 Medium Tie-Rod Cylinder, Low Hydraulic (Bore 40-100 mm)
