TPC AMR Magnetic Rodless Cylinder (Basic, Foot, Guided; Bore 10-50)

TPC AMR Magnetic Rodless Cylinder (Basic, Foot, Guided; Bore 10-50)

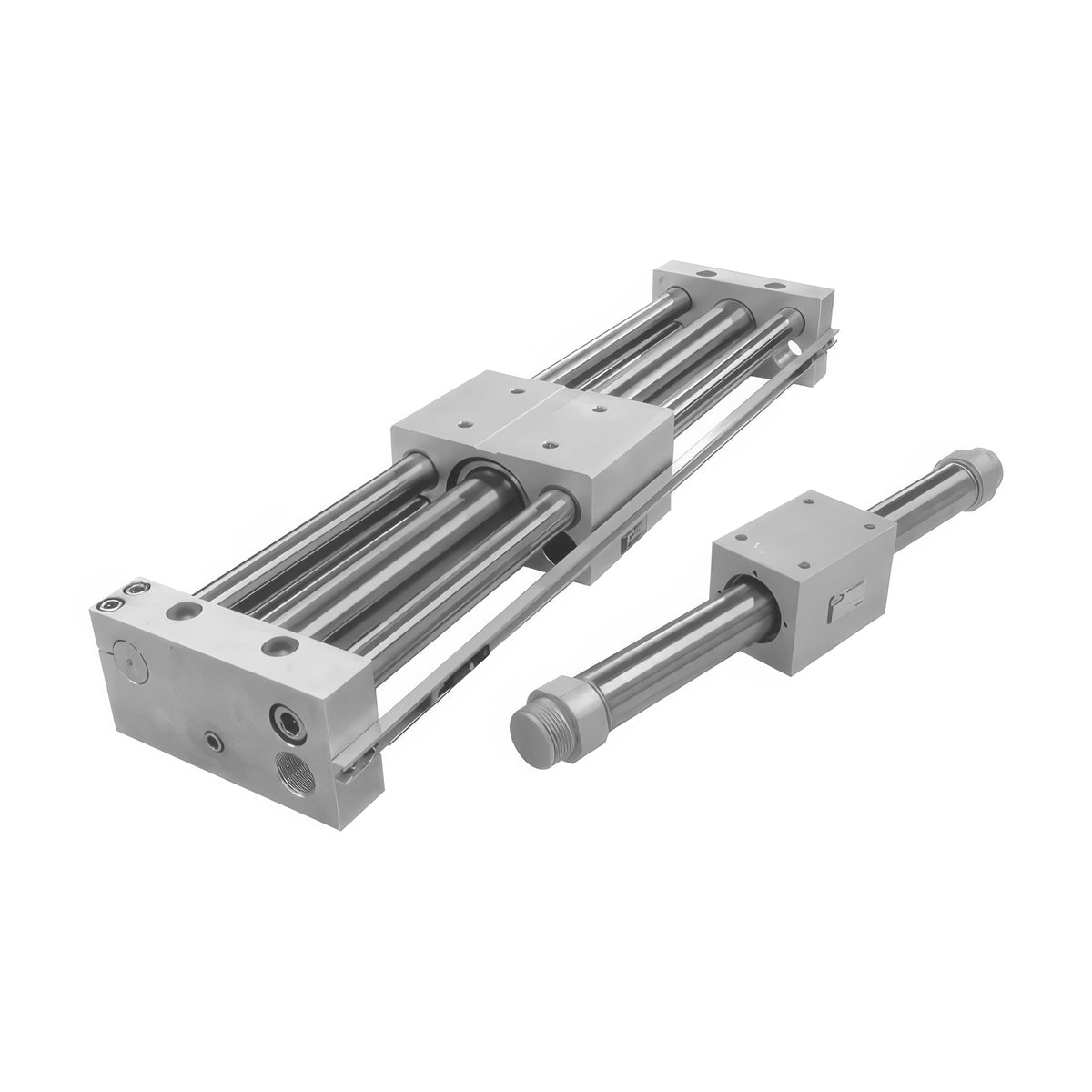

TPC AMR series magnetically coupled rodless cylinder in basic (AMRB), axial foot (AMRL) and guided (AMRG) types, bore 10-50 mm, with high or low magnet holding force.

Key features

  • Magnetically coupled rodless cylinder: the slider is driven through the stainless tube by rare-earth magnets, no external leakage
  • Types: B basic, L axial foot, G guided with switch magnet and rail (auto switches only on AMRG)
  • Holding force H (high) for all bores, L (low) for bore 20-40; stroke is specified in the code after a hyphen (e.g. AMRBH20-500)
  • Rubber cushion on bore 10/16 and air cushion on bore 20-50 (AMRB); two slider tap sizes for mounting work
  • Auto switches W13 (reed) / W1H (solid state) with L (3 m) lead and S/n quantity ordered as suffixes; feet TC1P / TCM-L ordered separately

Specifications

Fluid Air
Proof pressure 1.05 MPa
Max. operating pressure 0.7 MPa
Min. operating pressure 0.2 MPa
Ambient and fluid temperature 5 to 60 C
Lubrication Not required
Piston speed 150-400 mm/s
Source TPC Mechatronics catalog AMR_Series(250707).pdf, p. 1, 2, 10, 11, 12
