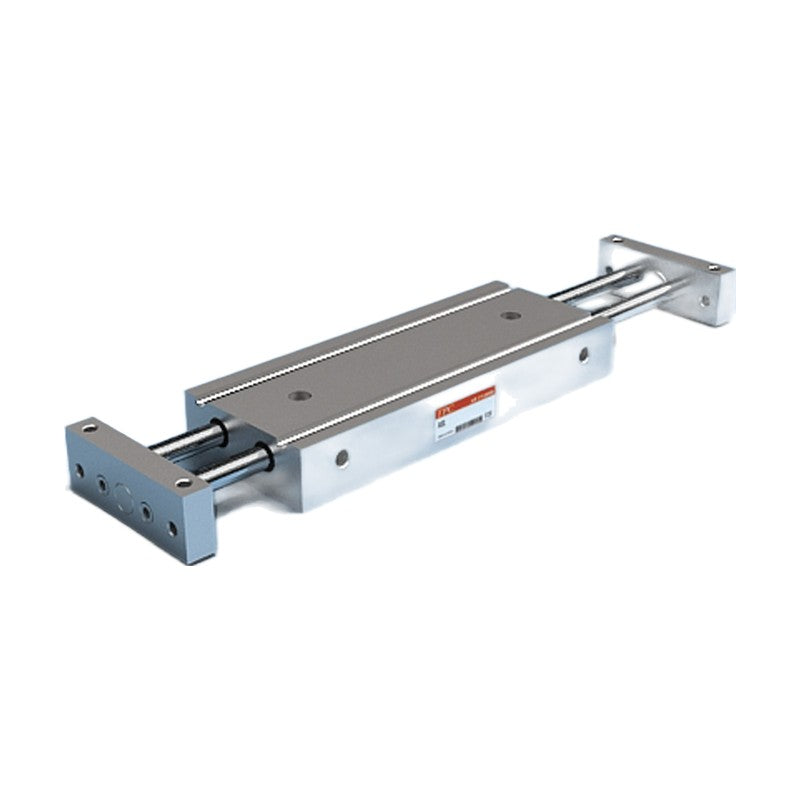

TPC ASL Slide Cylinder Packing Sets and Bumper Holders

TPC ASL Slide Cylinder Packing Sets and Bumper Holders

Replacement packing sets and stroke-adjusting bumper holders for TPC ASL twin-rod slide cylinders, bore 12 to 32 mm.

Key features

  • Packing set ASL**-SK contains piston packing, rod packing and tube gasket (NBR)
  • Bumper holder ASL**-SA with urethane bumper for stroke adjustment; sold as a set of 2
  • Stroke adjusting range 7.5 mm (12, 20) or 5.5 mm (16, 25, 32)
  • Common to standard and 2B-ASL versions

Specifications

Series ASLT / ASLP
Seal material NBR
Bumper Urethane
Source TPC Mechatronics catalog ASL_Series(231106).pdf, p. 3
ASL12-SK Part: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP12
ASL16-SK Part: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP16
ASL20-SK Part: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP20
ASL25-SK Part: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP25
ASL32-SK Part: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP32
ASL12-SA Part: Bumper holder M8x1.0 (2 pcs/set) | Applicable: ASL12, ASL16
ASL20-SA Part: Bumper holder M10x1.0 (2 pcs/set) | Applicable: ASL20, ASL25
ASL32-SA Part: Bumper holder M14x1.5 (2 pcs/set) | Applicable: ASL32
Cylinder Spare PartsTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC ASL Slide Cylinder Packing Sets and Bumper Holders

Brand TPC Mechatronics·Cylinder Spare Parts

Available part numbers (8)

ASL12-SK, ASL16-SK, ASL20-SK, ASL25-SK, ASL32-SK, ASL12-SA, ASL20-SA, ASL32-SA

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ASL12-SKPart: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP12
ASL16-SKPart: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP16
ASL20-SKPart: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP20
ASL25-SKPart: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP25
ASL32-SKPart: Packing set (piston, rod, tube gasket) | Applicable: ASLT/ASLP32
ASL12-SAPart: Bumper holder M8x1.0 (2 pcs/set) | Applicable: ASL12, ASL16
ASL20-SAPart: Bumper holder M10x1.0 (2 pcs/set) | Applicable: ASL20, ASL25
ASL32-SAPart: Bumper holder M14x1.5 (2 pcs/set) | Applicable: ASL32
