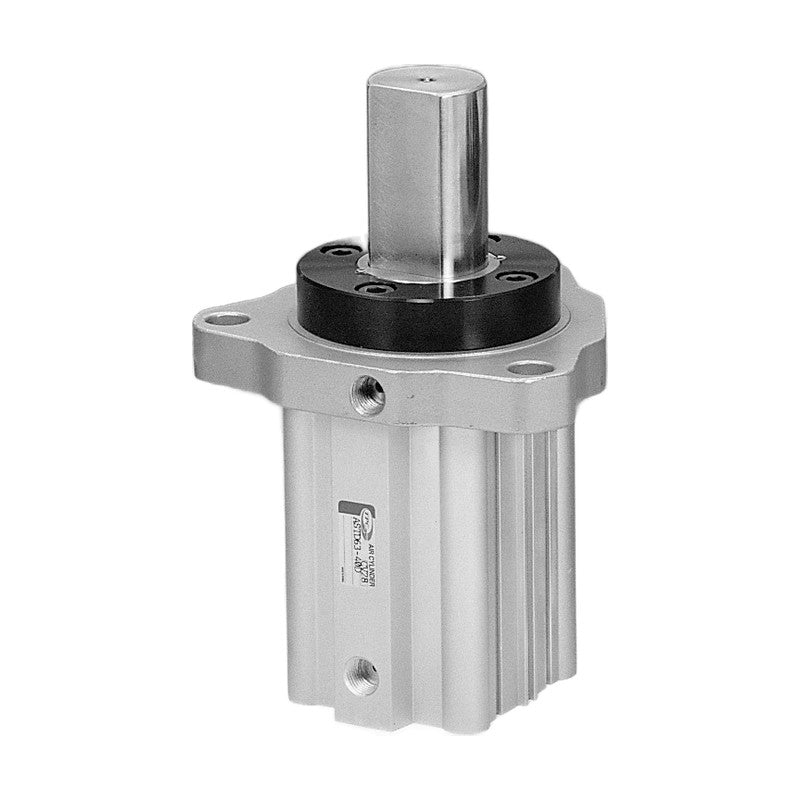

TPC AST Stopper Cylinder Replacement Packings

TPC AST Stopper Cylinder Replacement Packings

Replacement gaskets, piston packings, rod packings and O-rings for TPC AST stopper cylinders, bore 50 to 80 mm.

Key features

  • Packing list part numbers as printed for direct and roller types
  • Gaskets used at rod side and head side (2 per cylinder)
  • All seals NBR
  • Common to standard and 2B-AST versions

Specifications

Series AST / 2B-AST
Seal material NBR
Bores 50, 63, 80 mm
Source TPC Mechatronics catalog AST_Series(230428).pdf, p. 5, 10
C-46 Part: Gasket (NBR, 2 pcs) | For bore: 50 mm
C-60 Part: Gasket (NBR, 2 pcs) | For bore: 63 mm
C-75 Part: Gasket (NBR, 2 pcs) | For bore: 80 mm
PSD-50 Part: Piston packing (NBR) | For bore: 50 mm
PSD-63 Part: Piston packing (NBR) | For bore: 63 mm
PSD-80 Part: Piston packing (NBR) | For bore: 80 mm
PNY-32 Part: Rod packing (NBR) | For bore: 50 mm
PNY-40 Part: Rod packing (NBR) | For bore: 63 mm
PNY-50 Part: Rod packing (NBR) | For bore: 80 mm
P5 Part: O-ring (NBR, 2 pcs) | For bore: 50, 63 mm
P6 Part: O-ring (NBR, 2 pcs) | For bore: 80 mm
Cylinder Spare PartsTPC Mechatronics
11 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC AST Stopper Cylinder Replacement Packings

Brand TPC Mechatronics·Cylinder Spare Parts

Available part numbers (11)

C-46, C-60, C-75, PSD-50, PSD-63, PSD-80, PNY-32, PNY-40, PNY-50, P5 + 1 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
C-46Part: Gasket (NBR, 2 pcs) | For bore: 50 mm
C-60Part: Gasket (NBR, 2 pcs) | For bore: 63 mm
C-75Part: Gasket (NBR, 2 pcs) | For bore: 80 mm
PSD-50Part: Piston packing (NBR) | For bore: 50 mm
PSD-63Part: Piston packing (NBR) | For bore: 63 mm
PSD-80Part: Piston packing (NBR) | For bore: 80 mm
PNY-32Part: Rod packing (NBR) | For bore: 50 mm
PNY-40Part: Rod packing (NBR) | For bore: 63 mm
PNY-50Part: Rod packing (NBR) | For bore: 80 mm
P5Part: O-ring (NBR, 2 pcs) | For bore: 50, 63 mm
P6Part: O-ring (NBR, 2 pcs) | For bore: 80 mm
