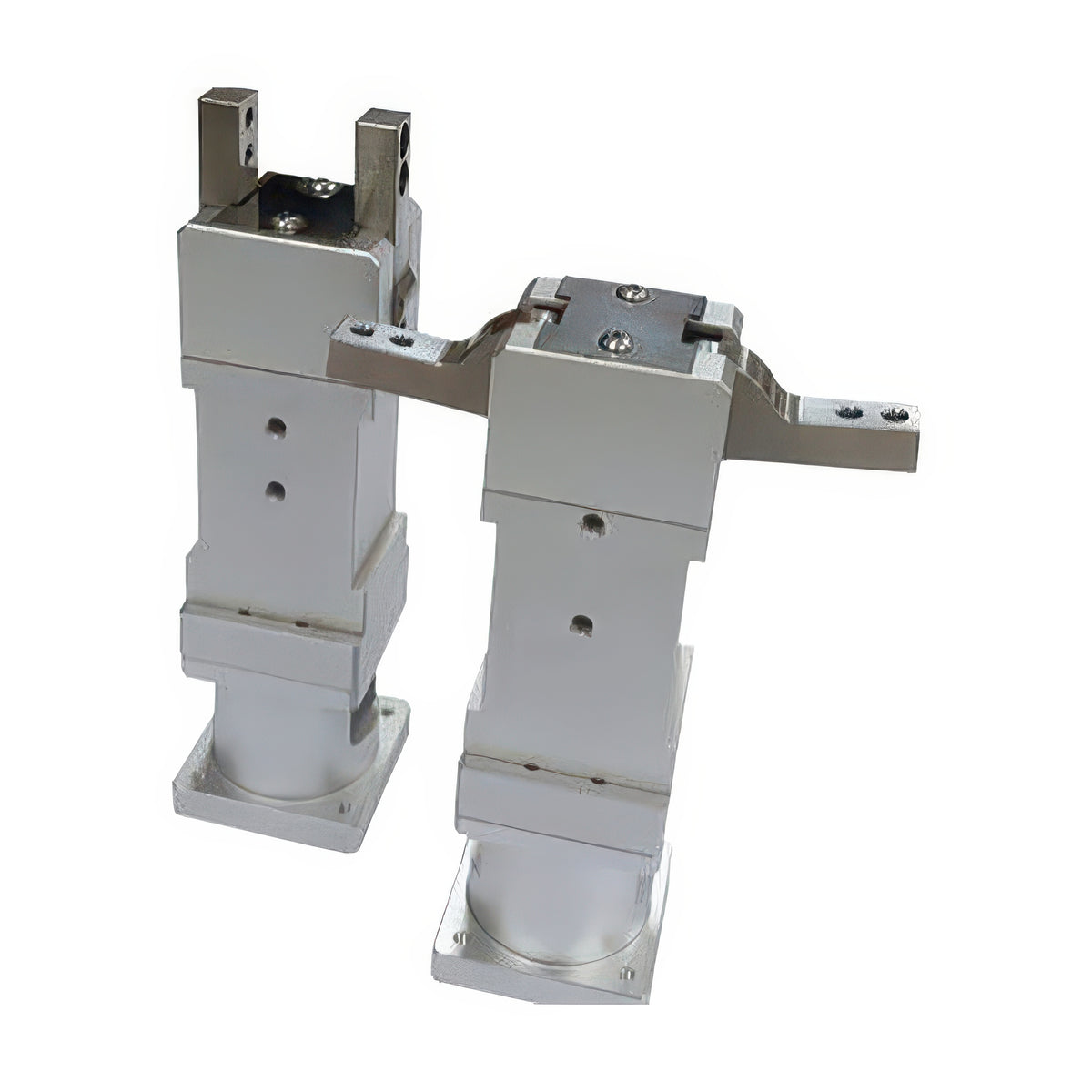

TPC Mechatronics EFS Series 180-Degree Opening Electric Gripper

TPC Mechatronics EFS Series 180-Degree Opening Electric Gripper

The EFS is a 180-degree opening type electric gripper driven by a ball screw and cam with link-guided fingers.

Key features

  • Its structure is optimized for durability, with minimal finger wobble and play and improved opening/closing speed
  • Stepper or servo motors can be fitted via a motor bracket and coupling
  • Gripping force is reinforced through motor load control
  • Finger rotation points use bearings and stainless steel material

Specifications

Opening angle 180 deg
Finger guide Link
Repeatability +/-0.1 mm
Max. frequency 60 cpm
Operating temperature 1-55 C
Humidity 90 %RH or less
TPC Mechatronics EFS Series 180-Degree Opening Electric Gripper reference 2
EFS16 Size: 16 mm | Max. gripping force: 85 N (at 250 rpm) | Drive: Ball screw (0401) + cam | Max. finger length: 60 mm | Motor: up to 28 mm square | Opening angle: 180 deg | Finger guide: Link | Repeatability: +/-0.1 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
EFS25 Size: 25 mm | Max. gripping force: 176 N (at 250 rpm) | Drive: Ball screw (0602) + cam | Max. finger length: 75 mm | Motor: up to 42 mm square | Opening angle: 180 deg | Finger guide: Link | Repeatability: +/-0.1 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
Electric GrippersTPC Mechatronics
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics EFS Series 180-Degree Opening Electric Gripper

Brand TPC Mechatronics·Electric Grippers

Available part numbers (2)

EFS16, EFS25

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics EFS Series 180-Degree Opening Electric Gripper reference 2
0 selected
RFQ List (0)
Product codeSpec
EFS16Size: 16 mm | Max. gripping force: 85 N (at 250 rpm) | Drive: Ball screw (0401) + cam | Max. finger length: 60 mm | Motor: up to 28 mm square | Opening angle: 180 deg | Finger guide: Link | Repeatability: +/-0.1 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
EFS25Size: 25 mm | Max. gripping force: 176 N (at 250 rpm) | Drive: Ball screw (0602) + cam | Max. finger length: 75 mm | Motor: up to 42 mm square | Opening angle: 180 deg | Finger guide: Link | Repeatability: +/-0.1 mm | Max. frequency: 60 cpm | Operating temperature: 1-55 C | Humidity: 90 %RH or less
