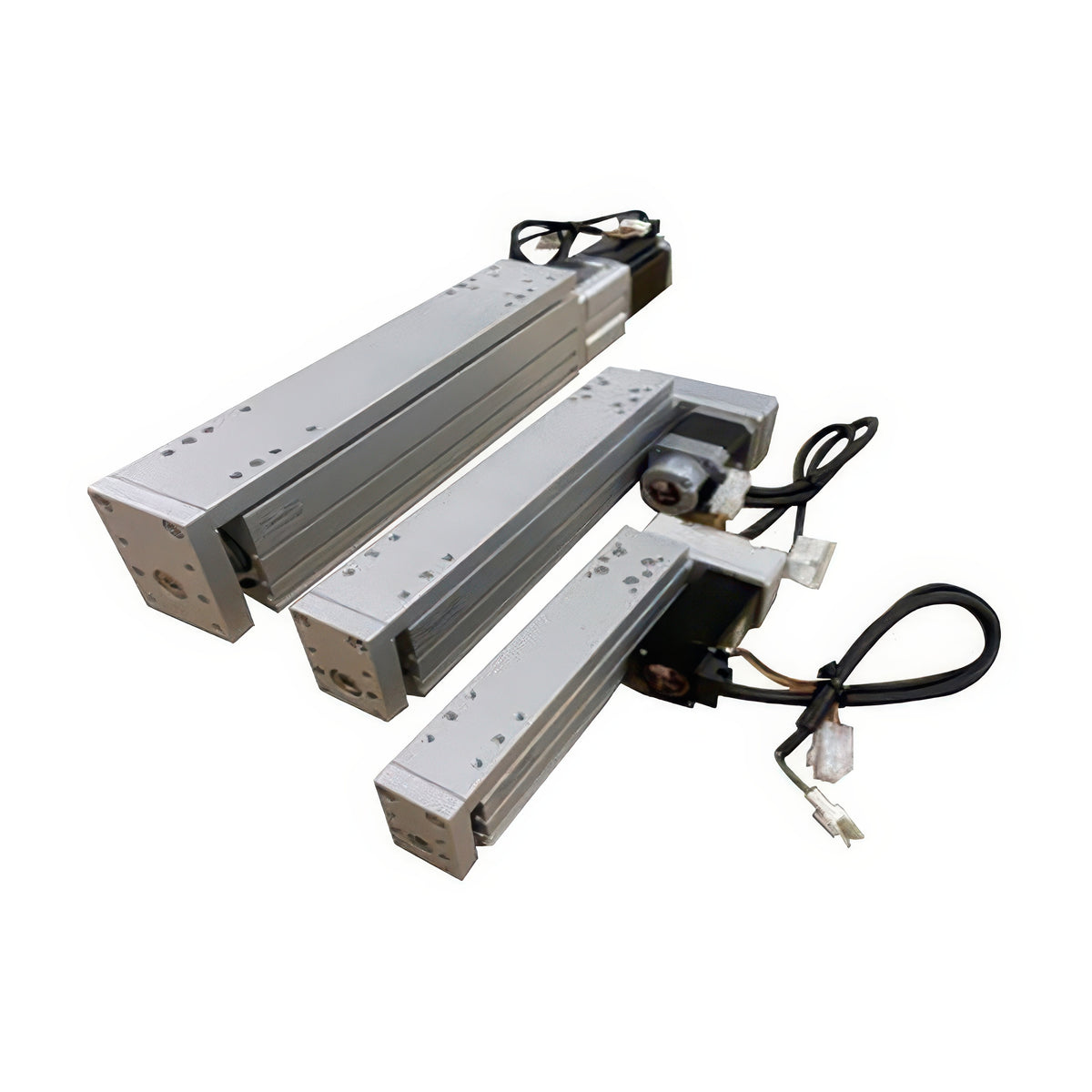

TPC Mechatronics ELSD Series Electric Table Cylinder

TPC Mechatronics ELSD Series Electric Table Cylinder

The ELSD is a ball-screw electric table cylinder with an integrated high-rigidity miniature LM guide.

Key features

  • The upper table can be loaded in two zones or at the front face depending on pitching moment
  • Motors can be mounted in-line (screw plus coupling) or parallel (screw plus belt), left or right, with an in-line foot mounting rail option
  • Standard DC stepper motors or AC servo motors are supported, and 2 x 2 switch rails accept solid-state auto switches

Specifications

Repeatability 0.02 mm (motor in-line), 0.08 mm (motor parallel)
Max. acceleration 5 m/s2
Guide LM guide
Operating temperature 5-40 C
ELSD35 Size: 35 | Stroke: 25, 50, 75, 100 mm | Screw: dia. 8 mm, ball lead 2.5 mm / lead screw 10 mm | Payload: 6 kg | Thrust: up to 170 N (lead 2.5), up to 27 N (lead 10) | Rated speed: up to 80 mm/s (lead 2.5), up to 300 mm/s (lead 10) | Motor size: 28 mm (DC step) | Repeatability: 0.02 mm (motor in-line), 0.08 mm (motor parallel) | Max. acceleration: 5 m/s2 | Guide: LM guide | Operating temperature: 5-40 C
ELSD45 Size: 45 | Stroke: 25, 50, 75, 100, 150 mm | Screw: ball, dia. 12 mm, lead 5/10 mm | Payload: 12 kg | Thrust: up to 330 N (lead 5), up to 120 N (lead 10) | Rated speed: up to 250 mm/s (lead 5), up to 500 mm/s (lead 10) | Motor size: 42 mm (DC step / AC servo 50-100 W) | Repeatability: 0.02 mm (motor in-line), 0.08 mm (motor parallel) | Max. acceleration: 5 m/s2 | Guide: LM guide | Operating temperature: 5-40 C
ELSD65 Size: 65 | Stroke: 50, 75, 100, 150, 200 mm | Screw: ball, dia. 16 mm, lead 5/10 mm | Payload: 25 kg | Thrust: up to 1300 N (lead 5), up to 600 N (lead 10) | Rated speed: up to 250 mm/s (lead 5), up to 500 mm/s (lead 10) | Motor size: 60 mm (AC servo 200-400 W) | Repeatability: 0.02 mm (motor in-line), 0.08 mm (motor parallel) | Max. acceleration: 5 m/s2 | Guide: LM guide | Operating temperature: 5-40 C
Electric ActuatorsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics ELSD Series Electric Table Cylinder

Brand TPC Mechatronics·Electric Actuators

Available part numbers (3)

ELSD35, ELSD45, ELSD65

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ELSD35Size: 35 | Stroke: 25, 50, 75, 100 mm | Screw: dia. 8 mm, ball lead 2.5 mm / lead screw 10 mm | Payload: 6 kg | Thrust: up to 170 N (lead 2.5), up to 27 N (lead 10) | Rated speed: up to 80 mm/s (lead 2.5), up to 300 mm/s (lead 10) | Motor size: 28 mm (DC step) | Repeatability: 0.02 mm (motor in-line), 0.08 mm (motor parallel) | Max. acceleration: 5 m/s2 | Guide: LM guide | Operating temperature: 5-40 C
ELSD45Size: 45 | Stroke: 25, 50, 75, 100, 150 mm | Screw: ball, dia. 12 mm, lead 5/10 mm | Payload: 12 kg | Thrust: up to 330 N (lead 5), up to 120 N (lead 10) | Rated speed: up to 250 mm/s (lead 5), up to 500 mm/s (lead 10) | Motor size: 42 mm (DC step / AC servo 50-100 W) | Repeatability: 0.02 mm (motor in-line), 0.08 mm (motor parallel) | Max. acceleration: 5 m/s2 | Guide: LM guide | Operating temperature: 5-40 C
ELSD65Size: 65 | Stroke: 50, 75, 100, 150, 200 mm | Screw: ball, dia. 16 mm, lead 5/10 mm | Payload: 25 kg | Thrust: up to 1300 N (lead 5), up to 600 N (lead 10) | Rated speed: up to 250 mm/s (lead 5), up to 500 mm/s (lead 10) | Motor size: 60 mm (AC servo 200-400 W) | Repeatability: 0.02 mm (motor in-line), 0.08 mm (motor parallel) | Max. acceleration: 5 m/s2 | Guide: LM guide | Operating temperature: 5-40 C
