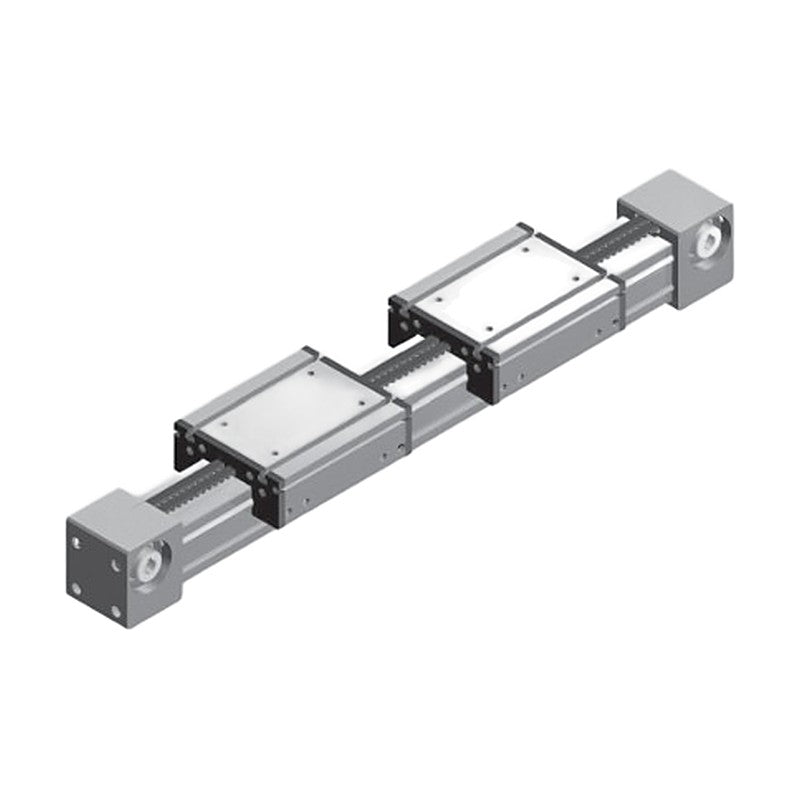

TPC Mechatronics MBB Belt Driven Linear Actuator (Dual Independent Sliders, Size 60-100)

TPC Mechatronics MBB Belt Driven Linear Actuator (Dual Independent Sliders, Size 60-100)

The MBB series is a belt driven linear actuator with a track roller guide carrying two sliders on one rail.

Key features

  • Each slider has its own pulleys, timing belt and block, so the two sliders can move independently of each other
  • It is available in sizes 60, 80 and 100 with rail lengths up to 5000 mm and a repeatability of +/-0.05 mm
  • Rail length, slider type, pulley arrangement, colour, sensors and brackets are specified at order

Specifications

Max speed 2000 mm/s
Repeatability +/-0.05 mm
Slider type S: 4 rollers / H: S + 4 rollers
TPC Mechatronics MBB Belt Driven Linear Actuator (Dual Independent Sliders, Size 60-100) reference 2
MBB60 Rail length: 700-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 30 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 41.38 mm | Travel per pulley rev: 130 mm/rev | Belt: RPP5 / W9 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200 W | Gear ratio: 10 / 5 | Body size (W x H): 60 x 90 mm | Base weight: 7.3 kgf | Weight per 100 mm stroke: 0.5 kgf
MBB80 Rail length: 800-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 40 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 61.12 mm | Travel per pulley rev: 192 mm/rev | Belt: RPP8 / W12 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400 W | Gear ratio: 20 / 10 | Body size (W x H): 80 x 121 mm | Base weight: 15.9 kgf | Weight per 100 mm stroke: 0.8 kgf
MBB100 Rail length: 700-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 60 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 81.49 mm | Travel per pulley rev: 256 mm/rev | Belt: RPP8 / W20 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 | Body size (W x H): 100 x 155 mm | Base weight: 36.0 kgf | Weight per 100 mm stroke: 1.4 kgf
Belt Driven Linear ActuatorsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics MBB Belt Driven Linear Actuator (Dual Independent Sliders, Size 60-100)

Brand TPC Mechatronics·Belt Driven Linear Actuators

Available part numbers (3)

MBB60, MBB80, MBB100

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics MBB Belt Driven Linear Actuator (Dual Independent Sliders, Size 60-100) reference 2
0 selected
RFQ List (0)
Product codeSpec
MBB60Rail length: 700-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 30 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 41.38 mm | Travel per pulley rev: 130 mm/rev | Belt: RPP5 / W9 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200 W | Gear ratio: 10 / 5 | Body size (W x H): 60 x 90 mm | Base weight: 7.3 kgf | Weight per 100 mm stroke: 0.5 kgf
MBB80Rail length: 800-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 40 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 61.12 mm | Travel per pulley rev: 192 mm/rev | Belt: RPP8 / W12 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400 W | Gear ratio: 20 / 10 | Body size (W x H): 80 x 121 mm | Base weight: 15.9 kgf | Weight per 100 mm stroke: 0.8 kgf
MBB100Rail length: 700-5000 mm | Max speed: 2000 mm/s | Max payload (horizontal): 60 kgf | Repeatability: +/-0.05 mm | Pulley diameter: 81.49 mm | Travel per pulley rev: 256 mm/rev | Belt: RPP8 / W20 | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Gear ratio: 20 / 10 | Body size (W x H): 100 x 155 mm | Base weight: 36.0 kgf | Weight per 100 mm stroke: 1.4 kgf
