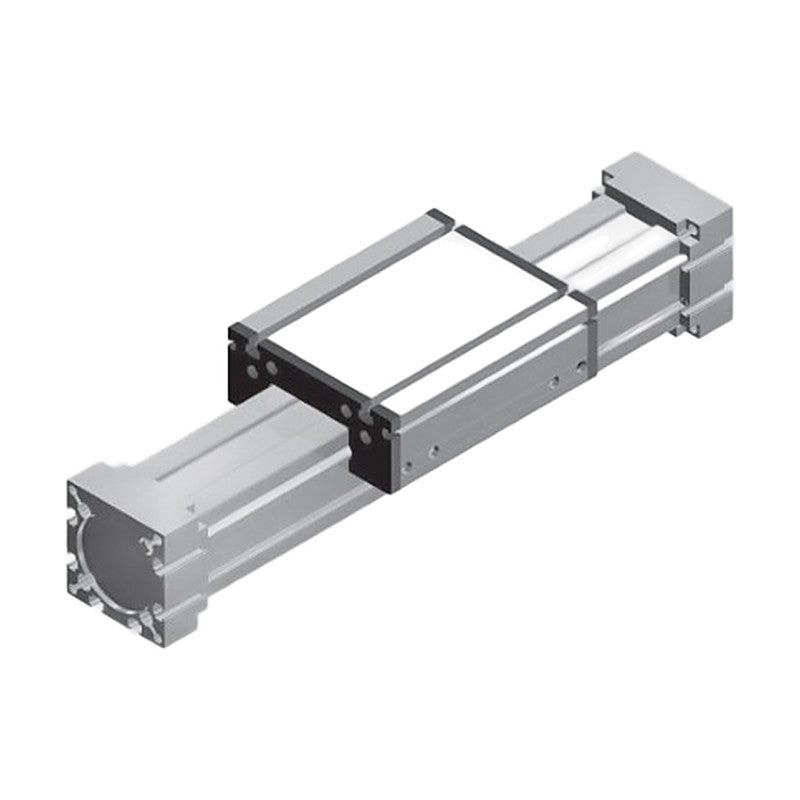

TPC Mechatronics MG Non-Driven Linear Guide Unit (Track Roller Guide, Size 40-100)

The MG series is a non-driven linear guide unit consisting of an aluminium rail profile with a track roller guided slider and no drive mechanism.

Key features

It is offered in sizes 40, 60, 80 and 100
Strokes range from 50-3500 mm (size 40) and 50-5500 mm (sizes 60-100)
Stroke, slider type, colour, sensors and mounting brackets are specified at order; rail length = stroke + A, overall length = rail length + 2B

Specifications

X slot	M5 nut slot

TPC Mechatronics MG Non-Driven Linear Guide Unit (Track Roller Guide, Size 40-100) reference 2

MG40		Stroke: 50-3500 mm \| Rail profile S: 40 mm \| A (slider length): 140 mm \| B: 12 mm \| C: 9 mm \| D: 58 mm \| E: 25 mm \| F (slider width): 100 mm \| G: 66 mm \| H: 17 mm \| I: 12 mm \| J: 64 mm \| K: 80 mm \| M: 70 mm \| N: 26 mm \| O: 50 mm \| P (pin hole): dia. 5H7 DP8 \| Q (tap): M5 DP12 \| U slot: M4 half-moon nut slot \| W slot: M6 nut slot \| X slot: M5 nut slot
MG60		Stroke: 50-5500 mm \| Rail profile S: 60 mm \| A (slider length): 180 mm \| B: 15 mm \| C: 11 mm \| D: 82 mm \| E: 30 mm \| F (slider width): 144 mm \| G: 99 mm \| H: 26 mm \| I: 14 mm \| J: 90 mm \| K: 120 mm \| M: 104 mm \| N: 32 mm \| O: 67 mm \| P (pin hole): dia. 5H7 DP8 \| Q (tap): M8 DP18 \| U slot: M5 nut slot \| W slot: M8 nut slot \| X slot: M5 nut slot
MG80		Stroke: 50-5500 mm \| Rail profile S: 80 mm \| A (slider length): 214 mm \| B: 20 mm \| C: 11 mm \| D: 102 mm \| E: 40 mm \| F (slider width): 170 mm \| G: 117 mm \| H: 31 mm \| I: 14 mm \| J: 121 mm \| K: 130 mm \| M: 140 mm \| N: 34 mm \| O: 82 mm \| P (pin hole): dia. 6H7 DP8 \| Q (tap): M10 DP18 \| U slot: M5 nut slot \| W slot: M8 nut slot \| X slot: M5 nut slot
MG100		Stroke: 50-5500 mm \| Rail profile S: 100 mm \| A (slider length): 304 mm \| B: 20 mm \| C: 15 mm \| D: 130 mm \| E: 50 mm \| F (slider width): 230 mm \| G: 155 mm \| H: 40 mm \| I: 27 mm \| J: 155 mm \| K: 220 mm \| M: 204 mm \| N: 52 mm \| O: 90 mm \| P (pin hole): dia. 6H7 DP8 \| Q (tap): M10 DP25 \| U slot: M5 nut slot \| W slot: M8 nut slot \| X slot: M5 nut slot

Linear Guide UnitsTPC Mechatronics

4 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics MG Non-Driven Linear Guide Unit (Track Roller Guide, Size 40-100)

Brand TPC Mechatronics·Linear Guide Units

Available part numbers (4)

MG40, MG60, MG80, MG100

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	MG40	Stroke: 50-3500 mm \| Rail profile S: 40 mm \| A (slider length): 140 mm \| B: 12 mm \| C: 9 mm \| D: 58 mm \| E: 25 mm \| F (slider width): 100 mm \| G: 66 mm \| H: 17 mm \| I: 12 mm \| J: 64 mm \| K: 80 mm \| M: 70 mm \| N: 26 mm \| O: 50 mm \| P (pin hole): dia. 5H7 DP8 \| Q (tap): M5 DP12 \| U slot: M4 half-moon nut slot \| W slot: M6 nut slot \| X slot: M5 nut slot
	MG60	Stroke: 50-5500 mm \| Rail profile S: 60 mm \| A (slider length): 180 mm \| B: 15 mm \| C: 11 mm \| D: 82 mm \| E: 30 mm \| F (slider width): 144 mm \| G: 99 mm \| H: 26 mm \| I: 14 mm \| J: 90 mm \| K: 120 mm \| M: 104 mm \| N: 32 mm \| O: 67 mm \| P (pin hole): dia. 5H7 DP8 \| Q (tap): M8 DP18 \| U slot: M5 nut slot \| W slot: M8 nut slot \| X slot: M5 nut slot
	MG80	Stroke: 50-5500 mm \| Rail profile S: 80 mm \| A (slider length): 214 mm \| B: 20 mm \| C: 11 mm \| D: 102 mm \| E: 40 mm \| F (slider width): 170 mm \| G: 117 mm \| H: 31 mm \| I: 14 mm \| J: 121 mm \| K: 130 mm \| M: 140 mm \| N: 34 mm \| O: 82 mm \| P (pin hole): dia. 6H7 DP8 \| Q (tap): M10 DP18 \| U slot: M5 nut slot \| W slot: M8 nut slot \| X slot: M5 nut slot
	MG100	Stroke: 50-5500 mm \| Rail profile S: 100 mm \| A (slider length): 304 mm \| B: 20 mm \| C: 15 mm \| D: 130 mm \| E: 50 mm \| F (slider width): 230 mm \| G: 155 mm \| H: 40 mm \| I: 27 mm \| J: 155 mm \| K: 220 mm \| M: 204 mm \| N: 52 mm \| O: 90 mm \| P (pin hole): dia. 6H7 DP8 \| Q (tap): M10 DP25 \| U slot: M5 nut slot \| W slot: M8 nut slot \| X slot: M5 nut slot
