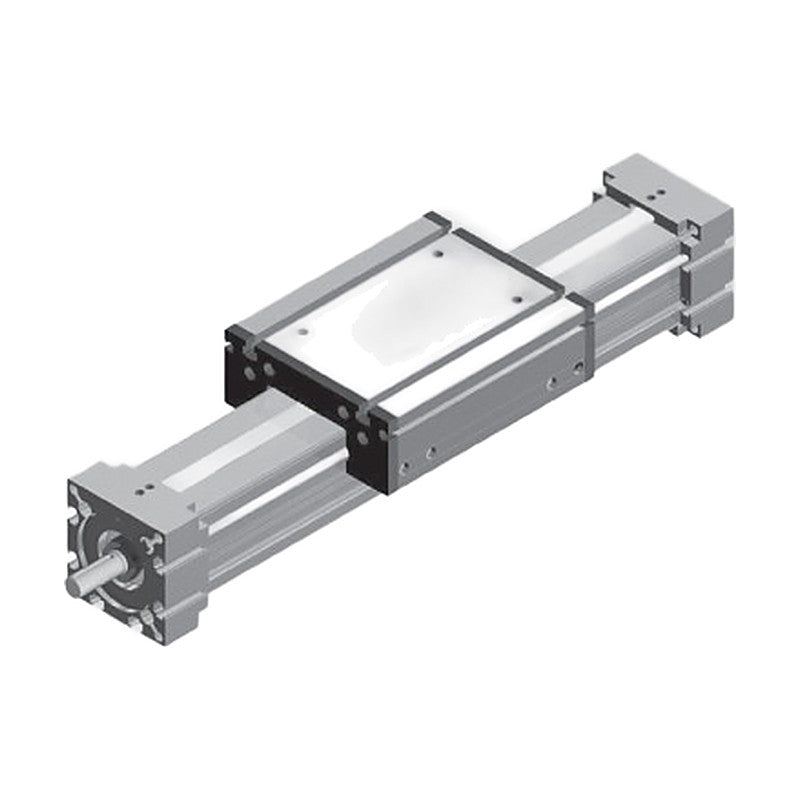

TPC Mechatronics MZ Ball Screw Linear Actuator (Track Roller Guide, Size 40-100)

TPC Mechatronics MZ Ball Screw Linear Actuator (Track Roller Guide, Size 40-100)

The MZ series is a ball screw driven linear actuator unit that combines a track roller guide with a rolled ball screw, balancing quality and economy.

Key features

  • It is offered in sizes 40, 60, 80 and 100 with strokes of 50-1500 mm and a repeatability of +/-0.025 mm
  • Several ball screw leads can be selected, and the units are easy to maintain
  • Stroke, ball screw, colour, sensors, mounting brackets and motor bracket are specified at order; ball screw options L2525 and L3232 are marked as discontinued

Specifications

Stroke 50-1500 mm
Repeatability +/-0.025 mm
Slider type S: 4 rollers / H: S + 4 rollers
TPC Mechatronics MZ Ball Screw Linear Actuator (Track Roller Guide, Size 40-100) reference 2
MZ40 Stroke: 50-1500 mm | Max speed: 500 mm/s | Max payload (horizontal): 30 kgf | Max payload (vertical): 10 kgf | Repeatability: +/-0.025 mm | Ball screw / lead: 16 mm / 5 mm (10 mm option) | No-load torque: 0.25 / 0.44 Nm | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 100-200 W | Body size (W x H): 40 x 64 mm | Base weight: 1.9 kgf | Weight per 100 mm stroke: 0.38 kgf
MZ60 Stroke: 50-1500 mm | Max speed: 1250 mm/s | Max payload (horizontal): 50 kgf | Max payload (vertical): 30 kgf | Repeatability: +/-0.025 mm | Ball screw / lead: 25 mm / 10 mm | No-load torque: 0.6 Nm | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 200-400 W | Body size (W x H): 60 x 90 mm | Base weight: 5.8 kgf | Weight per 100 mm stroke: 0.86 kgf
MZ80 Stroke: 50-1500 mm | Max speed: 1250 mm/s | Max payload (horizontal): 60 kgf | Max payload (vertical): 35 kgf | Repeatability: +/-0.025 mm | Ball screw / lead: 25 mm / 10 mm | No-load torque: 0.6 Nm | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 400-750 W | Body size (W x H): 80 x 121 mm | Base weight: 11 kgf | Weight per 100 mm stroke: 1.7 kgf
MZ100 Stroke: 50-1500 mm | Max speed: 1600 mm/s | Max payload (horizontal): 120 kgf | Max payload (vertical): 70 kgf | Repeatability: +/-0.025 mm | Ball screw / lead: 25 mm / 10 mm | No-load torque: 0.6 Nm | Slider type: S: 4 rollers / H: S + 4 rollers | Motor: 750 W | Body size (W x H): 100 x 155 mm | Base weight: 20 kgf | Weight per 100 mm stroke: 2.2 kgf
