TPC Mechatronics NQB Belt Driven Linear Actuator (LM Guide & Timing Belt, Sizes 40-100)

TPC Mechatronics NQB Belt Driven Linear Actuator (LM Guide & Timing Belt, Sizes 40-100)

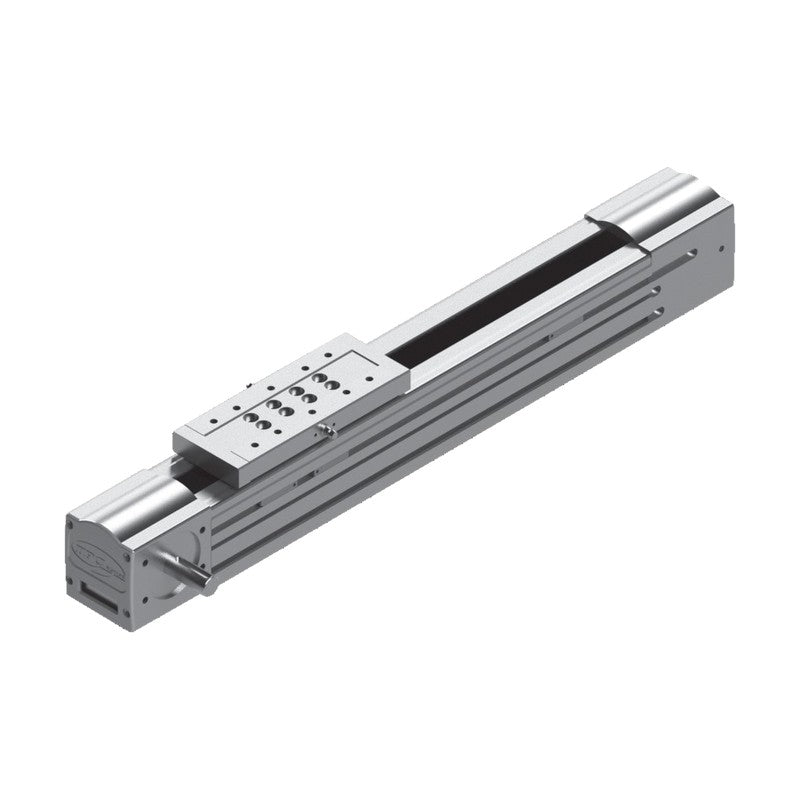

The NQB is a belt driven linear actuator unit that combines an LM guide with a timing belt drive, offered in sizes 40, 60, 80 and 100.

Key features

  • It has a compact, high-rigidity structure designed for easy multi-axis combination
  • A steel-cord reinforced high-tension timing belt is used, and grease can be injected through the slide block for easy maintenance
  • Repeatability is ±0.05 mm and maximum speed ranges from 850 to 2000 mm/s depending on size
  • Stroke, pulley type, color, sensors, mounting brackets and reducer bracket are specified at order

Specifications

Repeatability ±0.05 mm
TPC Mechatronics NQB Belt Driven Linear Actuator (LM Guide & Timing Belt, Sizes 40-100) reference 2
NQB40 Stroke: 100~800 mm | Max speed: 850 mm/s | Payload: 20 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø27.06 mm | Travel per pulley rev: 85 mm/rev | No-load torque: 0.5 Nm | Belt: RPP5 / W15 | LM guide: No.12, 1 rail 2 blocks | Base weight: 1.5 kgf | Weight per 100 mm stroke: 0.2 kgf | Motor: 50~100 W | Size W x H: 44 x 56 mm
NQB60 Stroke: 100~2800 mm | Max speed: 1400 mm/s | Payload: 50 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø44.56 mm | Travel per pulley rev: 140 mm/rev | No-load torque: 1.0 Nm | Belt: RPP5 / W28 | LM guide: No.15, 1 rail 2 blocks | Base weight: 4.0 kgf | Weight per 100 mm stroke: 0.53 kgf | Motor: 100~400 W | Size W x H: 60 x 80 mm
NQB80 Stroke: 100~3700 mm | Max speed: 1500 mm/s | Payload: 70 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø56.02 mm | Travel per pulley rev: 176 mm/rev | No-load torque: 1.4 Nm | Belt: RPP8 / W40 | LM guide: No.20, 1 rail 2 blocks | Base weight: 10.9 kgf | Weight per 100 mm stroke: 1.1 kgf | Motor: 200~750 W | Size W x H: 80 x 105 mm
NQB100 Stroke: 100~3650 mm | Max speed: 2000 mm/s | Payload: 120 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø71.3 mm | Travel per pulley rev: 224 mm/rev | No-load torque: 1.8 Nm | Belt: RPP8 / W50 | LM guide: No.30, 1 rail 2 blocks | Base weight: 20.2 kgf | Weight per 100 mm stroke: 1.7 kgf | Motor: 750 W~1.5 kW | Size W x H: 100 x 130 mm
Belt Driven Linear ActuatorsTPC Mechatronics
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics NQB Belt Driven Linear Actuator (LM Guide & Timing Belt, Sizes 40-100)

Brand TPC Mechatronics·Belt Driven Linear Actuators

Available part numbers (4)

NQB40, NQB60, NQB80, NQB100

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics NQB Belt Driven Linear Actuator (LM Guide & Timing Belt, Sizes 40-100) reference 2
0 selected
RFQ List (0)
Product codeSpec
NQB40Stroke: 100~800 mm | Max speed: 850 mm/s | Payload: 20 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø27.06 mm | Travel per pulley rev: 85 mm/rev | No-load torque: 0.5 Nm | Belt: RPP5 / W15 | LM guide: No.12, 1 rail 2 blocks | Base weight: 1.5 kgf | Weight per 100 mm stroke: 0.2 kgf | Motor: 50~100 W | Size W x H: 44 x 56 mm
NQB60Stroke: 100~2800 mm | Max speed: 1400 mm/s | Payload: 50 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø44.56 mm | Travel per pulley rev: 140 mm/rev | No-load torque: 1.0 Nm | Belt: RPP5 / W28 | LM guide: No.15, 1 rail 2 blocks | Base weight: 4.0 kgf | Weight per 100 mm stroke: 0.53 kgf | Motor: 100~400 W | Size W x H: 60 x 80 mm
NQB80Stroke: 100~3700 mm | Max speed: 1500 mm/s | Payload: 70 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø56.02 mm | Travel per pulley rev: 176 mm/rev | No-load torque: 1.4 Nm | Belt: RPP8 / W40 | LM guide: No.20, 1 rail 2 blocks | Base weight: 10.9 kgf | Weight per 100 mm stroke: 1.1 kgf | Motor: 200~750 W | Size W x H: 80 x 105 mm
NQB100Stroke: 100~3650 mm | Max speed: 2000 mm/s | Payload: 120 kgf (horizontal) | Repeatability: ±0.05 mm | Pulley diameter: Ø71.3 mm | Travel per pulley rev: 224 mm/rev | No-load torque: 1.8 Nm | Belt: RPP8 / W50 | LM guide: No.30, 1 rail 2 blocks | Base weight: 20.2 kgf | Weight per 100 mm stroke: 1.7 kgf | Motor: 750 W~1.5 kW | Size W x H: 100 x 130 mm
