TPC Mechatronics RDFS Series Double Ball Screw Nut (S-Type, Flanged)

The RDFS Series is a precision ball screw nut line from TPC Mechatronics: S-type end-cap circulation flanged double nut for preloaded positioning, shaft diameters 16-50 mm.

Key features

Ball screws convert rotary motion into linear motion with high efficiency, reversibility and high positioning precision
End-cap ball circulation allows compact nuts and smooth high-speed travel
Shafts are available ground or rolled in accuracy grades C0 to C10 with selectable axial clearance/preload (P0-P4) and surface treatments

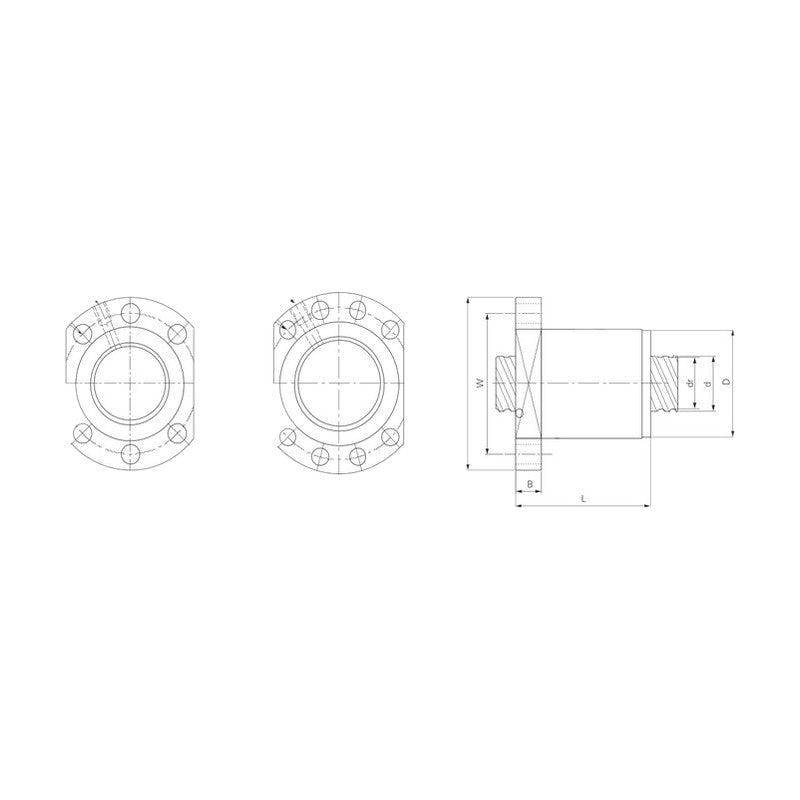

The table lists ball diameter, root diameter, basic dynamic and static load ratings, rigidity and main nut dimensions for each model

Specifications

Thread direction	Right

RDFSR1605-3.8		Shaft dia. d: 14.8 mm \| Lead: 5 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 1122 kgf \| Static load Coa: 2492 kgf \| Rigidity K: 48 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 72.5 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR1610-2.8		Shaft dia. d: 14.8 mm \| Lead: 10 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 892 kgf \| Static load Coa: 1949 kgf \| Rigidity K: 38 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 97 mm \| Circuits: 2.8×1 \| Thread direction: Right
RDFSR2005-3.8		Shaft dia. d: 20 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1552 kgf \| Static load Coa: 3879 kgf \| Rigidity K: 60 kgf/μm \| Nut dia. D: 36 mm \| Flange dia. A: 58 mm \| Nut length L: 75 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR2010-3.8		Shaft dia. d: 20 mm \| Lead: 10 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1586 kgf \| Static load Coa: 4039 kgf \| Rigidity K: 63 kgf/μm \| Nut dia. D: 36 mm \| Flange dia. A: 58 mm \| Nut length L: 120 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR2505-3.8		Shaft dia. d: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1726 kgf \| Static load Coa: 4909 kgf \| Rigidity K: 69 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 72.5 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR2510-3.8		Shaft dia. d: 25 mm \| Lead: 10 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1714 kgf \| Static load Coa: 4882 kgf \| Rigidity K: 72 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 117 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR3205-3.8		Shaft dia. d: 32 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1924 kgf \| Static load Coa: 6350 kgf \| Rigidity K: 82 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 82 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR3210-3.8		Shaft dia. d: 31 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 2574 kgf \| Static load Coa: 7645 kgf \| Rigidity K: 88 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 122 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR3220-2.8		Shaft dia. d: 31 mm \| Lead: 20 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 2025 kgf \| Static load Coa: 5879 kgf \| Rigidity K: 69 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 160 mm \| Circuits: 2.8×1 \| Thread direction: Right
RDFSR4005-3.8		Shaft dia. d: 40 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2112 kgf \| Static load Coa: 7996 kgf \| Rigidity K: 97 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 85 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR4010-3.8		Shaft dia. d: 38 mm \| Lead: 10 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 5281 kgf \| Static load Coa: 14676 kgf \| Rigidity K: 110 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 123 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR4020-2.8		Shaft dia. d: 38 mm \| Lead: 20 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 4073 kgf \| Static load Coa: 10902 kgf \| Rigidity K: 85 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 162 mm \| Circuits: 2.8×1 \| Thread direction: Right
RDFSR5005-3.8		Shaft dia. d: 50 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2309 kgf \| Static load Coa: 10055 kgf \| Rigidity K: 112 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 85 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR5010-3.8		Shaft dia. d: 48 mm \| Lead: 10 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 5898 kgf \| Static load Coa: 18811 kgf \| Rigidity K: 128 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 138 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR5020-3.8		Shaft dia. d: 48 mm \| Lead: 20 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 6014 kgf \| Static load Coa: 19478 kgf \| Rigidity K: 137 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 147 mm \| Circuits: 3.8×1 \| Thread direction: Right
RDFSR5050-1.8		Shaft dia. d: 48 mm \| Lead: 50 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 3229 kgf \| Static load Coa: 9732 kgf \| Rigidity K: 70 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 218 mm \| Circuits: 1.8×1 \| Thread direction: Right

Ball ScrewsTPC Mechatronics

16 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics RDFS Series Double Ball Screw Nut (S-Type, Flanged)

Brand TPC Mechatronics·Ball Screws

Available part numbers (16)

RDFSR1605-3.8, RDFSR1610-2.8, RDFSR2005-3.8, RDFSR2010-3.8, RDFSR2505-3.8, RDFSR2510-3.8, RDFSR3205-3.8, RDFSR3210-3.8, RDFSR3220-2.8, RDFSR4005-3.8 + 6 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	RDFSR1605-3.8	Shaft dia. d: 14.8 mm \| Lead: 5 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 1122 kgf \| Static load Coa: 2492 kgf \| Rigidity K: 48 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 72.5 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR1610-2.8	Shaft dia. d: 14.8 mm \| Lead: 10 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 892 kgf \| Static load Coa: 1949 kgf \| Rigidity K: 38 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 97 mm \| Circuits: 2.8×1 \| Thread direction: Right
	RDFSR2005-3.8	Shaft dia. d: 20 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1552 kgf \| Static load Coa: 3879 kgf \| Rigidity K: 60 kgf/μm \| Nut dia. D: 36 mm \| Flange dia. A: 58 mm \| Nut length L: 75 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR2010-3.8	Shaft dia. d: 20 mm \| Lead: 10 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1586 kgf \| Static load Coa: 4039 kgf \| Rigidity K: 63 kgf/μm \| Nut dia. D: 36 mm \| Flange dia. A: 58 mm \| Nut length L: 120 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR2505-3.8	Shaft dia. d: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1726 kgf \| Static load Coa: 4909 kgf \| Rigidity K: 69 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 72.5 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR2510-3.8	Shaft dia. d: 25 mm \| Lead: 10 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1714 kgf \| Static load Coa: 4882 kgf \| Rigidity K: 72 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 117 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR3205-3.8	Shaft dia. d: 32 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1924 kgf \| Static load Coa: 6350 kgf \| Rigidity K: 82 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 82 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR3210-3.8	Shaft dia. d: 31 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 2574 kgf \| Static load Coa: 7645 kgf \| Rigidity K: 88 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 122 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR3220-2.8	Shaft dia. d: 31 mm \| Lead: 20 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 2025 kgf \| Static load Coa: 5879 kgf \| Rigidity K: 69 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 160 mm \| Circuits: 2.8×1 \| Thread direction: Right
	RDFSR4005-3.8	Shaft dia. d: 40 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2112 kgf \| Static load Coa: 7996 kgf \| Rigidity K: 97 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 85 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR4010-3.8	Shaft dia. d: 38 mm \| Lead: 10 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 5281 kgf \| Static load Coa: 14676 kgf \| Rigidity K: 110 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 123 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR4020-2.8	Shaft dia. d: 38 mm \| Lead: 20 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 4073 kgf \| Static load Coa: 10902 kgf \| Rigidity K: 85 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 162 mm \| Circuits: 2.8×1 \| Thread direction: Right
	RDFSR5005-3.8	Shaft dia. d: 50 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2309 kgf \| Static load Coa: 10055 kgf \| Rigidity K: 112 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 85 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR5010-3.8	Shaft dia. d: 48 mm \| Lead: 10 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 5898 kgf \| Static load Coa: 18811 kgf \| Rigidity K: 128 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 138 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR5020-3.8	Shaft dia. d: 48 mm \| Lead: 20 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 6014 kgf \| Static load Coa: 19478 kgf \| Rigidity K: 137 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 147 mm \| Circuits: 3.8×1 \| Thread direction: Right
	RDFSR5050-1.8	Shaft dia. d: 48 mm \| Lead: 50 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 3229 kgf \| Static load Coa: 9732 kgf \| Rigidity K: 70 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 218 mm \| Circuits: 1.8×1 \| Thread direction: Right
