TPC Mechatronics RMW Series Miniature LM Guide (Wide Rail, Sizes 7-15)
TPC Mechatronics RMW Series Miniature LM Guide (Wide Rail, Sizes 7-15)

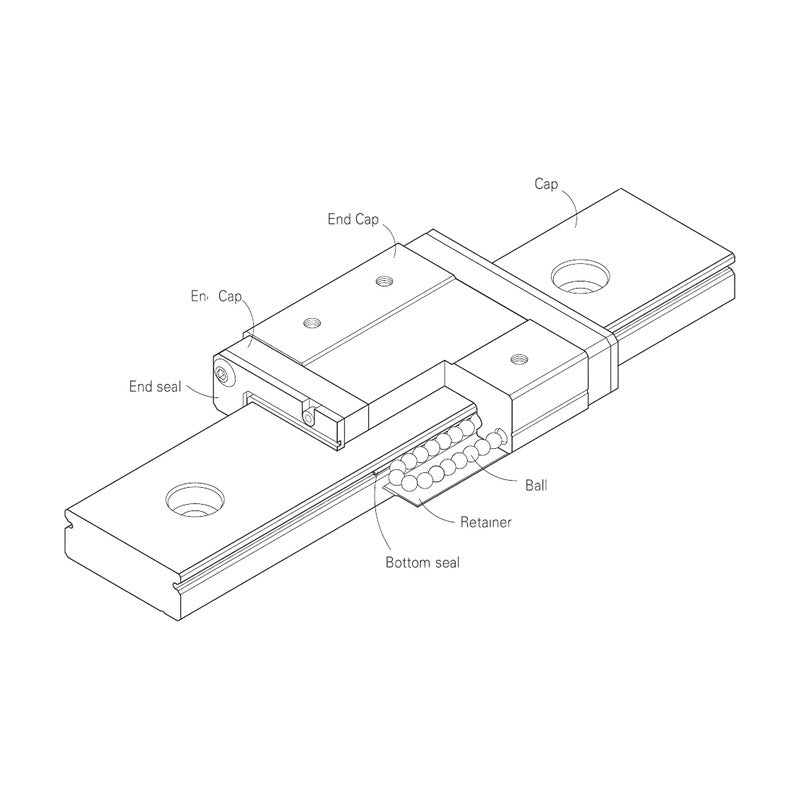

The RMW series is a miniature wide-rail linear guideway (LM guide).
Key features
- Its two-row 45° contact-angle raceways give smooth, quiet travel in every direction, and the wide rail provides high rigidity and moment capacity when a single rail is used
- Blocks come in standard (C) and high-load long (H) lengths in sizes 7, 9, 12 and 15
- Preload, accuracy grade, rail length and material are specified at order
| RMW7C | Load type: Standard (C) | Height H: 9 mm | Width W: 25 mm | Length L: 31.2 mm | Rail width WR: 14 mm | Rail mounting bolt: M3x6 | Basic dynamic load rating C: 1.87 kN | Basic static load rating C0: 2.56 kN | Block mass: 0.020 kg | Rail mass: 0.52 kg/m | |
| RMW7H | Load type: High load (H) | Height H: 9 mm | Width W: 25 mm | Length L: 41 mm | Rail width WR: 14 mm | Rail mounting bolt: M3x6 | Basic dynamic load rating C: 2.28 kN | Basic static load rating C0: 3.65 kN | Block mass: 0.030 kg | Rail mass: 0.52 kg/m | |
| RMW9C | Load type: Standard (C) | Height H: 12 mm | Width W: 30 mm | Length L: 39.6 mm | Rail width WR: 18 mm | Rail mounting bolt: M3x8 | Basic dynamic load rating C: 3.36 kN | Basic static load rating C0: 5.23 kN | Block mass: 0.040 kg | Rail mass: 0.92 kg/m | |
| RMW9H | Load type: High load (H) | Height H: 12 mm | Width W: 30 mm | Length L: 50.6 mm | Rail width WR: 18 mm | Rail mounting bolt: M3x8 | Basic dynamic load rating C: 4.31 kN | Basic static load rating C0: 7.47 kN | Block mass: 0.060 kg | Rail mass: 0.92 kg/m | |
| RMW12C | Load type: Standard (C) | Height H: 14 mm | Width W: 40 mm | Length L: 47.6 mm | Rail width WR: 24 mm | Rail mounting bolt: M4x8 | Basic dynamic load rating C: 4.63 kN | Basic static load rating C0: 6.89 kN | Block mass: 0.075 kg | Rail mass: 1.5 kg/m | |
| RMW12H | Load type: High load (H) | Height H: 14 mm | Width W: 40 mm | Length L: 60.6 mm | Rail width WR: 24 mm | Rail mounting bolt: M4x8 | Basic dynamic load rating C: 6.03 kN | Basic static load rating C0: 10.06 kN | Block mass: 0.110 kg | Rail mass: 1.5 kg/m | |
| RMW15C | Load type: Standard (C) | Height H: 16 mm | Width W: 60 mm | Length L: 56 mm | Rail width WR: 42 mm | Rail mounting bolt: M4x10 | Basic dynamic load rating C: 8.09 kN | Basic static load rating C0: 11.3 kN | Block mass: 0.150 kg | Rail mass: 2.88 kg/m | |
| RMW15H | Load type: High load (H) | Height H: 16 mm | Width W: 60 mm | Length L: 76 mm | Rail width WR: 42 mm | Rail mounting bolt: M4x10 | Basic dynamic load rating C: 10.74 kN | Basic static load rating C0: 16.95 kN | Block mass: 0.220 kg | Rail mass: 2.88 kg/m |
LM GuidesTPC Mechatronics
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
Need a different model, or a part not listed here? Send us your parts list →
TPC Mechatronics RMW Series Miniature LM Guide (Wide Rail, Sizes 7-15)
Available part numbers (8)
RMW7C, RMW7H, RMW9C, RMW9H, RMW12C, RMW12H, RMW15C, RMW15H
How to order
Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
TPC Mechatronics
LM Guides
Photo on request
Product codes & specifications
| Product code | Spec | ||
|---|---|---|---|
| RMW7C | Load type: Standard (C) | Height H: 9 mm | Width W: 25 mm | Length L: 31.2 mm | Rail width WR: 14 mm | Rail mounting bolt: M3x6 | Basic dynamic load rating C: 1.87 kN | Basic static load rating C0: 2.56 kN | Block mass: 0.020 kg | Rail mass: 0.52 kg/m | ||
| RMW7H | Load type: High load (H) | Height H: 9 mm | Width W: 25 mm | Length L: 41 mm | Rail width WR: 14 mm | Rail mounting bolt: M3x6 | Basic dynamic load rating C: 2.28 kN | Basic static load rating C0: 3.65 kN | Block mass: 0.030 kg | Rail mass: 0.52 kg/m | ||
| RMW9C | Load type: Standard (C) | Height H: 12 mm | Width W: 30 mm | Length L: 39.6 mm | Rail width WR: 18 mm | Rail mounting bolt: M3x8 | Basic dynamic load rating C: 3.36 kN | Basic static load rating C0: 5.23 kN | Block mass: 0.040 kg | Rail mass: 0.92 kg/m | ||
| RMW9H | Load type: High load (H) | Height H: 12 mm | Width W: 30 mm | Length L: 50.6 mm | Rail width WR: 18 mm | Rail mounting bolt: M3x8 | Basic dynamic load rating C: 4.31 kN | Basic static load rating C0: 7.47 kN | Block mass: 0.060 kg | Rail mass: 0.92 kg/m | ||
| RMW12C | Load type: Standard (C) | Height H: 14 mm | Width W: 40 mm | Length L: 47.6 mm | Rail width WR: 24 mm | Rail mounting bolt: M4x8 | Basic dynamic load rating C: 4.63 kN | Basic static load rating C0: 6.89 kN | Block mass: 0.075 kg | Rail mass: 1.5 kg/m | ||
| RMW12H | Load type: High load (H) | Height H: 14 mm | Width W: 40 mm | Length L: 60.6 mm | Rail width WR: 24 mm | Rail mounting bolt: M4x8 | Basic dynamic load rating C: 6.03 kN | Basic static load rating C0: 10.06 kN | Block mass: 0.110 kg | Rail mass: 1.5 kg/m | ||
| RMW15C | Load type: Standard (C) | Height H: 16 mm | Width W: 60 mm | Length L: 56 mm | Rail width WR: 42 mm | Rail mounting bolt: M4x10 | Basic dynamic load rating C: 8.09 kN | Basic static load rating C0: 11.3 kN | Block mass: 0.150 kg | Rail mass: 2.88 kg/m | ||
| RMW15H | Load type: High load (H) | Height H: 16 mm | Width W: 60 mm | Length L: 76 mm | Rail width WR: 42 mm | Rail mounting bolt: M4x10 | Basic dynamic load rating C: 10.74 kN | Basic static load rating C0: 16.95 kN | Block mass: 0.220 kg | Rail mass: 2.88 kg/m |
Need a different model, or a part not listed here? Send us your parts list →
