TPC Mechatronics RNR Series LM Guide Rail for RN Compact Guides (T and U Type)

TPC Mechatronics RNR Series LM Guide Rail for RN Compact Guides (T and U Type)

RNR rails are the guide rails for RN series compact linear guideways.

Key features

  • T-type rails have tapped holes for mounting from below, and U-type rails are bolted from the top
  • Rail length is specified at order

Specifications

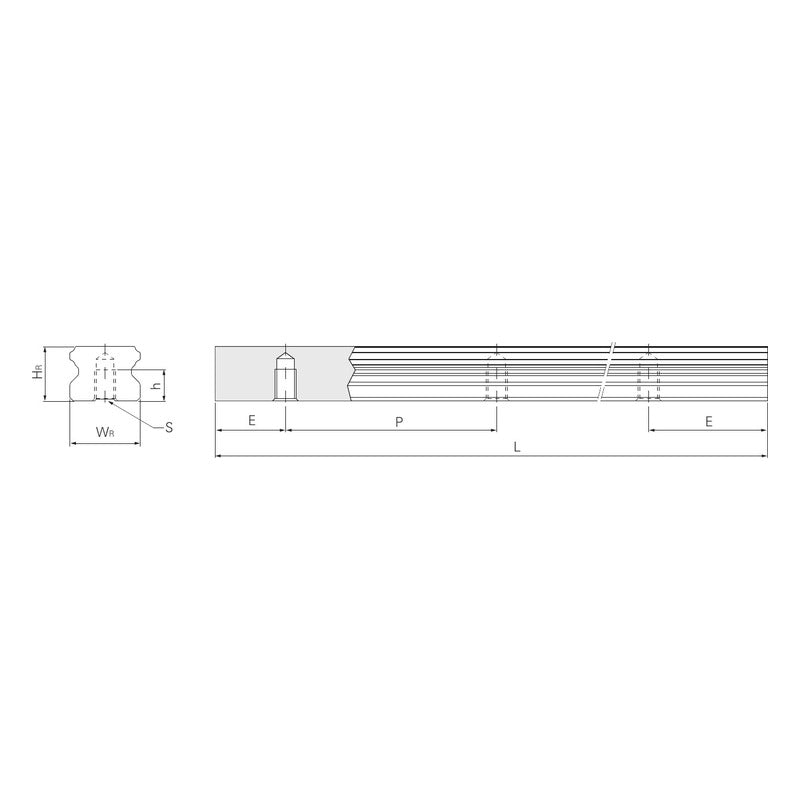

End pitch E 20 mm
TPC Mechatronics RNR Series LM Guide Rail for RN Compact Guides (T and U Type) reference 2
RNR15T Rail width WR: 15 mm | Rail height HR: 12.5 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M5x0.8 | Hole pitch P: 60 mm | End pitch E: 20 mm | Mass: 1.26 kg/m
RNR20T Rail width WR: 20 mm | Rail height HR: 15.5 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M6x1 | Hole pitch P: 60 mm | End pitch E: 20 mm | Mass: 2.15 kg/m
RNR25T Rail width WR: 23 mm | Rail height HR: 18 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M6x1 | Hole pitch P: 60 mm | End pitch E: 20 mm | Mass: 2.79 kg/m
RNR30T Rail width WR: 28 mm | Rail height HR: 23 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M8x1.25 | Hole pitch P: 80 mm | End pitch E: 20 mm | Mass: 4.42 kg/m
RNR35T Rail width WR: 34 mm | Rail height HR: 27.5 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M8x1.25 | Hole pitch P: 80 mm | End pitch E: 20 mm | Mass: 6.34 kg/m
RNR15U Rail width WR: 15 mm | Rail height HR: 12.5 mm | Mounting: Top bolted (U) | Fixing thread/bolt: M4x16 bolt | Hole pitch P: 60 mm | End pitch E: 20 mm | Mass: 1.23 kg/m
RNR30U Rail width WR: 28 mm | Rail height HR: 23 mm | Mounting: Top bolted (U) | Fixing thread/bolt: M8x25 bolt | Hole pitch P: 80 mm | End pitch E: 20 mm | Mass: 4.23 kg/m
LM GuidesTPC Mechatronics
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC Mechatronics RNR Series LM Guide Rail for RN Compact Guides (T and U Type)

Brand TPC Mechatronics·LM Guides

Available part numbers (7)

RNR15T, RNR20T, RNR25T, RNR30T, RNR35T, RNR15U, RNR30U

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
TPC Mechatronics RNR Series LM Guide Rail for RN Compact Guides (T and U Type) reference 2
0 selected
RFQ List (0)
Product codeSpec
RNR15TRail width WR: 15 mm | Rail height HR: 12.5 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M5x0.8 | Hole pitch P: 60 mm | End pitch E: 20 mm | Mass: 1.26 kg/m
RNR20TRail width WR: 20 mm | Rail height HR: 15.5 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M6x1 | Hole pitch P: 60 mm | End pitch E: 20 mm | Mass: 2.15 kg/m
RNR25TRail width WR: 23 mm | Rail height HR: 18 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M6x1 | Hole pitch P: 60 mm | End pitch E: 20 mm | Mass: 2.79 kg/m
RNR30TRail width WR: 28 mm | Rail height HR: 23 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M8x1.25 | Hole pitch P: 80 mm | End pitch E: 20 mm | Mass: 4.42 kg/m
RNR35TRail width WR: 34 mm | Rail height HR: 27.5 mm | Mounting: Bottom tapped (T) | Fixing thread/bolt: M8x1.25 | Hole pitch P: 80 mm | End pitch E: 20 mm | Mass: 6.34 kg/m
RNR15URail width WR: 15 mm | Rail height HR: 12.5 mm | Mounting: Top bolted (U) | Fixing thread/bolt: M4x16 bolt | Hole pitch P: 60 mm | End pitch E: 20 mm | Mass: 1.23 kg/m
RNR30URail width WR: 28 mm | Rail height HR: 23 mm | Mounting: Top bolted (U) | Fixing thread/bolt: M8x25 bolt | Hole pitch P: 80 mm | End pitch E: 20 mm | Mass: 4.23 kg/m
