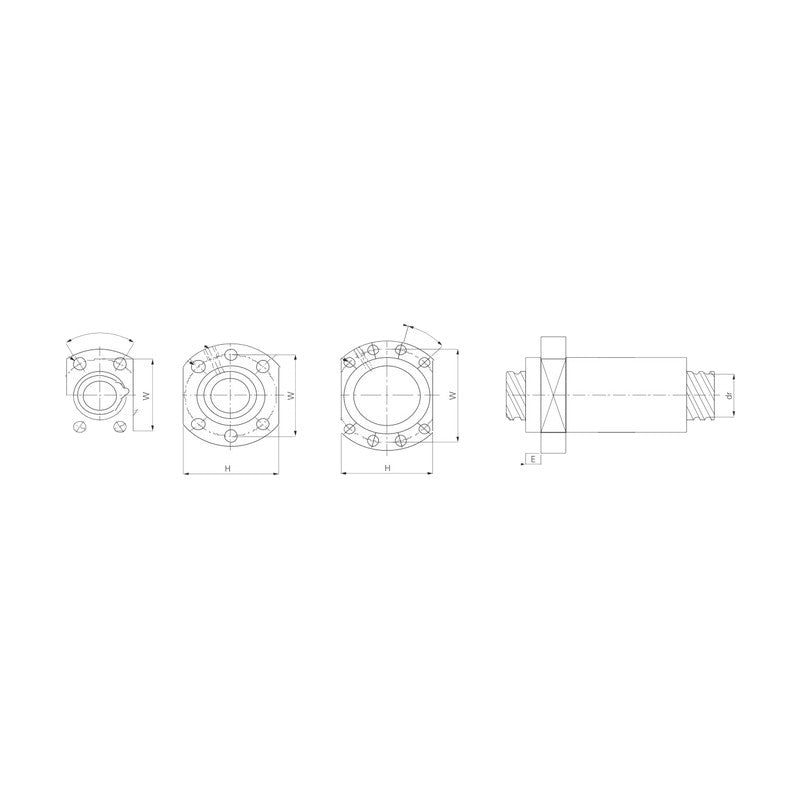

TPC Mechatronics RSFA Series Ball Screw Nut (A-Type, Single Flanged)

The RSFA Series is a precision ball screw nut line from TPC Mechatronics: A-type end-cap circulation single flanged nut, shaft diameters 6-50 mm with leads up to 50 mm.

Key features

Ball screws convert rotary motion into linear motion with high efficiency, reversibility and high positioning precision
End-cap ball circulation allows compact nuts and smooth high-speed travel
Shafts are available ground or rolled in accuracy grades C0 to C10 with selectable axial clearance/preload (P0-P4) and surface treatments
The table lists ball diameter, root diameter, basic dynamic and static load ratings, rigidity and main nut dimensions for each model

RSFAR0602-3.8		Shaft dia. d: 6 mm \| Lead: 2 mm \| Ball dia.: 1.2 mm \| Dynamic load Ca: 240 kgf \| Static load Coa: 436 kgf \| Rigidity K: 13 kgf/μm \| Nut dia. D: 12 mm \| Flange dia. A: 24 mm \| Nut length L: 15 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR0802-3.8		Shaft dia. d: 8 mm \| Lead: 2 mm \| Ball dia.: 1.2 mm \| Dynamic load Ca: 284 kgf \| Static load Coa: 611 kgf \| Rigidity K: 17 kgf/μm \| Nut dia. D: 14 mm \| Flange dia. A: 27 mm \| Nut length L: 17.5 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR0802.5-3.8		Shaft dia. d: 8 mm \| Lead: 2.5 mm \| Ball dia.: 1.2 mm \| Dynamic load Ca: 283 kgf \| Static load Coa: 610 kgf \| Rigidity K: 17 kgf/μm \| Nut dia. D: 14 mm \| Flange dia. A: 27 mm \| Nut length L: 20 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR0805-1.8		Shaft dia. d: 8 mm \| Lead: 5 mm \| Ball dia.: 1.2 mm \| Dynamic load Ca: 154 kgf \| Static load Coa: 301 kgf \| Rigidity K: 9 kgf/μm \| Nut dia. D: 14 mm \| Flange dia. A: 27 mm \| Nut length L: 19 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR1004-3.8		Shaft dia. d: 10 mm \| Lead: 4 mm \| Ball dia.: 2 mm \| Dynamic load Ca: 600 kgf \| Static load Coa: 1208 kgf \| Rigidity K: 22 kgf/μm \| Nut dia. D: 26 mm \| Flange dia. A: 46 mm \| Nut length L: 30 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR1006-2.8		Shaft dia. d: 10 mm \| Lead: 6 mm \| Ball dia.: 1.5875 mm \| Dynamic load Ca: 343 kgf \| Static load Coa: 717 kgf \| Rigidity K: 16 kgf/μm \| Nut dia. D: 18 mm \| Flange dia. A: 35 mm \| Nut length L: 26 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR1012-1.8		Shaft dia. d: 10 mm \| Lead: 12 mm \| Ball dia.: 1.5875 mm \| Dynamic load Ca: 235 kgf \| Static load Coa: 479 kgf \| Rigidity K: 10 kgf/μm \| Nut dia. D: 18 mm \| Flange dia. A: 35 mm \| Nut length L: 32 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR1204-3.8		Shaft dia. d: 12 mm \| Lead: 4 mm \| Ball dia.: 2.5 mm \| Dynamic load Ca: 869 kgf \| Static load Coa: 1761 kgf \| Rigidity K: 26 kgf/μm \| Nut dia. D: 24 mm \| Flange dia. A: 40 mm \| Nut length L: 30 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR1205-2.8		Shaft dia. d: 12 mm \| Lead: 5 mm \| Ball dia.: 2.5 mm \| Dynamic load Ca: 676 kgf \| Static load Coa: 1317 kgf \| Rigidity K: 20 kgf/μm \| Nut dia. D: 24 mm \| Flange dia. A: 40 mm \| Nut length L: 30 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAL1205-2.8		Shaft dia. d: 12 mm \| Lead: 5 mm \| Ball dia.: 2.5 mm \| Dynamic load Ca: 676 kgf \| Static load Coa: 1317 kgf \| Rigidity K: 20 kgf/μm \| Nut dia. D: 24 mm \| Flange dia. A: 40 mm \| Nut length L: 30 mm \| Circuits: 2.8×1 \| Thread direction: Left
RSFAR1210-2.8		Shaft dia. d: 12 mm \| Lead: 10 mm \| Ball dia.: 2.5 mm \| Dynamic load Ca: 655 kgf \| Static load Coa: 1286 kgf \| Rigidity K: 19 kgf/μm \| Nut dia. D: 24 mm \| Flange dia. A: 40 mm \| Nut length L: 42 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR1220-1.8		Shaft dia. d: 12 mm \| Lead: 20 mm \| Ball dia.: 2.5 mm \| Dynamic load Ca: 449 kgf \| Static load Coa: 891 kgf \| Rigidity K: 12 kgf/μm \| Nut dia. D: 24 mm \| Flange dia. A: 40 mm \| Nut length L: 50 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR1605-3.8		Shaft dia. d: 14.8 mm \| Lead: 5 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 1122 kgf \| Static load Coa: 2492 kgf \| Rigidity K: 31 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 31 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAL1605-3.8		Shaft dia. d: 14.8 mm \| Lead: 5 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 1122 kgf \| Static load Coa: 2492 kgf \| Rigidity K: 31 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 31 mm \| Circuits: 3.8×1 \| Thread direction: Left
RSFAR1610-2.8		Shaft dia. d: 14.8 mm \| Lead: 10 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 892 kgf \| Static load Coa: 1949 kgf \| Rigidity K: 24 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 42 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR1616-1.8		Shaft dia. d: 14.8 mm \| Lead: 16 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 606 kgf \| Static load Coa: 1261 kgf \| Rigidity K: 16 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 43 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR1616-2.8		Shaft dia. d: 14.8 mm \| Lead: 16 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 858 kgf \| Static load Coa: 1891 kgf \| Rigidity K: 23 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 59 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR1620-1.8		Shaft dia. d: 14.8 mm \| Lead: 20 mm \| Ball dia.: 2.778 mm \| Dynamic load Ca: 607 kgf \| Static load Coa: 1297 kgf \| Rigidity K: 16 kgf/μm \| Nut dia. D: 28 mm \| Flange dia. A: 48 mm \| Nut length L: 50 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR2005-3.8		Shaft dia. d: 20 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1552 kgf \| Static load Coa: 3879 kgf \| Rigidity K: 39 kgf/μm \| Nut dia. D: 36 mm \| Flange dia. A: 58 mm \| Nut length L: 33 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR2010-3.8		Shaft dia. d: 20 mm \| Lead: 10 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1586 kgf \| Static load Coa: 4039 kgf \| Rigidity K: 41 kgf/μm \| Nut dia. D: 36 mm \| Flange dia. A: 58 mm \| Nut length L: 52 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR2020-1.8		Shaft dia. d: 20 mm \| Lead: 20 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 839 kgf \| Static load Coa: 1951 kgf \| Rigidity K: 20 kgf/μm \| Nut dia. D: 36 mm \| Flange dia. A: 58 mm \| Nut length L: 52 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR2020-2.8		Shaft dia. d: 20 mm \| Lead: 20 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1189 kgf \| Static load Coa: 2926 kgf \| Rigidity K: 30 kgf/μm \| Nut dia. D: 36 mm \| Flange dia. A: 58 mm \| Nut length L: 72 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR2505-3.8		Shaft dia. d: 25 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1726 kgf \| Static load Coa: 4909 kgf \| Rigidity K: 45 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 33 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR2510-3.8		Shaft dia. d: 25 mm \| Lead: 10 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1714 kgf \| Static load Coa: 4882 kgf \| Rigidity K: 46 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 52 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR2520-2.8		Shaft dia. d: 25 mm \| Lead: 20 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1336 kgf \| Static load Coa: 3726 kgf \| Rigidity K: 36 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 76 mm \| Circuits: 2.8×2 \| Thread direction: Right
RSFAR2525-1.8		Shaft dia. d: 25 mm \| Lead: 25 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 923 kgf \| Static load Coa: 2446 kgf \| Rigidity K: 24 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 60 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR2525-2.8		Shaft dia. d: 25 mm \| Lead: 25 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1309 kgf \| Static load Coa: 3669 kgf \| Rigidity K: 35 kgf/μm \| Nut dia. D: 40 mm \| Flange dia. A: 62 mm \| Nut length L: 85 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR3205-3.8		Shaft dia. d: 32 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 1924 kgf \| Static load Coa: 6350 kgf \| Rigidity K: 53 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 35 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR3210-3.8		Shaft dia. d: 31 mm \| Lead: 10 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 2574 kgf \| Static load Coa: 7645 kgf \| Rigidity K: 57 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 53 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR3220-2.8		Shaft dia. d: 31 mm \| Lead: 20 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 2025 kgf \| Static load Coa: 5879 kgf \| Rigidity K: 45 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 72 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR3232-1.8		Shaft dia. d: 31 mm \| Lead: 32 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 1378 kgf \| Static load Coa: 3810 kgf \| Rigidity K: 29 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 78 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR3232-2.8		Shaft dia. d: 31 mm \| Lead: 32 mm \| Ball dia.: 3.969 mm \| Dynamic load Ca: 1952 kgf \| Static load Coa: 5715 kgf \| Rigidity K: 43 kgf/μm \| Nut dia. D: 50 mm \| Flange dia. A: 80 mm \| Nut length L: 110 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR4005-3.8		Shaft dia. d: 40 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2112 kgf \| Static load Coa: 7997 kgf \| Rigidity K: 62 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 39 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR4010-3.8		Shaft dia. d: 38 mm \| Lead: 10 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 5281 kgf \| Static load Coa: 14676 kgf \| Rigidity K: 71 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 57 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR4020-2.8		Shaft dia. d: 38 mm \| Lead: 20 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 4073 kgf \| Static load Coa: 10902 kgf \| Rigidity K: 55 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 78 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR4040-1.8		Shaft dia. d: 38 mm \| Lead: 40 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 2836 kgf \| Static load Coa: 7376 kgf \| Rigidity K: 37 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 96 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR4040-2.8		Shaft dia. d: 38 mm \| Lead: 40 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 4019 kgf \| Static load Coa: 11063 kgf \| Rigidity K: 54 kgf/μm \| Nut dia. D: 63 mm \| Flange dia. A: 93 mm \| Nut length L: 136 mm \| Circuits: 2.8×1 \| Thread direction: Right
RSFAR5005-3.8		Shaft dia. d: 50 mm \| Lead: 5 mm \| Ball dia.: 3.175 mm \| Dynamic load Ca: 2309 kgf \| Static load Coa: 10055 kgf \| Rigidity K: 72 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 42 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR5010-3.8		Shaft dia. d: 48 mm \| Lead: 10 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 5898 kgf \| Static load Coa: 18811 kgf \| Rigidity K: 83 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 57 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR5020-3.8		Shaft dia. d: 48 mm \| Lead: 20 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 6014 kgf \| Static load Coa: 19478 kgf \| Rigidity K: 89 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 98 mm \| Circuits: 3.8×1 \| Thread direction: Right
RSFAR5050-1.8		Shaft dia. d: 48 mm \| Lead: 50 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 3229 kgf \| Static load Coa: 9732 kgf \| Rigidity K: 45 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 117 mm \| Circuits: 1.8×1 \| Thread direction: Right
RSFAR5050-2.8		Shaft dia. d: 48 mm \| Lead: 50 mm \| Ball dia.: 6.35 mm \| Dynamic load Ca: 4576 kgf \| Static load Coa: 14597 kgf \| Rigidity K: 66 kgf/μm \| Nut dia. D: 75 mm \| Flange dia. A: 110 mm \| Nut length L: 167 mm \| Circuits: 2.8×1 \| Thread direction: Right
