TPC Mechatronics RSFBH Series Heavy-Load Ball Screw Nut (Multi-Circuit, Flanged)

The RSFBH Series is a precision ball screw nut line from TPC Mechatronics: Heavy-load flanged nut with 2-4 circuit rows and lubrication ports, for shaft diameters 50-120 mm.

Key features

Ball screws convert rotary motion into linear motion with high efficiency, reversibility and high positioning precision
Large balls and multiple circuits give very high dynamic and static load ratings
Shafts are available ground or rolled in accuracy grades C0 to C10 with selectable axial clearance/preload (P0-P4) and surface treatments

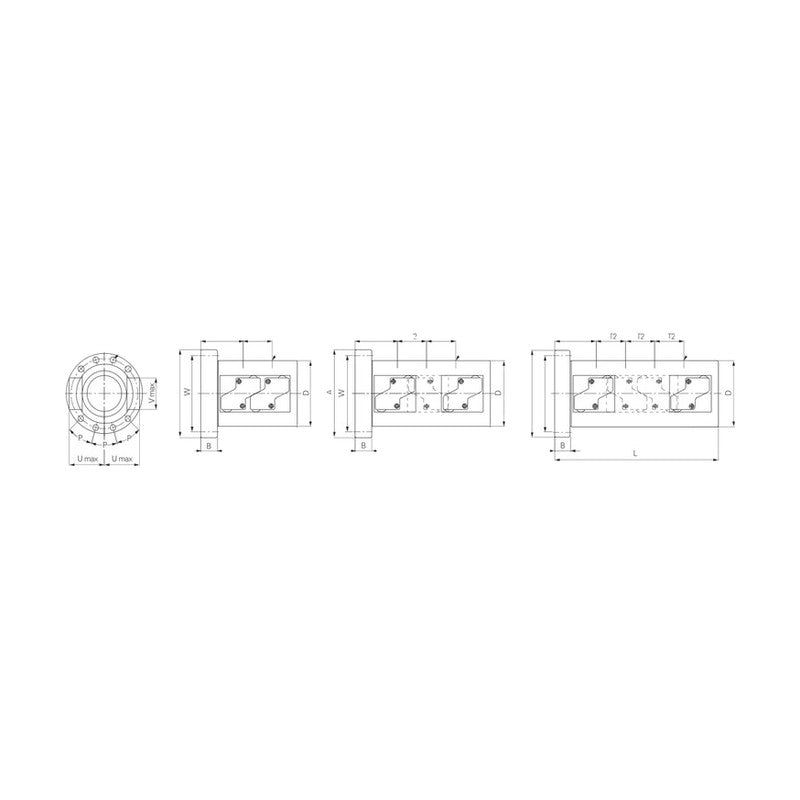

The table lists ball diameter, root diameter, basic dynamic and static load ratings, rigidity and main nut dimensions for each model

Specifications

Thread direction	Right

RSFBHR5014-8.1		Shaft dia. d: 50 mm \| Lead: 14 mm \| Ball dia.: 9.525 mm \| Dynamic load Ca: 22015 kgf \| Static load Coa: 70623 kgf \| Nut length L: 202 mm \| Circuits: 2.7×3 \| Thread direction: Right
RSFBHR5016-8.1		Shaft dia. d: 50 mm \| Lead: 16 mm \| Ball dia.: 12.7 mm \| Dynamic load Ca: 31645 kgf \| Static load Coa: 93696 kgf \| Nut length L: 226 mm \| Circuits: 2.7×3 \| Thread direction: Right
RSFBHR6316-5.4		Shaft dia. d: 63 mm \| Lead: 16 mm \| Ball dia.: 12.7 mm \| Dynamic load Ca: 25224 kgf \| Static load Coa: 78535 kgf \| Nut length L: 164 mm \| Circuits: 2.7×2 \| Thread direction: Right
RSFBHR6316-8.1		Shaft dia. d: 63 mm \| Lead: 16 mm \| Ball dia.: 12.7 mm \| Dynamic load Ca: 35748 kgf \| Static load Coa: 117803 kgf \| Nut length L: 228 mm \| Circuits: 2.7×3 \| Thread direction: Right
RSFBHR6320-5.4		Shaft dia. d: 63 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 33362 kgf \| Static load Coa: 97641 kgf \| Nut length L: 199 mm \| Circuits: 2.7×2 \| Thread direction: Right
RSFBHR6320-8.1		Shaft dia. d: 63 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 47281 kgf \| Static load Coa: 146461 kgf \| Nut length L: 279 mm \| Circuits: 2.7×3 \| Thread direction: Right
RSFBHR8016-7.4		Shaft dia. d: 80 mm \| Lead: 16 mm \| Ball dia.: 12.7 mm \| Dynamic load Ca: 36785 kgf \| Static load Coa: 135509 kgf \| Nut length L: 200 mm \| Circuits: 3.7×2 \| Thread direction: Right
RSFBHR8016-11.1		Shaft dia. d: 80 mm \| Lead: 16 mm \| Ball dia.: 12.7 mm \| Dynamic load Ca: 52132 kgf \| Static load Coa: 203263 kgf \| Nut length L: 278 mm \| Circuits: 3.7×3 \| Thread direction: Right
RSFBHR8016-14.8		Shaft dia. d: 80 mm \| Lead: 16 mm \| Ball dia.: 12.7 mm \| Dynamic load Ca: 66766 kgf \| Static load Coa: 271017 kgf \| Nut length L: 342 mm \| Circuits: 3.7×4 \| Thread direction: Right
RSFBHR8020-7.4		Shaft dia. d: 80 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 48943 kgf \| Static load Coa: 166706 kgf \| Nut length L: 239 mm \| Circuits: 3.7×2 \| Thread direction: Right
RSFBHR8020-11.1		Shaft dia. d: 80 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 69364 kgf \| Static load Coa: 250059 kgf \| Nut length L: 339 mm \| Circuits: 3.7×3 \| Thread direction: Right
RSFBHR8025-5.4		Shaft dia. d: 80 mm \| Lead: 25 mm \| Ball dia.: 19.05 mm \| Dynamic load Ca: 46197 kgf \| Static load Coa: 141328 kgf \| Nut length L: 232 mm \| Circuits: 2.7×2 \| Thread direction: Right
RSFBHR8025-8.1		Shaft dia. d: 80 mm \| Lead: 25 mm \| Ball dia.: 19.05 mm \| Dynamic load Ca: 65472 kgf \| Static load Coa: 211991 kgf \| Nut length L: 332 mm \| Circuits: 2.7×3 \| Thread direction: Right
RSFBHR10020-11.1		Shaft dia. d: 100 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 77935 kgf \| Static load Coa: 317549 kgf \| Nut length L: 339 mm \| Circuits: 3.7×3 \| Thread direction: Right
RSFBHR10020-14.8		Shaft dia. d: 100 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 99811 kgf \| Static load Coa: 423399 kgf \| Nut length L: 419 mm \| Circuits: 3.7×4 \| Thread direction: Right
RSFBHR10025-11.1		Shaft dia. d: 100 mm \| Lead: 25 mm \| Ball dia.: 19.05 mm \| Dynamic load Ca: 99783 kgf \| Static load Coa: 383666 kgf \| Nut length L: 422 mm \| Circuits: 3.7×3 \| Thread direction: Right
RSFBHR10025-14.8		Shaft dia. d: 100 mm \| Lead: 25 mm \| Ball dia.: 19.05 mm \| Dynamic load Ca: 127792 kgf \| Static load Coa: 511554 kgf \| Nut length L: 522 mm \| Circuits: 3.7×4 \| Thread direction: Right
RSFBHR12020-8.1		Shaft dia. d: 120 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 65381 kgf \| Static load Coa: 283691 kgf \| Nut length L: 287 mm \| Circuits: 2.7×3 \| Thread direction: Right
RSFBHR12020-10.8		Shaft dia. d: 120 mm \| Lead: 20 mm \| Ball dia.: 15.875 mm \| Dynamic load Ca: 83734 kgf \| Static load Coa: 378255 kgf \| Nut length L: 347 mm \| Circuits: 2.7×4 \| Thread direction: Right
RSFBHR12025-11.1		Shaft dia. d: 120 mm \| Lead: 25 mm \| Ball dia.: 19.05 mm \| Dynamic load Ca: 108216 kgf \| Static load Coa: 457149 kgf \| Nut length L: 421 mm \| Circuits: 3.7×3 \| Thread direction: Right
RSFBHR12025-14.8		Shaft dia. d: 120 mm \| Lead: 25 mm \| Ball dia.: 19.05 mm \| Dynamic load Ca: 138592 kgf \| Static load Coa: 609533 kgf \| Nut length L: 521 mm \| Circuits: 3.7×4 \| Thread direction: Right

Ball ScrewsTPC Mechatronics

21 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →
