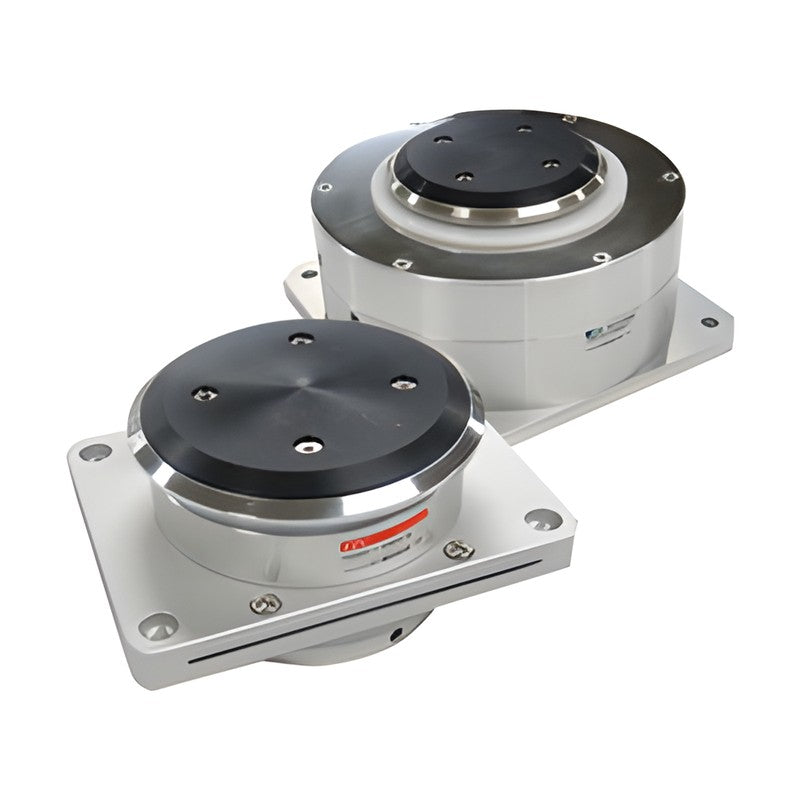

TPC SE Sensing Unit for Cassette Detection (Bore 16, Y/Z Type)

TPC SE Sensing Unit for Cassette Detection (Bore 16, Y/Z Type)

TPC SE16 series spring-return sensing unit with OMRON EE-SX673A photo sensor that detects cassettes at the same height as ACU centering units.

Key features

  • Same mounting height as the C-Unit, so no height spacer is required
  • Ball transfer top plate for low wear; PEEK ball standard, stainless (S) on request
  • Z type for ACU65/ACU100 (standby height 73-95 mm, stroke 10 mm); Y type for ACU130 (98-147 mm, stroke 15 mm)
  • Standby height chosen within the range at order; listed codes are the heights printed in the catalog

Specifications

Action Single acting (spring return)
Bore 16 mm
Sensor OMRON EE-SX673A
Ball material PEEK (standard), STS option
Fluid Air
Source TPC Mechatronics catalog ACU_SE_series_220715_.pdf, p. 4-4
SE16-73-R8097-Z For: ACU65 / ACU100 | Standby height: 73 mm | Sensing stroke: 6-10 mm
SE16-76-R8097-Z For: ACU65 / ACU100 | Standby height: 76 mm | Sensing stroke: 6-10 mm
SE16-110-R8097-Y For: ACU130 | Standby height: 110 mm | Sensing stroke: 8-15 mm
Centering UnitsTPC Mechatronics
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC SE Sensing Unit for Cassette Detection (Bore 16, Y/Z Type)

Brand TPC Mechatronics·Centering Units

Available part numbers (3)

SE16-73-R8097-Z, SE16-76-R8097-Z, SE16-110-R8097-Y

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SE16-73-R8097-ZFor: ACU65 / ACU100 | Standby height: 73 mm | Sensing stroke: 6-10 mm
SE16-76-R8097-ZFor: ACU65 / ACU100 | Standby height: 76 mm | Sensing stroke: 6-10 mm
SE16-110-R8097-YFor: ACU130 | Standby height: 110 mm | Sensing stroke: 8-15 mm
