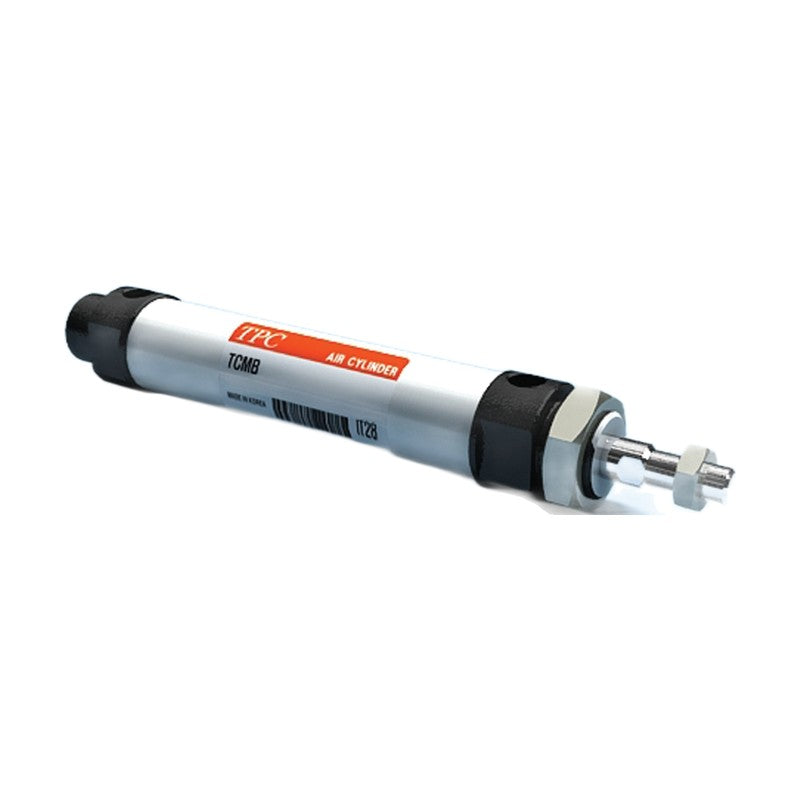

TPC TCM Compact Round Cylinder, Low-Hydraulic (Bore 20-40 mm)

TPC TCM Compact Round Cylinder, Low-Hydraulic (Bore 20-40 mm)

TPC TCM series compact round-body cylinder, low-hydraulic type H for hydraulic operating oil, double acting, bore 20 to 40 mm with eight mounting styles.

Key features

  • Low-hydraulic type H with DYR/HDU rod packing and RPS piston packing for hydraulic operating oil (turbine oil ISO VG22-46)
  • Mountings: basic, axial foot, rod/head flange, single/double clevis, head-end and rod-end trunnion
  • Magnet version (TCDM) for band-mounted D-C73K reed auto switch
  • Bellows J/K, rod-end knuckle I/Y and auto switches ordered as suffixes, not listed

Specifications

Action Double acting
Type H: low-hydraulic
Fluid Hydraulic operating oil
Proof pressure 1.5 MPa
Max. operating pressure 1.0 MPa
Ambient and fluid temperature 5 to 60°C
Stroke tolerance +1.0 (to 250), +1.4 mm (251-500)
Rod thread tolerance KS class 2
Min. operating pressure 0.18 MPa
Piston speed 0.5 to 300 mm/s
Cushion None
Source TPC Mechatronics catalog TCM series (standard) 230525, p. 46-54
TCMBH20-25 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMBH20-50 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMBH20-75 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMBH20-100 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMBH20-125 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMBH20-150 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMBH20-200 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMBH20-250 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMBH20-300 Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMBH25-25 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMBH25-50 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMBH25-75 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMBH25-100 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMBH25-125 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMBH25-150 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMBH25-200 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMBH25-250 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMBH25-300 Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMBH30-25 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMBH30-50 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMBH30-75 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMBH30-100 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMBH30-125 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMBH30-150 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMBH30-200 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMBH30-250 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMBH30-300 Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMBH40-25 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMBH40-50 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMBH40-75 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMBH40-100 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMBH40-125 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMBH40-150 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMBH40-200 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMBH40-250 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMBH40-300 Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMLH20-25 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMLH20-50 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMLH20-75 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMLH20-100 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMLH20-125 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMLH20-150 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMLH20-200 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMLH20-250 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMLH20-300 Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMLH25-25 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMLH25-50 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMLH25-75 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMLH25-100 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMLH25-125 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMLH25-150 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMLH25-200 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMLH25-250 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMLH25-300 Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMLH30-25 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMLH30-50 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMLH30-75 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMLH30-100 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMLH30-125 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMLH30-150 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMLH30-200 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMLH30-250 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMLH30-300 Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMLH40-25 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMLH40-50 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMLH40-75 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMLH40-100 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMLH40-125 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMLH40-150 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMLH40-200 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMLH40-250 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMLH40-300 Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMFH20-25 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMFH20-50 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMFH20-75 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMFH20-100 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMFH20-125 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMFH20-150 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMFH20-200 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMFH20-250 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMFH20-300 Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMFH25-25 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMFH25-50 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMFH25-75 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMFH25-100 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMFH25-125 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMFH25-150 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMFH25-200 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMFH25-250 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMFH25-300 Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMFH30-25 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMFH30-50 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMFH30-75 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMFH30-100 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMFH30-125 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMFH30-150 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMFH30-200 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMFH30-250 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMFH30-300 Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMFH40-25 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMFH40-50 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMFH40-75 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMFH40-100 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMFH40-125 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMFH40-150 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMFH40-200 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMFH40-250 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMFH40-300 Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMGH20-25 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMGH20-50 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMGH20-75 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMGH20-100 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMGH20-125 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMGH20-150 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMGH20-200 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMGH20-250 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMGH20-300 Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMGH25-25 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMGH25-50 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMGH25-75 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMGH25-100 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMGH25-125 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMGH25-150 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMGH25-200 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMGH25-250 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMGH25-300 Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMGH30-25 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMGH30-50 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMGH30-75 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMGH30-100 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMGH30-125 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMGH30-150 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMGH30-200 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMGH30-250 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMGH30-300 Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMGH40-25 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMGH40-50 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMGH40-75 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMGH40-100 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMGH40-125 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMGH40-150 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMGH40-200 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMGH40-250 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMGH40-300 Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMCH20-25 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMCH20-50 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMCH20-75 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMCH20-100 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMCH20-125 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMCH20-150 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMCH20-200 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMCH20-250 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMCH20-300 Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMCH25-25 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMCH25-50 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMCH25-75 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMCH25-100 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMCH25-125 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMCH25-150 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMCH25-200 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMCH25-250 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMCH25-300 Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMCH30-25 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMCH30-50 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMCH30-75 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMCH30-100 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMCH30-125 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMCH30-150 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMCH30-200 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMCH30-250 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMCH30-300 Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMCH40-25 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMCH40-50 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMCH40-75 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMCH40-100 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMCH40-125 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMCH40-150 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMCH40-200 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMCH40-250 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMCH40-300 Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMDH20-25 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMDH20-50 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMDH20-75 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMDH20-100 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMDH20-125 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMDH20-150 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMDH20-200 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMDH20-250 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMDH20-300 Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMDH25-25 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMDH25-50 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMDH25-75 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMDH25-100 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMDH25-125 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMDH25-150 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMDH25-200 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMDH25-250 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMDH25-300 Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMDH30-25 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMDH30-50 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMDH30-75 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMDH30-100 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMDH30-125 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMDH30-150 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMDH30-200 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMDH30-250 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMDH30-300 Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMDH40-25 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMDH40-50 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMDH40-75 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMDH40-100 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMDH40-125 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMDH40-150 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMDH40-200 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMDH40-250 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMDH40-300 Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMTH20-25 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMTH20-50 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMTH20-75 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMTH20-100 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMTH20-125 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMTH20-150 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMTH20-200 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMTH20-250 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMTH20-300 Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMTH25-25 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMTH25-50 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMTH25-75 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMTH25-100 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMTH25-125 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMTH25-150 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMTH25-200 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMTH25-250 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMTH25-300 Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMTH30-25 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMTH30-50 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMTH30-75 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMTH30-100 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMTH30-125 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMTH30-150 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMTH30-200 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMTH30-250 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMTH30-300 Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMTH40-25 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMTH40-50 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMTH40-75 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMTH40-100 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMTH40-125 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMTH40-150 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMTH40-200 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMTH40-250 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMTH40-300 Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMUH20-25 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMUH20-50 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMUH20-75 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMUH20-100 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMUH20-125 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMUH20-150 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMUH20-200 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMUH20-250 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMUH20-300 Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMUH25-25 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMUH25-50 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMUH25-75 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMUH25-100 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMUH25-125 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMUH25-150 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMUH25-200 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMUH25-250 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMUH25-300 Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMUH30-25 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMUH30-50 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMUH30-75 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMUH30-100 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMUH30-125 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMUH30-150 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMUH30-200 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMUH30-250 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMUH30-300 Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMUH40-25 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMUH40-50 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMUH40-75 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMUH40-100 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMUH40-125 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMUH40-150 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMUH40-200 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMUH40-250 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMUH40-300 Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMBH20-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMBH20-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMBH20-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMBH20-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMBH20-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMBH20-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMBH20-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMBH20-250 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMBH20-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMBH25-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMBH25-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMBH25-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMBH25-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMBH25-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMBH25-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMBH25-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMBH25-250 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMBH25-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMBH30-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMBH30-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMBH30-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMBH30-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMBH30-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMBH30-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMBH30-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMBH30-250 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMBH30-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMBH40-25 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMBH40-50 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMBH40-75 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMBH40-100 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMBH40-125 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMBH40-150 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMBH40-200 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMBH40-250 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMBH40-300 Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMLH20-25 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMLH20-50 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMLH20-75 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMLH20-100 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMLH20-125 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMLH20-150 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMLH20-200 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMLH20-250 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMLH20-300 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMLH25-25 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMLH25-50 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMLH25-75 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMLH25-100 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMLH25-125 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMLH25-150 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMLH25-200 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMLH25-250 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMLH25-300 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMLH30-25 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMLH30-50 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMLH30-75 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMLH30-100 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMLH30-125 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMLH30-150 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMLH30-200 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMLH30-250 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMLH30-300 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMLH40-25 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMLH40-50 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMLH40-75 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMLH40-100 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMLH40-125 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMLH40-150 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMLH40-200 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMLH40-250 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMLH40-300 Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMFH20-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMFH20-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMFH20-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMFH20-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMFH20-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMFH20-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMFH20-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMFH20-250 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMFH20-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMFH25-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMFH25-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMFH25-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMFH25-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMFH25-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMFH25-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMFH25-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMFH25-250 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMFH25-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMFH30-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMFH30-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMFH30-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMFH30-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMFH30-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMFH30-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMFH30-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMFH30-250 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMFH30-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMFH40-25 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMFH40-50 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMFH40-75 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMFH40-100 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMFH40-125 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMFH40-150 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMFH40-200 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMFH40-250 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMFH40-300 Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMGH20-25 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMGH20-50 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMGH20-75 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMGH20-100 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMGH20-125 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMGH20-150 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMGH20-200 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMGH20-250 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMGH20-300 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMGH25-25 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMGH25-50 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMGH25-75 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMGH25-100 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMGH25-125 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMGH25-150 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMGH25-200 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMGH25-250 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMGH25-300 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMGH30-25 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMGH30-50 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMGH30-75 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMGH30-100 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMGH30-125 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMGH30-150 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMGH30-200 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMGH30-250 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMGH30-300 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMGH40-25 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMGH40-50 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMGH40-75 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMGH40-100 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMGH40-125 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMGH40-150 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMGH40-200 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMGH40-250 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMGH40-300 Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMCH20-25 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMCH20-50 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMCH20-75 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMCH20-100 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMCH20-125 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMCH20-150 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMCH20-200 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMCH20-250 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMCH20-300 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMCH25-25 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMCH25-50 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMCH25-75 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMCH25-100 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMCH25-125 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMCH25-150 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMCH25-200 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMCH25-250 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMCH25-300 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMCH30-25 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMCH30-50 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMCH30-75 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMCH30-100 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMCH30-125 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMCH30-150 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMCH30-200 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMCH30-250 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMCH30-300 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMCH40-25 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMCH40-50 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMCH40-75 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMCH40-100 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMCH40-125 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMCH40-150 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMCH40-200 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMCH40-250 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMCH40-300 Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMDH20-25 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMDH20-50 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMDH20-75 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMDH20-100 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMDH20-125 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMDH20-150 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMDH20-200 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMDH20-250 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMDH20-300 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMDH25-25 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMDH25-50 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMDH25-75 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMDH25-100 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMDH25-125 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMDH25-150 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMDH25-200 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMDH25-250 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMDH25-300 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMDH30-25 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMDH30-50 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMDH30-75 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMDH30-100 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMDH30-125 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMDH30-150 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMDH30-200 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMDH30-250 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMDH30-300 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMDH40-25 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMDH40-50 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMDH40-75 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMDH40-100 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMDH40-125 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMDH40-150 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMDH40-200 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMDH40-250 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMDH40-300 Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMTH20-25 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMTH20-50 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMTH20-75 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMTH20-100 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMTH20-125 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMTH20-150 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMTH20-200 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMTH20-250 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMTH20-300 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMTH25-25 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMTH25-50 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMTH25-75 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMTH25-100 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMTH25-125 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMTH25-150 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMTH25-200 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMTH25-250 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMTH25-300 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMTH30-25 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMTH30-50 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMTH30-75 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMTH30-100 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMTH30-125 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMTH30-150 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMTH30-200 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMTH30-250 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMTH30-300 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMTH40-25 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMTH40-50 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMTH40-75 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMTH40-100 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMTH40-125 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMTH40-150 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMTH40-200 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMTH40-250 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMTH40-300 Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMUH20-25 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMUH20-50 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMUH20-75 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMUH20-100 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMUH20-125 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMUH20-150 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMUH20-200 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMUH20-250 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMUH20-300 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMUH25-25 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMUH25-50 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMUH25-75 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMUH25-100 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMUH25-125 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMUH25-150 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMUH25-200 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMUH25-250 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMUH25-300 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMUH30-25 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMUH30-50 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMUH30-75 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMUH30-100 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMUH30-125 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMUH30-150 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMUH30-200 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMUH30-250 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMUH30-300 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMUH40-25 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMUH40-50 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMUH40-75 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMUH40-100 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMUH40-125 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMUH40-150 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMUH40-200 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMUH40-250 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMUH40-300 Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
Pneumatic CylindersTPC Mechatronics
576 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

TPC TCM Compact Round Cylinder, Low-Hydraulic (Bore 20-40 mm)

Brand TPC Mechatronics·Pneumatic Cylinders

Available part numbers (576)

TCMBH20-25, TCMBH20-50, TCMBH20-75, TCMBH20-100, TCMBH20-125, TCMBH20-150, TCMBH20-200, TCMBH20-250, TCMBH20-300, TCMBH25-25 + 566 more — see full table ↓

How to order

Send the TPC Mechatronics part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TCMBH20-25Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMBH20-50Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMBH20-75Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMBH20-100Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMBH20-125Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMBH20-150Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMBH20-200Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMBH20-250Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMBH20-300Magnet: None | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMBH25-25Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMBH25-50Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMBH25-75Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMBH25-100Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMBH25-125Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMBH25-150Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMBH25-200Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMBH25-250Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMBH25-300Magnet: None | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMBH30-25Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMBH30-50Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMBH30-75Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMBH30-100Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMBH30-125Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMBH30-150Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMBH30-200Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMBH30-250Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMBH30-300Magnet: None | Mounting: Basic | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMBH40-25Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMBH40-50Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMBH40-75Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMBH40-100Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMBH40-125Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMBH40-150Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMBH40-200Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMBH40-250Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMBH40-300Magnet: None | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMLH20-25Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMLH20-50Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMLH20-75Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMLH20-100Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMLH20-125Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMLH20-150Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMLH20-200Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMLH20-250Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMLH20-300Magnet: None | Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMLH25-25Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMLH25-50Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMLH25-75Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMLH25-100Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMLH25-125Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMLH25-150Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMLH25-200Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMLH25-250Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMLH25-300Magnet: None | Mounting: Axial foot | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMLH30-25Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMLH30-50Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMLH30-75Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMLH30-100Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMLH30-125Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMLH30-150Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMLH30-200Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMLH30-250Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMLH30-300Magnet: None | Mounting: Axial foot | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMLH40-25Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMLH40-50Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMLH40-75Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMLH40-100Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMLH40-125Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMLH40-150Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMLH40-200Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMLH40-250Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMLH40-300Magnet: None | Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMFH20-25Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMFH20-50Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMFH20-75Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMFH20-100Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMFH20-125Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMFH20-150Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMFH20-200Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMFH20-250Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMFH20-300Magnet: None | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMFH25-25Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMFH25-50Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMFH25-75Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMFH25-100Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMFH25-125Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMFH25-150Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMFH25-200Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMFH25-250Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMFH25-300Magnet: None | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMFH30-25Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMFH30-50Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMFH30-75Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMFH30-100Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMFH30-125Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMFH30-150Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMFH30-200Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMFH30-250Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMFH30-300Magnet: None | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMFH40-25Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMFH40-50Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMFH40-75Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMFH40-100Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMFH40-125Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMFH40-150Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMFH40-200Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMFH40-250Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMFH40-300Magnet: None | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMGH20-25Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMGH20-50Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMGH20-75Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMGH20-100Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMGH20-125Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMGH20-150Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMGH20-200Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMGH20-250Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMGH20-300Magnet: None | Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMGH25-25Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMGH25-50Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMGH25-75Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMGH25-100Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMGH25-125Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMGH25-150Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMGH25-200Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMGH25-250Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMGH25-300Magnet: None | Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMGH30-25Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMGH30-50Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMGH30-75Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMGH30-100Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMGH30-125Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMGH30-150Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMGH30-200Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMGH30-250Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMGH30-300Magnet: None | Mounting: Head-end flange | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMGH40-25Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMGH40-50Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMGH40-75Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMGH40-100Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMGH40-125Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMGH40-150Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMGH40-200Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMGH40-250Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMGH40-300Magnet: None | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMCH20-25Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMCH20-50Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMCH20-75Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMCH20-100Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMCH20-125Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMCH20-150Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMCH20-200Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMCH20-250Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMCH20-300Magnet: None | Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMCH25-25Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMCH25-50Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMCH25-75Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMCH25-100Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMCH25-125Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMCH25-150Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMCH25-200Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMCH25-250Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMCH25-300Magnet: None | Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMCH30-25Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMCH30-50Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMCH30-75Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMCH30-100Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMCH30-125Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMCH30-150Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMCH30-200Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMCH30-250Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMCH30-300Magnet: None | Mounting: Single clevis | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMCH40-25Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMCH40-50Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMCH40-75Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMCH40-100Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMCH40-125Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMCH40-150Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMCH40-200Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMCH40-250Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMCH40-300Magnet: None | Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMDH20-25Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMDH20-50Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMDH20-75Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMDH20-100Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMDH20-125Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMDH20-150Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMDH20-200Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMDH20-250Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMDH20-300Magnet: None | Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMDH25-25Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMDH25-50Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMDH25-75Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMDH25-100Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMDH25-125Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMDH25-150Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMDH25-200Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMDH25-250Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMDH25-300Magnet: None | Mounting: Double clevis | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMDH30-25Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMDH30-50Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMDH30-75Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMDH30-100Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMDH30-125Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMDH30-150Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMDH30-200Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMDH30-250Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMDH30-300Magnet: None | Mounting: Double clevis | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMDH40-25Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMDH40-50Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMDH40-75Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMDH40-100Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMDH40-125Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMDH40-150Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMDH40-200Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMDH40-250Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMDH40-300Magnet: None | Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMTH20-25Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMTH20-50Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMTH20-75Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMTH20-100Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMTH20-125Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMTH20-150Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMTH20-200Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMTH20-250Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMTH20-300Magnet: None | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMTH25-25Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMTH25-50Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMTH25-75Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMTH25-100Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMTH25-125Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMTH25-150Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMTH25-200Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMTH25-250Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMTH25-300Magnet: None | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMTH30-25Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMTH30-50Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMTH30-75Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMTH30-100Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMTH30-125Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMTH30-150Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMTH30-200Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMTH30-250Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMTH30-300Magnet: None | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMTH40-25Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMTH40-50Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMTH40-75Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMTH40-100Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMTH40-125Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMTH40-150Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMTH40-200Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMTH40-250Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMTH40-300Magnet: None | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCMUH20-25Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCMUH20-50Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCMUH20-75Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCMUH20-100Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCMUH20-125Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCMUH20-150Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCMUH20-200Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCMUH20-250Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCMUH20-300Magnet: None | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCMUH25-25Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCMUH25-50Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCMUH25-75Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCMUH25-100Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCMUH25-125Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCMUH25-150Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCMUH25-200Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCMUH25-250Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCMUH25-300Magnet: None | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCMUH30-25Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCMUH30-50Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCMUH30-75Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCMUH30-100Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCMUH30-125Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCMUH30-150Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCMUH30-200Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCMUH30-250Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCMUH30-300Magnet: None | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCMUH40-25Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCMUH40-50Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCMUH40-75Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCMUH40-100Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCMUH40-125Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCMUH40-150Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCMUH40-200Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCMUH40-250Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCMUH40-300Magnet: None | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMBH20-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMBH20-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMBH20-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMBH20-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMBH20-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMBH20-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMBH20-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMBH20-250Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMBH20-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMBH25-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMBH25-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMBH25-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMBH25-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMBH25-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMBH25-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMBH25-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMBH25-250Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMBH25-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMBH30-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMBH30-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMBH30-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMBH30-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMBH30-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMBH30-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMBH30-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMBH30-250Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMBH30-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMBH40-25Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMBH40-50Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMBH40-75Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMBH40-100Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMBH40-125Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMBH40-150Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMBH40-200Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMBH40-250Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMBH40-300Magnet: Built-in (switch ready) | Mounting: Basic | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMLH20-25Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMLH20-50Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMLH20-75Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMLH20-100Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMLH20-125Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMLH20-150Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMLH20-200Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMLH20-250Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMLH20-300Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMLH25-25Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMLH25-50Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMLH25-75Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMLH25-100Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMLH25-125Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMLH25-150Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMLH25-200Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMLH25-250Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMLH25-300Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMLH30-25Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMLH30-50Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMLH30-75Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMLH30-100Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMLH30-125Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMLH30-150Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMLH30-200Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMLH30-250Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMLH30-300Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMLH40-25Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMLH40-50Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMLH40-75Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMLH40-100Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMLH40-125Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMLH40-150Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMLH40-200Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMLH40-250Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMLH40-300Magnet: Built-in (switch ready) | Mounting: Axial foot | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMFH20-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMFH20-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMFH20-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMFH20-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMFH20-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMFH20-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMFH20-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMFH20-250Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMFH20-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMFH25-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMFH25-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMFH25-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMFH25-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMFH25-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMFH25-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMFH25-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMFH25-250Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMFH25-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMFH30-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMFH30-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMFH30-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMFH30-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMFH30-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMFH30-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMFH30-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMFH30-250Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMFH30-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMFH40-25Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMFH40-50Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMFH40-75Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMFH40-100Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMFH40-125Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMFH40-150Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMFH40-200Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMFH40-250Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMFH40-300Magnet: Built-in (switch ready) | Mounting: Rod-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMGH20-25Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMGH20-50Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMGH20-75Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMGH20-100Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMGH20-125Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMGH20-150Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMGH20-200Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMGH20-250Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMGH20-300Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMGH25-25Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMGH25-50Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMGH25-75Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMGH25-100Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMGH25-125Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMGH25-150Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMGH25-200Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMGH25-250Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMGH25-300Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMGH30-25Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMGH30-50Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMGH30-75Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMGH30-100Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMGH30-125Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMGH30-150Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMGH30-200Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMGH30-250Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMGH30-300Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMGH40-25Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMGH40-50Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMGH40-75Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMGH40-100Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMGH40-125Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMGH40-150Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMGH40-200Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMGH40-250Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMGH40-300Magnet: Built-in (switch ready) | Mounting: Head-end flange | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMCH20-25Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMCH20-50Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMCH20-75Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMCH20-100Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMCH20-125Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMCH20-150Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMCH20-200Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMCH20-250Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMCH20-300Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMCH25-25Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMCH25-50Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMCH25-75Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMCH25-100Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMCH25-125Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMCH25-150Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMCH25-200Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMCH25-250Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMCH25-300Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMCH30-25Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMCH30-50Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMCH30-75Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMCH30-100Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMCH30-125Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMCH30-150Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMCH30-200Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMCH30-250Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMCH30-300Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMCH40-25Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMCH40-50Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMCH40-75Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMCH40-100Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMCH40-125Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMCH40-150Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMCH40-200Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMCH40-250Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMCH40-300Magnet: Built-in (switch ready) | Mounting: Single clevis | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMDH20-25Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMDH20-50Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMDH20-75Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMDH20-100Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMDH20-125Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMDH20-150Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMDH20-200Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMDH20-250Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMDH20-300Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMDH25-25Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMDH25-50Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMDH25-75Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMDH25-100Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMDH25-125Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMDH25-150Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMDH25-200Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMDH25-250Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMDH25-300Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMDH30-25Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMDH30-50Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMDH30-75Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMDH30-100Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMDH30-125Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMDH30-150Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMDH30-200Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMDH30-250Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMDH30-300Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMDH40-25Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMDH40-50Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMDH40-75Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMDH40-100Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMDH40-125Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMDH40-150Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMDH40-200Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMDH40-250Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMDH40-300Magnet: Built-in (switch ready) | Mounting: Double clevis | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMTH20-25Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMTH20-50Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMTH20-75Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMTH20-100Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMTH20-125Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMTH20-150Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMTH20-200Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMTH20-250Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMTH20-300Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMTH25-25Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMTH25-50Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMTH25-75Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMTH25-100Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMTH25-125Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMTH25-150Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMTH25-200Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMTH25-250Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMTH25-300Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMTH30-25Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMTH30-50Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMTH30-75Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMTH30-100Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMTH30-125Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMTH30-150Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMTH30-200Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMTH30-250Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMTH30-300Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMTH40-25Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMTH40-50Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMTH40-75Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMTH40-100Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMTH40-125Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMTH40-150Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMTH40-200Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMTH40-250Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMTH40-300Magnet: Built-in (switch ready) | Mounting: Head-end trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4
TCDMUH20-25Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 25 mm | Port: Rc1/8
TCDMUH20-50Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 50 mm | Port: Rc1/8
TCDMUH20-75Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 75 mm | Port: Rc1/8
TCDMUH20-100Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 100 mm | Port: Rc1/8
TCDMUH20-125Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 125 mm | Port: Rc1/8
TCDMUH20-150Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 150 mm | Port: Rc1/8
TCDMUH20-200Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 200 mm | Port: Rc1/8
TCDMUH20-250Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 250 mm | Port: Rc1/8
TCDMUH20-300Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 20 mm | Stroke: 300 mm | Port: Rc1/8
TCDMUH25-25Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 25 mm | Port: Rc1/8
TCDMUH25-50Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 50 mm | Port: Rc1/8
TCDMUH25-75Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 75 mm | Port: Rc1/8
TCDMUH25-100Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 100 mm | Port: Rc1/8
TCDMUH25-125Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 125 mm | Port: Rc1/8
TCDMUH25-150Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 150 mm | Port: Rc1/8
TCDMUH25-200Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 200 mm | Port: Rc1/8
TCDMUH25-250Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 250 mm | Port: Rc1/8
TCDMUH25-300Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 25 mm | Stroke: 300 mm | Port: Rc1/8
TCDMUH30-25Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 25 mm | Port: Rc1/8
TCDMUH30-50Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 50 mm | Port: Rc1/8
TCDMUH30-75Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 75 mm | Port: Rc1/8
TCDMUH30-100Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 100 mm | Port: Rc1/8
TCDMUH30-125Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 125 mm | Port: Rc1/8
TCDMUH30-150Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 150 mm | Port: Rc1/8
TCDMUH30-200Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 200 mm | Port: Rc1/8
TCDMUH30-250Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 250 mm | Port: Rc1/8
TCDMUH30-300Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 30 mm | Stroke: 300 mm | Port: Rc1/8
TCDMUH40-25Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 25 mm | Port: Rc1/4
TCDMUH40-50Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 50 mm | Port: Rc1/4
TCDMUH40-75Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 75 mm | Port: Rc1/4
TCDMUH40-100Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 100 mm | Port: Rc1/4
TCDMUH40-125Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 125 mm | Port: Rc1/4
TCDMUH40-150Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 150 mm | Port: Rc1/4
TCDMUH40-200Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 200 mm | Port: Rc1/4
TCDMUH40-250Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 250 mm | Port: Rc1/4
TCDMUH40-300Magnet: Built-in (switch ready) | Mounting: Rod-end trunnion | Bore: 40 mm | Stroke: 300 mm | Port: Rc1/4

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Pneumatics →
